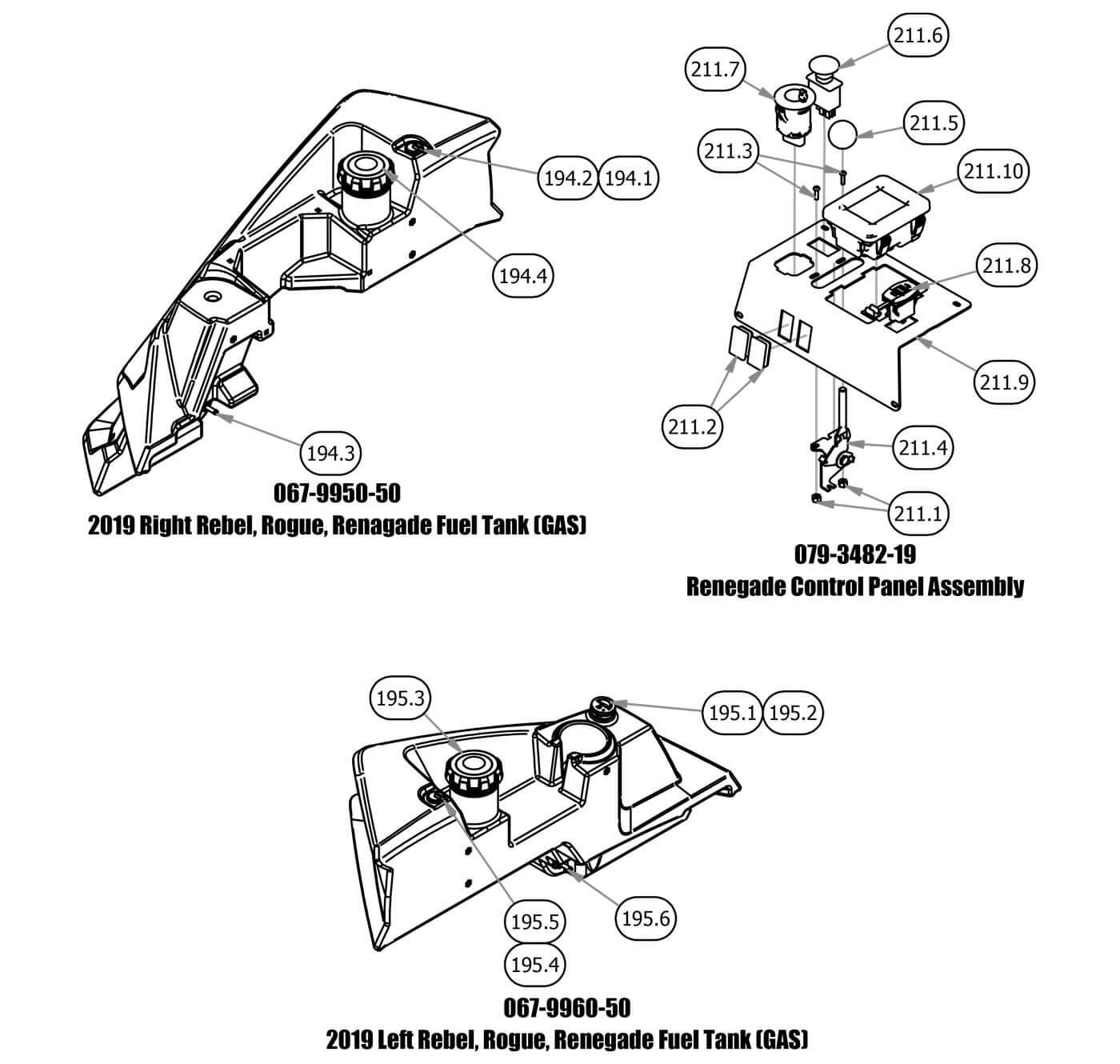

Fuel Tank & Control Panel
Parts Index
- 194.1 Old Style Grommet for Fule Gau (Qty 1)
- 194.2 Rollover Valve and Grommet New (Qty 1)
- 194.3 Fuel Pickup for 2019 Fuel Tanks (Qty 1)
- 194.4 Fuel Tank Cap for 2019 Fuel Tank (Qty 1)
- 195.1 Fuel Gauge Assembly w/ Grommet-2014 ZT,2015 Outlaw (Qty 1)
- 195.2 New Style Grommet for 2017 MZ Magnum Fuel Gauge (Qty 1)
- 195.3 Fuel Tank Cap for 2019 Fuel Tank (Qty 1)
- 195.4 Old Style Grommet for Fule Gau (Qty 1)
- 195.5 Rollover Valve and Grommet New (Qty 1)
- 195.6 Fuel Pickup for 2019 Fuel Tanks (Qty 1)
- 211.1 10-24 Nylon Insert Locknut Zin (Qty 2)
- 211.2 Light Plug (Qty 2)
- 211.3 10-24 X 5/8 BS C/S 18-8 SS (Qty 2)
- 211.4 Universal Throttle Head - 2012 (Qty 1)
- 211.5 Throttle / Brake Head Ball (Qty 1)
- 211.6 PTO Engager-Switch for Blades (Qty 1)
- 211.7 2019 Push to Start Switch w/fob (Qty 1)
- 211.8 USB Port (Qty 1)
- 211.9 Digital Control Panel--Orange (Qty 1)
- 211.10 2019 LED Display (Qty 1)
-
194.1195.4#067-6054-00
Old Style Grommet for Fule Gau
Qty Used: 1Regular price $7.28 USDRegular priceUnit price per
-
194.2195.5#067-6070-00
Rollover Valve and Grommet New
Qty Used: 1Regular price $22.99 USDRegular priceUnit price per
-
194.3195.6#067-9901-00
Fuel Pickup for 2019 Fuel Tanks
Qty Used: 1Regular price $21.22 USDRegular priceUnit price per
-
194.4195.3#067-9904-00
Fuel Tank Cap for 2019 Fuel Tank
Qty Used: 1Regular price $26.53 USDRegular priceUnit price per
-
195.1#067-4080-00
Fuel Gauge Assembly w/ Grommet-2014 ZT,2015 Outlaw
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
195.2#067-6056-00
New Style Grommet for 2017 MZ Magnum Fuel Gauge
Qty Used: 1Regular price $6.49 USDRegular priceUnit price per
-
211.1#013-5019-00
10-24 Nylon Insert Locknut Zin
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
211.2#018-1040-00
Light Plug
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
211.3#018-5200-00
10-24 X 5/8 BS C/S 18-8 SS
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
211.4#055-2012-00
Universal Throttle Head - 2012
Qty Used: 1Regular price $23.87 USDRegular priceUnit price per
-
211.5#055-2013-00
Throttle Head Ball
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
211.6#056-8058-00
PTO Engager-Switch for Blades
Qty Used: 1Regular price $32.05 USDRegular priceUnit price per
-
211.7#077-0004-00
2019 Push to Start Switch w/fob
Qty Used: 1Regular price $58.32 USDRegular priceUnit price per
-
-
211.9#079-3482-00
Digital Control Panel--Orange
Qty Used: 1Regular price $51.75 USDRegular priceUnit price per
-
211.10#086-0013-00
2019 LED Display
Qty Used: 1Regular price $239.99 USDRegular priceUnit price per
