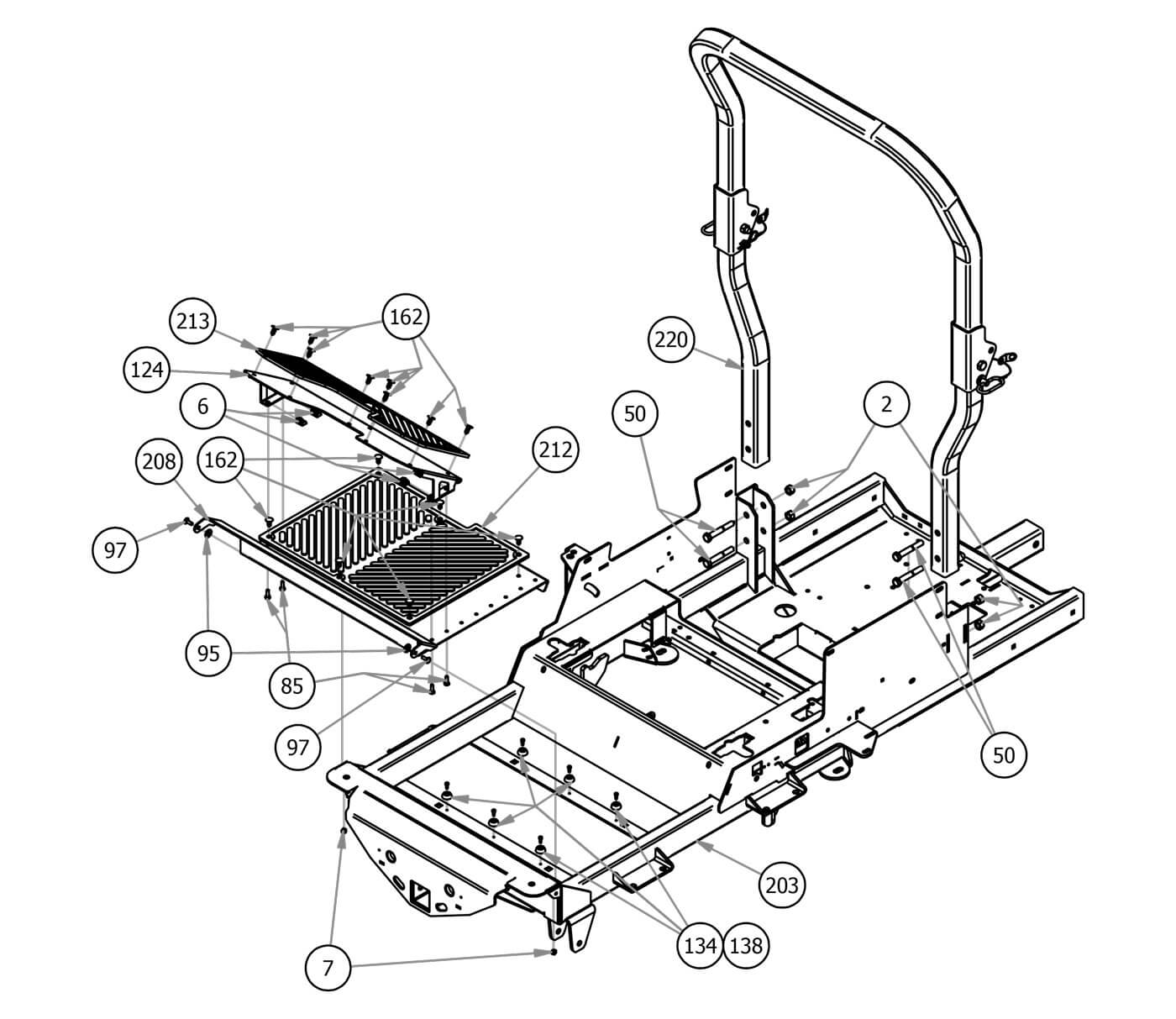

Floorboard & ROPS
Parts Index
- 2 1/2-13 hex 2-WAY REV CNT L/N (GR.B) ZC (Qty 4)
- 6 1/4-20 Cage Nut (Qty 4)
- 7 1/4-20 Nylon Insert Flange Nut (Qty 2)
- 50 1/2-13 X 3.25 Hex Bolt-Grade 5 (Qty 4)
- 85 1/4-20 X 3/4 GR 5 Hex Bolts (Qty 4)
- 95 .360 ID Plastic Washer (Qty 2)
- 97 1/4 x 3/4 Carriage Bolt (Qty 2)
- 124 Adjustable Foot Plate--Orange (Qty 1)
- 134 Button Bumper (Qty 6)
- 138 10 X 1/2 Pan Phil a T/S Zinc (Qty 6)
- 162 Ratchet Fastener - Floorboard (Qty 14)
- 203 2019 Horizontal Gas Frame--Orange (Qty 1)
- 208 2019 Outlaw Floorboard--Orange (Qty 1)
- 212 Mat (Floor) (Qty 1)
- 213 Mat (Foot Plate) (Qty 1)
- 220 2019 2x2 R SERIES Folding Rops (Qty 1)
-
2#013-0005-00
1/2-13 hex 2-WAY REV CNT L/N (GR.B) ZC
Qty Used: 4Regular price $2.69 USDRegular priceUnit price per
-
6#013-0054-00
1/4-20 Cage Nut
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
7#013-2050-00
1/4-20 Nylon Insert Flange Nut
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
50#018-0050-00
1/2-13 X 3.25 Hex Bolt-Grade 5
Qty Used: 4Regular price $1.19 USDRegular priceUnit price per
-
85#018-8052-00
1/4-20 X 3/4 GR 5 Hex Bolts
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
95#019-6042-00
.360 ID Plastic Washer
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
97#019-8040-00
1/4 x 3/4 Carriage Bolt
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
124#026-2230-00
Adjustable Foot Plate--Orange
Qty Used: 1Regular price $66.33 USDRegular priceUnit price per
-
134#029-4010-00
Button Bumper
Qty Used: 6Regular price $1.31 USDRegular priceUnit price per
-
138#030-3050-00
10 X 1/2 Pan Phil a T/S Zinc
Qty Used: 6Regular price $0.79 USDRegular priceUnit price per
-
162#040-6080-00
Ratchet Fastener - Floorboard
Qty Used: 14Regular price $2.91 USDRegular priceUnit price per
-
203#070-5373-19
2019 Horizontal Gas Frame--Orange
Qty Used: 1Regular price $1,061.53 USDRegular priceUnit price per
-
208#079-3155-00
2019 Outlaw Floorboard--Orange
Qty Used: 1Regular price $109.99 USDRegular priceUnit price per
-
212#081-0050-00
Mat (Floor)
Qty Used: 1Regular price $72.99 USDRegular priceUnit price per
-
213#081-0051-00
Mat (Foot Plate)
Qty Used: 1Regular price $72.99 USDRegular priceUnit price per
-
220#089-0006-00
2019 2x2 R SERIES Outlaw Folding Rops
Qty Used: 1Regular price $436.43 USDRegular priceUnit price per
