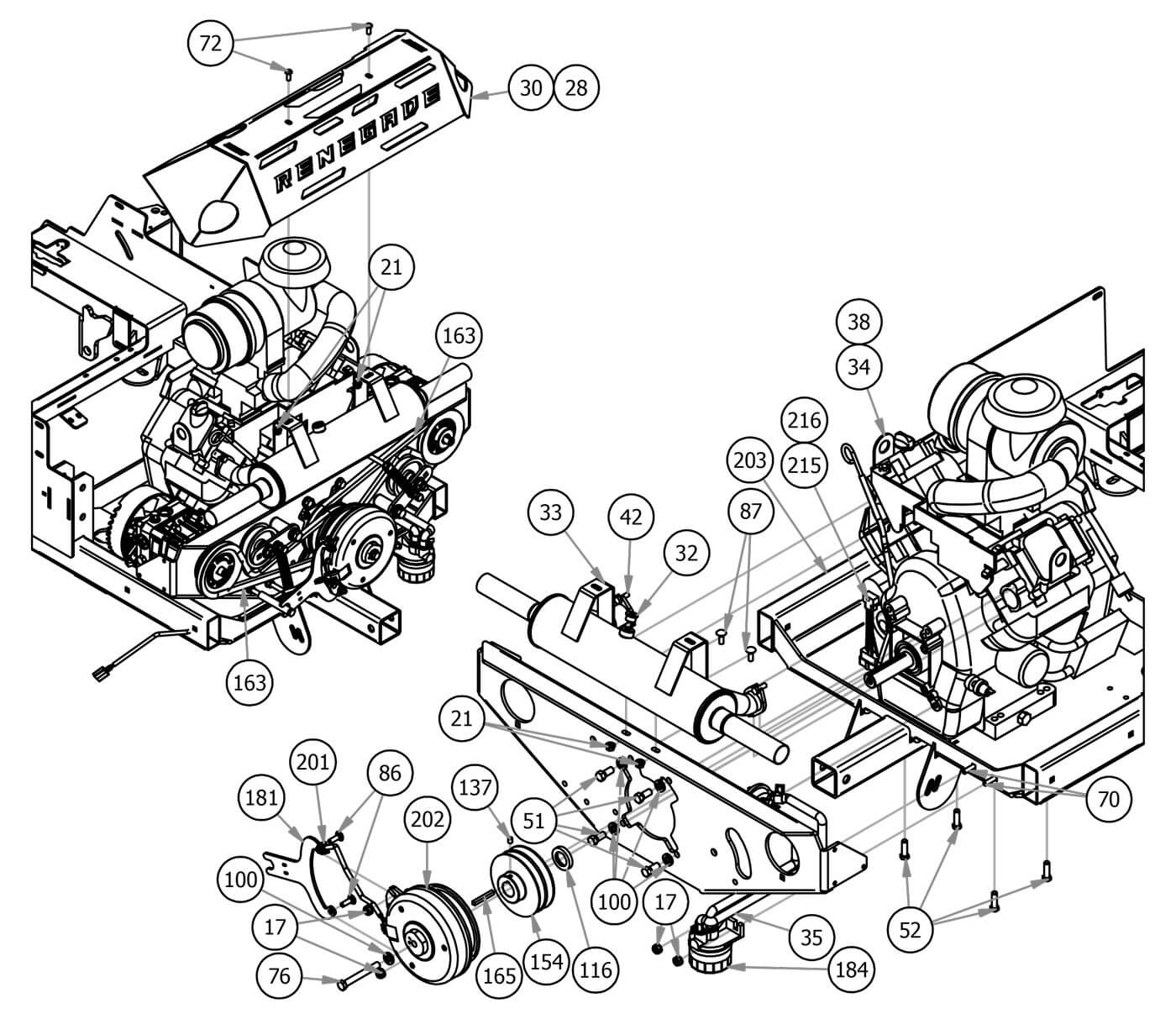

Engine Mounting
Parts Index
- 17 5/16-18 Nylon Flange Nut (Qty 4)
- 21 5/16-18 Hex Flange Nuts Zinc w (Qty 4)
- 28 Muffler Cover--Orange (Qty 1)
- 30 Muffler Cover--Orange (Qty 1)
- 32 O2 Bung Plug 12mm x 1.25 CS (Qty 1)
- 33 2019 Renegade Vanguard 999cc EFI Exhaust (Qty 1)
- 34 2019 Vanguard EFI 37HP 993cc Horizontal Shaft (Qty 1)
- 35 Remote Oil Filter Kit For 015-3002-00 Engine (Qty 1)
- 38 2018 & Down 35hp Vanguard Engine (Qty 1)
- 42 Torx Bolt-Exhaust-23hp Vanguard (Qty 4)
- 51 7/16-14 x 1 Hex Bolt GR 5 Zinc (Qty 4)
- 52 3/8-16 x 2 Hex/ Trilobe Horizontal Engine Bolt (Qty 4)
- 70 5/16-18 X 1-1/4 Carriage Bolt (Qty 2)
- 72 5/16-18 X 3/4 Bolt (Qty 2)
- 76 7/16-20 x 3 1/2" HEX Head GR 8 Bolt (Qty 1)
- 86 5/16-18 X 1 Carriage Bolt Zinc (Qty 2)
- 87 5/16 x 7/8 Carriage Bolt (Qty 2)
- 100 7/16 Lock washer zinc (Qty 5)
- 116 Horizontal Engine Spacer (Qty 1)
- 137 5/16-24 X 3/8 Set Screw (Qty 3)
- 154 Renegade Horizontal Double V Pulley (Qty 1)
- 163 2019 Renegade / 2020 Revolt - Pump Belt (Qty 2)
- 165 1/4 X 2 Square Key Stock (Qty 1)
- 181 2019 Outlaw Renegade Clutch Bracket--Plated (Qty 1)
- 184 Briggs Oil Filter (Qty 1)
- 201 Clutch Pigtail (Qty 1)
- 202 Renegade Clutch (Qty 1)
- 203 2019 Horizontal Gas Frame--Orange (Qty 1)
- 215 2019 Harness Adaptor-36 Vanguard Carb (Qty 1)
- 205 2019 Harness Adaptor- Vanguard 37 EFI Vert/Horiz (Qty 1)
-
17#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
21#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
28#014-5062-00
Muffler Cover--Orange
Qty Used: 1Regular price $26.53 USDRegular priceUnit price per
-
30#014-5064-00
Muffler Cover--Orange
Qty Used: 1Regular price $26.53 USDRegular priceUnit price per
-
32#015-0050-01
O2 Bung Plug 12mm x 1.25 CS
Qty Used: 1Regular price $8.99 USDRegular priceUnit price per
-
33#015-1018-00
2019 Renegade Vanguard 999cc EFI Exhaust
Qty Used: 1Regular price $233.53 USDRegular priceUnit price per
-
34#015-3002-00
2019 Vanguard EFI 37HP 993cc Horizontal Shaft
Qty Used: 1Regular price $3,299.00 USDRegular priceUnit price per
-
35#015-3002-01
Remote Oil Filter Kit For 015-3002-00 Engine
Qty Used: 1Regular price $259.99 USDRegular priceUnit price per
-
38#015-5405-00
2018 & Down 35hp Vanguard Engine
Qty Used: 1Regular price $3,495.00 USDRegular priceUnit price per
-
42#018-0017-00
Torx Bolt-Exhaust-23hp Vanguard
Qty Used: 4Regular price $5.29 USDRegular priceUnit price per
-
51#018-0053-00
7/16-14 x 1 Hex Bolt GR 5 Zinc
Qty Used: 4Regular price $1.99 USDRegular priceUnit price per
-
52#018-0061-00
3/8-16 x 2 Hex/ Trilobe Horizontal Engine Bolt
Qty Used: 4Regular price $5.39 USDRegular priceUnit price per
-
70#018-4703-00
5/16-18 X 1-1/4 Carriage Bolt
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
72#018-5007-00
5/16-18 X 3/4 Bolt
Qty Used: 2Regular price $0.89 USDRegular priceUnit price per
-
76#018-5052-00
7/16-20 x 3 1/2" HEX Head GR 8 Bolt
Qty Used: 1Regular price $3.99 USDRegular priceUnit price per
-
86#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
87#018-8066-00
5/16 x 7/8 Carriage Bolt
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
100#019-8053-00
7/16 Lock washer zinc
Qty Used: 5Regular price $0.69 USDRegular priceUnit price per
-
116#025-0076-00
Horizontal Engine Spacer
Qty Used: 1Regular price $7.99 USDRegular priceUnit price per
-
137#030-0075-00
5/16-24 X 3/8 Set Screw
Qty Used: 3Regular price $1.49 USDRegular priceUnit price per
-
154#033-8001-00
2019 Outlaw Renegade Horizontal Double V Pulley
Qty Used: 1Regular price $43.99 USDRegular priceUnit price per
-
163#041-8000-00
2019 Renegade / 2020 Revolt - Pump Belt
Qty Used: 2Regular price $74.99 USDRegular priceUnit price per
-
165#042-5020-00
1/4 X 2 Square Key Stock
Qty Used: 1Regular price $2.92 USDRegular priceUnit price per
-
181#057-5919-00
2019 Outlaw Renegade Clutch Bracket--Plated
Qty Used: 1Regular price $26.53 USDRegular priceUnit price per
-
184#063-8018-00
Briggs Oil Filter
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
201#070-2000-00
Clutch Pigtail
Qty Used: 1Regular price $19.85 USDRegular priceUnit price per
-
202#070-5040-00
Renegade Clutch
Qty Used: 1Regular price $359.99 USDRegular priceUnit price per
-
203#070-5373-19
2019 Horizontal Gas Frame--Orange
Qty Used: 1Regular price $1,061.53 USDRegular priceUnit price per
-
215#086-9001-19
2019 Harness Adaptor-36 Vanguard Carb
Qty Used: 1Regular price $49.99 USDRegular priceUnit price per
-
205#086-9013-00
2019 Harness Adaptor- Vanguard 37 EFI Vert/Horiz
Qty Used: 1Regular price $26.53 USDRegular priceUnit price per
