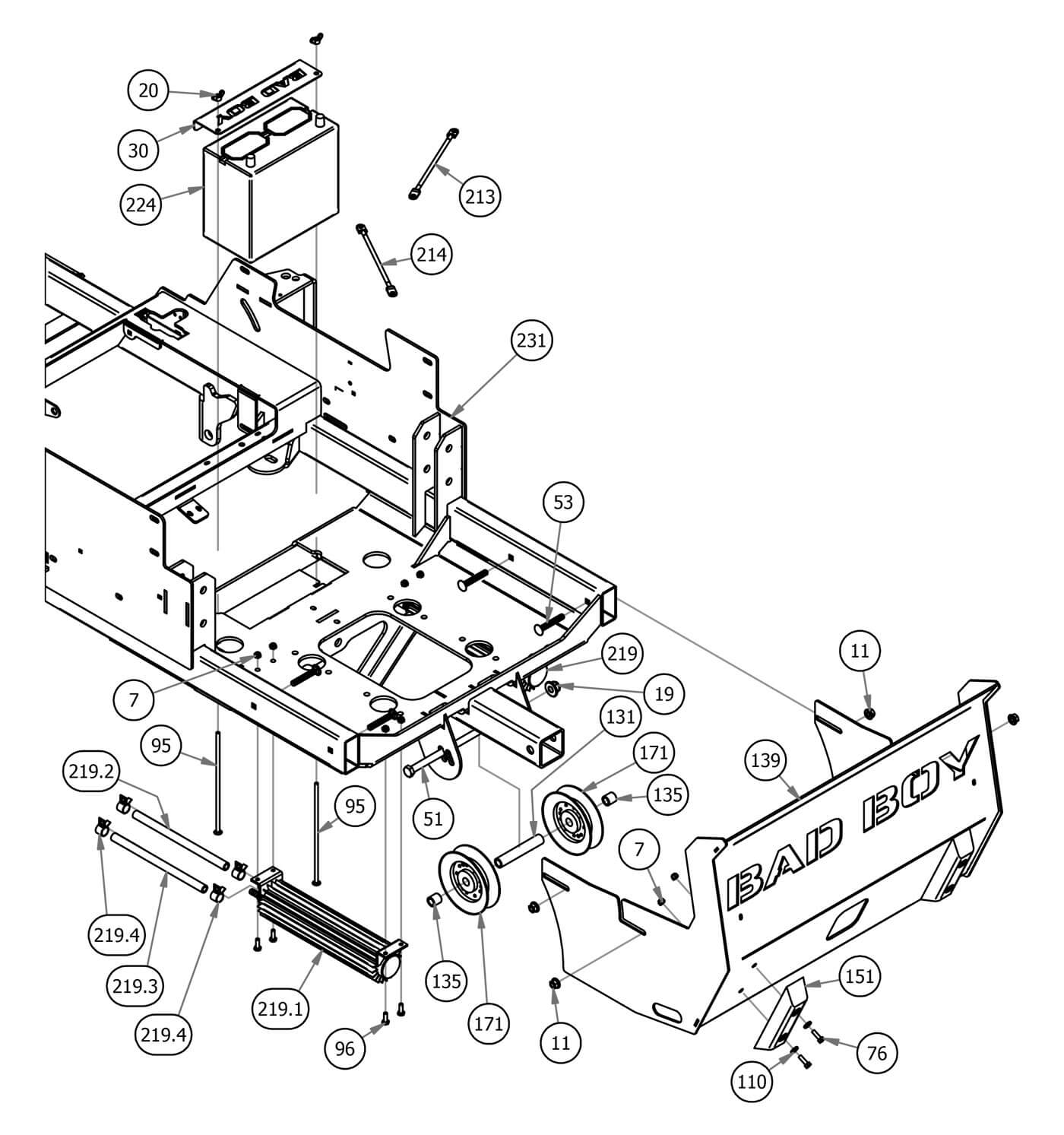

Rear Cover & Hydraulic Coolers
Parts Index
- 7 1/4-20 Nylon Insert Flange Nut (Qty 12)
- 11 3/8 Nylock Flange Nut (Qty 4)
- 19 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 20 1/4-20 Wing Nuts Zinc (Qty 2)
- 30 Battery Hold Down Cover--Orange (Qty 1)
- 51 1/2-13x8 1/2 Gr5 Hex Bolt (Qty 1)
- 53 3/8 x 2 1/2 Carriage Bolt (Qty 4)
- 76 1/4-20 X 1-1/4 GR 5 Hex Bolt (Qty 4)
- 95 1/4-20 X 9 Carriage Bolts Zinc (Qty 2)
- 96 1/4-20 X 3/4 GR 5 Hex Bolts (Qty 8)
- 110 1/4 USS Flat Washer Zinc (Qty 4)
- 131 2019 Pulley Spacer .75 x 4.375 x .5 ID (Qty 1)
- 135 Spacer 3/4ODx1/2IDx0.75 (Qty 2)
- 139 2019 Horizontal Suspension Rear Cover--Orange (Qty 1)
- 151 8 Bumper (Qty 2)
- 171 2019 Outlaw Horizontal Rear V Pulley (Qty 2)
- 213 Red Battery Cable - Diesel (Qty 1)
- 214 Black Battery Cable - Diesel (Qty 1)
- 219 Renegade Oil Cooler-Assy (Qty 2)
- 219.1 Oil Cooler( with fittings ) (Qty 1)
- 219.2 14" 3/8 Clear Hose No Clamp (Qty 1)
- 219.3 24" 3/8 Clear Hose No Clamps (Qty 1)
- 219.4 3/8 Hose Clamp - CTB-16-STFS (Qty 4)
- 224 Battery - Renegade (Qty 1)
- 231 2019 Horizontal Diesel Frame (Qty 1)
-
7#013-2050-00
1/4-20 Nylon Insert Flange Nut
Qty Used: 12Regular price $1.39 USDRegular priceUnit price per
-
11#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 4Regular price $1.49 USDRegular priceUnit price per
-
19#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
20#013-8051-00
1/4-20 Wing Nuts Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
30#014-5063-00
Battery Hold Down Cover--Orange
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
51#018-0040-00
1/2-13x8 1/2 Gr5 Hex Bolt
Qty Used: 1Regular price $14.59 USDRegular priceUnit price per
-
53#018-0044-00
3/8 x 2 1/2 Carriage Bolt
Qty Used: 4Regular price $2.69 USDRegular priceUnit price per
-
76#018-4702-00
1/4-20 X 1-1/4 GR 5 Hex Bolt
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
95#018-8051-00
1/4-20 X 9 Carriage Bolts Zinc
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
96#018-8052-00
1/4-20 X 3/4 GR 5 Hex Bolts
Qty Used: 8Regular price $0.69 USDRegular priceUnit price per
-
110#019-7040-00
1/4 USS Flat Washer Zinc
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
131#025-0028-00
2019 Pulley Spacer .75 x 4.375 x .5 ID
Qty Used: 1Regular price $8.74 USDRegular priceUnit price per
-
135#025-5203-00
Spacer 3/4ODx1/2IDx0.75
Qty Used: 2Regular price $2.99 USDRegular priceUnit price per
-
139#026-2224-00
2019 Horizontal Suspension Rear Cover--Orange
Qty Used: 1Regular price $169.99 USDRegular priceUnit price per
-
-
171#033-7027-00
2019 Outlaw Horizontal Rear V Pulley
Qty Used: 2Regular price $43.78 USDRegular priceUnit price per
-
213#064-4000-00
Red Battery Cable - Diesel
Qty Used: 1Regular price $20.85 USDRegular priceUnit price per
-
214#064-4001-00
Black Battery Cable - Diesel
Qty Used: 1Regular price $20.85 USDRegular priceUnit price per
-
219#067-8052-19
Renegade Oil Cooler-Assy
Qty Used: 2Regular price $66.33 USDRegular priceUnit price per
-
219.1#067-8052-00
Oil Cooler( with fittings )
Qty Used: 1Regular price $58.37 USDRegular priceUnit price per
-
219.2#051-8063-14
14" 3/8 Clear Hose No Clamp
Qty Used: 1Regular price $5.49 USDRegular priceUnit price per
-
219.3#051-8063-24
24" 3/8 Clear Hose No Clamps
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
219.4#072-8065-00
3/8 Hose Clamp - CTB-16-STFS
Qty Used: 4Regular price $0.88 USDRegular priceUnit price per
-
224#068-8050-00
Battery - Diesel/Renegade Models M -51
Qty Used: 1Regular price $134.99 USDRegular priceUnit price per
-
No sequence found for SKU:
2019 Horizontal Diesel Frame
Regular price $0.00 USDRegular priceUnit price per
