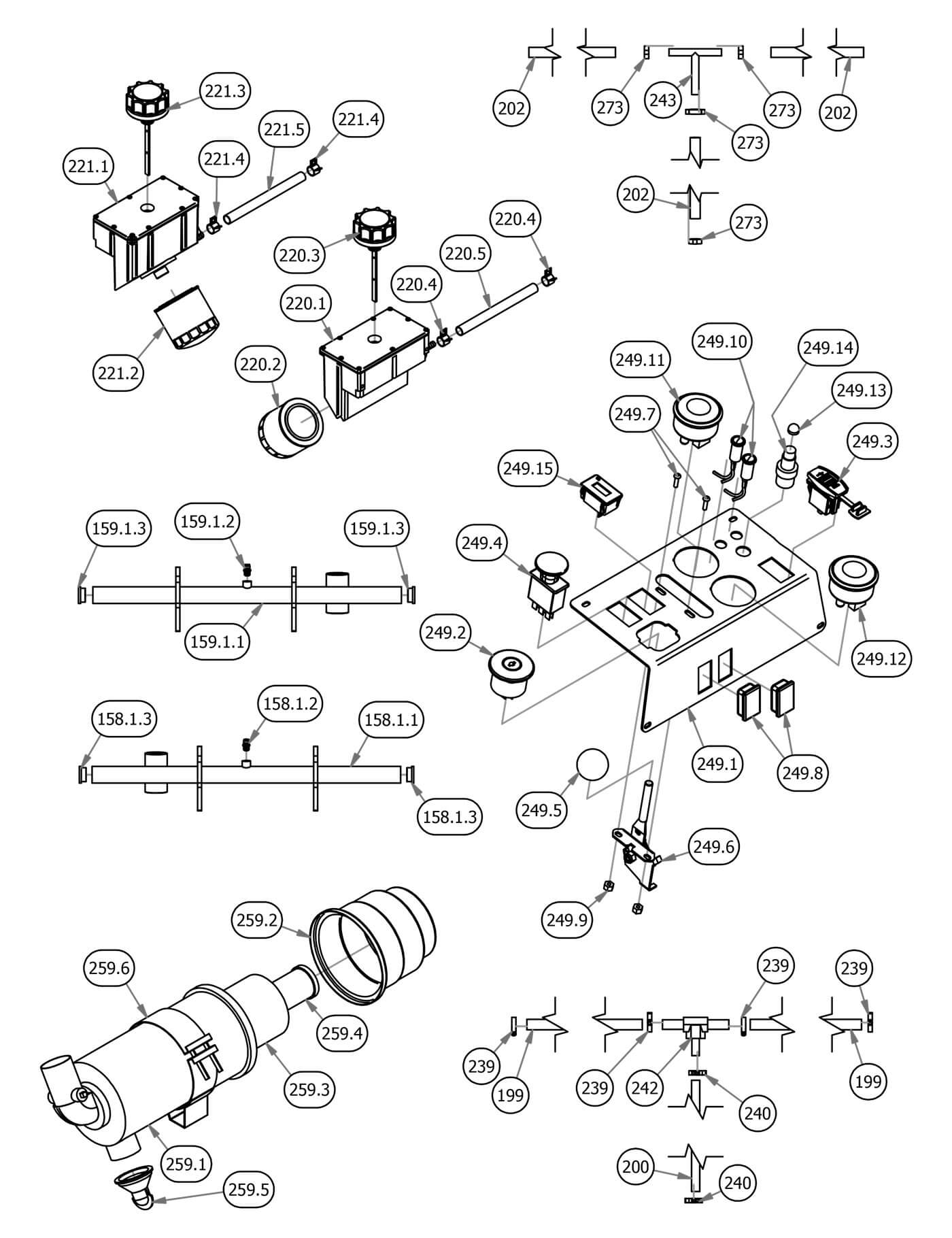

Hydro Tank, Drive Arms Cannister, Fuel Line, Control Panel
Parts Index
- 158.1 Drive Arm Actuator RH (Qty 1)
- 158.1.2 1/4 Drive-in Grease Fitting (Qty 1)
- 158.1.3 Drive Arm Actuator Bushing (Qty 2)
- 159.1 Drive Arm Actuator LH (Qty 1)
- 159.1.2 1/4 Drive-in Grease Fitting (Qty 1)
- 159.1.3 Drive Arm Actuator Bushing (Qty 2)
- 220 LH Renegade Hydro Tank Assy (Qty 1)
- 220.1 2019 RG/RN Hydro Tank LH (Qty 1)
- 220.2 Hydraulic Filter-All Models (Qty 1)
- 220.3 Hydraulic Tank Cap w/Dipstick (Qty 1)
- 220.4 1/2 Hose Clamp (Qty 2)
- 220.5 21" 1/2 Braided Hose (Qty 1)
- 221 RH Renegade Hydro Tank Assy (Qty 1)
- 221.1 2019 RG/RN Hydro Tank RH (Qty 1)
- 221.2 Hydraulic Filter-All Models (Qty 1)
- 221.3 Hydraulic Tank Cap w/Dipstick (Qty 1)
- 221.4 1/2 Hose Clamp (Qty 2)
- 221.5 21" 1/2 Braided Hose (Qty 1)
- 259 Enginaire Canister VLR-Complet (Qty 1)
- 259.1 Canister forAll Diesel Air (Qty 1)
- 259.2 Enginaire air canister cap (Qty 1)
- 259.3 Diesel Air Filter - Outer (Qty 1)
- 259.4 Diesel Air Filter - Inner (Qty 1)
- 259.5 Debris Plug-Enginaire Filter (Qty 1)
- 259.6 Mounting Bracket for Diesel Ai (Qty 1)
- 202 5/16 Fuel Line Hose (Qty 3)
- 243 5/16 x 5/16 x 5/16 Fuel Line T (Qty 1)
- 273 12.5mm/15mm OETIKER 2 Ear Clamp (Qty 4)
- 249 Renegade Diesel Control Panel Assy (Qty 1)
- 249.2 Control Panel--Orange (Qty 1)
- 249.3 USB Port (Qty 1)
- 249.4 PTO Engager-Switch for Blades (Qty 1)
- 249.5 Throttle / Brake Head Ball (Qty 1)
- 249.6 Universal Throttle Head - 2012 (Qty 1)
- 249.7 10-24 X 5/8 BS C/S 18-8 SS (Qty 2)
- 249.8 Light Plug (Qty 2)
- 249.9 10-24 Nylon Insert Locknut Zin (Qty 2)
- 249.10 Oil Light (Qty 2)
- 249.11 2" Oil Pressure Gauge (Qty 1)
- 249.12 2" Water Temperature Gauge (Qty 1)
- 249.13 Start Switch Boot - Diesel (Qty 1)
- 249.14 Momentary Start Switch (Qty 1)
- 249.15 Tachometer-N310-0100-1018 (Qty 1)
- 199 1/4 Fuel Line Hose PRICED/FOOT (Qty 2)
- 200 3/16 Fuel Line (Qty 1)
- 239 1/4 Fuel Line Clamp (Qty 4)
- 240 MZ Tank Hose Clamp 1/4 Vinyl (Qty 2)
- 242 Brass Fuel Line T - Diesels (Qty 1)
-
158.1#031-0030-00
Drive Arm Actuator RH
Qty Used: 1Regular price $43.72 USDRegular priceUnit price per
-
158.1.2159.1.2#024-6034-00
1/4 Drive-in Grease Fitting
Qty Used: 1Regular price $0.66 USDRegular priceUnit price per
-
158.1.3159.1.3#031-0032-00
Drive Arm Actuator Bushing
Qty Used: 2Regular price $6.62 USDRegular priceUnit price per
-
159.1#031-0031-00
Drive Arm Actuator LH
Qty Used: 1Regular price $43.72 USDRegular priceUnit price per
-
220#067-8053-18
LH Renegade Hydro Tank Assy
Qty Used: 1Regular price $201.96 USDRegular priceUnit price per
-
220.1#067-8053-00
2019 RG/RN Hydro Tank LH
Qty Used: 1Regular price $149.99 USDRegular priceUnit price per
-
220.2221.2#063-8014-00
Hydraulic Filter-All Models
Qty Used: 1Regular price $29.13 USDRegular priceUnit price per
-
220.3221.3#066-8050-00
Hydraulic Tank Cap w/Dipstick
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
220.4221.4#072-8066-00
1/2 Hose Clamp
Qty Used: 2Regular price $0.88 USDRegular priceUnit price per
-
220.5221.5#051-8064-21
21" 1/2 Braided Hose
Qty Used: 1Regular price $10.60 USDRegular priceUnit price per
-
221#067-8054-18
RH Renegade Hydro Tank Assy
Qty Used: 1Regular price $201.96 USDRegular priceUnit price per
-
221.1#067-8054-00
2019 RG/RN Hydro Tank RH
Qty Used: 1Regular price $149.99 USDRegular priceUnit price per
-
259#088-1010-50
Enginaire Canister VLR-Complet
Qty Used: 1Regular price $197.71 USDRegular priceUnit price per
-
259.1#088-1018-00
Canister forAll Diesel Air
Qty Used: 1Regular price $79.60 USDRegular priceUnit price per
-
259.2#088-1017-00
Enginaire air canister cap
Qty Used: 1Regular price $59.99 USDRegular priceUnit price per
-
259.3#063-2050-00
Diesel Air Filter - Outer
Qty Used: 1Regular price $43.72 USDRegular priceUnit price per
-
259.4#063-2060-00
Diesel Air Filter - Inner
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
259.5#088-1020-00
Debris Plug-Enginaire Filter
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
259.6#088-1019-00
Mounting Bracket for Diesel Ai
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
202#051-8075-00
5/16 Fuel Line Hose
Qty Used: 3Regular price $4.37 USDRegular priceUnit price per
-
243#073-8070-00
5/16 x 5/16 x 5/16 Fuel Line T
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
273#072-8076-00
12.5mm/15mm OETIKER 2 Ear Clamp
Qty Used: 4Regular price $1.99 USDRegular priceUnit price per
-
249#079-3480-19
Renegade Diesel Control Panel Assy
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
249.2#079-3480-00
Control Panel--Orange
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
-
249.4#056-8058-00
PTO Engager-Switch for Blades
Qty Used: 1Regular price $32.05 USDRegular priceUnit price per
-
249.5#055-2013-00
Throttle Head Ball
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
249.6#055-2012-00
Universal Throttle Head - 2012
Qty Used: 1Regular price $23.87 USDRegular priceUnit price per
-
249.7#018-5200-00
10-24 X 5/8 BS C/S 18-8 SS
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
249.8#018-1040-00
Light Plug
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
249.9#013-5019-00
10-24 Nylon Insert Locknut Zin
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
-
249.11#086-7000-00
2" Oil Pressure Gauge
Qty Used: 1Regular price $100.71 USDRegular priceUnit price per
-
249.12#086-7001-00
2" Water Temperature Gauge
Qty Used: 1Regular price $100.71 USDRegular priceUnit price per
-
249.13#014-6000-00
Start Switch Boot - Diesel
Qty Used: 1Regular price $4.43 USDRegular priceUnit price per
-
249.14#077-6000-00
Momentary Start Switch
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
249.15#083-4013-00
Tachometer-N310-0100-1018
Qty Used: 1Regular price $69.99 USDRegular priceUnit price per
-
199#051-8067-00
1/4 Fuel Line Hose PRICED/FOOT
Qty Used: 2Regular price $5.83 USDRegular priceUnit price per
-
200#051-8068-00
3/16 Fuel Line
Qty Used: 1Regular price $3.26 USDRegular priceUnit price per
-
239#072-8069-00
1/4 Fuel Line Clamp
Qty Used: 4Regular price $0.88 USDRegular priceUnit price per
-
240#072-8070-00
MZ Tank Hose Clamp 1/4 Vinyl
Qty Used: 2Regular price $1.45 USDRegular priceUnit price per
-
242#073-2000-00
Brass Fuel Line T - Diesels
Qty Used: 1Regular price $9.28 USDRegular priceUnit price per
