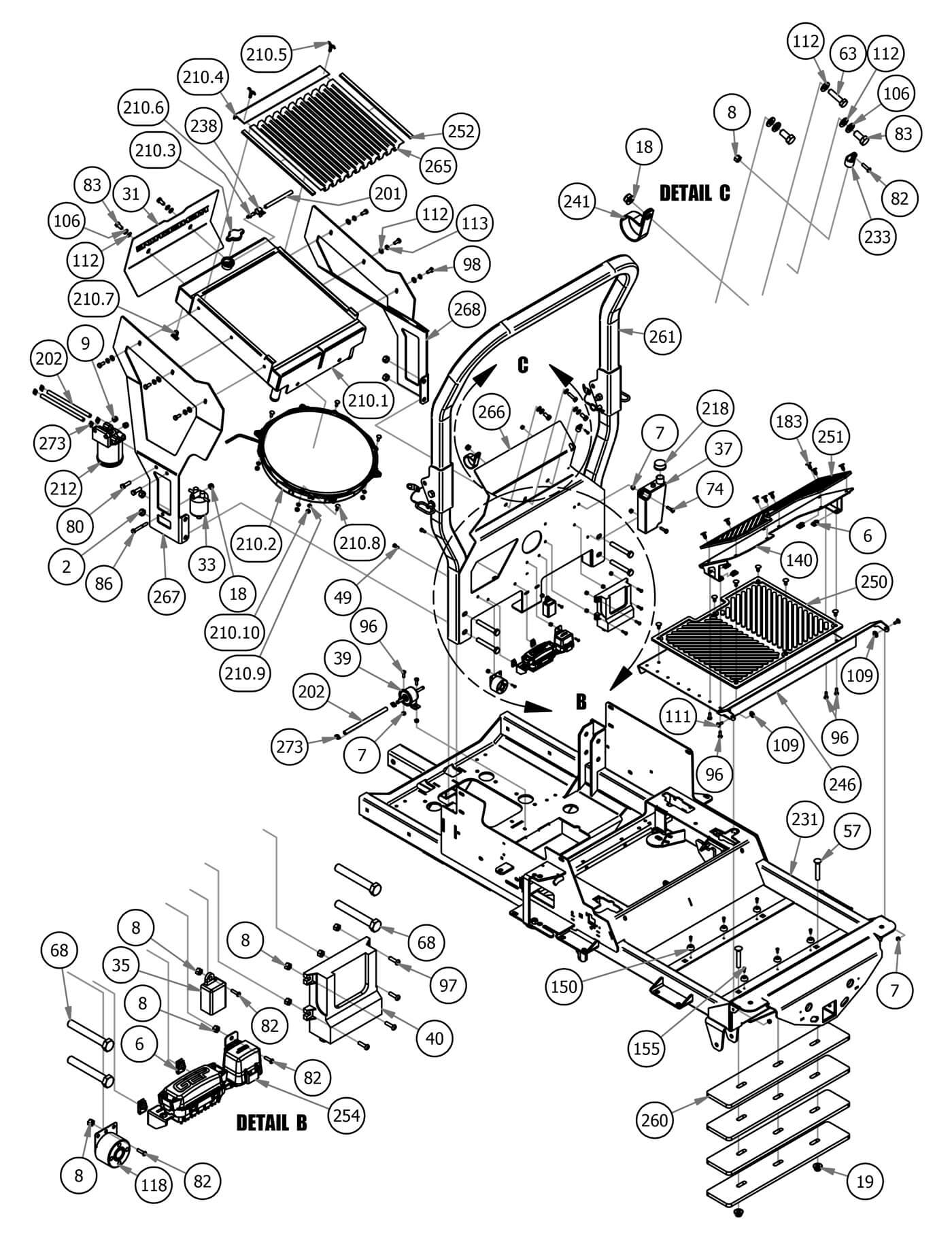

Floorboard, ROPS, Radiator
Parts Index
- 2 1/2-13 hex 2-WAY REV CNT L/N (GR.B) ZC (Qty 4)
- 6 1/4-20 Cage Nut (Qty 6)
- 7 1/4-20 Nylon Insert Flange Nut (Qty 6)
- 8 10-24 Nylon Insert Locknut Zin (Qty 8)
- 9 3/8-16 Nylon Insert Locknut Zi (Qty 2)
- 18 5/16-18 Nylon Flange Nut (Qty 2)
- 19 1/2-13 Nylon Insert Flange Nut (Qty 2)
- 31 2019 Diesel Upper Rear Cover-Orange (Qty 1)
- 33 Caterpillar Fuel Bowl Kit (Qty 1)
- 35 Auto Shut Down for Cat Diesels (Qty 1)
- 37 Overflow Reservoir-27 Kaw (Qty 1)
- 39 Fuel Pump for 1100cc Diesel (Qty 1)
- 40 ECM for 1100cc Diesel (Qty 1)
- 49 M6-1.0 X 16MM HEX BOLT CL 8 (Qty 2)
- 57 1/2-13 x 3 Carriage Bolt Grade 5 (Qty 2)
- 63 5/16-18 X 1-1/4 GR 5 Hex Bolt (Qty 1)
- 68 1/2 x 3 1/2 Flange Bolt - Gr 8 (Qty 4)
- 74 1/4-20 X 1 GR 5 Hex Bolts Zinc (Qty 2)
- 80 3/8-16 X 1-1/4 GR 5 Hex Bolt (Qty 2)
- 82 10-24 X 5/8 BS C/S 18-8 SS (Qty 4)
- 83 3/8-16 X 3/4 GR 5 Hex Bolts (Qty 4)
- 86 5/16 x 2 1/2 Bolt (Qty 1)
- 96 1/4-20 X 3/4 GR 5 Hex Bolts (Qty 6)
- 97 10-24 X 1 BS C/S 18-8 SS (Qty 4)
- 98 5/16-18 X 3/4 GR 5 Hex Bolts Z (Qty 6)
- 106 3/8 Lockwasher Zinc (Qty 4)
- 109 .360 ID Plastic Washer (Qty 2)
- 111 1/4 x 3/4 Carriage Bolt (Qty 2)
- 112 5/16 USS Flat Washer Zinc (Qty 11)
- 113 5/16 Lock washer Zinc (Qty 6)
- 118 Heat Warning Piezo Buzzer (Qty 1)
- 140 Heat Warning Piezo Buzzer (Qty 1)
- 150 Button Bumper (Qty 6)
- 155 10 X 1/2 Pan Phil a T/S Zinc (Qty 6)
- 183 Ratchet Fastener - Floorboard (Qty 14)
- 201 5/16 Clear Hose (Qty 1)
- 202 5/16 Fuel Line Hose (Qty 3)
- 210 2019 Diesel Radiator Kit (Qty 1)
- 210.1 2019 Diesel Radiator (Qty 1)
- 210.2 Electric Fan for 2019 Diesel Radiator (Qty 1)
- 210.3 Cat Diesel Radiator Cap (Qty 1)
- 210.4 Screen Retention Plate for 2019 Diesel Radiator (Qty 1)
- 210.5 1/4-20 x 3/4 Thumb Screw (Qty 2)
- 210.6 1/4 Barb to 3/16 NPT Overflow Fitting (Qty 1)
- 210.7 1/4 NPT Drain Plug (Qty 1)
- 210.8 1/4 x 3/4 Carriage Bolt (Qty 4)
- 210.9 1/4 Lockwasher Zinc (Qty 4)
- 210.10 1/4-20 Hex Nuts Zinc (Qty 4)
- 212 CAT FUEL FILTER BIG (Qty 1)
- 218 Reservoir Tank Cap-Overflow Ta (Qty 1)
- 231 2019 Horizontal Diesel Frame (Qty 1)
- 238 5/8 Hose Clamp SS (Qty 1)
- 241 Diesel Clamp - 1 3/4 Vinyl (Qty 1)
- 246 2019 Outlaw Floorboard--Orange (Qty 1)
- 250 Mat (Floor) (Qty 1)
- 251 Mat (Foot Plate) (Qty 1)
- 252 Rubber Trim (Qty 2)
- 254 2019 24.7 Diesel Harness (Qty 1)
- 260 Renegade Diesel Counter Weight--Orange (Qty 4)
- 261 2019 2x2 R SERIES Folding Rops (Qty 1)
- 265 Radiator Screen Diesel (Qty 1)
- 266 2019 Diesel Radiator Mount-Front--Orange (Qty 1)
- 267 2019 Diesel Radiator Mount-Right--Orange (Qty 1)
- 268 2019 Diesel Radiator Mount-Left--Orange (Qty 1)
- 273 12.5mm/15mm OETIKER 2 Ear Clamp (Qty 6)
-
241#072-8090-00
Diesel Clamp - 1 3/4 Vinyl
Qty Used: 1Regular price $3.30 USDRegular priceUnit price per
-
246#079-3155-00
2019 Outlaw Floorboard--Orange
Qty Used: 1Regular price $109.99 USDRegular priceUnit price per
-
250#081-0050-00
Mat (Floor)
Qty Used: 1Regular price $72.99 USDRegular priceUnit price per
-
251#081-0051-00
Mat (Foot Plate)
Qty Used: 1Regular price $72.99 USDRegular priceUnit price per
-
252#084-4015-00
Rubber Trim
Qty Used: 2Regular price $9.99 USDRegular priceUnit price per
-
254#086-0247-19
2019 24.7 Diesel Harness
Qty Used: 1Regular price $509.41 USDRegular priceUnit price per
-
260#088-1999-00
2019 Outlaw Counter Weight--Orange
Qty Used: 4Regular price $39.79 USDRegular priceUnit price per
-
261#089-0006-00
2019 2x2 R SERIES Outlaw Folding Rops
Qty Used: 1Regular price $436.43 USDRegular priceUnit price per
-
265#094-5088-00
Radiator Screen Diesel
Qty Used: 1Regular price $129.99 USDRegular priceUnit price per
-
266#201-8025-00
2019 Diesel Radiator Mount-Front--Orange
Qty Used: 1Regular price $39.99 USDRegular priceUnit price per
-
267#201-8026-00
2019 Diesel Radiator Mount-Right--Orange
Qty Used: 1Regular price $39.99 USDRegular priceUnit price per
-
268#201-8027-00
2019 Diesel Radiator Mount-Left--Orange
Qty Used: 1Regular price $39.99 USDRegular priceUnit price per
-
273#072-8076-00
12.5mm/15mm OETIKER 2 Ear Clamp
Qty Used: 6Regular price $1.99 USDRegular priceUnit price per
-
2#013-0005-00
1/2-13 hex 2-WAY REV CNT L/N (GR.B) ZC
Qty Used: 4Regular price $2.69 USDRegular priceUnit price per
-
6#013-0054-00
1/4-20 Cage Nut
Qty Used: 6Regular price $0.69 USDRegular priceUnit price per
-
7#013-2050-00
1/4-20 Nylon Insert Flange Nut
Qty Used: 6Regular price $1.39 USDRegular priceUnit price per
-
8#013-5019-00
10-24 Nylon Insert Locknut Zin
Qty Used: 8Regular price $0.69 USDRegular priceUnit price per
-
9#013-5041-00
3/8-16 Nylon Insert Locknut Zi
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
18#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
19#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
31#014-5065-00
2019 Diesel Upper Rear Cover-Orange
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
33#015-0007-00
Caterpillar Fuel Bowl Kit
Qty Used: 1Regular price $147.41 USDRegular priceUnit price per
-
35#015-0015-00
Auto Shut Down for Cat Diesels
Qty Used: 1Regular price $499.99 USDRegular priceUnit price per
-
37#015-0111-00
Overflow Reservoir-27 Kaw
Qty Used: 1Regular price $69.99 USDRegular priceUnit price per
-
39#015-4000-00
Fuel Pump for 1100cc Diesel
Qty Used: 1Regular price $331.72 USDRegular priceUnit price per
-
40#015-4010-00
ECM for 1100cc Diesel
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
49#018-0024-00
M6-1.0 X 16MM HEX BOLT CL 8
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
57#018-0067-00
1/2-13 x 3 Carriage Bolt Grade 5
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
63#018-2006-00
5/16-18 X 1-1/4 GR 5 Hex Bolt
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
68#018-2018-00
1/2 x 3 1/2 Flange Bolt - Gr 8
Qty Used: 4Regular price $3.29 USDRegular priceUnit price per
-
74#018-4007-00
1/4-20 X 1 GR 5 Hex Bolts Zinc
Qty Used: 2Regular price $0.89 USDRegular priceUnit price per
-
80#018-5040-00
3/8-16 X 1-1/4 GR 5 Hex Bolt
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
82#018-5200-00
10-24 X 5/8 BS C/S 18-8 SS
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
83#018-5250-00
3/8-16 X 3/4 GR 5 Hex Bolts
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
86#018-5344-00
5/16 x 2 1/2 Bolt
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
96#018-8052-00
1/4-20 X 3/4 GR 5 Hex Bolts
Qty Used: 6Regular price $0.69 USDRegular priceUnit price per
-
97#018-8058-00
10-24 X 1 BS C/S 18-8 SS
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
98#018-8063-00
5/16-18 X 3/4 GR 5 Hex Bolts Z
Qty Used: 6Regular price $0.69 USDRegular priceUnit price per
-
106#019-5037-00
3/8 Lockwasher Zinc
Qty Used: 4Regular price $0.00 USDRegular priceUnit price per
-
109#019-6042-00
.360 ID Plastic Washer
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
111210.8#019-8040-00
1/4 x 3/4 Carriage Bolt
Qty Used: 4Regular price $1.49 USDRegular priceUnit price per
-
112#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 11Regular price $0.79 USDRegular priceUnit price per
-
113#019-8051-00
5/16 Lock washer Zinc
Qty Used: 6Regular price $0.79 USDRegular priceUnit price per
-
118140#021-8059-00
Heat Warning Piezo Buzzer
Qty Used: 1Regular price $33.99 USDRegular priceUnit price per
-
150#029-4010-00
Button Bumper
Qty Used: 6Regular price $1.31 USDRegular priceUnit price per
-
155#030-3050-00
10 X 1/2 Pan Phil a T/S Zinc
Qty Used: 6Regular price $0.79 USDRegular priceUnit price per
-
183#040-6080-00
Ratchet Fastener - Floorboard
Qty Used: 14Regular price $2.91 USDRegular priceUnit price per
-
201#051-8069-00
5/16 Clear Hose
Qty Used: 1Regular price $2.91 USDRegular priceUnit price per
-
202#051-8075-00
5/16 Fuel Line Hose
Qty Used: 3Regular price $4.37 USDRegular priceUnit price per
-
210#061-5001-98
2019 Diesel Radiator Kit
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
210.1#061-5001-00
2019 Diesel Radiator
Qty Used: 1Regular price $1,299.99 USDRegular priceUnit price per
-
210.2#014-3005-00
Electric Fan for 2019 Diesel Radiator
Qty Used: 1Regular price $699.99 USDRegular priceUnit price per
-
210.3#015-0104-00
Cat Diesel Radiator Cap
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
210.4#026-2008-00
Screen Retention Plate for 2019 Diesel Radiator
Qty Used: 1Regular price $24.99 USDRegular priceUnit price per
-
210.5#030-0090-00
1/4-20 x 3/4 Thumb Screw
Qty Used: 2Regular price $6.69 USDRegular priceUnit price per
-
210.6#024-0015-00
1/4 Barb to 3/16 NPT Overflow Fitting
Qty Used: 1Regular price $14.99 USDRegular priceUnit price per
-
210.7#015-0098-00
1/4 NPT Drain Plug
Qty Used: 1Regular price $7.99 USDRegular priceUnit price per
-
210.9#019-4008-00
1/4 Lockwasher Zinc
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
210.10#013-8039-00
1/4-20 Hex Nuts Zinc
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
212#063-2011-00
CAT FUEL FILTER BIG
Qty Used: 1Regular price $27.99 USDRegular priceUnit price per
-
218#066-8075-00
Reservoir Tank Cap-Overflow Ta
Qty Used: 1Regular price $5.89 USDRegular priceUnit price per
-
No sequence found for SKU:
2019 Horizontal Diesel Frame
Regular price $0.00 USDRegular priceUnit price per
-
238#072-8067-00
5/8 Hose Clamp SS
Qty Used: 1Regular price $1.79 USDRegular priceUnit price per
