Control Arms

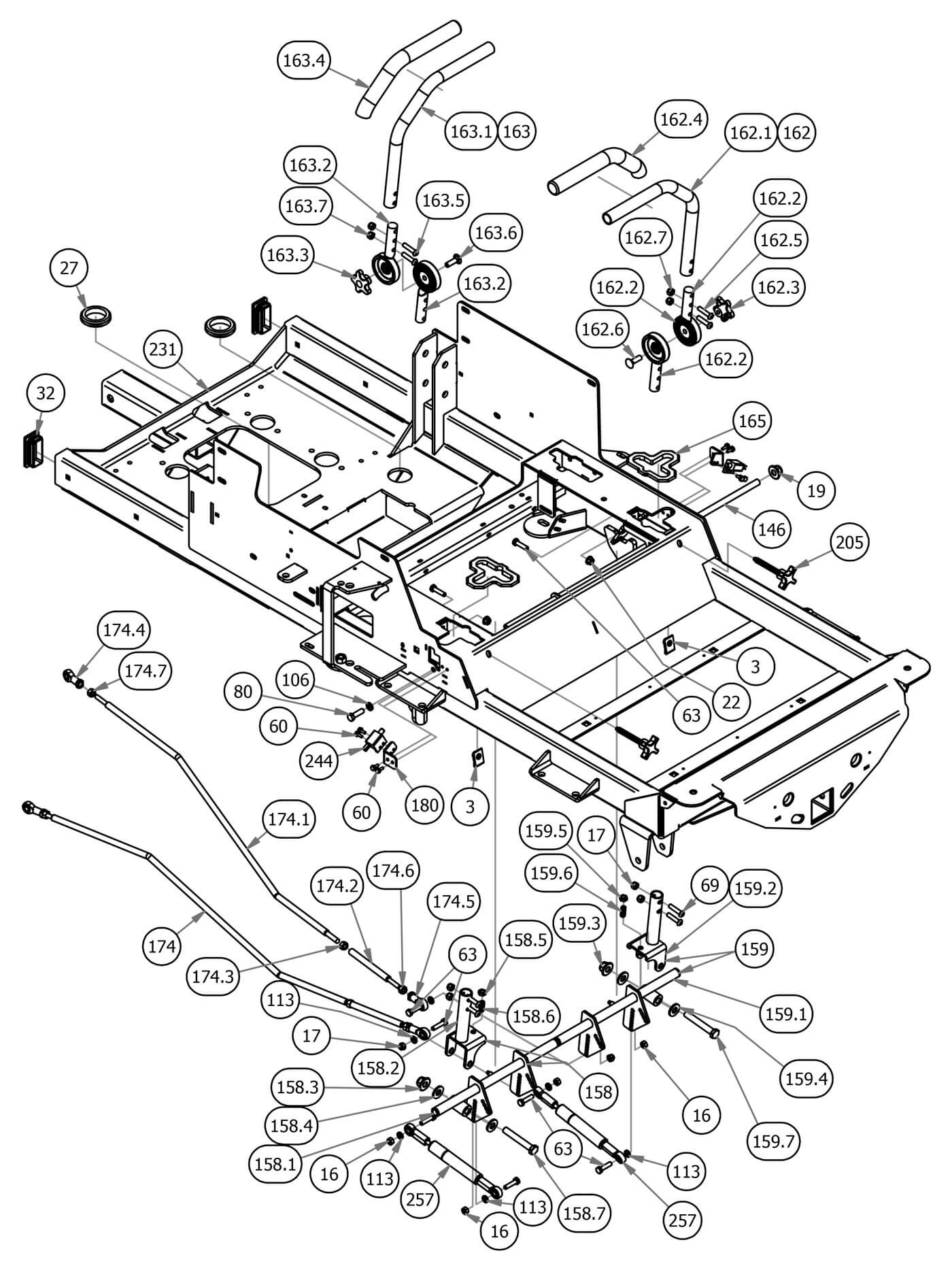

Parts Index
- 3 Extruded Nut 3/8"-16 3/4" Hole Center With Patch (Qty 2)
- 16 5/16-18 Hex Nuts Zinc (Qty 4)
- 17 5/16-18 Nylon Insert Locknut Z (Qty 6)
- 19 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 22 5/16-18 Hex Flange Nuts Zinc w (Qty 2)
- 27 2019 2" x .25 Rubber Grommet (Qty 2)
- 32 1 1/2x 3 Frame Plug (Qty 2)
- 60 12-24 x 1/2 HWH Bolt (Qty 8)
- 63 5/16-18 X 1-1/4 GR 5 Hex Bolt (Qty 8)
- 69 5/16-18 x 1 3/8" Button Head Torx Drive Bolt (Qty 4)
- 80 3/8-16 X 1-1/4 GR 5 Hex Bolt (Qty 1)
- 106 3/8 Lockwasher Zinc (Qty 1)
- 113 5/16 Lock washer Zinc (Qty 6)
- 146 2019 Steering Actuator Rod (Qty 1)
- 158 2019 R Series RH Arm Rod Assembly (Qty 1)
- 158.1 Drive Arm Actuator RH (Qty 1)
- 158.2 Drive Arm Pivot (Qty 1)
- 158.3 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 158.4 .505 ID X 1 OD X .128 THK Washer (Qty 2)
- 158.5 3/8-16 Half Jam Nut (Qty 1)
- 158.6 3/8-16 X 1 SOCKET SET SCREW CUP POINT (Qty 1)
- 158.7 1/2-13 X 3.25 Hex Bolt-Grade 5 (Qty 1)
- 159 2019 R Series LH Arm Rod Assembly (Qty 1)
- 159.1 Drive Arm Actuator LH (Qty 1)
- 159.2 Drive Arm Pivot (Qty 1)
- 159.3 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 159.4 .505 ID X 1 OD X .128 THK Washer (Qty 2)
- 159.5 3/8-16 Half Jam Nut (Qty 1)
- 159.6 3/8-16 X 1 SOCKET SET SCREW CUP POINT (Qty 1)
- 159.7 1/2-13 X 3.25 Hex Bolt-Grade 5 (Qty 1)
- 162 Black Steering Arm Kit LH (Qty 1)
- 162.1 2019 Steering Arm Tube (Qty 1)
- 162.2 2019 Upper/Lower Steering Arm Casting (Qty 2)
- 162.3 Knob - Adjustable Steering Arm (Qty 1)
- 162.4 Black Steering Grip (Qty 1)
- 162.5 5/16-18 x 1 3/8" Button Head Torx Drive Bolt (Qty 2)
- 162.6 3/8-16 X 1-1/4 Carriage Bolt (Qty 1)
- 162.7 5/16-18 Nylon Insert Locknut Z (Qty 2)
- 163 Black Steering Arm Kit RH (Qty 1)
- 163.1 2019 Steering Arm Tube (Qty 1)
- 163.2 2019 Upper/Lower Steering Arm Casting (Qty 2)
- 163.3 Knob - Adjustable Steering Arm (Qty 1)
- 163.4 Black Steering Grip (Qty 1)
- 163.5 5/16-18 x 1 3/8" Button Head Torx Drive Bolt (Qty 2)
- 163.6 3/8-16 X 1-1/4 Carriage Bolt (Qty 1)
- 163.7 5/16-18 Nylon Insert Locknut Z (Qty 2)
- 165 Drive Arm Bushing (Qty 2)
- 174 2019 Renegade Push Rod Assembly (Qty 2)
- 174.1 2019 Outlaw Gen2 Horizontal Push Rod (Qty 1)
- 174.2 2019 Outlaw Gen2 Horizontal Push Rod Adjuster (Qty 1)
- 174.3 3/8-24 Hex Nut Zinc (Qty 1)
- 174.4 Spherical Rod End - RH Thread - Rogue and Renegade (Qty 1)
- 174.5 Spherical Rod End - LH Thead - Rebel,Rogue,Renegad (Qty 1)
- 174.6 5/16 LH Nut (Qty 1)
- 174.7 5/16 RH Nut (Qty 1)
- 180 2019 Arm Switch Bracket--Plated (Qty 2)
- 205 Star Knob 3/8- 16 x3" (Qty 2)
- 231 2019 Horizontal Diesel Frame (Qty 1)
- 244 Safety Switch (Qty 2)
- 257 Damper (Heim Ends) (Qty 2)
-
3#013-0021-00
Extruded Nut 3/8"-16 3/4" Hole Center With Patch
Qty Used: 2Regular price $2.99 USDRegular priceUnit price per
-
16#013-8043-00
5/16-18 Hex Nuts Zinc
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
17162.7163.7#013-8047-00
5/16-18 Nylon Insert Locknut Z
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
19158.3159.3#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
22#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
27#014-2052-00
2019 2" x .25 Rubber Grommet
Qty Used: 2Regular price $7.99 USDRegular priceUnit price per
-
32#014-9003-00
1 1/2x 3 Frame Plug
Qty Used: 2Regular price $2.91 USDRegular priceUnit price per
-
60#018-1080-00
12-24 x 1/2 HWH Bolt
Qty Used: 8Regular price $1.99 USDRegular priceUnit price per
-
63#018-2006-00
5/16-18 X 1-1/4 GR 5 Hex Bolt
Qty Used: 8Regular price $0.79 USDRegular priceUnit price per
-
69162.5163.5#018-2020-18
5/16-18 x 1 3/8\" Button Head Torx Drive Bolt
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
80#018-5040-00
3/8-16 X 1-1/4 GR 5 Hex Bolt
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
106#019-5037-00
3/8 Lockwasher Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
113#019-8051-00
5/16 Lock washer Zinc
Qty Used: 6Regular price $0.79 USDRegular priceUnit price per
-
146#028-0051-00
2019 Steering Actuator Rod
Qty Used: 1Regular price $21.88 USDRegular priceUnit price per
-
158#031-0030-19
2019 R Series RH Arm Rod Assembly
Qty Used: 1Regular price $79.60 USDRegular priceUnit price per
-
158.1#031-0030-00
Drive Arm Actuator RH
Qty Used: 1Regular price $43.72 USDRegular priceUnit price per
-
158.2159.2#031-0014-00
Drive Arm Pivot
Qty Used: 1Regular price $23.29 USDRegular priceUnit price per
-
158.4159.4#019-8054-00
.505 ID X 1 OD X .128 THK Washer
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
158.5159.5#013-0017-00
3/8-16 Half Jam Nut
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
158.6159.6#018-0063-00
3/8-16 X 1 SOCKET SET SCREW CUP POINT
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
158.7159.7#018-0050-00
1/2-13 X 3.25 Hex Bolt-Grade 5
Qty Used: 1Regular price $1.19 USDRegular priceUnit price per
-
159#031-0031-19
2019 R Series LH Arm Rod Assembly
Qty Used: 1Regular price $79.60 USDRegular priceUnit price per
-
159.1#031-0031-00
Drive Arm Actuator LH
Qty Used: 1Regular price $43.72 USDRegular priceUnit price per
-
162#031-9005-70
Black Steering Arm Kit LH
Qty Used: 1Regular price $132.68 USDRegular priceUnit price per
-
162.1163.1#031-9006-00
2019 Steering Arm Tube
Qty Used: 1Regular price $39.99 USDRegular priceUnit price per
-
162.2163.2#031-9005-00
2019 Upper/Lower Steering Arm Casting
Qty Used: 2Regular price $26.53 USDRegular priceUnit price per
-
162.3163.3#045-5000-00
Knob - Adjustable Steering Arm
Qty Used: 1Regular price $3.99 USDRegular priceUnit price per
-
162.4163.4#069-4010-00
Black Steering Grip
Qty Used: 1Regular price $7.38 USDRegular priceUnit price per
-
162.6163.6#018-5043-00
3/8-16 X 1-1/4 Carriage Bolt
Qty Used: 1Regular price $0.99 USDRegular priceUnit price per
-
163#031-9055-70
Black Steering Arm Kit RH
Qty Used: 1Regular price $115.31 USDRegular priceUnit price per
-
165#032-0002-00
Drive Arm Bushing
Qty Used: 2Regular price $14.53 USDRegular priceUnit price per
-
174#035-0005-00
2019 Renegade Push Rod Assembly
Qty Used: 2Regular price $43.78 USDRegular priceUnit price per
-
174.1#035-0005-01
2019 Outlaw Gen2 Horizontal Push Rod
Qty Used: 1Regular price $32.99 USDRegular priceUnit price per
-
174.2#035-0006-00
2019 Outlaw Gen2 Horizontal Push Rod Adjuster
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
174.3#013-6051-00
3/8-24 Hex Nut Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
174.4#048-3003-00
Spherical Rod End - RH Thread - Rogue and Renegade
Qty Used: 1Regular price $19.89 USDRegular priceUnit price per
-
174.5#048-3002-00
Spherical Rod End - LH Thead - Rebel,Rogue,Renegad
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
174.6#013-6050-00
5/16 LH Nut
Qty Used: 1Regular price $3.99 USDRegular priceUnit price per
-
174.7#013-6049-00
5/16 RH Nut
Qty Used: 1Regular price $3.99 USDRegular priceUnit price per
-
180#039-2160-00
2019 Arm Switch Bracket--Plated
Qty Used: 2Regular price $12.99 USDRegular priceUnit price per
-
205#057-5800-00
Star Knob 3/8- 16 x3"
Qty Used: 2Regular price $5.83 USDRegular priceUnit price per
-
No sequence found for SKU:
2019 Horizontal Diesel Frame
Regular price $0.00 USDRegular priceUnit price per
-
244#077-8073-00
Safety Switch
Qty Used: 2Regular price $9.99 USDRegular priceUnit price per
-
257#087-0002-00
Damper (Heim Ends)
Qty Used: 2Regular price $58.37 USDRegular priceUnit price per
