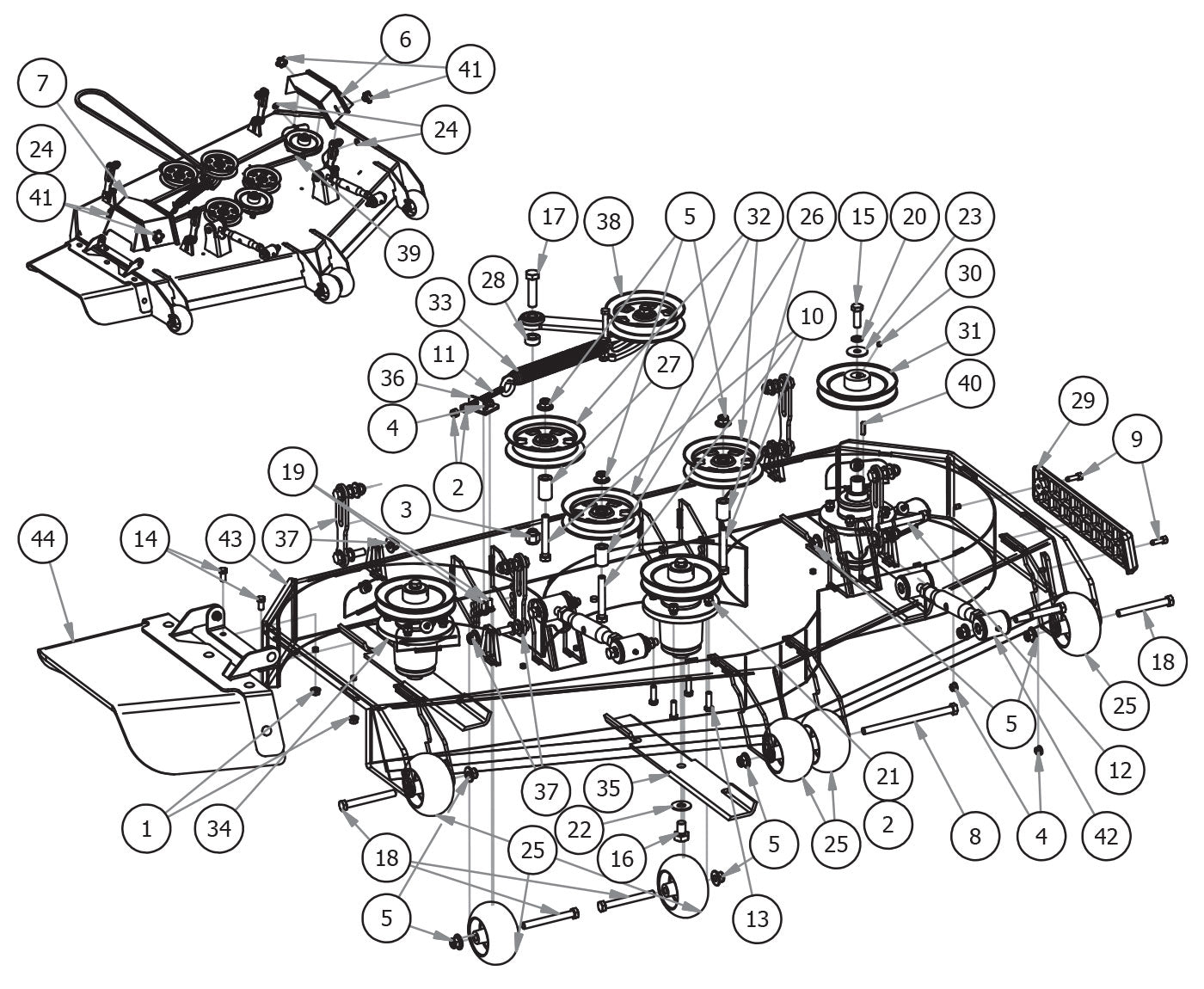

61" Deck Assembly
Parts Index
- 1 3/8-16 Hex Flange Nuts Zinc w/ (Qty 2)
- 2 3/8-16 Hex Nuts Zinc (Qty 14)
- 3 5/8-11 Nylon Insert Locknut Zi (Qty 1)
- 4 5/16-18 Nylon Flange Nut (Qty 4)
- 5 1/2-13 Nylon Insert Flange Nut (Qty 12)
- 6 Pulley Cover LH Rogue, Rebel, Renegade 61" (Qty 1)
- 7 Pulley Cover RH Rogue, Rebel, Renegade 61" (Qty 1)
- 8 1/2-13 X 4-1/2 GR 5 Hex Bolts (Qty 1)
-
1#013-5201-00
3/8-16 Hex Flange Nuts Zinc w/
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
2#013-6014-00
3/8-16 Hex Nuts Zinc
Qty Used: 14Regular price $0.00 USDRegular priceUnit price per
-
3#013-7021-00
5/8-11 Nylon Insert Locknut Zi
Qty Used: 1Regular price $1.19 USDRegular priceUnit price per
-
4#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
5#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 12Regular price $1.39 USDRegular priceUnit price per
-
6#014-5052-00
Pulley Cover LH
Qty Used: 1Regular price $16.69 USDRegular priceUnit price per
-
7#014-5053-00
Pulley Cover RH
Qty Used: 1Regular price $16.69 USDRegular priceUnit price per
-
8#018-7050-00
1/2-13 X 4-1/2 GR 5 Hex Bolts
Qty Used: 1Regular price $2.39 USDRegular priceUnit price per
