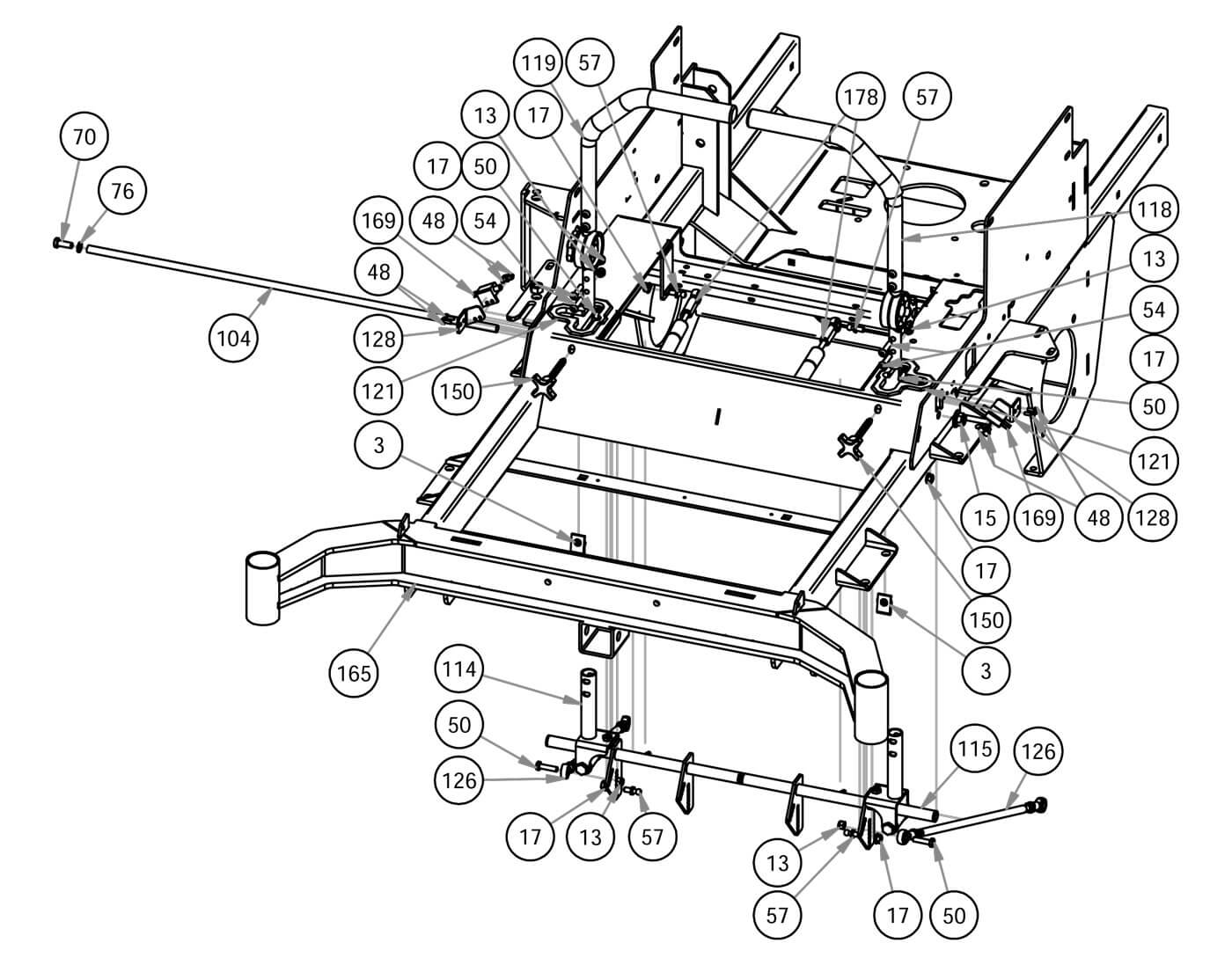

Drive Arm Assembly
Parts Index
- 3 Extruded Nut 3/8"-16 3/4" Hole Center With Patch (Qty 2)
- 13 5/16-18 Nylon Insert Locknut Z (Qty 6)
- 15 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 17 5/16-18 Hex Flange Nuts Zinc w (Qty 6)
- 48 12-24 x 1/2 HWH Bolt (Qty 8)
- 50 5/16-18 X 1-1/4 GR 5 Hex Bolt (Qty 4)
- 54 5/16-18 x 1 3/8" Button Head Torx Drive Bolt (Qty 4)
- 57 10mm Damper Ball Stud- (Qty 4)
- 70 3/8-16 X 1 GR 5 Hex Bolts Zinc (Qty 1)
- 76 3/8 Lockwasher Zinc (Qty 1)
- 104 2019 Steering Actuator Rod (Qty 1)
- 114 2019 R Series RH Arm Rod Assembly (Qty 1)
- 115 2019 R Series LH Arm Rod Assembly (Qty 1)
- 118 Black Steering Arm Kit LH (Qty 1)
- 119 Black Steering Arm Kit RH (Qty 1)
- 121 Drive Arm Bushing (Qty 2)
- 126 2019 Rebel Push Rod Assembly (Qty 2)
- 128 2019 Arm Switch Bracket--Plated (Qty 2)
- 150 Star Knob 3/8- 16 x3" (Qty 2)
- 165 2019 Rigid Frame (Qty 1)
- 169 Safety Switch (Qty 2)
- 178 Arm Dampener (Qty 2)
-
3#013-0021-00
Extruded Nut 3/8"-16 3/4" Hole Center With Patch
Qty Used: 2Regular price $2.99 USDRegular priceUnit price per
-
13#013-8047-00
5/16-18 Nylon Insert Locknut Z
Qty Used: 6Regular price $0.79 USDRegular priceUnit price per
-
15#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
17#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 6Regular price $0.69 USDRegular priceUnit price per
-
48#018-1080-00
12-24 x 1/2 HWH Bolt
Qty Used: 8Regular price $1.99 USDRegular priceUnit price per
-
50#018-2006-00
5/16-18 X 1-1/4 GR 5 Hex Bolt
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
54#018-2020-18
5/16-18 x 1 3/8\" Button Head Torx Drive Bolt
Qty Used: 4Regular price $1.49 USDRegular priceUnit price per
-
57#018-2050-00
10mm Damper Ball Stud-
Qty Used: 4Regular price $1.99 USDRegular priceUnit price per
-
70#018-6049-00
3/8-16 X 1 GR 5 Hex Bolts Zinc
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
76#019-5037-00
3/8 Lockwasher Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
104#028-0051-00
2019 Steering Actuator Rod
Qty Used: 1Regular price $21.88 USDRegular priceUnit price per
-
114#031-0030-19
2019 R Series RH Arm Rod Assembly
Qty Used: 1Regular price $79.60 USDRegular priceUnit price per
-
115#031-0031-19
2019 R Series LH Arm Rod Assembly
Qty Used: 1Regular price $79.60 USDRegular priceUnit price per
-
118#031-9005-70
Black Steering Arm Kit LH
Qty Used: 1Regular price $132.68 USDRegular priceUnit price per
-
119#031-9055-70
Black Steering Arm Kit RH
Qty Used: 1Regular price $115.31 USDRegular priceUnit price per
-
121#032-0002-00
Drive Arm Bushing
Qty Used: 2Regular price $14.53 USDRegular priceUnit price per
-
126#035-0003-00
2019 Rebel Push Rod Assembly
Qty Used: 2Regular price $39.79 USDRegular priceUnit price per
-
128#039-2160-00
2019 Arm Switch Bracket--Plated
Qty Used: 2Regular price $12.99 USDRegular priceUnit price per
-
150#057-5800-00
Star Knob 3/8- 16 x3"
Qty Used: 2Regular price $5.83 USDRegular priceUnit price per
-
165#070-5371-19
2019 Rigid Frame
Qty Used: 1Regular price $899.99 USDRegular priceUnit price per
-
169#077-8073-00
Safety Switch
Qty Used: 2Regular price $9.99 USDRegular priceUnit price per
-
