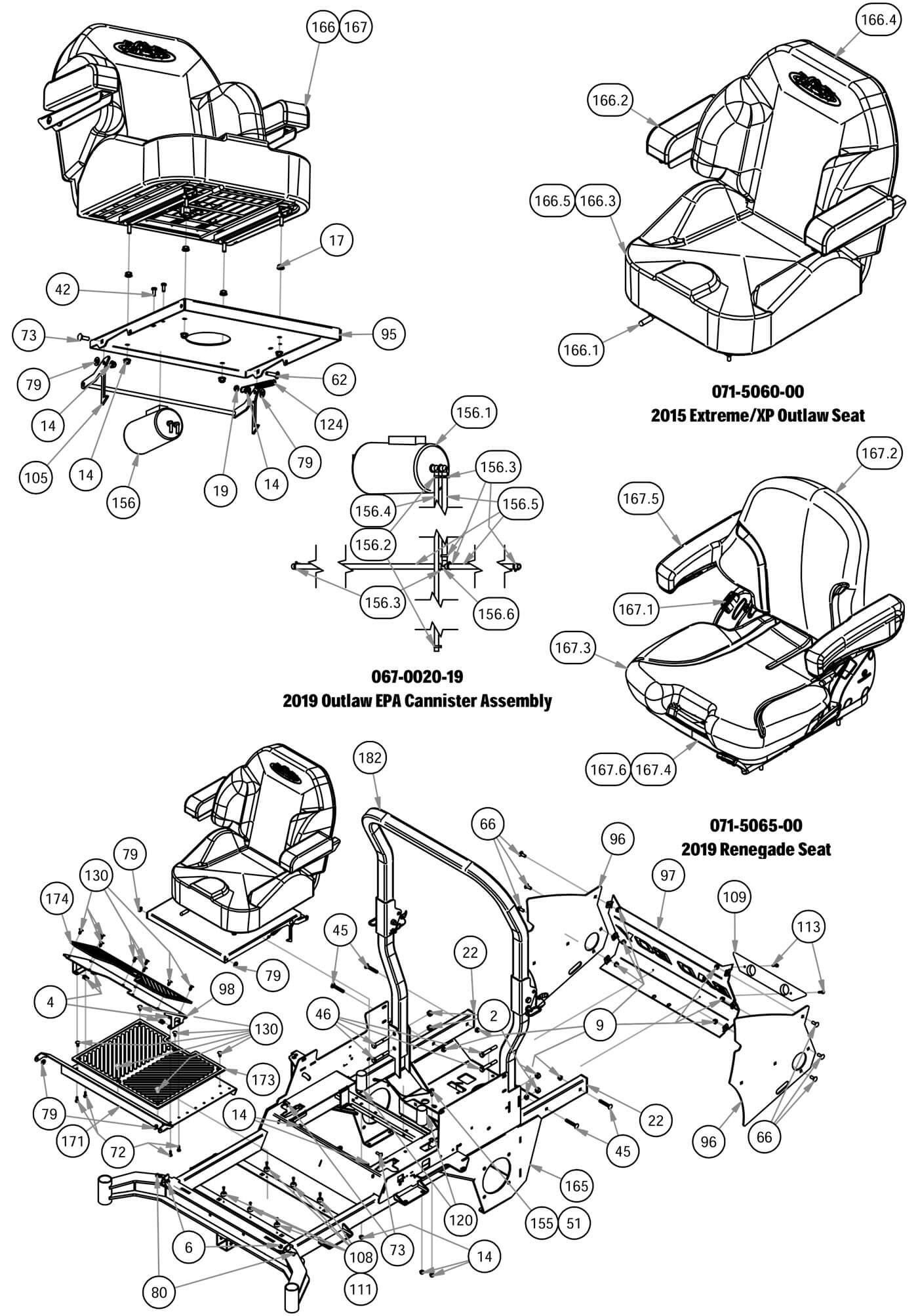

Cover & Seat Pan Assembly
Parts Index
- 2 1/2-13 hex 2-WAY REV CNT L/N (GR.B) ZC (Qty 4)
- 4 1/4-20 Cage Nut (Qty 4)
- 6 1/4-20 Nylon Insert Flange Nut (Qty 2)
- 9 3/8 Nylock Flange Nut (Qty 10)
- 14 5/16-18 Nylon Flange Nut (Qty 11)
- 17 5/16-18 Hex Flange Nuts Zinc w (Qty 4)
- 19 5/16-18 Nylock Jam Nut (Qty 1)
- 22 1 1/2x 3 Frame Plug (Qty 2)
- 42 M6-1.0 X 16MM HEX BOLT CL 8 (Qty 2)
- 45 3/8 x 2 1/2 Carriage Bolt (Qty 4)
- 46 1/2-13 X 3.25 Hex Bolt-Grade 5 (Qty 4)
- 51 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 1)
- 62 5/16-18 X 1-1/4 Carriage Bolt (Qty 1)
- 66 3/8 x 1 Carriage Bolt (Qty 6)
- 72 1/4-20 X 3/4 GR 5 Hex Bolts (Qty 4)
- 73 5/16-18 X 1 Carriage Bolt Zinc (Qty 3)
- 79 .360 ID Plastic Washer (Qty 6)
- 80 1/4 x 3/4 Carriage Bolt (Qty 2)
- 95 Seat Plate--Orange (Qty 1)
- 96 2019 Vertical Rigid Rear Cover Side--Orange (Qty 2)
- 97 2019 Vertical Rear Cover Tailgate-Orange (Qty 1)
- 98 Adjustable Foot Plate--Orange (Qty 1)
- 105 Seat Latch Rod (Qty 1)
- 108 Button Bumper (Qty 6)
- 109 Bumper (Qty 1)
- 111 10 X 1/2 Pan Phil a T/S Zinc (Qty 6)
- 113 1/4 x 1 Hex Head Tek Screw (Qty 2)
- 120 Bumper (Seat) (Qty 2)
- 124 Brake Spring (Qty 1)
- 130 Ratchet Fastener - Floorboard (Qty 14)
- 155 Seat Cable (Qty 1)
- 156 2019 R-Series EPA Cannister Assembly (Qty 1)
- 156.1 Carbon Canister ZT,CZT,Outlaw (Qty 1)
- 156.2 3/16" Vinyl Hose Clamp (Qty 2)
- 156.3 MZ Tank Hose Clamp 1/4 Vinyl (Qty 6)
- 156.4 66" 3/16 Vinyl EPA Line (Qty 1)
- 156.5 38" 1/4 Vinyl Tubing (Qty 3)
- 156.6 Fuel Line T (Qty 1)
- 165 2019 Rigid Frame (Qty 1)
- 166 2019 Rebel Seat w/ Seatbelt (Qty 1)
- 166.1 Seat Rails for Outlaw Seat/2020 ZT Elite/ZTAvenger (Qty 1)
- 166.2 Arm Rest Kit for 071-5060-18/071-2103-00 (Qty 1)
- 166.3 Seat Bottom Cover for 071-5060-18 (Qty 1)
- 166.4 Seat Back Cover for 071-5060-18 (Qty 1)
- 166.5 13/14 MZ/Outlaw Seat Switch (Qty 1)
- 167 2019 Renegade Gas/Diesel Seat with Seatbelt (Qty 1)
- 167.1 Seatbelt for 2019 Renegade Gas/Diesel Seat (Qty 1)
- 167.2 Backrest Cushion for 2019 Renegade Gas/Diesel Seat (Qty 1)
- 167.3 Seat Cushion for 2019 Renegade Gas/Diesel Seat (Qty 1)
- 167.4 Slave & Adjuster for 2019 Renegade Gas/Diesel Seat (Qty 1)
- 167.5 Arm rest Kit for 2019 Renegade Gas/Diesel Seat (Qty 1)
- 167.6 Seat Switch for 2019 Renegade Gas/Diesel Seat/ (Qty 1)
- 171 2019 Outlaw Floorboard--Orange (Qty 1)
- 173 Mat (Floor) (Qty 1)
- 174 Mat (Foot Plate) (Qty 1)
- 182 2019 2x2 R SERIES Folding Rops (Qty 1)
-
2#013-0005-00
1/2-13 hex 2-WAY REV CNT L/N (GR.B) ZC
Qty Used: 4Regular price $2.69 USDRegular priceUnit price per
-
4#013-0054-00
1/4-20 Cage Nut
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
6#013-2050-00
1/4-20 Nylon Insert Flange Nut
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
9#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 10Regular price $1.49 USDRegular priceUnit price per
-
14#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 11Regular price $0.79 USDRegular priceUnit price per
-
17#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-

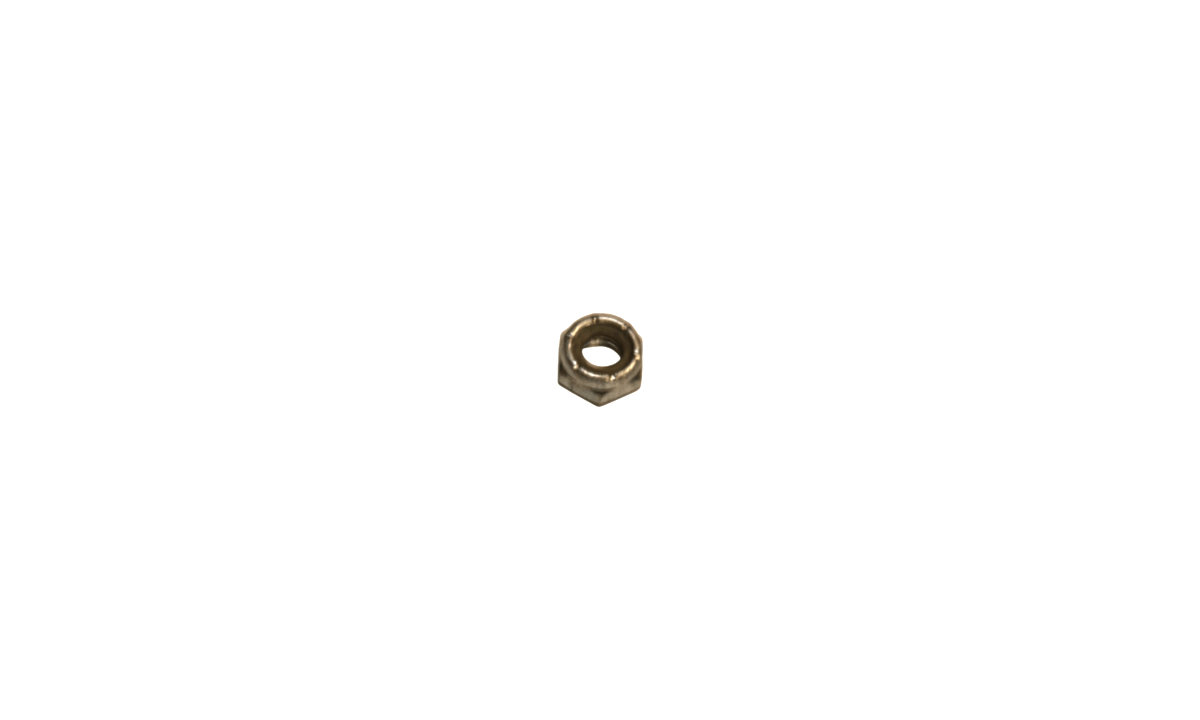

19#013-9005-00
5/16-18 Nylock Jam Nut
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
22#014-9003-00
1 1/2x 3 Frame Plug
Qty Used: 2Regular price $2.91 USDRegular priceUnit price per
-
42#018-0024-00
M6-1.0 X 16MM HEX BOLT CL 8
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
45#018-0044-00
3/8 x 2 1/2 Carriage Bolt
Qty Used: 4Regular price $2.69 USDRegular priceUnit price per
-
46#018-0050-00
1/2-13 X 3.25 Hex Bolt-Grade 5
Qty Used: 4Regular price $1.19 USDRegular priceUnit price per
-
51#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
62#018-4703-00
5/16-18 X 1-1/4 Carriage Bolt
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
66#018-5044-00
3/8 x 1 Carriage Bolt
Qty Used: 6Regular price $0.69 USDRegular priceUnit price per
-
72#018-8052-00
1/4-20 X 3/4 GR 5 Hex Bolts
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
73#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 3Regular price $0.79 USDRegular priceUnit price per
-
79#019-6042-00
.360 ID Plastic Washer
Qty Used: 6Regular price $0.00 USDRegular priceUnit price per
-
80#019-8040-00
1/4 x 3/4 Carriage Bolt
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
95#026-2019-00
Seat Plate--Orange
Qty Used: 1Regular price $92.82 USDRegular priceUnit price per
-
96#026-2219-00
2019 Vertical Rigid Rear Cover Side--Orange
Qty Used: 2Regular price $169.99 USDRegular priceUnit price per
-
97#026-2221-00
2019 Vertical Rear Cover Tailgate-Orange
Qty Used: 1Regular price $225.56 USDRegular priceUnit price per
-
98#026-2230-00
Adjustable Foot Plate--Orange
Qty Used: 1Regular price $66.33 USDRegular priceUnit price per
-
105#028-0090-00
Seat Latch Rod
Qty Used: 1Regular price $36.42 USDRegular priceUnit price per
-
108#029-4010-00
Button Bumper
Qty Used: 6Regular price $1.31 USDRegular priceUnit price per
-
-
111#030-3050-00
10 X 1/2 Pan Phil a T/S Zinc
Qty Used: 6Regular price $0.79 USDRegular priceUnit price per
-
113#030-7040-00
1/4 x 1 Hex Head Tek Screw
Qty Used: 2Regular price $1.00 USDRegular priceUnit price per
-
120#032-0001-00
Bumper (Seat)
Qty Used: 2Regular price $21.88 USDRegular priceUnit price per
-
124#034-1025-00
Compact Outlaw Brake Spring
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
130#040-6080-00
Ratchet Fastener - Floorboard
Qty Used: 14Regular price $2.91 USDRegular priceUnit price per
-
155#064-8081-00
Seat Cable
Qty Used: 1Regular price $14.58 USDRegular priceUnit price per
-
156#067-0020-19
2019 Outlaw EPA Cannister Assembly
Qty Used: 1Regular price $39.95 USDRegular priceUnit price per
-
156.1#067-0020-00
Carbon Canister ZT,CZT,Outlaw
Qty Used: 1Regular price $58.32 USDRegular priceUnit price per
-
156.2#072-8073-00
3/16\" Vinyl Hose Clamp
Qty Used: 2Regular price $2.91 USDRegular priceUnit price per
-
156.3#072-8070-00
MZ Tank Hose Clamp 1/4 Vinyl
Qty Used: 6Regular price $1.45 USDRegular priceUnit price per
-
156.4#051-2025-66
66" 3/16 Vinyl EPA Line
Qty Used: 1Regular price $12.39 USDRegular priceUnit price per
-
156.5#051-8072-38
38" 1/4 Vinyl Tubing
Qty Used: 3Regular price $26.53 USDRegular priceUnit price per
-

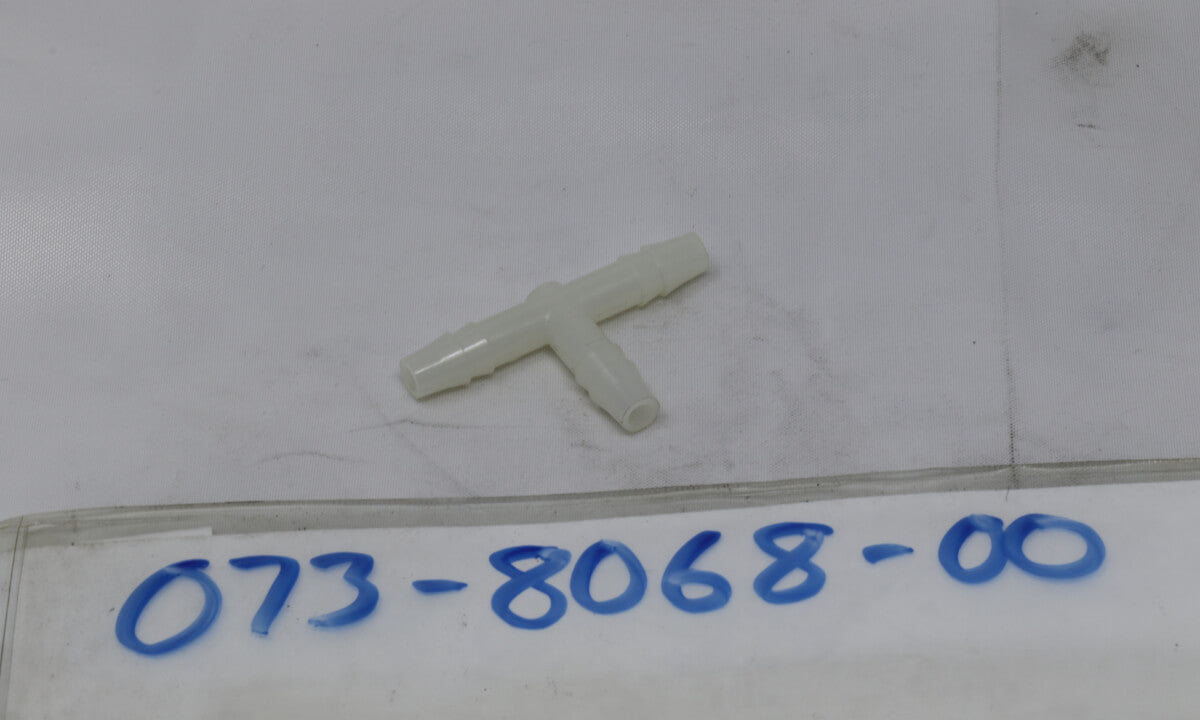

156.6#073-8068-00
Fuel Line T
Qty Used: 1Regular price $8.82 USDRegular priceUnit price per
-
165#070-5371-19
2019 Rigid Frame
Qty Used: 1Regular price $899.99 USDRegular priceUnit price per
-
166#071-5060-18
2019 Rebel Seat w/ Seatbelt
Qty Used: 1Regular price $599.99 USDRegular priceUnit price per
-

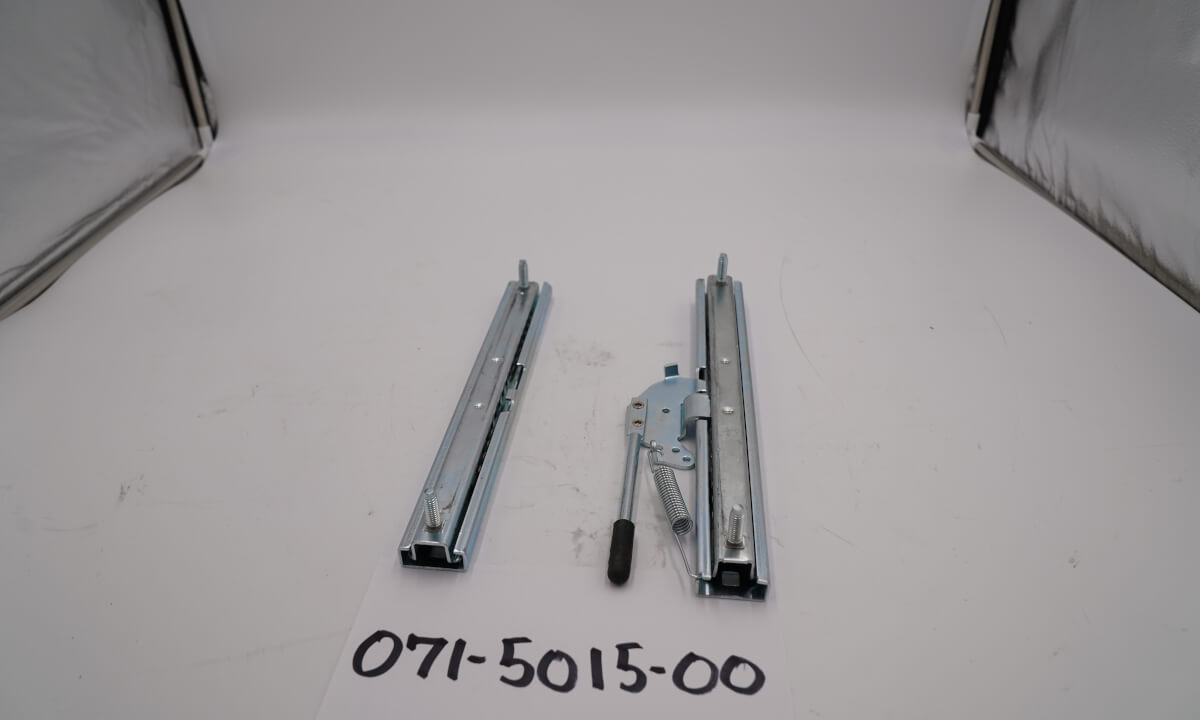

166.1#071-5015-00
Seat Rails for Outlaw Seat/2020 ZT Elite/ZTAvenger
Qty Used: 1Regular price $87.56 USDRegular priceUnit price per
-
166.2#071-5069-00
Arm Rest Kit for 071-5060-18/071-2103-00
Qty Used: 1Regular price $139.99 USDRegular priceUnit price per
-
166.3#071-5068-00
Seat Bottom Cover for 071-5060-18
Qty Used: 1Regular price $94.99 USDRegular priceUnit price per
-
166.4#071-5067-00
Seat Back Cover for 071-5060-18
Qty Used: 1Regular price $126.04 USDRegular priceUnit price per
-
166.5#071-8061-00
13/14 MZ/Outlaw Seat Switch
Qty Used: 1Regular price $17.89 USDRegular priceUnit price per
-
167#071-5065-00
2019 Renegade Gas/Diesel Seat with Seatbelt
Qty Used: 1Regular price $899.99 USDRegular priceUnit price per
-
167.1#071-5065-02
Seatbelt for 2019 Renegade Gas/Diesel Seat
Qty Used: 1Regular price $132.68 USDRegular priceUnit price per
-
167.2#071-5065-03
Backrest Cushion for 2019 Renegade Gas/Diesel Seat
Qty Used: 1Regular price $169.99 USDRegular priceUnit price per
-
167.3#071-5065-04
Seat Cushion for 2019 Renegade Gas/Diesel Seat
Qty Used: 1Regular price $179.99 USDRegular priceUnit price per
-

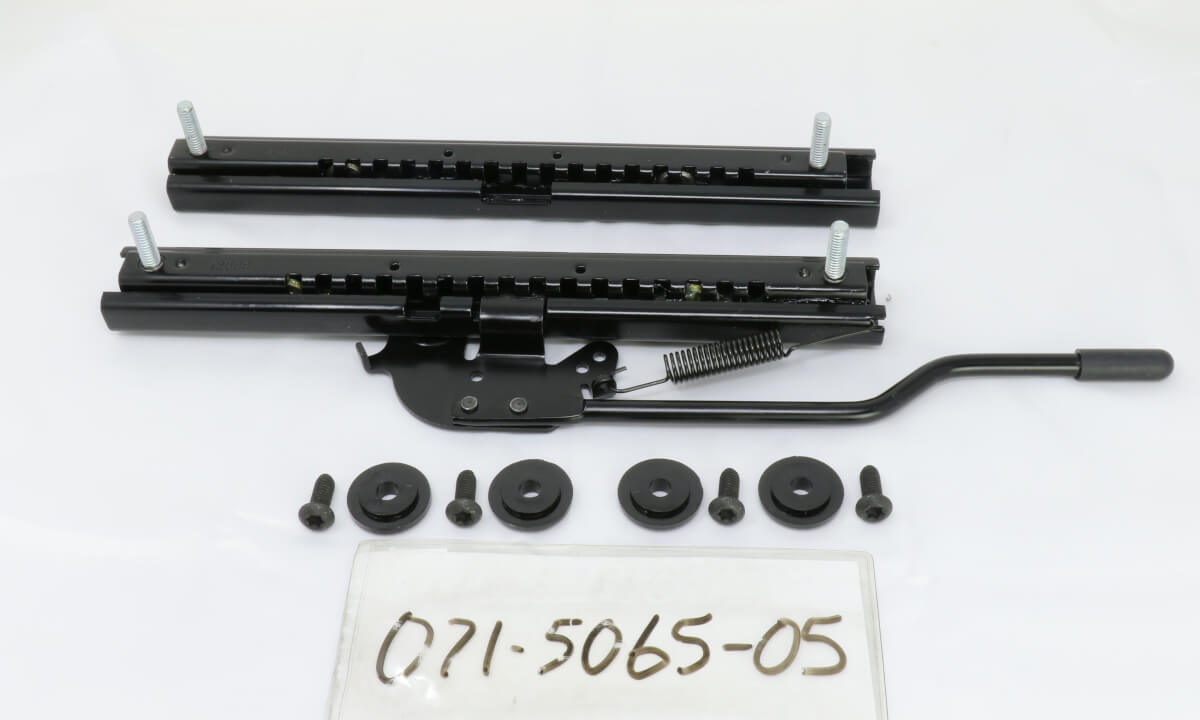

167.4#071-5065-05
Slave & Adjuster for 2019 Renegade Gas/Diesel Seat
Qty Used: 1Regular price $79.60 USDRegular priceUnit price per
-
167.5#071-5065-06
Arm rest Kit for 2019 Renegade Gas/Diesel Seat
Qty Used: 1Regular price $132.68 USDRegular priceUnit price per
-
167.6#071-5065-07
Seat Switch for 2019 Renegade Gas/Diesel Seat
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
171#079-3155-00
2019 Outlaw Floorboard--Orange
Qty Used: 1Regular price $109.99 USDRegular priceUnit price per
-
173#081-0050-00
Mat (Floor)
Qty Used: 1Regular price $72.99 USDRegular priceUnit price per
-
174#081-0051-00
Mat (Foot Plate)
Qty Used: 1Regular price $72.99 USDRegular priceUnit price per
-
182#089-0006-00
2019 2x2 R SERIES Outlaw Folding Rops
Qty Used: 1Regular price $436.43 USDRegular priceUnit price per
