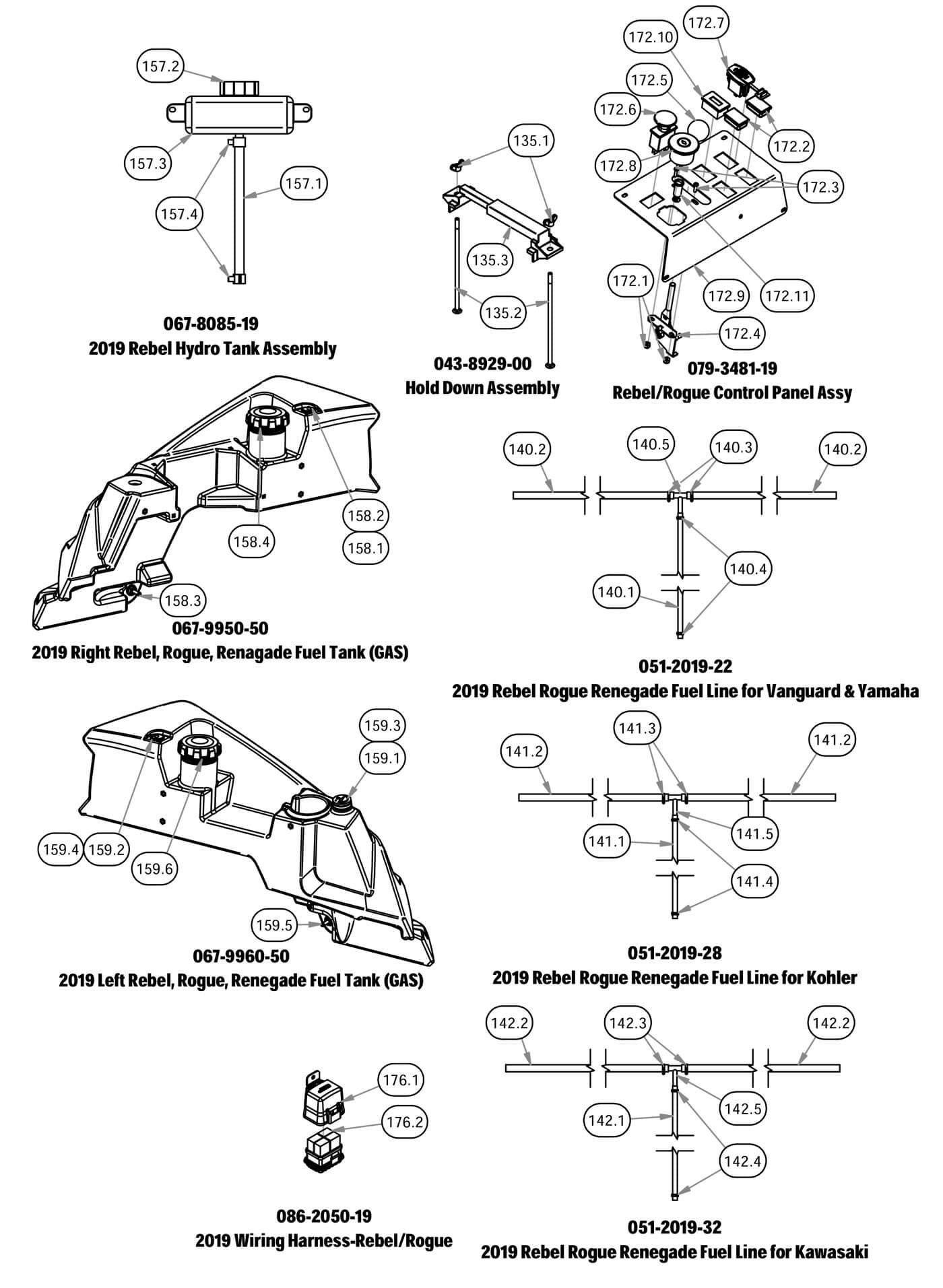

Control Panel, Wiring Harness, Hold Down Assembly, & Fuel Tank
Parts Index
- 135.1 1/4-20 Wing Nuts Zinc (Qty 2)
- 135.2 1/4-20 X 8 Carriage Bolts Zinc (Qty 2)
- 135.3 Battery Hold Down (Plastic) (Qty 1)
- 157.1 2019 7.5" Outlaw Gen2 Hydro Tank Hose (Qty 1)
- 157.2 ZT Hydraulic Tank Cap (Qty 1)
- 157.3 Expansion Tank for Outlaw (Qty 1)
- 157.4 5/8" Wire Clamp-Outlaw Only (Qty 2)
- 158.1 Old Style Grommet for Fule Gau (Qty 1)
- 158.2 Rollover Valve and Grommet New (Qty 1)
- 158.3 Fuel Pickup for 2019 Fuel Tanks (Qty 1)
- 158.4 Fuel Tank Cap for 2019 Fuel Tank (Qty 1)
- 159.1 Fuel Gauge Assembly w/ Grommet-2014 ZT,2015 Outlaw (Qty 1)
- 159.2 Old Style Grommet for Fule Gau (Qty 1)
- 159.3 New Style Grommet for 2017 MZ Magnum Fuel Gauge (Qty 1)
- 159.4 Rollover Valve and Grommet New (Qty 1)
- 159.5 Fuel Pickup for 2019 Fuel Tanks (Qty 1)
- 159.6 Fuel Tank Cap for 2019 Fuel Tank (Qty 1)
- 172.1 10-24 Nylon Insert Locknut Zin (Qty 2)
- 172.2 Light Plug (Qty 2)
- 172.3 10-24 X 5/8 BS C/S 18-8 SS (Qty 2)
- 172.4 Universal Throttle Head - 2012 (Qty 1)
- 172.5 Throttle / Brake Head Ball (Qty 1)
- 172.6 PTO Engager-Switch for Blades (Qty 1)
- 172.7 USB Port (Qty 1)
- 172.8 Ignition Switch (Qty 1)
- 172.9 Control Panel--Orange (Qty 1)
- 172.10 Tachometer-N310-0100-1018 (Qty 1)
- 172.11 Oil Light (Qty 1)
- 176.11 2019 Relay Cap Kit (Qty 1)
- 176.2 2019 Relay Terminal (Qty 4)
- 140.1 22" 1/4" Fuel Line No Clamp (Qty 1)
- 140.2 26" 5/16 Fuel Line No Clamps (Qty 2)
- 140.3 5/8 Fuel Line Clamp (Qty 2)
- 140.4 1/4 Fuel Line Clamp (Qty 2)
- 140.5 5/16 x 5/16 x 1/4 Fuel Line T (Qty 1)
- 141.1 28" 1/4 Fuel Line No Clamp (Qty 1)
- 141.2 26" 5/16 Fuel Line No Clamps (Qty 2)
- 141.3 5/8 Fuel Line Clamp (Qty 2)
- 141.4 1/4 Fuel Line Clamp (Qty 2)
- 141.5 5/16 x 5/16 x 1/4 Fuel Line T (Qty 1)
- 142.1 32" 1/4" Fuel Line No Clamps (Qty 1)
- 142.2 26" 5/16 Fuel Line No Clamps (Qty 2)
- 142.3 5/8 Fuel Line Clamp (Qty 2)
- 142.4 1/4 Fuel Line Clamp (Qty 2)
- 142.5 5/16 x 5/16 x 1/4 Fuel Line T (Qty 1)
-
135.1#013-8051-00
1/4-20 Wing Nuts Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
135.2#018-8050-00
1/4-20 X 8 Carriage Bolts Zinc
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
135.3#043-8929-00
Battery Hold Down (Plastic)
Qty Used: 1Regular price $16.35 USDRegular priceUnit price per
-
157.1#051-0019-00
2019 7.5" Outlaw Gen2 Hydro Tank Hose
Qty Used: 1Regular price $10.60 USDRegular priceUnit price per
-
157.2#066-5050-00
ZT Hydraulic Tank Cap
Qty Used: 1Regular price $14.58 USDRegular priceUnit price per
-
157.3#067-8085-00
Expansion Tank for Outlaw
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
157.4#072-8074-00
5/8" Wire Clamp-Outlaw Only
Qty Used: 2Regular price $4.37 USDRegular priceUnit price per
-
158.1159.2#067-6054-00
Old Style Grommet for Fule Gau
Qty Used: 1Regular price $7.28 USDRegular priceUnit price per
-
158.2159.4#067-6070-00
Rollover Valve and Grommet New
Qty Used: 1Regular price $22.99 USDRegular priceUnit price per
-
158.3159.5#067-9901-00
Fuel Pickup for 2019 Fuel Tanks
Qty Used: 1Regular price $21.22 USDRegular priceUnit price per
-
158.4159.6#067-9904-00
Fuel Tank Cap for 2019 Fuel Tank
Qty Used: 1Regular price $26.53 USDRegular priceUnit price per
-
159.1#067-4080-00
Fuel Gauge Assembly w/ Grommet-2014 ZT,2015 Outlaw
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
159.3#067-6056-00
New Style Grommet for 2017 MZ Magnum Fuel Gauge
Qty Used: 1Regular price $6.49 USDRegular priceUnit price per
-
172.1#013-5019-00
10-24 Nylon Insert Locknut Zin
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
172.2#018-1040-00
Light Plug
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
172.3#018-5200-00
10-24 X 5/8 BS C/S 18-8 SS
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
172.4#055-2012-00
Universal Throttle Head - 2012
Qty Used: 1Regular price $23.87 USDRegular priceUnit price per
-
172.5#055-2013-00
Throttle Head Ball
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
172.6#056-8058-00
PTO Engager-Switch for Blades
Qty Used: 1Regular price $32.05 USDRegular priceUnit price per
-
-
172.8#077-8076-00
Ignition Switch
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
172.9#079-3481-00
Control Panel--Orange
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
172.10#083-4013-00
Tachometer-N310-0100-1018
Qty Used: 1Regular price $69.99 USDRegular priceUnit price per
-
-
176.11#086-1202-01
2019 Relay Cap Kit
Qty Used: 1Regular price $17.24 USDRegular priceUnit price per
-
176.2#086-1202-19
2019 Relay Terminal
Qty Used: 4Regular price $23.34 USDRegular priceUnit price per
-
140.1#051-8067-22
22" 1/4" Fuel Line No Clamp
Qty Used: 1Regular price $10.99 USDRegular priceUnit price per
-
140.2141.2142.2#051-8075-26
26" 5/16 Fuel Line No Clamps
Qty Used: 2Regular price $17.50 USDRegular priceUnit price per
-
140.3141.3142.3#072-8068-00
5/8 Fuel Line Clamp
Qty Used: 2Regular price $3.29 USDRegular priceUnit price per
-
140.4141.4142.4#072-8069-00
1/4 Fuel Line Clamp
Qty Used: 2Regular price $0.88 USDRegular priceUnit price per
-
140.5141.5142.5#073-8069-00
5/16 x 5/16 x 1/4 Fuel Line T
Qty Used: 1Regular price $8.88 USDRegular priceUnit price per
-
141.1#051-8067-28
28\" 1/4 Fuel Line No Clamp
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
142.1#051-8067-32
32" 1/4" Fuel Line No Clamps
Qty Used: 1Regular price $12.09 USDRegular priceUnit price per
