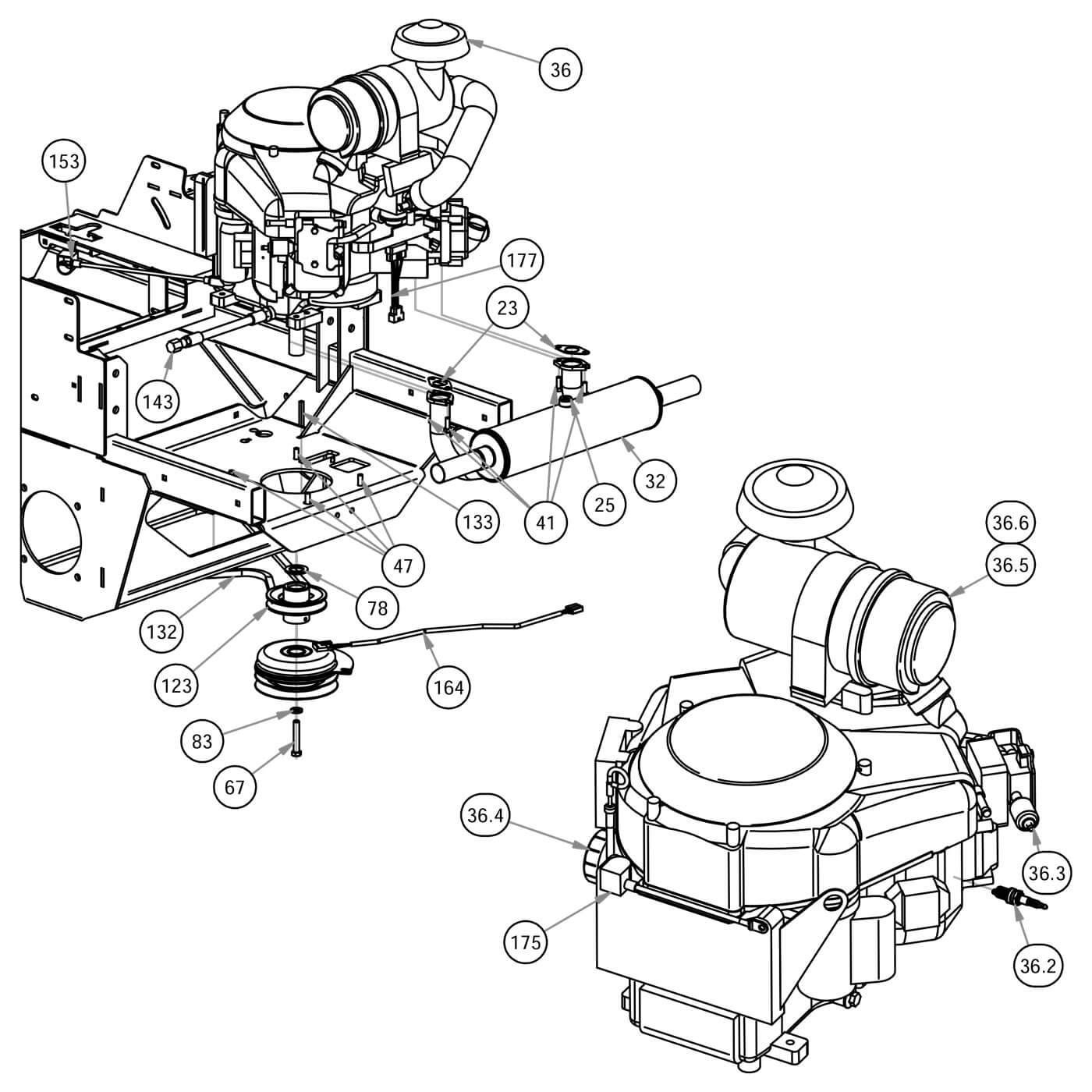

993cc Vanguard
Parts Index
- 23 Exhaust Gasket for 23 (Qty 2)
- 25 O2 Bung Plug 12mm x 1.25 CS (Qty 1)
- 32 2019 Rebel/Rogue Vanguard 993 Exhaust& 999cc EFI (Qty 1)
- 36 36hp Briggs Vanguard Engine (Qty 1)
- 36.2 Spark Plug-Kohler/Briggs (Qty 2)
- 36.3 Universal Inline Fuel Filter (Qty 1)
- 36.4 Briggs Oil Filter (Qty 1)
- 36.5 Canister Air Fil Outer2010&Old (Qty 1)
- 36.6 Canister Air Filter - Inner (Qty 1)
- 41 Torx Bolt-Exhaust-23hp Vanguard (Qty 4)
- 47 3/8 x 1 1/8 Engine Mounting Bolt (Qty 4)
- 67 7/16-20 X 2-1/2 GR 5 Hex Bolt (Qty 1)
- 78 1.140x1.750x .132 Flat Washer (Qty 1)
- 83 7/16 Lock washer zinc (Qty 1)
- 123 4 3/4 Motor Pulley (Qty 1)
- 132 2019 & up Rebel Pump Belt (Qty 1)
- 133 1/4 X 2 Square Key Stock (Qty 1)
- 143 14mm Drain Hose-36hp Vanguard (Qty 1)
- 153 14" Red Battery Cable- Rebel, Raider (Qty 1)
- 163 Revolt, Rogue, Rebel, HD Clutch (Qty 1)
- 164 Clutch Pigtail (Qty 1)
- 165 2019 Rigid Frame (Qty 1)
- 175 Rebel, Rogue Ground Wire (Qty 1)
- 177 2019 Harness Adaptor-36 Vanguard Carb (Qty 1)
-
23#015-0025-00
Exhaust Gasket for 23
Qty Used: 2Regular price $8.74 USDRegular priceUnit price per
-
25#015-0050-01
O2 Bung Plug 12mm x 1.25 CS
Qty Used: 1Regular price $8.99 USDRegular priceUnit price per
-
32#015-1014-00
2019 Rebel/Rogue Vanguard 993 Exhaust& 999cc EFI
Qty Used: 1Regular price $199.00 USDRegular priceUnit price per
-
36#015-3600-00
36hp Briggs Vanguard Engine
Qty Used: 1Regular price $3,979.44 USDRegular priceUnit price per
-
36.2#015-8000-00
Spark Plug-Kohler/Briggs
Qty Used: 2Regular price $9.99 USDRegular priceUnit price per
-
36.3#063-6000-00
Universal Inline Fuel Filter
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
36.4#063-8018-00
Briggs Oil Filter
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
36.5#063-8019-00
Canister Air Fil Outer2010&Old
Qty Used: 1Regular price $33.50 USDRegular priceUnit price per
-
36.6#063-8020-00
Canister Air Filter - Inner
Qty Used: 1Regular price $30.51 USDRegular priceUnit price per
-
41#018-0017-00
Torx Bolt-Exhaust-23hp Vanguard
Qty Used: 4Regular price $5.29 USDRegular priceUnit price per
-
47#018-1075-00
3/8 x 1 1/8 Engine Mounting Bolt
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-
67#018-5300-00
7/16-20 X 2-1/2 GR 5 Hex Bolt
Qty Used: 1Regular price $1.19 USDRegular priceUnit price per
-
78#019-6029-00
1.140x1.750x .132 Flat Washer
Qty Used: 1Regular price $1.19 USDRegular priceUnit price per
-
83#019-8053-00
7/16 Lock washer zinc
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
123#033-5035-00
4 3/4 Motor Pulley
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
132#041-8050-00
2019 & up Rebel Pump Belt
Qty Used: 1Regular price $74.99 USDRegular priceUnit price per
-
133#042-5020-00
1/4 X 2 Square Key Stock
Qty Used: 1Regular price $2.92 USDRegular priceUnit price per
-
143#051-5402-00
14mm Drain Hose-36hp Vanguard
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
153#064-5301-01
14" Red Battery Cable-Base Outlaw
Qty Used: 1Regular price $12.09 USDRegular priceUnit price per
-
-
164#070-2000-00
Clutch Pigtail
Qty Used: 1Regular price $19.85 USDRegular priceUnit price per
-
165#070-5371-19
2019 Rigid Frame
Qty Used: 1Regular price $899.99 USDRegular priceUnit price per
-
175#086-0005-00
Starter Cable
Qty Used: 1Regular price $9.28 USDRegular priceUnit price per
-
177#086-9001-19
2019 Harness Adaptor-36 Vanguard Carb
Qty Used: 1Regular price $49.99 USDRegular priceUnit price per
