Kohler KS-590

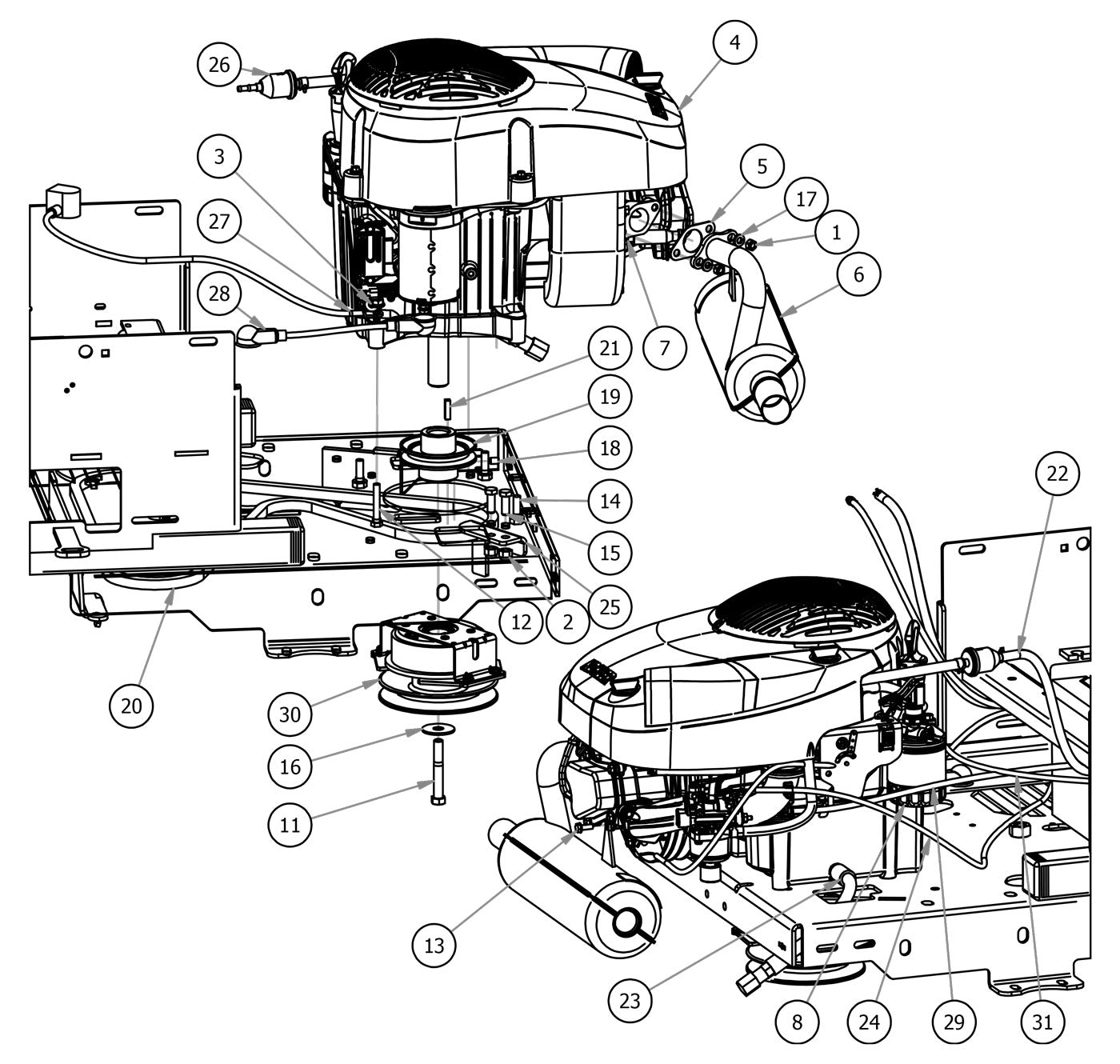

Parts Index
- 1 M8 - 1.25 Stainless Steel Nut (Qty 2)
- 2 3/8-16 Nylon Insert Locknut Zi (Qty 2)
- 3 5/16-18 Hex Flange Nuts Zinc w (Qty 1)
- 4 2018 541cc Kohler 5400 Series Engine 19hp MZ (Qty 1)
- 5 Exhaust Gasket for 015-0077-00 (Qty 1)
- 6 Exhaust for 015-0077-00 (Qty 1)
- 7 Spark Plug for 015-0077-00 (Qty 1)
- 8 Oil Filter for 015-0077-00/015-9990-00/015-9991-00 (Qty 1)
- 9 Air Pre-Cleaner for 015-0077-00 (Qty 1)
- 10 Air Filter for 015-0077-00 (Qty 1)
- 11 7/16-20 x 3 Hex C/S GR 8 Yellow (Qty 1)
- 12 5/16-18 X 2 HEX C/S (GR.5) ZC (Qty 1)
- 13 M6-1.0 X 16MM IND. HWH TRI LOB TFS Zinc (Qty 1)
- 14 3/8 x 1 1/8 Engine Mounting Bolt (Qty 3)
- 15 3/8-16 X 1 GR 5 Hex Bolts Zinc (Qty 2)
- 16 1/2 Belleville Washer #K2000-G (Qty 1)
- 17 5/16 Lock washer Zinc (Qty 2)
- 18 3/8-16x1/2 Socket Set Cup Point (Qty 1)
- 19 3 3/4 Motor Pulley-2009 MZ (Qty 1)
- 20 Pump Belt for ZT, MZ, Avenger (Qty 1)
- 21 1/4 x 1 Square Key (Qty 1)
- 22 2014 ZT Fuel Line Assembly-37" (Qty 1)
- 23 Kohler Oil Drain Hose (Qty 1)
- 24 Choke - All MZ/ZT/Mav/Rebel/Rogue (Qty 1)
- 25 Clutch Stop (Qty 1)
- 26 Universal Inline Fuel Filter (Qty 1)
- 27 24 inch Black Cable - MZ/ZT (Qty 1)
- 28 14" Red Battery Cable (Qty 1)
- 29 MZ Briggs/CXI EPA Cannister Assy (Qty 1)
- 30 Clutch For 1" Shaft (Qty 1)
- 31 2017 MZ Control Panel Assembly (Qty 1)
-
1#013-0075-00
M8 - 1.25 Stainless Steel Nut
Qty Used: 2Regular price $2.99 USDRegular priceUnit price per
-
2#013-5041-00
3/8-16 Nylon Insert Locknut Zi
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
3#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
4#015-0077-00
2018 541cc Kohler 5400 Series Engine 19hp MZ
Qty Used: 1Regular price $1,592.29 USDRegular priceUnit price per
-
5#015-0077-01
Exhaust Gasket for 015-0077-00
Qty Used: 1Regular price $6.62 USDRegular priceUnit price per
-
6#015-0077-02
Exhaust for 015-0077-00
Qty Used: 1Regular price $175.14 USDRegular priceUnit price per
-
7#015-0077-03
Spark Plug for 015-0077-00
Qty Used: 1Regular price $6.77 USDRegular priceUnit price per
-
8#015-0077-04
Oil Filter for 015-0077-00/015-9990-00/015-9991-00
Qty Used: 1Regular price $22.54 USDRegular priceUnit price per
-
9#015-0077-05
Air Pre-Cleaner for 015-0077-00
Qty Used: 1Regular price $10.20 USDRegular priceUnit price per
-
10#015-0077-06
Air Filter for 015-0077-00
Qty Used: 1Regular price $30.64 USDRegular priceUnit price per
-
11#018-0007-00
7/16-20 x 3 Hex C/S GR 8 Yellow
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
12#018-0012-00
5/16-18 X 2 HEX C/S (GR.5) ZC
Qty Used: 1Regular price $2.19 USDRegular priceUnit price per
-
13#018-0101-00
M6-1.0 X 16MM IND. HWH TRI LOB TFS Zinc
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
14#018-1075-00
3/8 x 1 1/8 Engine Mounting Bolt
Qty Used: 3Regular price $1.39 USDRegular priceUnit price per
-
15#018-6049-00
3/8-16 X 1 GR 5 Hex Bolts Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
16#019-6020-00
1/2 Belleville Washer #K2000-G
Qty Used: 1Regular price $4.69 USDRegular priceUnit price per
-
17#019-8051-00
5/16 Lock washer Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
18#030-6029-00
3/8-16x1/2 Socket Set Cup Point
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
19#033-2010-00
3 3/4 Motor Pulley-2009 MZ
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
20#041-6400-00
Pump Belt for ZT, MZ, Avenger
Qty Used: 1Regular price $54.99 USDRegular priceUnit price per
-
21#042-6030-00
1/4 x 1 Square Key
Qty Used: 1Regular price $4.37 USDRegular priceUnit price per
-
22#051-2014-00
2014 ZT Fuel Line Assembly-37"
Qty Used: 1Regular price $37.88 USDRegular priceUnit price per
-
23#051-5401-00
Kohler Oil Drain Hose
Qty Used: 1Regular price $29.13 USDRegular priceUnit price per
-
24#054-8017-00
Choke - All MZ/ZT/Mav/Rebel/Rogue
Qty Used: 1Regular price $24.11 USDRegular priceUnit price per
-
25#057-5900-00
Clutch Stop
Qty Used: 1Regular price $29.13 USDRegular priceUnit price per
-
26#063-6000-00
Universal Inline Fuel Filter
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
27#064-0030-00
24 inch Black Cable - MZ/ZT
Qty Used: 1Regular price $17.50 USDRegular priceUnit price per
-
28#064-5301-00
14\" Red Battery Cable
Qty Used: 1Regular price $16.04 USDRegular priceUnit price per
-
No sequence found for SKU:
MZ Briggs/CXI EPA Cannister Assy
Regular price $0.00 USDRegular priceUnit price per
-
30#070-0055-00
Clutch For 1\" Shaft
Qty Used: 1Regular price $279.99 USDRegular priceUnit price per
-
31#079-3460-02
2017 MZ Control Panel Assembly
Qty Used: 1Regular price $99.00 USDRegular priceUnit price per
