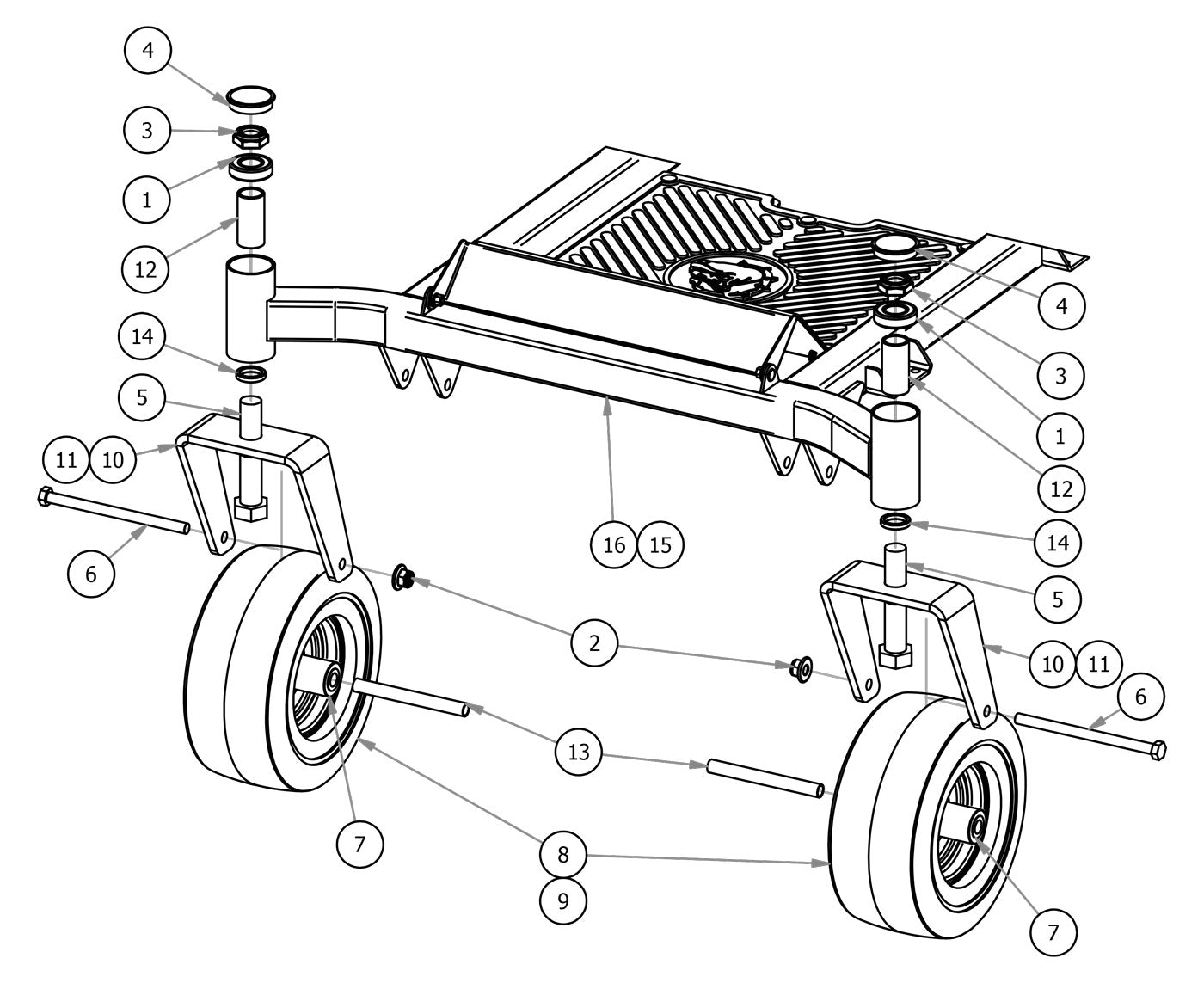

Front Fork Assembly
Parts Index
- 1 Caster Bearing (Qty 4)
- 2 1/2-13 Nylon Insert Flange Nut (Qty 2)
- 3 1" Nylock Nut 1/2 Nut - Fine (Qty 2)
- 4 Bearing Retainer Cap (Qty 2)
- 5 1-14 X 5 BOLT GR 8 ZC YELLOW (Qty 2)
- 6 1/2-13 x 7 1/2 Grade 5 Hex Bolt (Qty 2)
- 7 Ball Bearing w/clip; 99502H-NR; 5/8" Bore (Qty 4)
- 8 11x6.00-5 Front Assembly - 2019 Magnum (Qty 2)
- 9 11 x 4.00 - 5 MZ Front Tire Assembly (Qty 2)
- 10 Magnum Front Fork (Qty 2)
- 11 MZ 8mm Front Fork (Qty 2)
- 12 MZ/ZT/Mav/ R Series Front Bearing Spacer (Qty 2)
- 13 Front Wheel Spanner - MZ (Qty 2)
- 14 Spacer ( Front Fork and Suspension ) (Qty 2)
- 15 2017 MZ/ZT 54"-60" Frame (Qty 1)
- 16 2017 MZ/ZT 42"-48" Frame (Qty 1)
-
1#010-1050-00
Caster Bearing
Qty Used: 4Regular price $17.19 USDRegular priceUnit price per
-
2#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
3#013-9004-00
1" Nylock Nut 1/2 Nut - Fine
Qty Used: 2Regular price $3.29 USDRegular priceUnit price per
-
4#014-2025-00
Bearing Retainer Cap
Qty Used: 2Regular price $2.49 USDRegular priceUnit price per
-
5#018-0005-00
1-14 X 5 BOLT GR 8 ZC YELLOW
Qty Used: 2Regular price $5.89 USDRegular priceUnit price per
-
6#018-0035-00
1/2-13 x 7 1/2 Grade 5 Hex Bolt
Qty Used: 2Regular price $4.39 USDRegular priceUnit price per
-
7#022-7009-00
Ball Bearing w/clip; 99502H-NR; 5/8" Bore
Qty Used: 4Regular price $12.49 USDRegular priceUnit price per
-
8#022-8049-19
11x6.00-5 Front Assembly - 2019 Magnum
Qty Used: 2Regular price $92.89 USDRegular priceUnit price per
-
9#022-8051-00
11 x 4.00 - 5 MZ Front Tire Assembly
Qty Used: 2Regular price $71.59 USDRegular priceUnit price per
-
10#023-0002-00
Magnum Front Fork
Qty Used: 2Regular price $29.19 USDRegular priceUnit price per
-
11#023-0005-00
MZ 8mm Front Fork
Qty Used: 2Regular price $39.79 USDRegular priceUnit price per
-
12#025-0003-00
MZ/ZT/Mav/ R Series Front Bearing Spacer
Qty Used: 2Regular price $13.12 USDRegular priceUnit price per
-
13#025-0008-00
Front Wheel Spanner - MZ
Qty Used: 2Regular price $14.58 USDRegular priceUnit price per
-
14#058-1000-00
Spacer ( Front Fork and Suspension )
Qty Used: 2Regular price $5.83 USDRegular priceUnit price per
-
15#070-5420-00
2017 MZ/ZT 54"-60" Frame
Qty Used: 1Regular price $799.99 USDRegular priceUnit price per
-
16#070-5810-00
2017 MZ/ZT 42"-48" Frame
Qty Used: 1Regular price $799.99 USDRegular priceUnit price per
