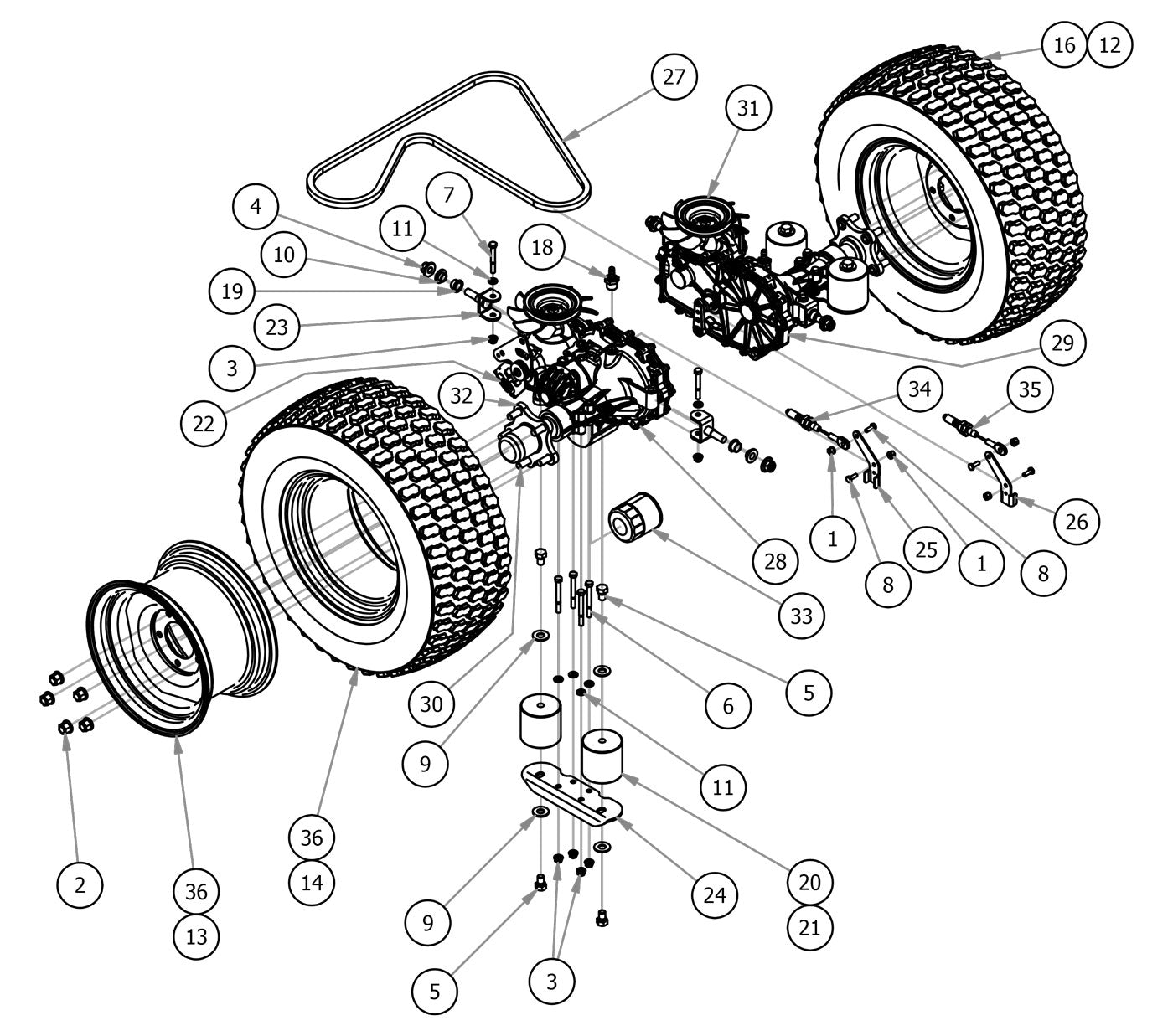

Transaxle Assembly
Parts Index
- 1 1/4-20 Nylon Insert Flange Nut (Qty 4)
- 2 Acorn Lug Nut (Qty 10)
- 4 1/2-13 Nylon Insert Flange Nut (Qty 4)
- 5 1/2-13 x 3/4 Bolt with Patch (GR 5) Zinc (Qty 8)
- 6 5/16-18 X 3 GR 5 Hex Bolt Zinc (Qty 8)
- 7 5/16 x 2 1/2 Bolt (Qty 4)
- 8 1/4-20 X 3/4 GR 5 Hex Bolts (Qty 4)
- 9 1/2 SAE Flat Washer GR 8 (Qty 8)
- 11 5/16 USS Flat Washer Zinc (Qty 12)
- 12 23x8.50-12 Tire Assembly-Black (Qty 2)
- 13 12x7" Black Wheel-48" EZT Only (Qty 2)
- 14 23 x 8.50 - 12 Turf Tire (Qty 2)
- 16 2019 Maverick Assembly 23x11-12 Reaper Turf (Qty 2)
- 18 ZT Fitting, 3/8 x 3/8 45 Degree (Qty 2)
- 19 Bronze Bushing - SF-2024-8 (Qty 4)
- 20 Isolator (Green Dot) (Qty 4)
- 21 Isolator (Red Dot) (Qty 4)
- 22 Gold Transaxle Spring (Qty 2)
- 23 Transaxle Mount-Field Goal (Qty 4)
- 24 EZT Rear Susp Transaxle Mount--Plated (Qty 2)
- 25 Brake Arm Ext. Bracket Paired With 039-1321-00 (Qty 1)
- 26 Brake Arm Ext. Bracket Paired With 039-1320-00 (Qty 1)
- 27 Pump Belt-2018 Maverick 75.8"/2019 & Up Maverick (Qty 1)
- 28 OBSOLETE US 050-0075-01 (Qty 1)
- 29 OBSOLETE USE 050-0080-01 (Qty 1)
- 30 Transaxle Wheel Studs/ Drum Brake Studs (Qty 10)
- 31 Fan/Pulley Kit for ZT / 2017 MZ (Qty 2)
- 32 5 Bolt Hub Kit (Qty 2)
- 33 ZT Hydraulic Filter (Qty 2)
- 34 2017 ZT Brake Cable-18.50" (Qty 1)
- 35 2017 ZT Brake Cable-24.50" (Qty 1)
- 36 23 x 10.50 -12 Black Assembly - Maverick (Qty 2)
-
1#013-2050-00
1/4-20 Nylon Insert Flange Nut
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-
2#013-3000-00
Acorn Lug Nut
Qty Used: 10Regular price $2.99 USDRegular priceUnit price per
-
4#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-
5#018-1055-00
1/2-13 x 3/4 Bolt with Patch (GR 5) Zinc
Qty Used: 8Regular price $2.69 USDRegular priceUnit price per
-
6#018-4701-00
5/16-18 X 3 GR 5 Hex Bolt Zinc
Qty Used: 8Regular price $0.69 USDRegular priceUnit price per
-
7#018-5344-00
5/16 x 2 1/2 Bolt
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
8#018-8052-00
1/4-20 X 3/4 GR 5 Hex Bolts
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
9#019-5702-00
1/2 SAE Flat Washer GR 8
Qty Used: 8Regular price $0.75 USDRegular priceUnit price per
-
11#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 12Regular price $0.79 USDRegular priceUnit price per
-
12#022-3010-00
23x8.50-12 Tire Assembly-Black
Qty Used: 2Regular price $217.99 USDRegular priceUnit price per
-
13#022-3011-00
12x7" Black Wheel-48" EZT Only
Qty Used: 2Regular price $106.99 USDRegular priceUnit price per
-
14#022-3025-00
23 x 8.50 - 12 Turf Tire
Qty Used: 2Regular price $179.99 USDRegular priceUnit price per
-
16#022-4200-00
2019 Maverick Assembly 23x11-12 Reaper Turf
Qty Used: 2Regular price $290.99 USDRegular priceUnit price per
-
18#024-1200-00
ZT Fitting, 3/8 x 3/8 45 Degree
Qty Used: 2Regular price $18.63 USDRegular priceUnit price per
-
19#032-5052-00
Bronze Bushing - SF-2024-8
Qty Used: 4Regular price $4.37 USDRegular priceUnit price per
-
20#032-9000-00
Isolator (Green Dot)
Qty Used: 4Regular price $66.33 USDRegular priceUnit price per
-
21#032-9002-00
Isolator (Red Dot)
Qty Used: 4Regular price $66.33 USDRegular priceUnit price per
-
22#034-9080-00
Gold Transaxle Spring
Qty Used: 2Regular price $13.92 USDRegular priceUnit price per
-
23#039-0001-00
Transaxle Mount
Qty Used: 4Regular price $14.58 USDRegular priceUnit price per
-
24#039-1306-00
EZT Rear Susp Transaxle Mount--Plated
Qty Used: 2Regular price $14.58 USDRegular priceUnit price per
-
25#039-1320-00
Brake Arm Extension Bracket
Qty Used: 1Regular price $5.49 USDRegular priceUnit price per
-
26#039-1321-00
Brake Arm Extension Bracket
Qty Used: 1Regular price $7.28 USDRegular priceUnit price per
-
27#041-7400-00
Pump Belt-2018 Maverick 75.8"/2019 & Up Maverick
Qty Used: 1Regular price $59.99 USDRegular priceUnit price per
-
28#050-0075-00
OBSOLETE US 050-0075-01
Qty Used: 1Regular price $558.49 USDRegular priceUnit price per
-
29#050-0080-00
OBSOLETE USE 050-0080-01
Qty Used: 1Regular price $558.49 USDRegular priceUnit price per
-
30#050-2012-00
Transaxle Wheel Studs/ Drum Brake Studs
Qty Used: 10Regular price $5.10 USDRegular priceUnit price per
-
31#050-2075-00
Fan/Pulley Kit for ZT / 2017 MZ
Qty Used: 2Regular price $66.33 USDRegular priceUnit price per
-
32#050-2077-00
5 Bolt Hub Kit
Qty Used: 2Regular price $88.97 USDRegular priceUnit price per
-
33#063-1050-00
ZT Hydraulic Filter
Qty Used: 2Regular price $21.22 USDRegular priceUnit price per
-
34#064-3050-00
2017 ZT Brake Cable-18.50"
Qty Used: 1Regular price $48.10 USDRegular priceUnit price per
-
35#064-3051-00
2017 ZT Brake Cable-24.50"
Qty Used: 1Regular price $53.94 USDRegular priceUnit price per
-
36#022-5465-00
23 x 10.50 -12 Black Assembly - Maverick
Qty Used: 2Regular price $289.99 USDRegular priceUnit price per
