Pillow Block, Foot Pedal, Pump Idler

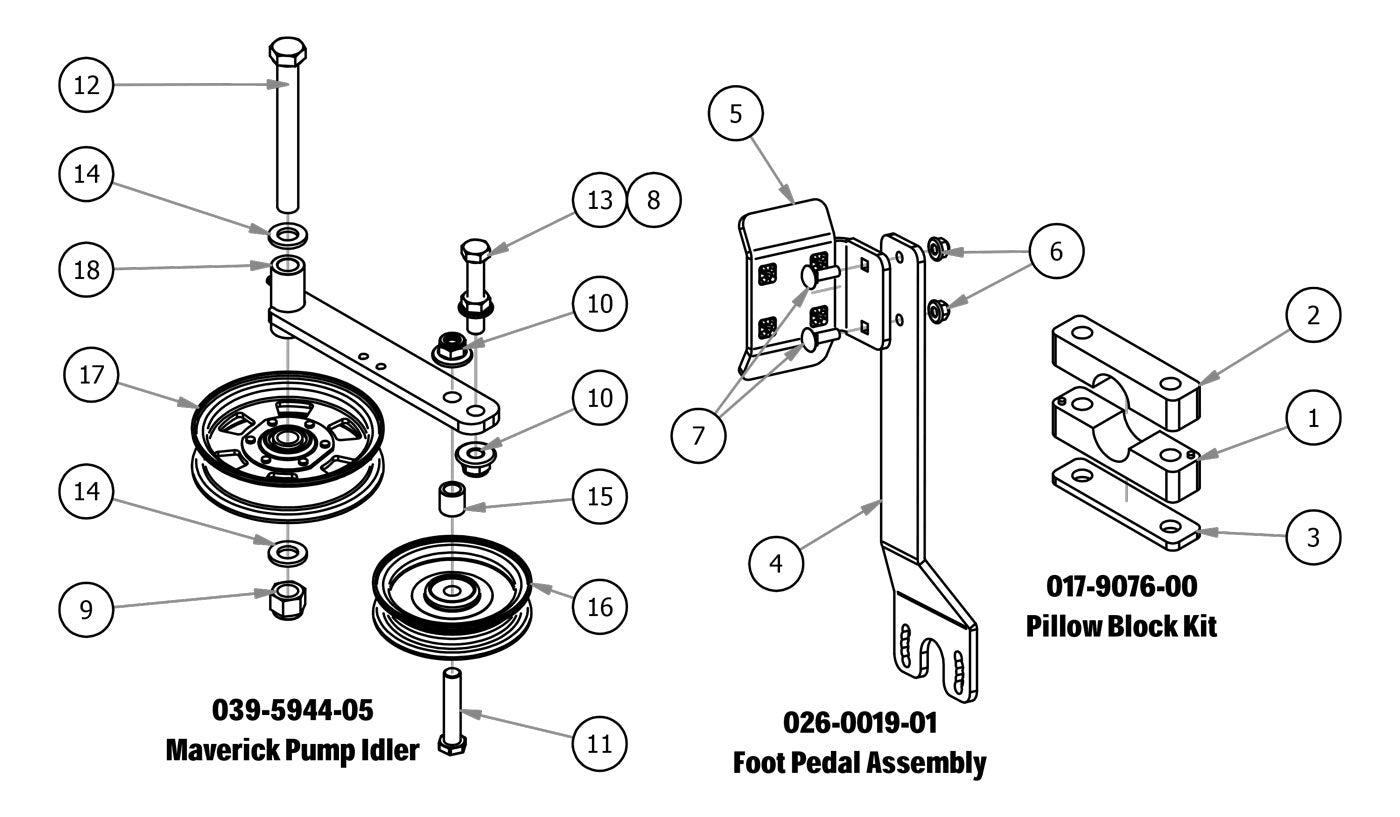

Parts Index
- 1 2017 Magnum Pillow Block-Male (Qty 1)
- 2 2017 Magnum Pillow Block-Female (Qty 1)
- 3 2017 Magnum Pillow Block-Metal Plate (Qty 1)
- 4 2017 MZ/ZT Deck Pedal Lever--Orange (Qty 1)
- 5 Foot Pedal--Orange (Qty 1)
- 6 5/16-18 Nylon Flange Nut (Qty 2)
- 7 5/16-18 X 1 Carriage Bolt Zinc (Qty 2)
- 8 1/2-13 Hex Fange Nuts Zinc w/ (Qty 1)
- 9 5/8-11 Nylon Insert Locknut Zi (Qty 1)
- 10 1/2-13 Nylon Insert Flange Nut (Qty 2)
- 11 1/2-13 x 2 1/2 Hex Bolt Gr 5 (Qty 1)
- 12 5/8 x 5 1/2 Bolt (Qty 1)
- 13 1/2-13 X 2-3/4 GR 5 Bolt Zinc (Qty 1)
- 14 .630 ID X 1.122 OD X .142 THK (Qty 2)
- 15 Spacer 3/4ODx1/2IDx0.75 (Qty 1)
- 16 4 3/4 Idler Pulley - ABFI-76 (Qty 1)
- 17 2016-5 3/4 Idler Pulley-5/8 (Qty 1)
- 18 Idler Bracket (Qty 1)
-
1#017-9077-00
2017 Magnum Pillow Block-Male
Qty Used: 1Regular price $19.89 USDRegular priceUnit price per
-
2#017-9078-00
2017 Magnum Pillow Block-Female
Qty Used: 1Regular price $19.89 USDRegular priceUnit price per
-
3#017-9079-00
2017 Magnum Pillow Block-Metal Plate
Qty Used: 1Regular price $19.89 USDRegular priceUnit price per
-
4#031-0500-00
2017 MZ/ZT Deck Pedal Lever--Orange
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
5#026-0019-00
Foot Pedal--Orange
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
6#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
7#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
8#013-5300-00
1/2-13 Hex Fange Nuts Zinc w/
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
9#013-7021-00
5/8-11 Nylon Insert Locknut Zi
Qty Used: 1Regular price $1.19 USDRegular priceUnit price per
-
10#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
11#018-0015-00
1/2-13 x 2 1/2 Hex Bolt Gr 5
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
12#018-6016-00
5/8 x 5 1/2 Bolt
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
13#018-6036-00
1/2-13 X 2-3/4 GR 5 Bolt Zinc
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
14#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
15#025-5203-00
Spacer 3/4ODx1/2IDx0.75
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
16#033-6001-00
4 3/4 Idler Pulley - ABFI-76
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
17#033-8000-00
2016-5 3/4 Idler Pulley-5/8
Qty Used: 1Regular price $33.16 USDRegular priceUnit price per
-
18#039-6945-00
Idler Bracket
Qty Used: 1Regular price $37.88 USDRegular priceUnit price per
