GXV-630 Honda

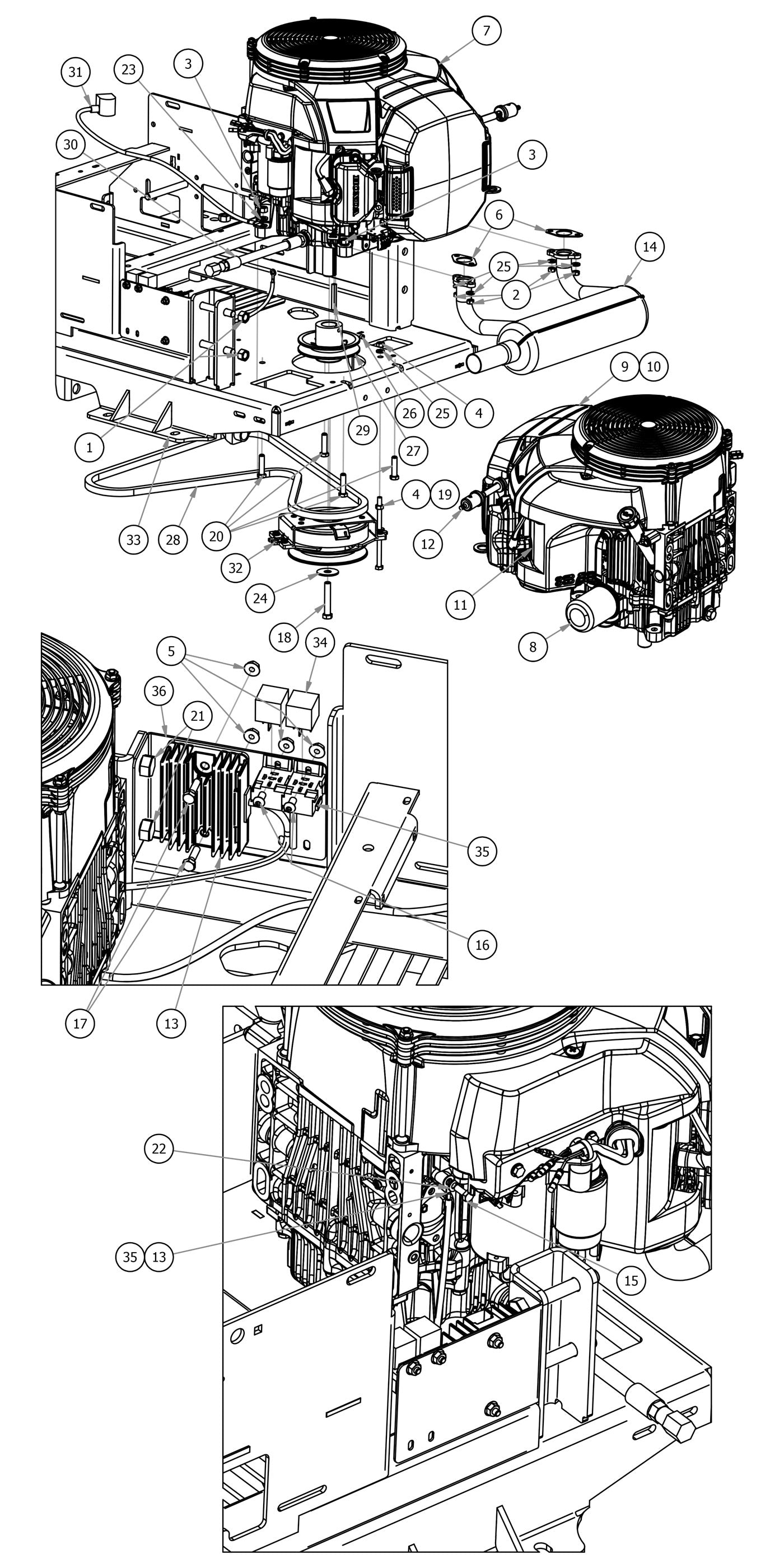

Parts Index
- 1 1/2-13 hex 2-WAY REV CNT L/N (GR.B) ZC (Qty 2)
- 2 M8 - 1.25 Stainless Steel Nut (Qty 4)
- 3 3/8-16 Hex Nuts Zinc (Qty 4)
- 4 5/16-18 Hex Nuts Zinc (Qty 2)
- 5 1/4-20 Hex Flange Nuts Zinc w/ (Qty 4)
- 6 Exhaust Gasket for 015-0077-00 (Qty 2)
- 7 Honda Engine (GXV630RTAF) (Qty 1)
- 8 Oil Filter for 015-0091-00 (Qty 1)
- 9 Pre-Cleaner for Air Filter for the 015-0091-00 (Qty 1)
- 10 Air Cleaner Element for the 015-0091-00 (Qty 1)
- 11 Spark Plug for the 015-0091-00 (GXV630) (Qty 2)
- 12 Fuel Filter for the 015-0091-00 (fits the GXV630) (Qty 1)
- 13 Regulator Rectifier for Honda (015-0091-00) (Qty 1)
- 14 2019 Honda Maverick Exhaust (Qty 1)
- 15 M6-1.0 X 16MM HEX BOLT CL 8 (Qty 1)
- 16 1/4-20 X 1/2 BS C/S 18-8 SS (Qty 2)
- 17 1/4-20 X 1 GR 5 Hex Bolts Zinc (Qty 2)
- 18 7/16-20 X 2-1/2 GR 5 Hex Bolt (Qty 1)
- 19 5/16-18 X 5-1/2 GR 5 Hex Bolt (Qty 1)
- 20 3/8 x 1 1/2 Bolt (Qty 4)
- 21 1/2-13 X 3-1/2 GR 5 Hex Bolts (Qty 2)
- 22 1/4 Lockwasher Zinc (Qty 1)
- 23 3/8 Lockwasher Zinc (Qty 4)
- 24 1/2 Belleville Washer #K2000-G (Qty 1)
- 25 5/16 Lock washer Zinc (Qty 5)
- 26 5/16-24 x 1/4 Set Screw (Qty 1)
- 27 4 3/4 Motor Pulley (Qty 1)
- 28 Pump Belt-2018 Maverick 75.8"/2019 & Up Maverick (Qty 1)
- 29 1/4 X 2 Square Key Stock (Qty 1)
- 30 2019 Honda Oil Drain (Qty 1)
- 31 24 inch Black Cable - MZ/ZT (Qty 1)
- 32 Clutch For 1-1/8" Shaft (Qty 1)
- 34 5Relay Terminal (Qty 2)
- 35 2019 Harness Adaptor- Honda Engine (Qty 1)
- 36 Honda Rectifier Mount--Orange (Qty 1)
-
1#013-0005-00
1/2-13 hex 2-WAY REV CNT L/N (GR.B) ZC
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
2#013-0075-00
M8 - 1.25 Stainless Steel Nut
Qty Used: 4Regular price $2.99 USDRegular priceUnit price per
-
3#013-6014-00
3/8-16 Hex Nuts Zinc
Qty Used: 4Regular price $0.00 USDRegular priceUnit price per
-
4#013-8043-00
5/16-18 Hex Nuts Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
5#013-9001-00
1/4-20 Hex Flange Nuts Zinc w/
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
6#015-0077-01
Exhaust Gasket for 015-0077-00
Qty Used: 2Regular price $6.62 USDRegular priceUnit price per
-
7#015-0091-00
Honda Engine (GXV630RTAF)
Qty Used: 1Regular price $2,999.00 USDRegular priceUnit price per
-
8#015-0091-01
Oil Filter for 015-0091-00
Qty Used: 1Regular price $20.99 USDRegular priceUnit price per
-
9#015-0091-02
Pre-Cleaner for Air Filter for the 015-0091-00
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
10#015-0091-03
Air Cleaner Element for the 015-0091-00
Qty Used: 1Regular price $87.56 USDRegular priceUnit price per
-
11#015-0091-04
Spark Plug for the 015-0091-00
Qty Used: 2Regular price $10.20 USDRegular priceUnit price per
-
12#015-0091-05
Fuel Filter for the 015-0091-00
Qty Used: 1Regular price $27.99 USDRegular priceUnit price per
-
13#015-0091-06
Regulator Rectifier for Honda (015-0091-00)
Qty Used: 1Regular price $224.25 USDRegular priceUnit price per
-
14#015-1016-00
2019 Honda Maverick Exhaust
Qty Used: 1Regular price $199.00 USDRegular priceUnit price per
-
15#018-0024-00
M6-1.0 X 16MM HEX BOLT CL 8
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
16#018-2012-00
1/4-20 X 1/2 BS C/S 18-8 SS
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
17#018-4007-00
1/4-20 X 1 GR 5 Hex Bolts Zinc
Qty Used: 2Regular price $0.89 USDRegular priceUnit price per
-
18#018-5300-00
7/16-20 X 2-1/2 GR 5 Hex Bolt
Qty Used: 1Regular price $1.19 USDRegular priceUnit price per
-
19#018-5350-00
5/16-18 X 5-1/2 GR 5 Hex Bolt
Qty Used: 1Regular price $1.79 USDRegular priceUnit price per
-
20#018-6012-00
3/8 x 1 1/2 Bolt
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
21#018-6054-00
1/2-13 X 3-1/2 GR 5 Hex Bolts
Qty Used: 2Regular price $1.99 USDRegular priceUnit price per
-
22#019-4008-00
1/4 Lockwasher Zinc
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
23#019-5037-00
3/8 Lockwasher Zinc
Qty Used: 4Regular price $0.00 USDRegular priceUnit price per
-
24#019-6020-00
1/2 Belleville Washer #K2000-G
Qty Used: 1Regular price $4.69 USDRegular priceUnit price per
-
25#019-8051-00
5/16 Lock washer Zinc
Qty Used: 5Regular price $0.79 USDRegular priceUnit price per
-
26#030-0050-00
5/16-24 x 1/4 Set Screw
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
27#033-5035-00
4 3/4 Motor Pulley
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
28#041-7400-00
Pump Belt-2018 Maverick 75.8"/2019 & Up Maverick
Qty Used: 1Regular price $59.99 USDRegular priceUnit price per
-
29#042-5020-00
1/4 X 2 Square Key Stock
Qty Used: 1Regular price $2.92 USDRegular priceUnit price per
-
30#051-5405-00
2019 Honda Oil Drain
Qty Used: 1Regular price $21.88 USDRegular priceUnit price per
-
31#064-0030-00
24 inch Black Cable - MZ/ZT
Qty Used: 1Regular price $17.50 USDRegular priceUnit price per
-
-
34#086-1201-00
Relay Terminal
Qty Used: 2Regular price $23.34 USDRegular priceUnit price per
-
35#086-9012-00
2019 Harness Adaptor- Honda Engine
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
36#201-0020-00
Honda Rectifier Mount--Orange
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
