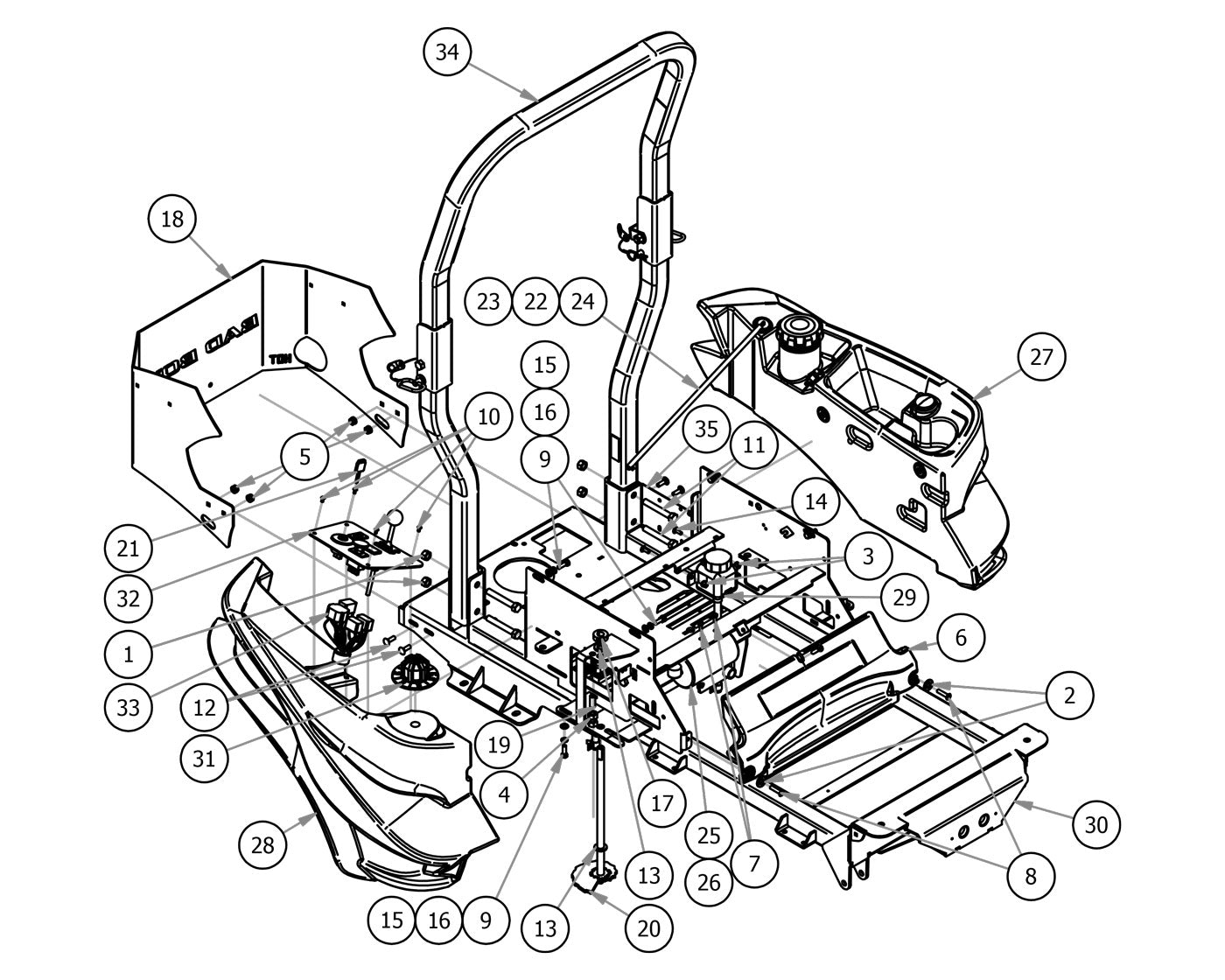

Gas Tank & Rear Cover
Parts Index
- 1 1/2-13 hex 2-WAY REV CNT L/N (GR.B) ZC (Qty 4)
- 2 1/2 Flat Washer-Flat Black (Qty 2)
- 3 1/4-20 Nylon Insert Flange Nut (Qty 4)
- 4 1/2-13 Hex Nuts Zinc (Qty 1)
- 5 5/16-18 Nylon Flange Nut (Qty 4)
- 6 2016 Maverick Front Cover-Plastic (Qty 1)
- 7 M6-1.0 X 16MM HEX BOLT CL 8 (Qty 2)
- 8 5/16-18 x 1.5" Torx Cutter-Blk (Qty 3)
- 9 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 7)
- 10 10-32 X 3/8 BS C/S 18-8 SS with Patch (Qty 4)
- 11 1/2-13 X 3-1/2 GR 5 Hex Bolts (Qty 4)
- 12 5/16-18 X 1 Carriage Bolt Zinc (Qty 4)
- 13 .630 ID X 1.122 OD X .142 THK (Qty 2)
- 14 1/4 x 3/4 Carriage Bolt (Qty 4)
- 15 5/16 USS Flat Washer Zinc (Qty 7)
- 16 5/16 Lock washer Zinc (Qty 7)
- 17 Split Collar (Qty 1)
- 18 2017 ZT Rear Plate--Orange (Qty 1)
- 19 Deck Height Cam Plunger (Qty 1)
- 20 2017 ZT Deck Height Bar Assy. (Qty 1)
- 21 Ignition Key (Qty 1)
- 22 2019 Maverick Honda Fuel Line (Qty 1)
- 23 2014 ZT Fuel Line Assembly-37" (Qty 1)
- 24 15" Fuel Line (Qty 1)
- 25 ZT/Mav EPA Cannister Assy (Qty 1)
- 26 2019 Maverick Honda EPA Cannister Assembly (Qty 1)
- 27 2016 Maverick/ZT/Avenger Left Fuel Tank (Qty 1)
- 28 2016 Maverick/ZT/Avenger Right Side Console (Qty 1)
- 29 2017 ZT Hydro Tank Assembly (Qty 2)
- 31 Deck Height Dial (Qty 1)
- 32 ZT/MAV Control Panel Assy (Qty 1)
- 33 2019 MZ/ZT/Maverick/Compact Outlaw Wiring Harness (Qty 1)
- 34 Mav, HD 2x2 Folding ROPS (Qty 1)
- 35 Honda Rectifier Mount--Orange (Qty 1)
-
1#013-0005-00
1/2-13 hex 2-WAY REV CNT L/N (GR.B) ZC
Qty Used: 4Regular price $2.69 USDRegular priceUnit price per
-

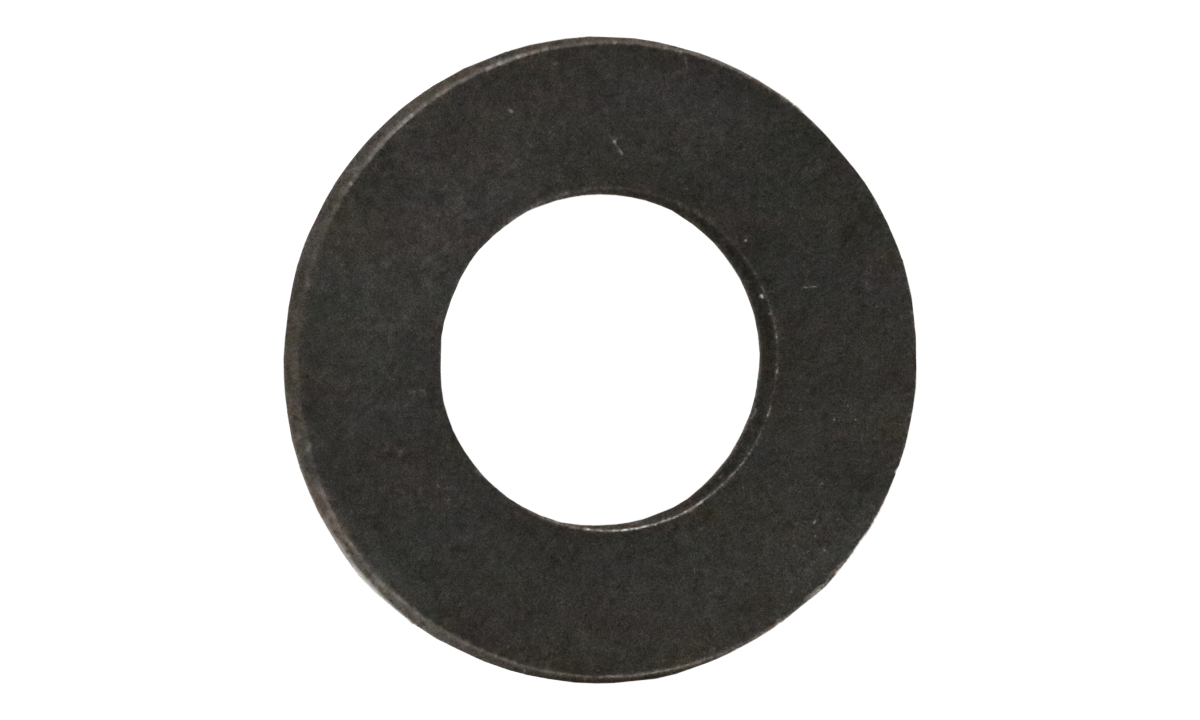

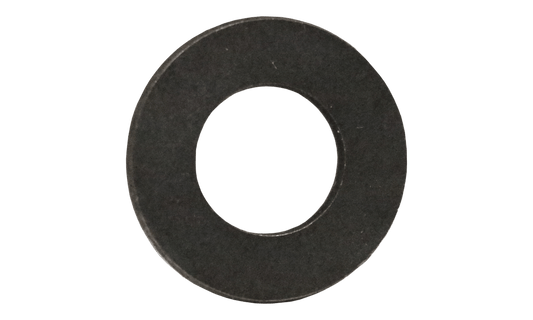

2#013-0013-00
1/2 Flat Washer-Flat Black
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
3#013-2050-00
1/4-20 Nylon Insert Flange Nut
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-
4#013-7018-00
1/2-13 Hex Nuts Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
5#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-

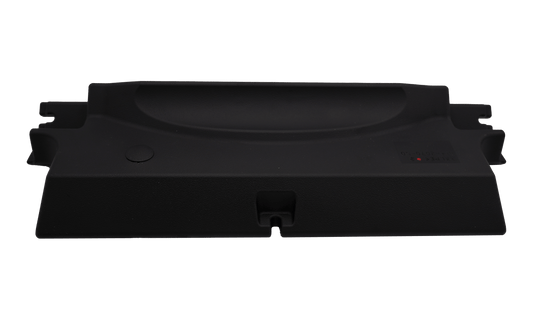

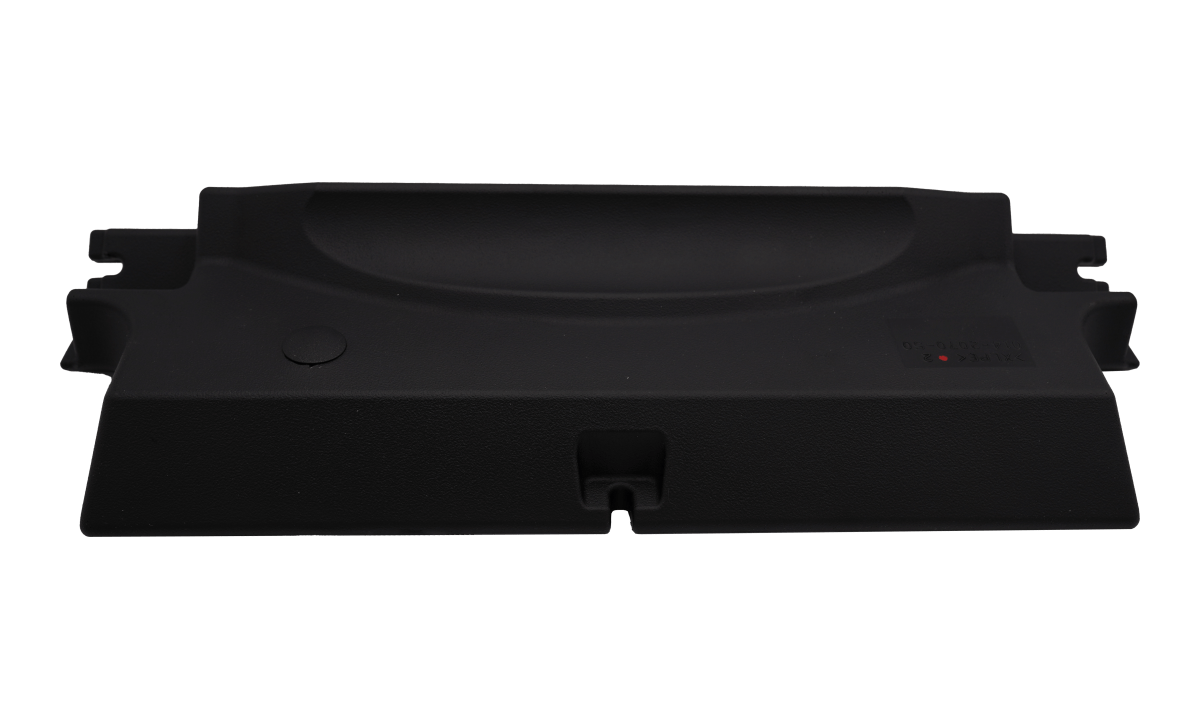

6#014-2070-50
2016 Maverick Front Cover-Plastic
Qty Used: 1Regular price $54.95 USDRegular priceUnit price per
-
7#018-0024-00
M6-1.0 X 16MM HEX BOLT CL 8
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
8#018-0031-00
5/16-18 x 1.5" Torx Cutter-Blk
Qty Used: 3Regular price $3.99 USDRegular priceUnit price per
-
9#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 7Regular price $0.00 USDRegular priceUnit price per
-
10#018-2010-00
10-32 X 3/8 BS C/S 18-8 SS
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
11#018-6054-00
1/2-13 X 3-1/2 GR 5 Hex Bolts
Qty Used: 4Regular price $1.99 USDRegular priceUnit price per
-
12#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
13#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
14#019-8040-00
1/4 x 3/4 Carriage Bolt
Qty Used: 4Regular price $1.49 USDRegular priceUnit price per
-
15#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 7Regular price $0.79 USDRegular priceUnit price per
-
16#019-8051-00
5/16 Lock washer Zinc
Qty Used: 7Regular price $0.79 USDRegular priceUnit price per
-
17#025-0002-00
Split Collar
Qty Used: 1Regular price $10.20 USDRegular priceUnit price per
-
18#026-0090-00
2017 ZT Rear Plate--Orange
Qty Used: 1Regular price $189.74 USDRegular priceUnit price per
-
19#028-0008-00
Deck Height Cam Plunger
Qty Used: 1Regular price $29.13 USDRegular priceUnit price per
-
20#028-0070-17
2017 ZT Deck Height Bar Assy.
Qty Used: 1Regular price $27.72 USDRegular priceUnit price per
-
21#042-9000-00
Ignition Key
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-
22#051-0054-00
2019 Maverick Honda Fuel Line
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
23#051-2014-00
2014 ZT Fuel Line Assembly-37"
Qty Used: 1Regular price $37.88 USDRegular priceUnit price per
-
24#051-0001-00
15" Fuel Line
Qty Used: 1Regular price $37.88 USDRegular priceUnit price per
-
25#067-0020-01
ZT/Mav EPA Cannister Assy
Qty Used: 1Regular price $53.01 USDRegular priceUnit price per
-
26#067-0020-63
2019 Maverick Honda EPA Cannister Assembly
Qty Used: 1Regular price $39.95 USDRegular priceUnit price per
-
27#067-2060-50
2016 Maverick/ZT/Avenger Left Fuel Tank
Qty Used: 1Regular price $279.99 USDRegular priceUnit price per
-
28#067-2070-50
2017 ZT Right Side Console
Qty Used: 1Regular price $218.93 USDRegular priceUnit price per
-
29#067-8090-03
2017 ZT Hydro Tank Assembly
Qty Used: 2Regular price $39.68 USDRegular priceUnit price per
-
31#077-9000-00
Deck Height Dial
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
32#079-3460-19
ZT/MAV Control Panel Assy
Qty Used: 1Regular price $144.63 USDRegular priceUnit price per
-
33#086-3050-19
2019 MZ/ZT/Maverick/Compact Outlaw Wiring Harness
Qty Used: 1Regular price $363.44 USDRegular priceUnit price per
-
34#089-0005-00
2016 Maverick 2x2 Folding ROPS
Qty Used: 1Regular price $396.75 USDRegular priceUnit price per
-
35#201-0020-00
Honda Rectifier Mount--Orange
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
