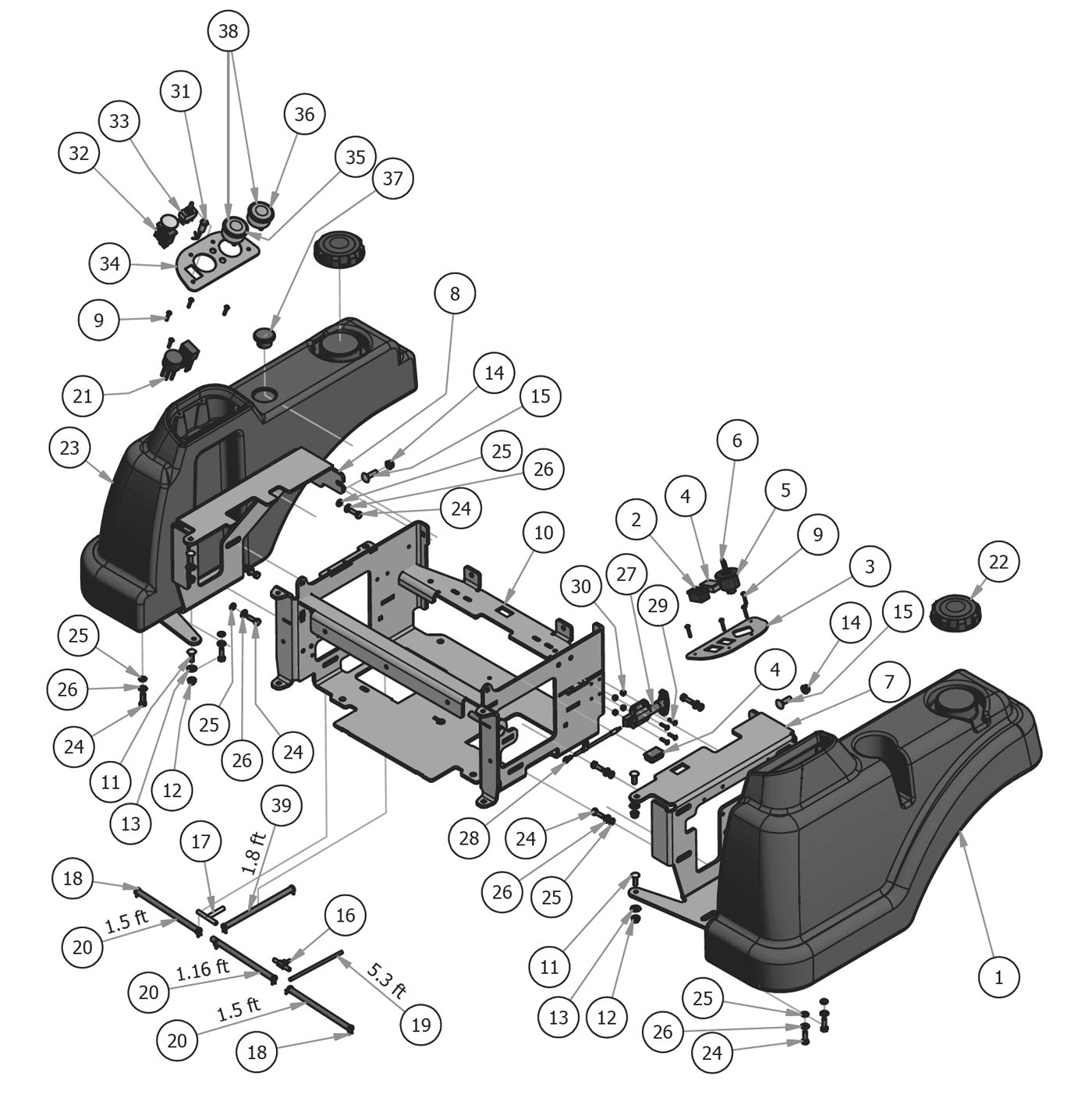

Tanks
Parts Index
- 1 Diesel/AOS Fuel Tank - Left (Qty 1)

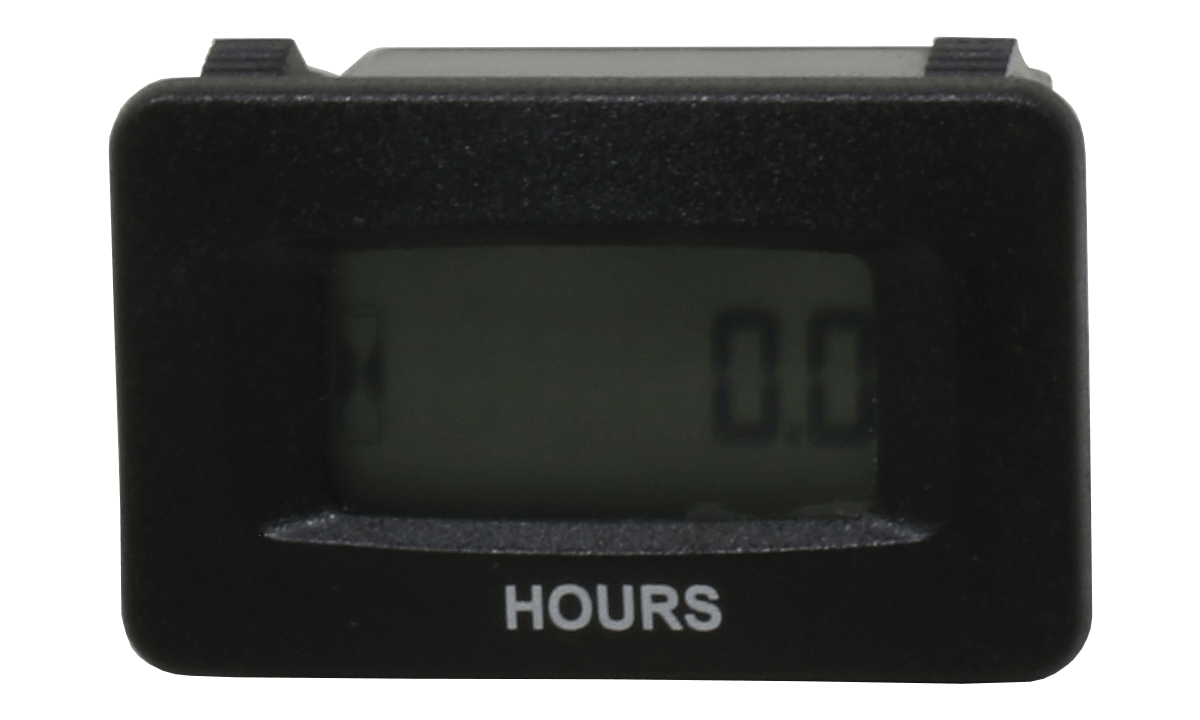

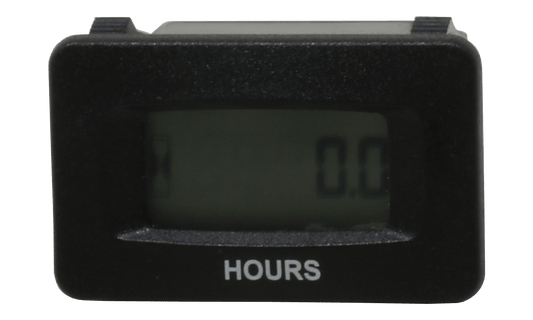

- 2 Hourmeter (Qty 1)
- 3 Diesel Instrument Panel - Left (Qty 1)
- 4 Light Plug (Qty 2)
- 5 Ignition Switch (Qty 1)
- 6 Ignition Key (Qty 1)
- 7 72 Tank Supports- Left (Qty 1)
- 8 72 Tank Support- Right (Qty 1)
- 9 10-32 x 1 Button Head Bolt (Qty 8)
- 11 5/16-18 X 1 Carriage Bolt Zinc (Qty 4)
- 12 5/16-18 Hex Flange Nuts Zinc w (Qty 4)
- 13 .360 ID Plastic Washer (Qty 4)
- 14 3/8 Nylock Flange Nut (Qty 2)
- 15 3/8-16 X 1-1/4 Carriage Bolt (Qty 2)
- 16 Brass Fuel Line T - Diesels (Qty 1)
- 17 Fuel Line T (Qty 1)
- 18 1/4 Fuel Line Clamp (Qty 8)
- 19 3/16 Fuel Line (Qty 1)
- 20 1/4 Fuel Line Hose PRICED/FOOT (Qty 1)
- 21 Harness-28/35 Diesel w/Plastic (Qty 1)
- 22 Diesel Fuel Cap-3.5 inch Neck (Qty 2)
- 23 Diesel/AOS Fuel Tank - Right (Qty 1)
- 24 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 10)
- 25 5/16 Lock washer Zinc (Qty 10)
- 26 5/16 USS Flat Washer Zinc (Qty 10)
- 27 2016 T Handle Seat Release (Qty 1)
- 28 T-Handle Seat Release Cable (Qty 1)
- 29 10-24 X 1 BS C/S 18-8 SS (Qty 4)
- 30 10-24 Nylon Insert Locknut Zin (Qty 4)
- 31 Oil Light (Qty 1)
- 32 PTO Engager-Switch for Blades (Qty 1)
- 33 Joystick - Deck Lift (Qty 1)
- 34 Diesel Control Panel Righ 2012 (Qty 1)
- 35 2" Water Temperature Gauge (Qty 1)
- 36 2" Oil Pressure Gauge (Qty 1)
- 37 Fuel Gauge and Grommet Assembly (Qty 1)
- 38 Pigtail-2" Faria Gauge-2012 (Qty 2)
- 39 5/16 Fuel Line Hose (Qty 1)
-
1#067-3000-00
Diesel/AOS Fuel Tank - Left
Qty Used: 1Regular price $204.33 USDRegular priceUnit price per
-
-

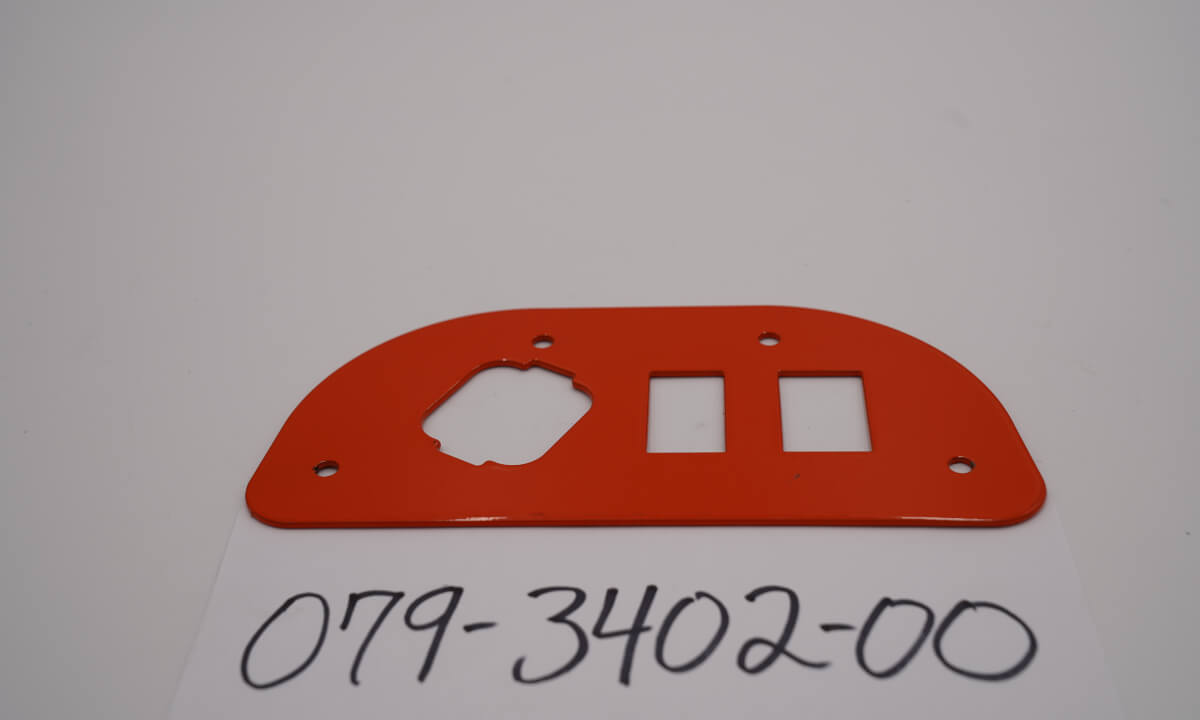

3#079-3402-00
Diesel Instrument Panel - Left
Qty Used: 1Regular price $21.22 USDRegular priceUnit price per
-
4#018-1040-00
Light Plug
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
5#077-8076-00
Ignition Switch
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
6#042-9000-00
Ignition Key
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-
7#031-2010-00
72 Tank Supports- Left
Qty Used: 1Regular price $55.99 USDRegular priceUnit price per
-
8#031-2011-00
72 Tank Support- Right
Qty Used: 1Regular price $55.99 USDRegular priceUnit price per
-
9#018-2015-00
10-32 x 1 Button Head Bolt
Qty Used: 8Regular price $0.69 USDRegular priceUnit price per
-
11#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
12#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
13#019-6042-00
.360 ID Plastic Washer
Qty Used: 4Regular price $0.00 USDRegular priceUnit price per
-
14#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
15#018-5043-00
3/8-16 X 1-1/4 Carriage Bolt
Qty Used: 2Regular price $0.99 USDRegular priceUnit price per
-
16#073-2000-00
Brass Fuel Line T - Diesels
Qty Used: 1Regular price $9.28 USDRegular priceUnit price per
-
17#073-8068-00
Fuel Line T
Qty Used: 1Regular price $8.82 USDRegular priceUnit price per
-
18#072-8069-00
1/4 Fuel Line Clamp
Qty Used: 8Regular price $0.88 USDRegular priceUnit price per
-
19#051-8068-00
3/16 Fuel Line
Qty Used: 1Regular price $3.26 USDRegular priceUnit price per
-
20#051-8067-00
1/4 Fuel Line Hose PRICED/FOOT
Qty Used: 1Regular price $5.83 USDRegular priceUnit price per
-

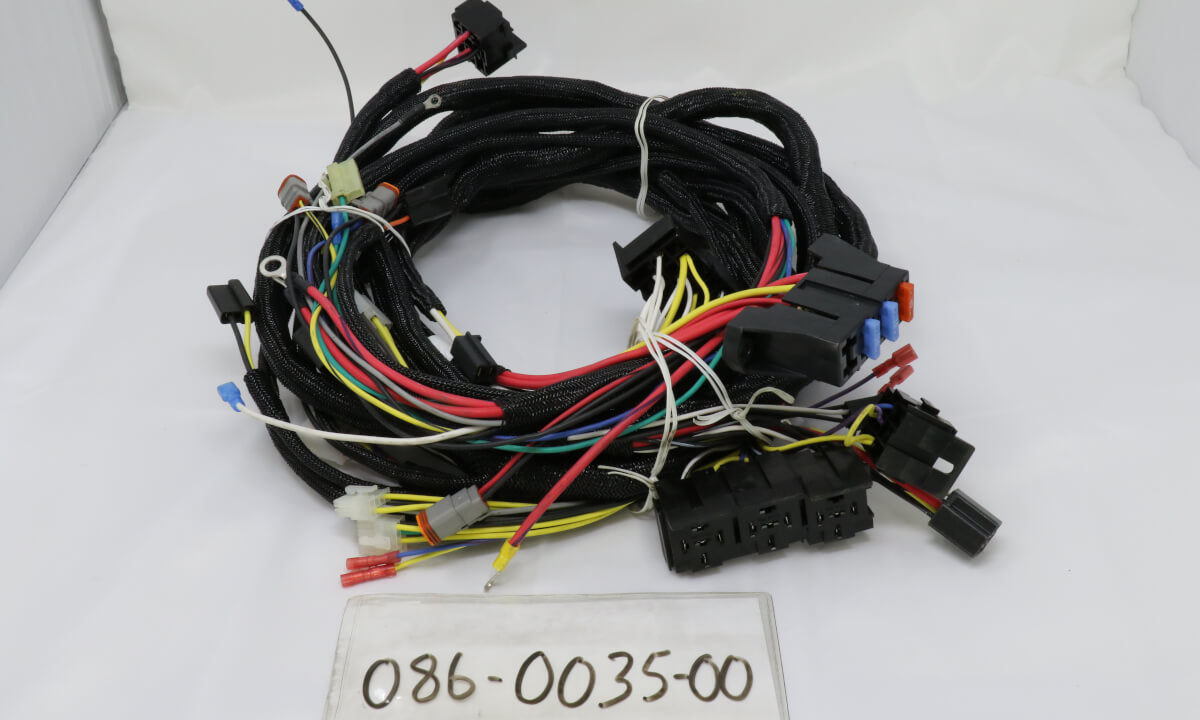

21#086-0035-00
Harness-28/35 Diesel w/Plastic
Qty Used: 1Regular price $463.10 USDRegular priceUnit price per
-
22#066-8090-00
Diesel Fuel Cap-3.5 inch Neck
Qty Used: 2Regular price $37.25 USDRegular priceUnit price per
-
23#067-3001-00
Diesel/AOS Fuel Tank - Right
Qty Used: 1Regular price $204.33 USDRegular priceUnit price per
-
24#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 10Regular price $0.00 USDRegular priceUnit price per
-
25#019-8051-00
5/16 Lock washer Zinc
Qty Used: 10Regular price $0.79 USDRegular priceUnit price per
-
26#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 10Regular price $0.79 USDRegular priceUnit price per
-

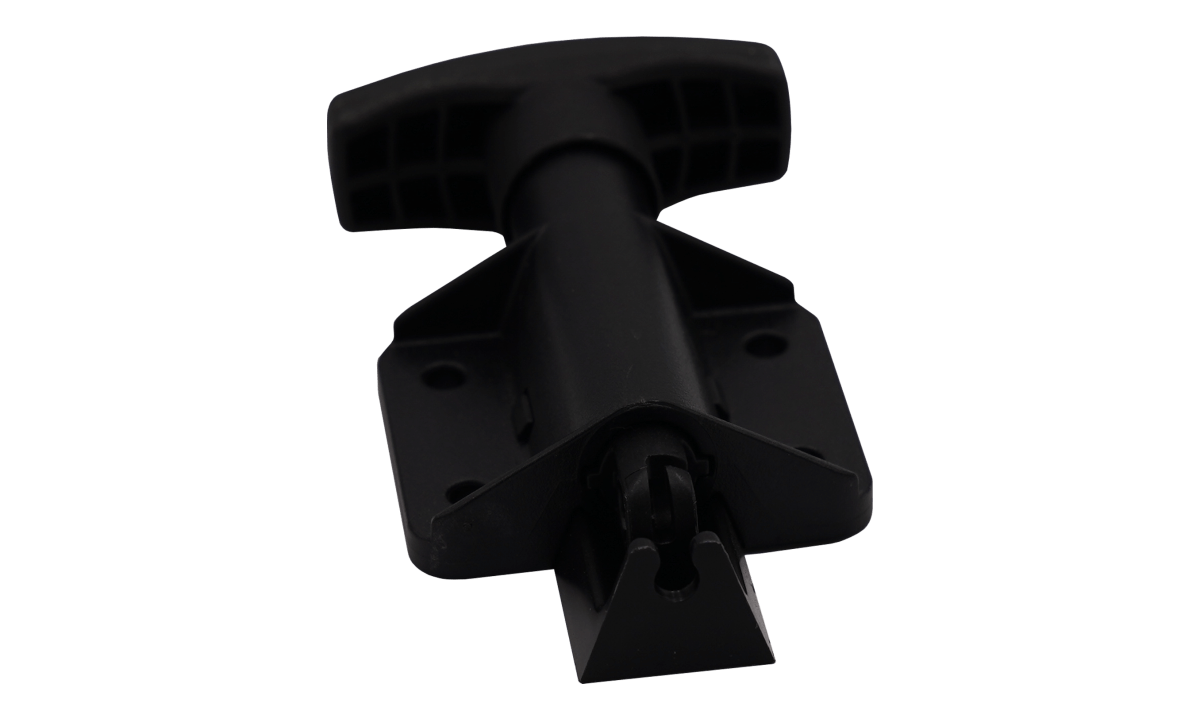

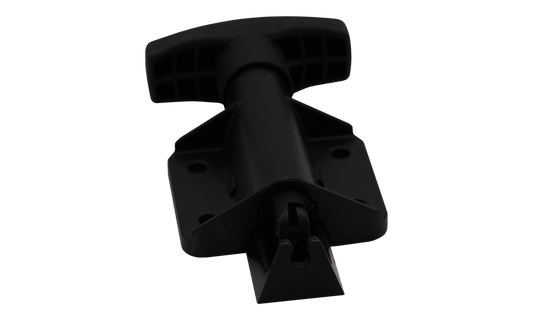

27#039-2016-00
2016 T Handle Seat Release
Qty Used: 1Regular price $26.47 USDRegular priceUnit price per
-

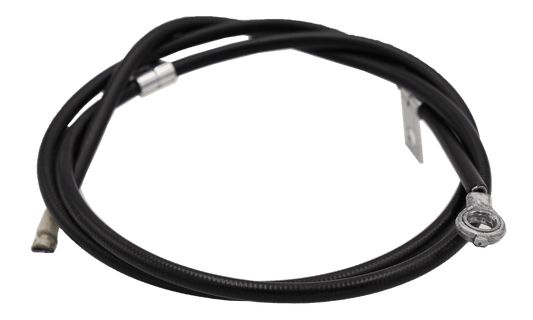

28#064-0002-00
T-Handle Seat Release Cable
Qty Used: 1Regular price $21.99 USDRegular priceUnit price per
-
29#018-8058-00
10-24 X 1 BS C/S 18-8 SS
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
30#013-5019-00
10-24 Nylon Insert Locknut Zin
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
-
32#056-8058-00
PTO Engager-Switch for Blades
Qty Used: 1Regular price $32.05 USDRegular priceUnit price per
-

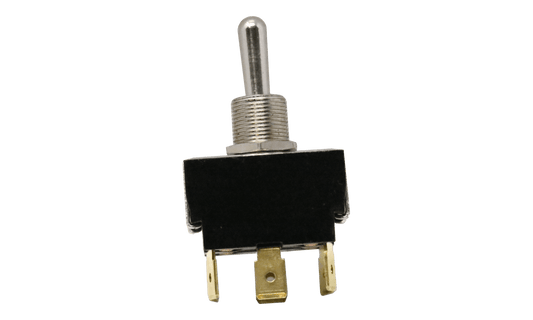

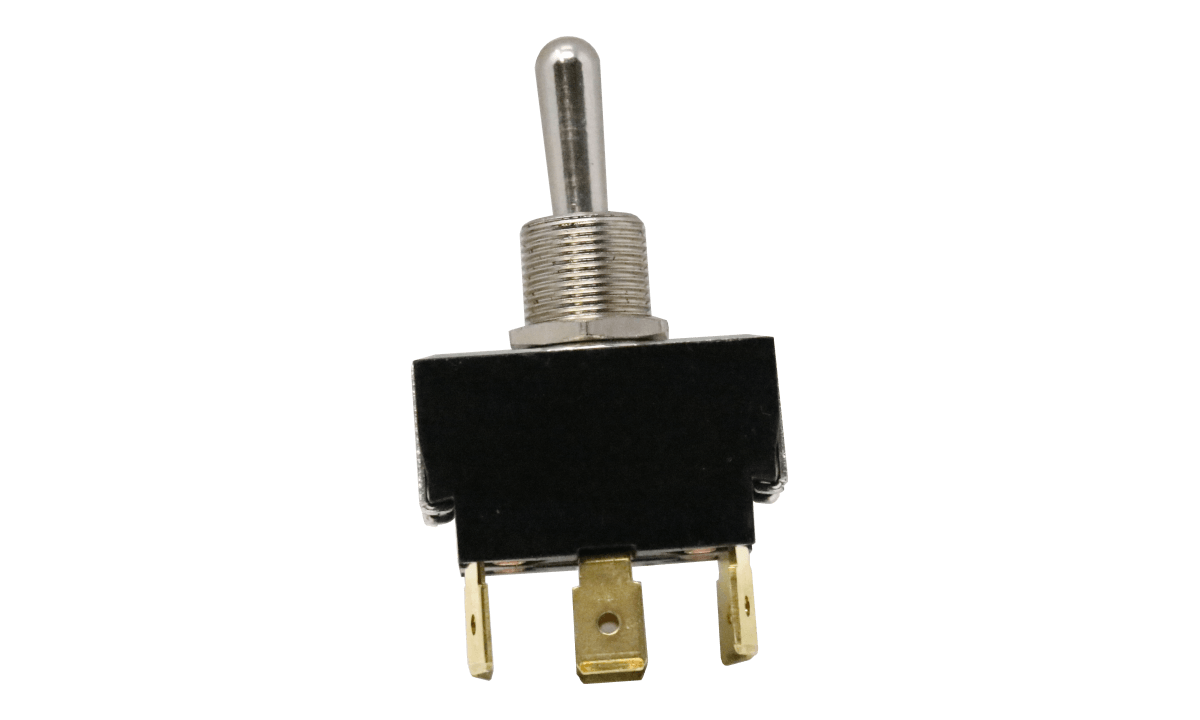

33#078-8077-00
Joystick - Deck Lift
Qty Used: 1Regular price $32.05 USDRegular priceUnit price per
-

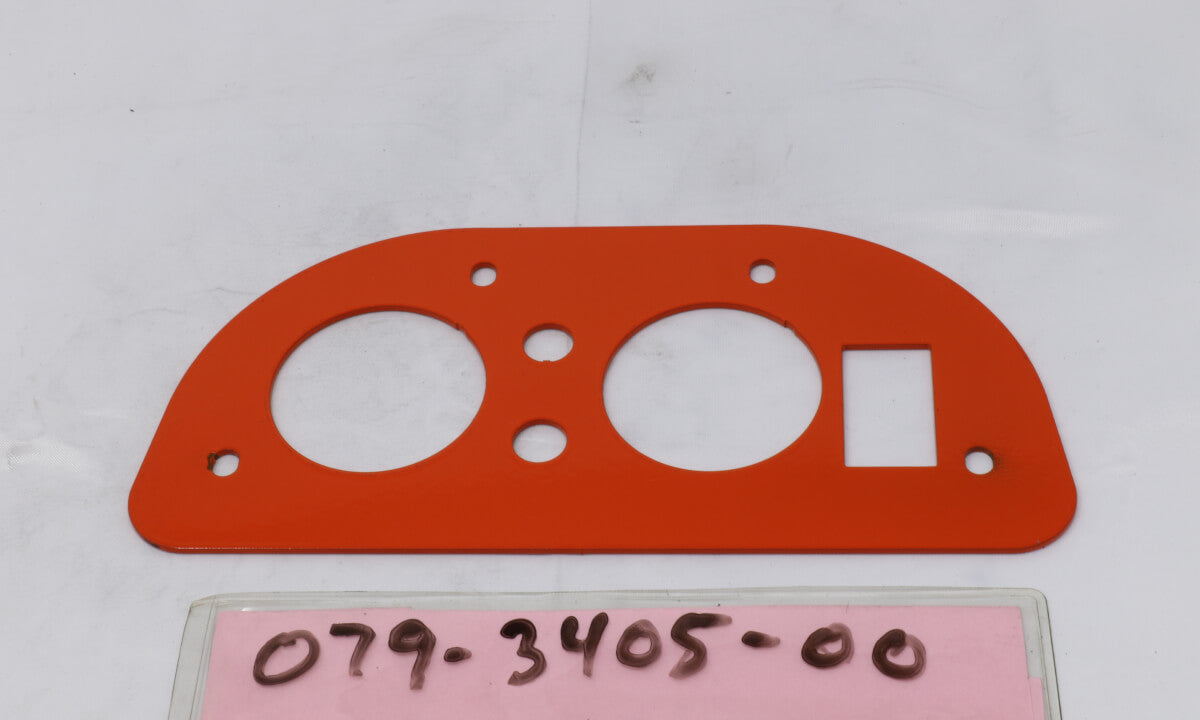

34#079-3405-00
Diesel Control Panel Righ 2012
Qty Used: 1Regular price $15.99 USDRegular priceUnit price per
-
35#086-7001-00
2" Water Temperature Gauge
Qty Used: 1Regular price $100.71 USDRegular priceUnit price per
-
36#086-7000-00
2" Oil Pressure Gauge
Qty Used: 1Regular price $100.71 USDRegular priceUnit price per
-

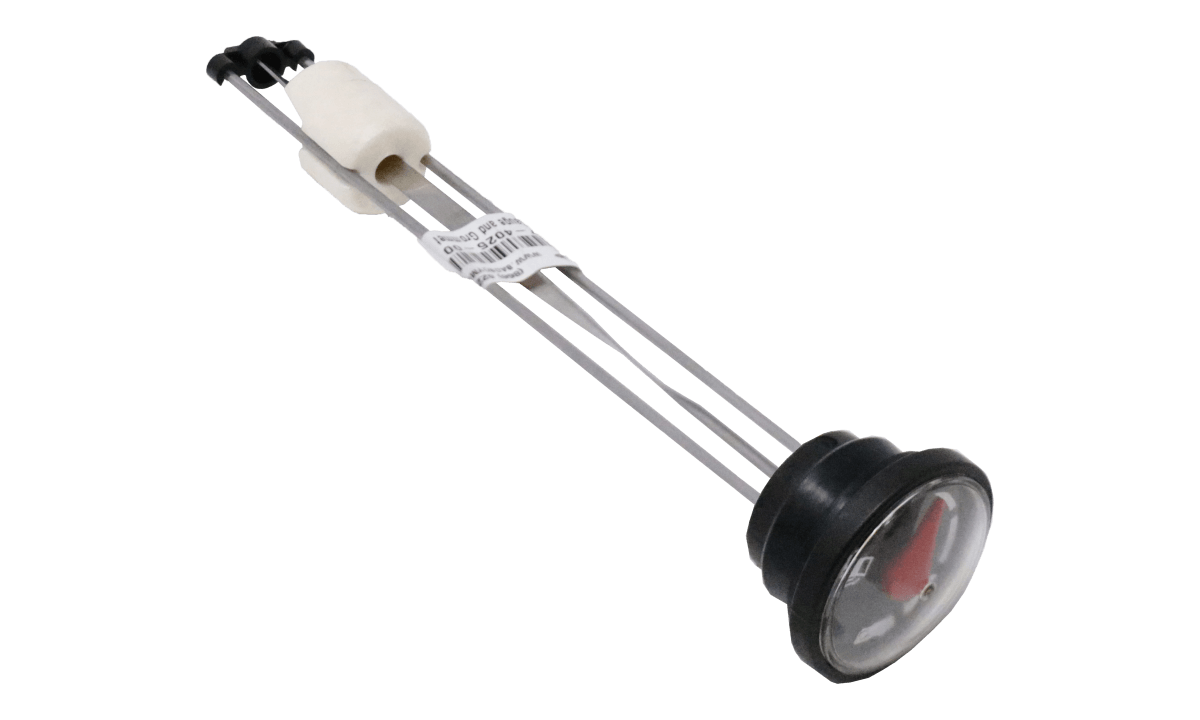

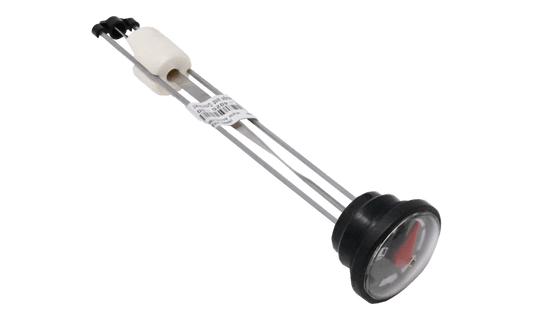

37#067-4025-00
Fuel Gauge and Grommet Assembly
Qty Used: 1Regular price $50.99 USDRegular priceUnit price per
-

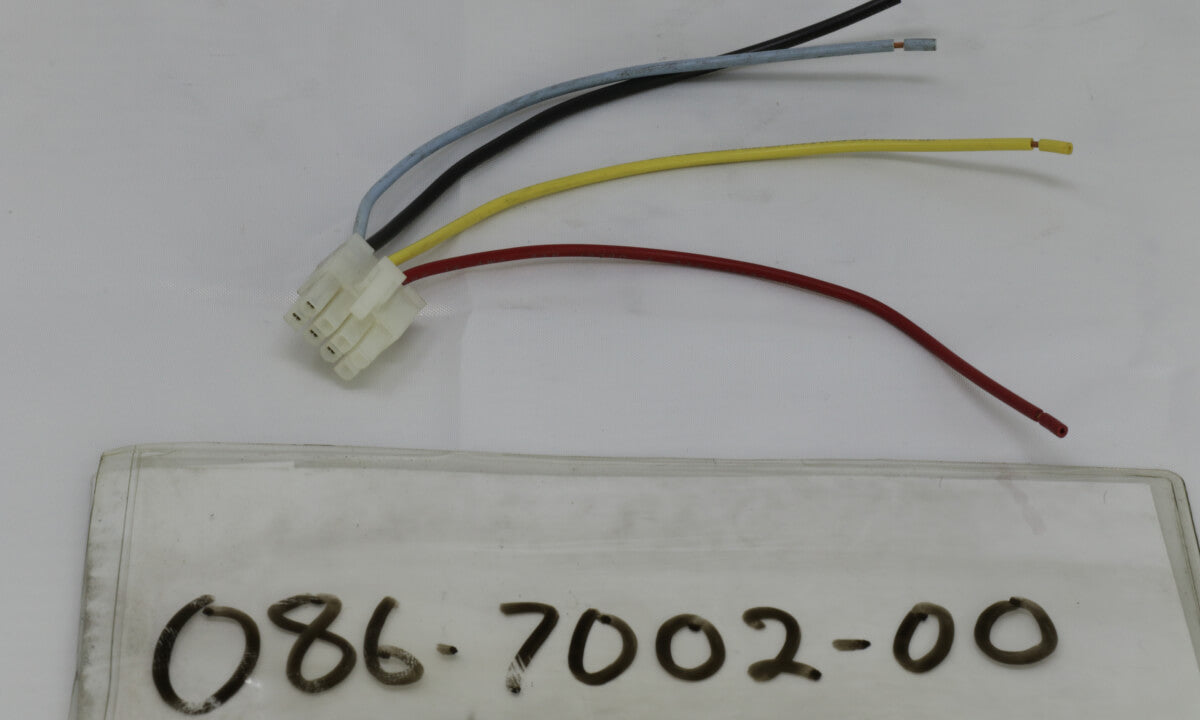

38#086-7002-00
Pigtail-2" Faria Gauge-2012
Qty Used: 2Regular price $26.47 USDRegular priceUnit price per
-
39#051-8075-00
5/16 Fuel Line Hose
Qty Used: 1Regular price $4.37 USDRegular priceUnit price per
