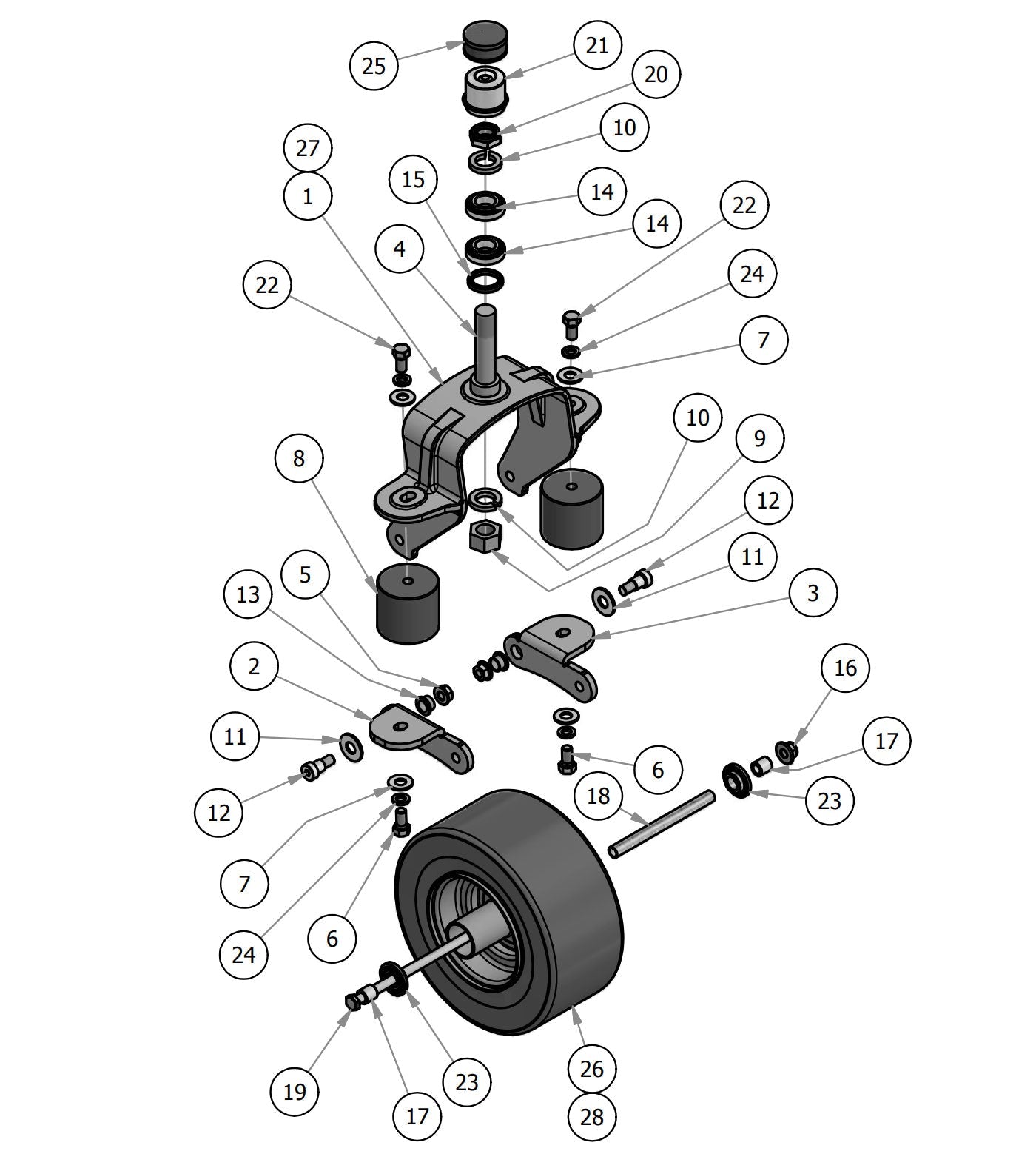

Suspension Fork Assembly
Parts Index
- 1 Suspension Fork Top/Side Combo (Qty 1)
- 2 Suspension Fork - Bottom Left (Qty 1)
- 3 Suspension Fork - Bottom Right (Qty 1)
- 4 Front Suspension Fork Spindle (Qty 1)
- 5 1/2-13 Hex Fange Nuts Zinc w/ (Qty 2)
- 6 1/2 x 1 Bolt (Qty 2)
- 7 1/2 SAE Flat Washer GR 8 (Qty 4)
- 8 Isolator (Red Dot) (Qty 12)
- 9 1'' Fine Thread Nut (Qty 1)
- 11 5/8 Flat Washer (Qty 2)
- 12 5/8 x 5/8 Shoulder Bolt (Qty 2)
- 13 Bronze Bushing - SF-2024-8 (Qty 2)
- 14 Bearing (Caster) All Models (Qty 2)
- 15 Seal(Front Caster) (Qty 1)
- 16 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 17 Spacer 3/4ODx1/2IDx0.75 (Qty 2)
- 18 Front Wheel Spanner-All Models (Qty 1)
- 19 1/2 x 10 Bolt (Qty 1)
- 20 1" Nylock Nut 1/2 Nut - Fine (Qty 1)
- 21 Dust Cover - Yellow Zinc (Qty 1)
- 22 1/2-13 X 1-1/4 Hex Bolt (Qty 2)
- 23 1 3/4" Bearing-Large Bore (Qty 2)
- 24 1/2 Lockwasher Zinc (Qty 4)
- 25 Seat Spring Cap Cover (Qty 1)
- 26 No Flat 13 x 6.50-6 (Qty 1)
- 27 Suspension Fork Assembly (Qty 1)
- 28 No Flat 13 x 6.50-6 (Qty 1)
-
1#023-0020-00
Suspension Fork Top/Side Combo
Qty Used: 1Regular price $185.76 USDRegular priceUnit price per
-
2#023-0012-00
Suspension Fork - Bottom Left
Qty Used: 1Regular price $29.51 USDRegular priceUnit price per
-
3#023-0013-00
Suspension Fork - Bottom Right
Qty Used: 1Regular price $29.51 USDRegular priceUnit price per
-
4#037-0010-00
Front Suspension Fork Spindle
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
5#013-5300-00
1/2-13 Hex Fange Nuts Zinc w/
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
6#018-2030-00
1/2 x 1 Bolt
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
7#019-5702-00
1/2 SAE Flat Washer GR 8
Qty Used: 4Regular price $0.75 USDRegular priceUnit price per
-
8#032-9002-00
Isolator (Red Dot)
Qty Used: 12Regular price $66.33 USDRegular priceUnit price per
-
9#013-6016-00
1'' Fine Thread Nut
Qty Used: 1Regular price $3.99 USDRegular priceUnit price per
-
11#019-5038-00
5/8 Flat Washer
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
12#018-3001-00
5/8 x 5/8 Shoulder Bolt
Qty Used: 2Regular price $14.59 USDRegular priceUnit price per
-
13#032-5052-00
Bronze Bushing - SF-2024-8
Qty Used: 2Regular price $4.37 USDRegular priceUnit price per
-
14#010-7001-00
Bearing (Caster) All Models
Qty Used: 2Regular price $5.69 USDRegular priceUnit price per
-
15#012-7003-00
Seal(Front Caster)
Qty Used: 1Regular price $9.28 USDRegular priceUnit price per
-
16#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
17#025-5203-00
Spacer 3/4ODx1/2IDx0.75
Qty Used: 2Regular price $2.99 USDRegular priceUnit price per
-
18#025-5202-00
Front Wheel Spanner-All Models
Qty Used: 1Regular price $9.49 USDRegular priceUnit price per
-
19#018-3002-00
1/2 x 10 Bolt
Qty Used: 1Regular price $7.29 USDRegular priceUnit price per
-
20#013-9004-00
1" Nylock Nut 1/2 Nut - Fine
Qty Used: 1Regular price $3.29 USDRegular priceUnit price per
-
21#014-7005-00
Dust Cover - Yellow Zinc
Qty Used: 1Regular price $8.49 USDRegular priceUnit price per
-
22#018-2080-00
1/2-13 X 1-1/4 Hex Bolt
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
23#022-7010-00
1 3/4" Bearing-Large Bore
Qty Used: 2Regular price $18.99 USDRegular priceUnit price per
-
24#019-5007-00
1/2 Lockwasher Zinc
Qty Used: 4Regular price $0.00 USDRegular priceUnit price per
-
25#014-8047-00
Seat Spring Cap Cover
Qty Used: 1Regular price $8.12 USDRegular priceUnit price per
-
2628#022-1050-00
No Flat 13 x 6.50-6
Qty Used: 1Regular price $149.99 USDRegular priceUnit price per
-
27#023-7915-98
Suspension Fork Assembly
Qty Used: 1Regular price $264.99 USDRegular priceUnit price per
