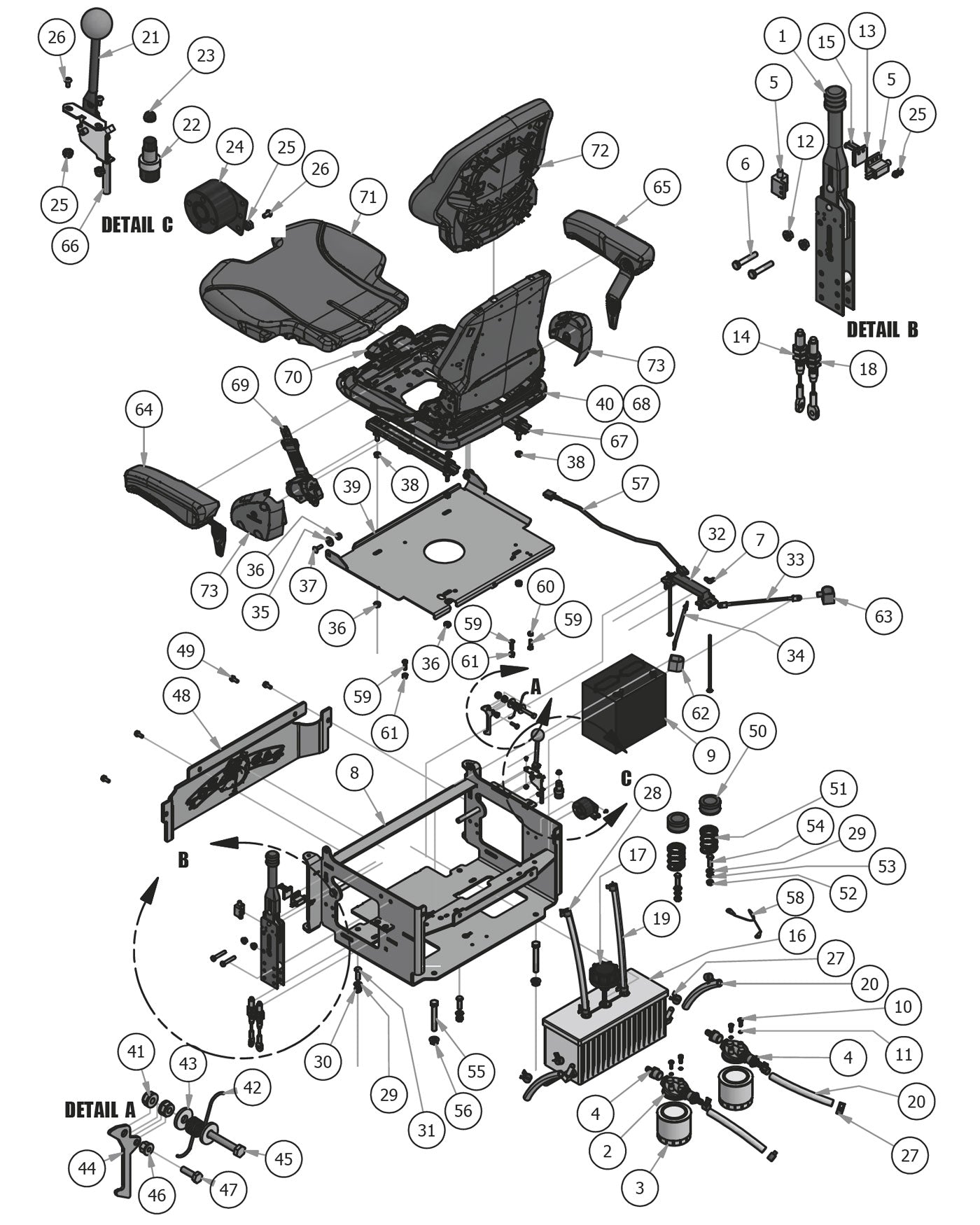

Seat Frame
Parts Index
- 1 Brake Handle Kit (Qty 1)
- 2 Filter Head-Hydraulic Filter (Qty 2)
- 3 Hydraulic Filter-All Models (Qty 2)
- 4 Filter Head Fitting, 1/2 x 1/2 (Qty 4)
- 5 Safety Switch (Qty 3)
- 6 5/16-18x1-3/4 GR 5 Hex Bolts (Qty 2)
- 7 1/4-20 Wing Nuts Zinc (Qty 2)
- 9 Battery - Renegade (Qty 1)
- 10 1/4-20 X 3/4 GR 5 Hex Bolts (Qty 4)
- 11 1/4 Lockwasher Zinc (Qty 5)
- 12 5/16-18 Hex Flange Nuts Zinc w (Qty 4)
- 13 Switch Block Plastic (Qty 2)
- 14 Short Brake Cable (Qty 1)
- 15 10-24x1/2 Button Head SCS 18-8 (Qty 4)
- 16 Aluminum Hydraulic Tank (Qty 1)
- 17 Hydraulic Tank Cap w/Dipstick (Qty 1)
- 18 Long Brake Cable (Qty 1)
- 20 1/2" Clear Braided Hose - 9.25 (Qty 4)
- 21 Universal Throttle Head - 2012 (Qty 1)
- 22 Momentary Start Switch (Qty 1)
- 23 Start Switch Boot - Diesel (Qty 1)
- 24 Heat Warning Piezo Buzzer (Qty 1)
- 25 10-24 Nylon Insert Locknut Zin (Qty 7)
- 26 10-24 X 5/8 BS C/S 18-8 SS (Qty 3)
- 27 1/2 Hose Clamp (Qty 8)
- 28 3/8 Hose Clamp - CTB-16-STFS (Qty 4)
- 29 3/8 USS Flat Washer Zinc (Qty 4)
- 30 3/8-16 Hex Flange Nuts Zinc w/ (Qty 2)
- 31 3/8-16 X 1-1/4 GR 5 Hex Bolt (Qty 2)
- 32 Battery Hold Down (Plastic) (Qty 1)
- 33 Black Battery Cable - Diesel (Qty 1)
- 34 Red Battery Cable - Diesel (Qty 1)
- 35 .360 ID Plastic Washer (Qty 2)
- 36 5/16-18 Nylon Flange Nut (Qty 6)
- 37 5/16-18 X 1 Carriage Bolt Zinc (Qty 2)
- 38 5/16-18 Hex Flange Nuts Zinc w (Qty 4)
- 39 2006 Seat Plate (Qty 1)
- 40 Black Grammer Seat w/Seatbelt (Qty 1)
- 41 Torsion Spring-2012 Seat Latch (Qty 2)
- 42 Torsion Spring-2012 Seat Latch (Qty 1)
- 43 .360 ID Plastic Washer (Qty 2)
- 44 Seat Latch Lever (Qty 1)
- 45 5/16-18 X 2 HEX C/S (GR.5) ZC (Qty 1)
- 46 1/4-20 Nylon Insert Flange Nut (Qty 1)
- 47 1/4-20 X 1-1/4 GR 5 Hex Bolt (Qty 1)
- 48 Cooler Cover 2009 through 2014 (Qty 1)
- 49 5/16 x 3/4 Hex Washer Type F (Qty 4)
- 50 Seat Spring Cap Cover (Qty 2)
- 51 Seat Spring (Qty 2)
- 52 3/8-16 Hex Nuts Zinc (Qty 2)
- 53 3/8 Lockwasher Zinc (Qty 2)
- 54 3/8 x 1 1/2 Bolt (Qty 2)
- 55 1/2 x 3 1/2 Flange Bolt - Gr 8 (Qty 2)
- 56 1/2-13 Hex Fange Nuts Zinc w/ (Qty 2)
- 57 1/2-13 Hex Fange Nuts Zinc w/ (Qty 1)
- 58 1/4-20 X 1 GR 5 Hex Bolts Zinc (Qty 3)
- 59 1/4-20 X 1 GR 5 Hex Bolts Zinc (Qty 3)
- 60 1/4-20 Nylon Insert Locknut Zi (Qty 1)
- 61 1/4-20 Nylon Insert Flange Nut (Qty 2)
- 62 Red Lug Boot (Qty 1)
- 63 Black Cable Boot (Qty 1)
- 64 Left Arm rest Kit-Grammer Seat (Qty 1)
- 65 Right Arm rest Kit-Grammer Seat (Qty 1)
- 66 Throttle - All Diesel Models (Qty 1)
- 67 Seat Rails for Grammer Seat(2) (Qty 1)
- 68 Black/Orange Grammer Seat Upgr (Qty 1)
- 69 Seat Belt Kit-Grammer Seats (Qty 1)
- 70 Grey Handle for Grammer Seat (Qty 1)
- 71 Black Seat Cushion for the 071-4055-17 (Qty 1)
- 72 Black Backrest Cushion for the 071-4055-17 (Qty 1)
- 73 Black Plastic Cover Kit for (Qty 1)
- 74 Seat Switch for Grammer Seat (Qty 1)
-
5657#013-5300-00
1/2-13 Hex Fange Nuts Zinc w/
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
5859#018-4007-00
1/4-20 X 1 GR 5 Hex Bolts Zinc
Qty Used: 3Regular price $0.89 USDRegular priceUnit price per
-
60#013-8073-00
1/4-20 Nylon Insert Locknut Zi
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
62#103-5300-00
Red Lug Boot
Qty Used: 1Regular price $5.29 USDRegular priceUnit price per
-
63#103-5400-00
Black Cable Boot
Qty Used: 1Regular price $3.97 USDRegular priceUnit price per
-
64#071-4051-00
Left Arm rest Kit-Grammer Seat
Qty Used: 1Regular price $116.70 USDRegular priceUnit price per
-
65#071-4052-00
Right Arm rest Kit-Grammer Seat
Qty Used: 1Regular price $82.95 USDRegular priceUnit price per
-
66#055-8018-00
Throttle - All Diesel Models
Qty Used: 1Regular price $56.93 USDRegular priceUnit price per
-
67#071-4054-00
Seat Rails for Grammer Seat(2)
Qty Used: 1Regular price $109.46 USDRegular priceUnit price per
-
68#071-4060-00
Black/Orange Grammer Seat Upgr
Qty Used: 1Regular price $1,060.21 USDRegular priceUnit price per
-
69#071-4053-00
Seat Belt Kit-Grammer Seats
Qty Used: 1Regular price $109.99 USDRegular priceUnit price per
-
70#071-4059-00
Grey Handle for Grammer Seat
Qty Used: 1Regular price $49.99 USDRegular priceUnit price per
-
71#071-4071-00
Black Seat Cushion for the 071-4055-17
Qty Used: 1Regular price $145.95 USDRegular priceUnit price per
-
72#071-4072-00
Black Backrest Cushion for the 071-4055-17
Qty Used: 1Regular price $119.99 USDRegular priceUnit price per
-
73#014-4050-00
Black Plastic Cover Kit for
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
74#071-4056-00
Seat Switch for Grammer Seat
Qty Used: 1Regular price $64.99 USDRegular priceUnit price per
-
1#069-8054-00
Brake Handle Kit
Qty Used: 1Regular price $119.41 USDRegular priceUnit price per
-
2#062-8013-00
Filter Head-Hydraulic Filter
Qty Used: 2Regular price $23.29 USDRegular priceUnit price per
-
3#063-8014-00
Hydraulic Filter-All Models
Qty Used: 2Regular price $29.13 USDRegular priceUnit price per
-
4#024-5050-00
Filter Head Fitting, 1/2 x 1/2
Qty Used: 4Regular price $7.28 USDRegular priceUnit price per
-
5#077-8073-00
Safety Switch
Qty Used: 3Regular price $9.99 USDRegular priceUnit price per
-
6#018-8059-00
5/16-18x1-3/4 GR 5 Hex Bolts
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
7#013-8051-00
1/4-20 Wing Nuts Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
9#068-8050-00
Battery - Diesel/Renegade Models M -51
Qty Used: 1Regular price $134.99 USDRegular priceUnit price per
-
10#018-8052-00
1/4-20 X 3/4 GR 5 Hex Bolts
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
11#019-4008-00
1/4 Lockwasher Zinc
Qty Used: 5Regular price $0.69 USDRegular priceUnit price per
-
1238#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
13#025-6041-00
Switch Block Plastic
Qty Used: 2Regular price $2.00 USDRegular priceUnit price per
-
14#064-8055-00
Short Brake Cable
Qty Used: 1Regular price $48.10 USDRegular priceUnit price per
-
15#018-8056-00
10-24x1/2 Button Head SCS 18-8
Qty Used: 4Regular price $0.50 USDRegular priceUnit price per
-
16#067-2010-00
Aluminum Hydraulic Tank
Qty Used: 1Regular price $199.03 USDRegular priceUnit price per
-
17#066-8050-00
Hydraulic Tank Cap w/Dipstick
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
18#064-8056-00
Long Brake Cable
Qty Used: 1Regular price $49.99 USDRegular priceUnit price per
-
20#051-8064-09
1/2\" Clear Braided Hose - 9.25
Qty Used: 4Regular price $0.00 USDRegular priceUnit price per
-
21#055-2012-00
Universal Throttle Head - 2012
Qty Used: 1Regular price $23.87 USDRegular priceUnit price per
-
22#077-6000-00
Momentary Start Switch
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
23#014-6000-00
Start Switch Boot - Diesel
Qty Used: 1Regular price $4.43 USDRegular priceUnit price per
-
24#021-8059-00
Heat Warning Piezo Buzzer
Qty Used: 1Regular price $33.99 USDRegular priceUnit price per
-
25#013-5019-00
10-24 Nylon Insert Locknut Zin
Qty Used: 7Regular price $0.69 USDRegular priceUnit price per
-
26#018-5200-00
10-24 X 5/8 BS C/S 18-8 SS
Qty Used: 3Regular price $0.79 USDRegular priceUnit price per
-
27#072-8066-00
1/2 Hose Clamp
Qty Used: 8Regular price $0.88 USDRegular priceUnit price per
-
28#072-8065-00
3/8 Hose Clamp - CTB-16-STFS
Qty Used: 4Regular price $0.88 USDRegular priceUnit price per
-
29#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
30#013-5201-00
3/8-16 Hex Flange Nuts Zinc w/
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
31#018-5040-00
3/8-16 X 1-1/4 GR 5 Hex Bolt
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
32#043-8929-00
Battery Hold Down (Plastic)
Qty Used: 1Regular price $16.35 USDRegular priceUnit price per
-
33#064-4001-00
Black Battery Cable - Diesel
Qty Used: 1Regular price $20.85 USDRegular priceUnit price per
-
34#064-4000-00
Red Battery Cable - Diesel
Qty Used: 1Regular price $20.85 USDRegular priceUnit price per
-
3543#019-6042-00
.360 ID Plastic Washer
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
36#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 6Regular price $0.79 USDRegular priceUnit price per
-
37#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
39#026-2006-00
2006 Seat Plate
Qty Used: 1Regular price $92.82 USDRegular priceUnit price per
-
40#071-4055-17
Black Grammer Seat w/Seatbelt
Qty Used: 1Regular price $929.99 USDRegular priceUnit price per
-
4142#034-1075-00
Torsion Spring-2012 Seat Latch
Qty Used: 1Regular price $4.99 USDRegular priceUnit price per
-
44#031-0200-00
Seat Latch Lever
Qty Used: 1Regular price $2.64 USDRegular priceUnit price per
-
45#018-0012-00
5/16-18 X 2 HEX C/S (GR.5) ZC
Qty Used: 1Regular price $2.19 USDRegular priceUnit price per
-
4661#013-2050-00
1/4-20 Nylon Insert Flange Nut
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
47#018-4702-00
1/4-20 X 1-1/4 GR 5 Hex Bolt
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
48#014-2009-00
Cooler Cover 2009 through 2014
Qty Used: 1Regular price $117.94 USDRegular priceUnit price per
-
49#030-7042-00
5/16 x 3/4 Hex Washer Type F
Qty Used: 4Regular price $0.89 USDRegular priceUnit price per
-
50#014-8047-00
Seat Spring Cap Cover
Qty Used: 2Regular price $8.12 USDRegular priceUnit price per
-
51#034-8045-00
Seat Spring
Qty Used: 2Regular price $19.15 USDRegular priceUnit price per
-
52#013-6014-00
3/8-16 Hex Nuts Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
53#019-5037-00
3/8 Lockwasher Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
54#018-6012-00
3/8 x 1 1/2 Bolt
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
55#018-2018-00
1/2 x 3 1/2 Flange Bolt - Gr 8
Qty Used: 2Regular price $3.29 USDRegular priceUnit price per
