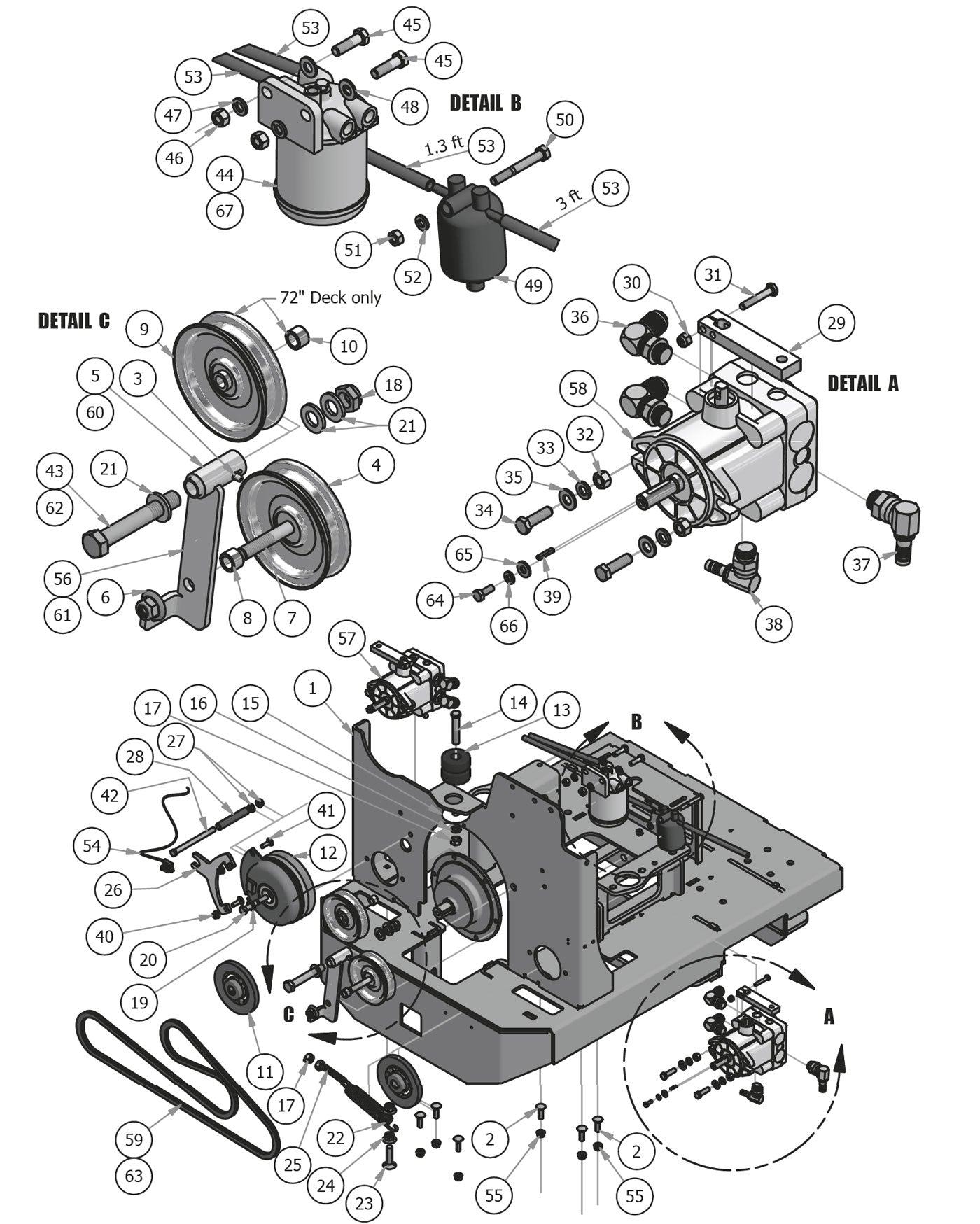

Pump Brake Assembly
Parts Index
- 1 Pump Plate Diesel (Qty 1)
- 2 3/8-16 X 1-1/4 Carriage Bolt (Qty 6)
- 3 1/8" Drive-in Grease Fitting No Ball (Qty 1)
- 4 4 3/4 Idler Pulley - ABFI-76 (Qty 1)
- 5 Pump Idler Bracket 60 Diesel (Qty 1)
- 6 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 7 1/2-13 X 3 GR 5 Hex Bolts Zinc (Qty 1)
- 8 1/2 Set Collar w/set collar (Qty 1)
- 9 Reducer for the 033-4050-00 (Qty 1)
- 10 5/8 Set Collar W/One Set Screw (Qty 1)
- 11 Cast Pump Pulley - 17mm Assembly (Qty 2)
- 12 Renegade Clutch (Qty 1)
- 13 Rubber for Rear Diesel Motor (Qty 1)
- 14 1/2-13 X 3 GR 5 Hex Bolts Zinc (Qty 1)
- 15 Snubbing Washer-032-4050-00 (Qty 1)
- 16 1/2 Lockwasher Zinc (Qty 1)
- 17 1/2-13 Hex Nuts Zinc (Qty 3)
- 18 5/8-11 Nylon Insert Jam Locknu (Qty 1)
- 19 7/16 Lock washer zinc (Qty 1)
- 20 7/16 x 3 Fine Thread Bolt (Qty 1)
- 21 .630 ID X 1.122 OD X .142 THK (Qty 3)
- 22 2009 Deck/Pump Idler Spring (Qty 1)
- 23 1/2 x 2 Carriage Bolt (Qty 1)
- 24 1/2-13 Nylon Insert Flange Nut (Qty 2)
- 25 All Thread-Pump Idler Tensioner (Qty 1)
- 26 Diesel PTO Engager Holder--Plated (Qty 1)
- 27 3/8-16 Hex Flange Nuts Zinc w/ (Qty 2)
- 28 3/8 Fuel Line-Priced per Foot (Qty 1)
- 29 Pump Arm (Qty 2)
- 30 1/4-20 Nylon Insert Locknut Zi (Qty 2)
- 31 1/4-20 X 1-1/2 GR 5 Hex Bolt (Qty 2)
- 32 3/8-16 Hex Nuts Zinc (Qty 4)
- 33 3/8 Lockwasher Zinc (Qty 4)
- 34 3/8 x 1 1/2 Bolt (Qty 4)
- 35 3/8 USS Flat Washer Zinc (Qty 4)
- 36 90 Degree Adaptor - 6801-L-8-8 (Qty 4)
- 37 90 Degree Fitting, 1/2 x 3/4, (Qty 2)
- 38 90 Degree Fitting, 3/8 x 9/16, (Qty 2)
- 39 OBSOLETE USE 042-5013-00 (Qty 2)
- 40 5/16-18 Hex Flange Nuts Zinc w (Qty 2)
- 41 5/16-18 X 1 Carriage Bolt Zinc (Qty 2)
- 42 3/8-16 x 5 Hex Bolt - Grade 5 (Qty 1)
- 43 5/8-11 X 4 GR 8 Hex Bolts Zinc (Qty 1)
- 44 CAT FUEL FILTER BIG (Qty 1)
- 45 3/8-16 X 1-1/4 GR 5 Hex Bolt (Qty 2)
- 46 3/8-16 Hex Nuts Zinc (Qty 2)
- 47 3/8 Lockwasher Zinc (Qty 2)
- 48 3/8 USS Flat Washer Zinc (Qty 2)
- 49 Caterpillar Fuel Bowl Kit (Qty 1)
- 50 5/16 x 2 1/2 Bolt (Qty 1)
- 51 5/16-18 Hex Nuts Zinc (Qty 1)
- 52 5/16 Lock washer Zinc (Qty 1)
- 53 5/16 Fuel Line Hose (Qty 4)
- 54 Clutch Pigtail (Qty 1)
- 55 3/8 Nylock Flange Nut (Qty 6)
- 56 PUMP IDLER BRACK ASSEMBLY. 60"DIESEL (Qty 1)
- 57 Left Pump 16cc - AOS/Diesel (Qty 1)
- 58 Right Pump 16cc - AOS/Diesel (Qty 1)
- 59 Pump Belt for 35hp Diesel/XP (Qty 1)
- 60 Diesel Pump Idler 72 (35HP) (Qty 1)
- 61 Diesel Pump Idler 72 (35HP) Assembly (Qty 1)
- 62 5/8 x 5 1/2 Bolt (Qty 1)
- 63 Pump Belt Outlaw (Qty 1)
- 64 M6-1.0 X 16MM HEX BOLT CL 8 (Qty 2)
- 65 1/4 USS Flat Washer Zinc (Qty 2)
- 66 1/4 Lockwasher Zinc (Qty 2)
- 67 Perkins Fuel Filter for 015-0096-00 & 015-0097-00 (Qty 1)
-
56#039-5946-98
PUMP IDLER BRACK ASSEMBLY. 60"DIESEL
Qty Used: 1Regular price $53.06 USDRegular priceUnit price per
-

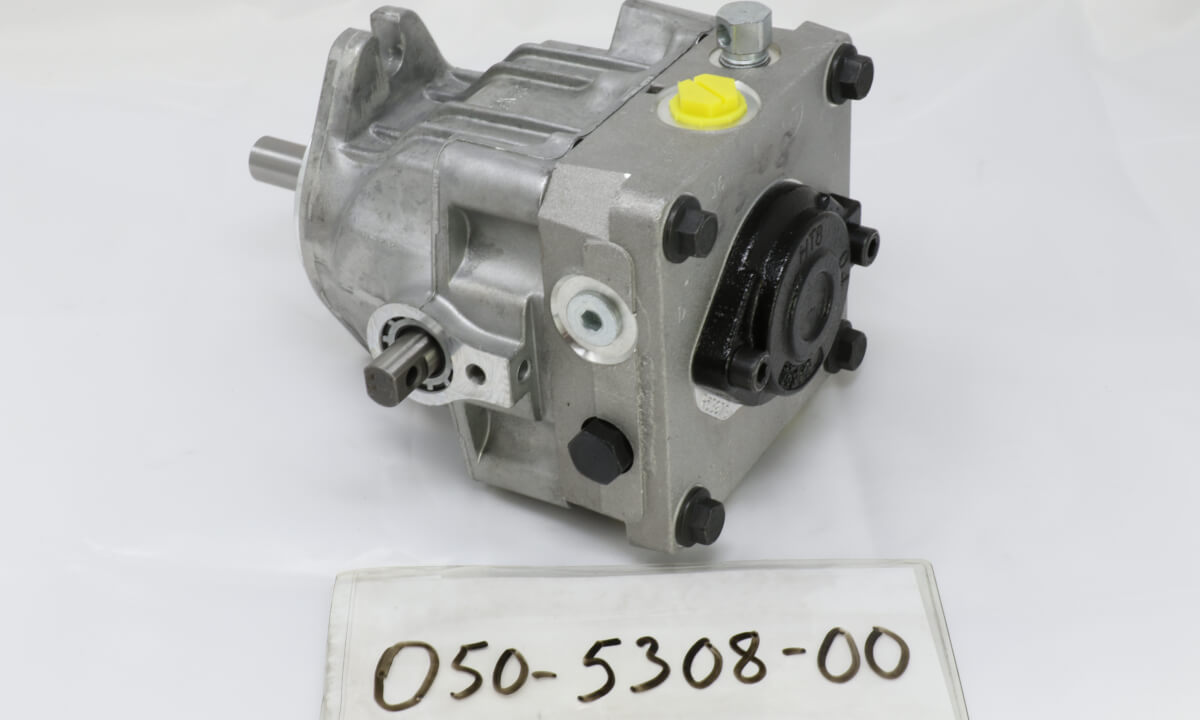

57#050-5308-00
Left Pump 16cc - AOS/Diesel
Qty Used: 1Regular price $799.99 USDRegular priceUnit price per
-
58#050-5407-00
Right Pump 16cc - AOS/Diesel
Qty Used: 1Regular price $799.99 USDRegular priceUnit price per
-

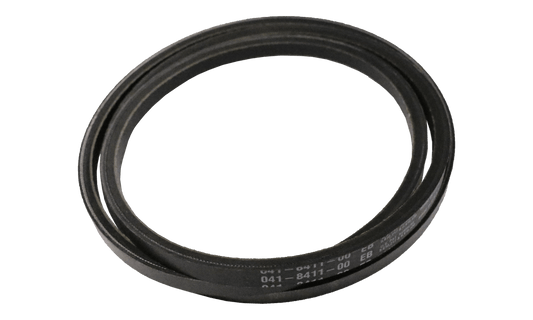

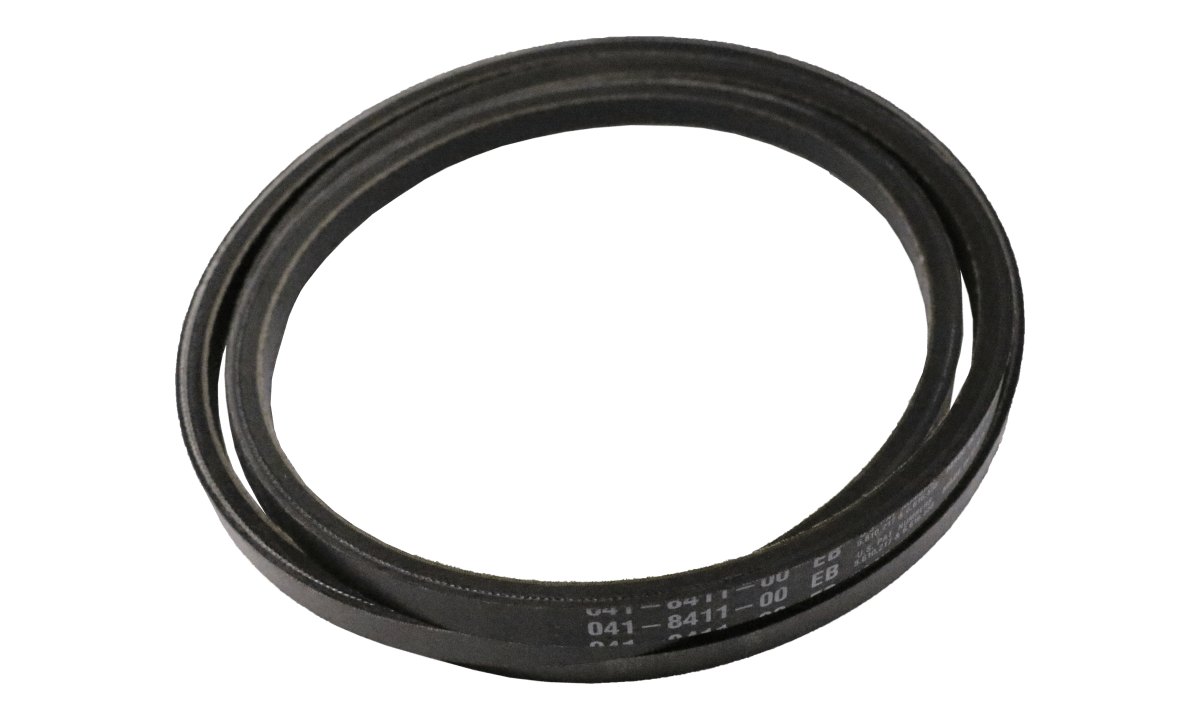

59#041-8411-00
Pump Belt for 35hp Diesel/XP
Qty Used: 1Regular price $59.99 USDRegular priceUnit price per
-

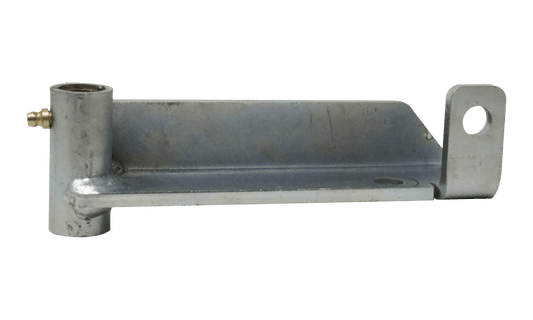

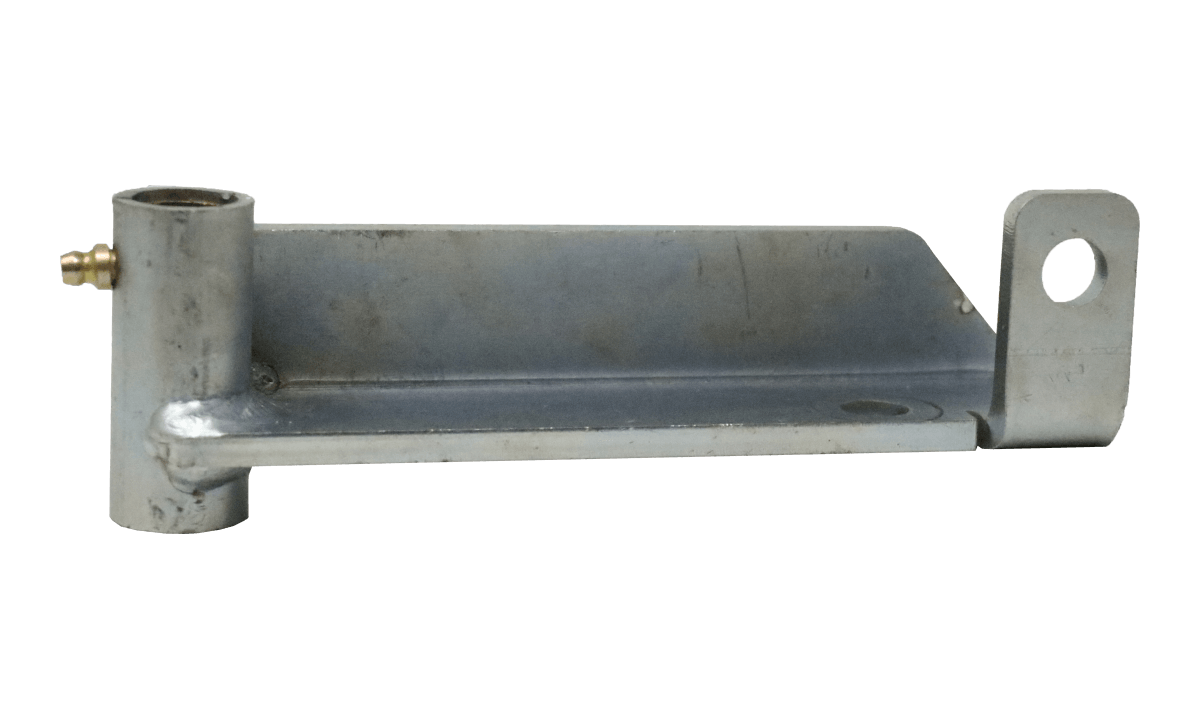

60#039-5945-00
Diesel Pump Idler 72 (35HP)
Qty Used: 1Regular price $30.51 USDRegular priceUnit price per
-

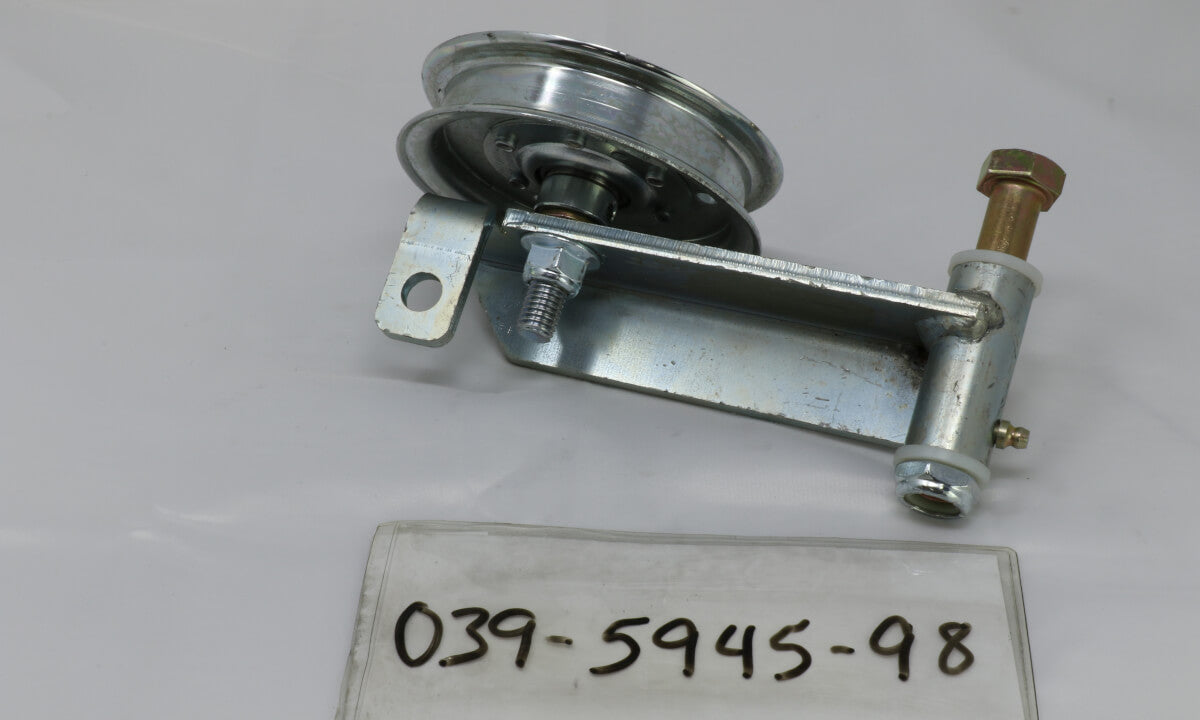

61#039-5945-98
Diesel Pump Idler 72 (35HP) Assembly
Qty Used: 1Regular price $53.06 USDRegular priceUnit price per
-
62#018-6016-00
5/8 x 5 1/2 Bolt
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
63#041-5048-00
Pump Belt Outlaw
Qty Used: 1Regular price $56.99 USDRegular priceUnit price per
-
64#018-0024-00
M6-1.0 X 16MM HEX BOLT CL 8
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
65#019-7040-00
1/4 USS Flat Washer Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
66#019-4008-00
1/4 Lockwasher Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-

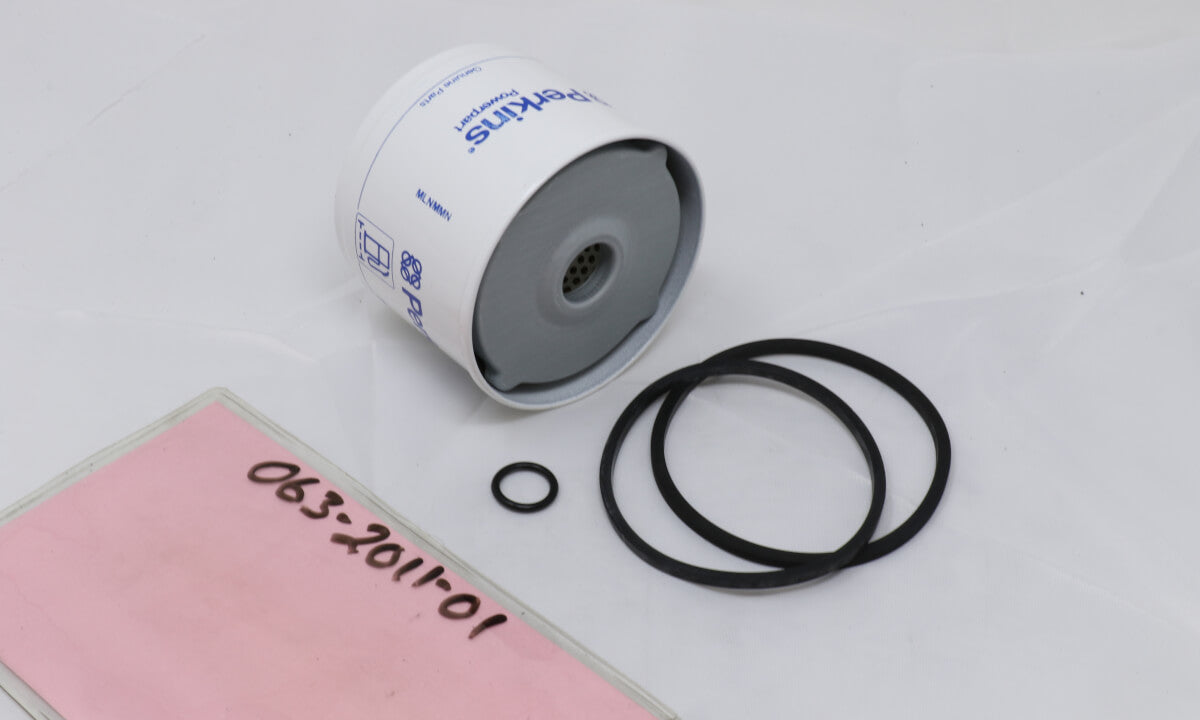

67#063-2011-01
Perkins Fuel Filter for 015-0096-00 & 015-0097-00
Qty Used: 1Regular price $25.20 USDRegular priceUnit price per
-
1#026-8030-00
Pump Plate Diesel
Qty Used: 1Regular price $99.99 USDRegular priceUnit price per
-
2#018-5043-00
3/8-16 X 1-1/4 Carriage Bolt
Qty Used: 6Regular price $0.99 USDRegular priceUnit price per
-

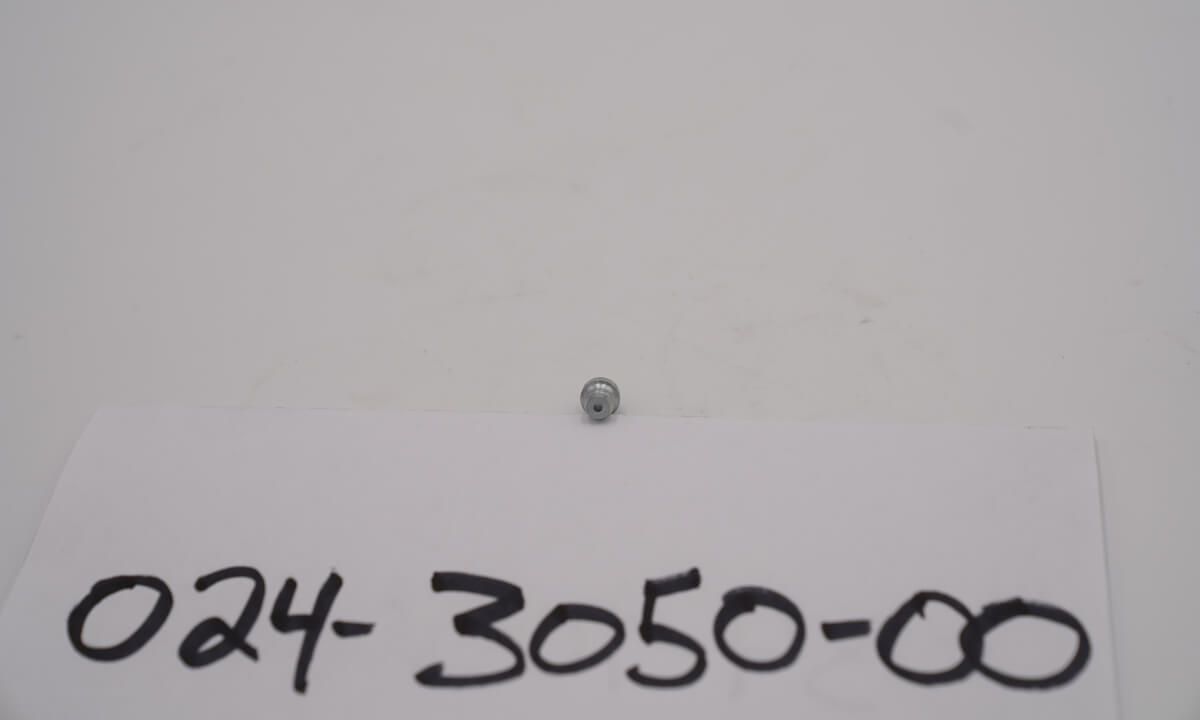

3#024-3050-00
1/4" Drive-in Grease Fitting
Qty Used: 1Regular price $0.99 USDRegular priceUnit price per
-
4#033-6001-00
4 3/4 Idler Pulley - ABFI-76
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-

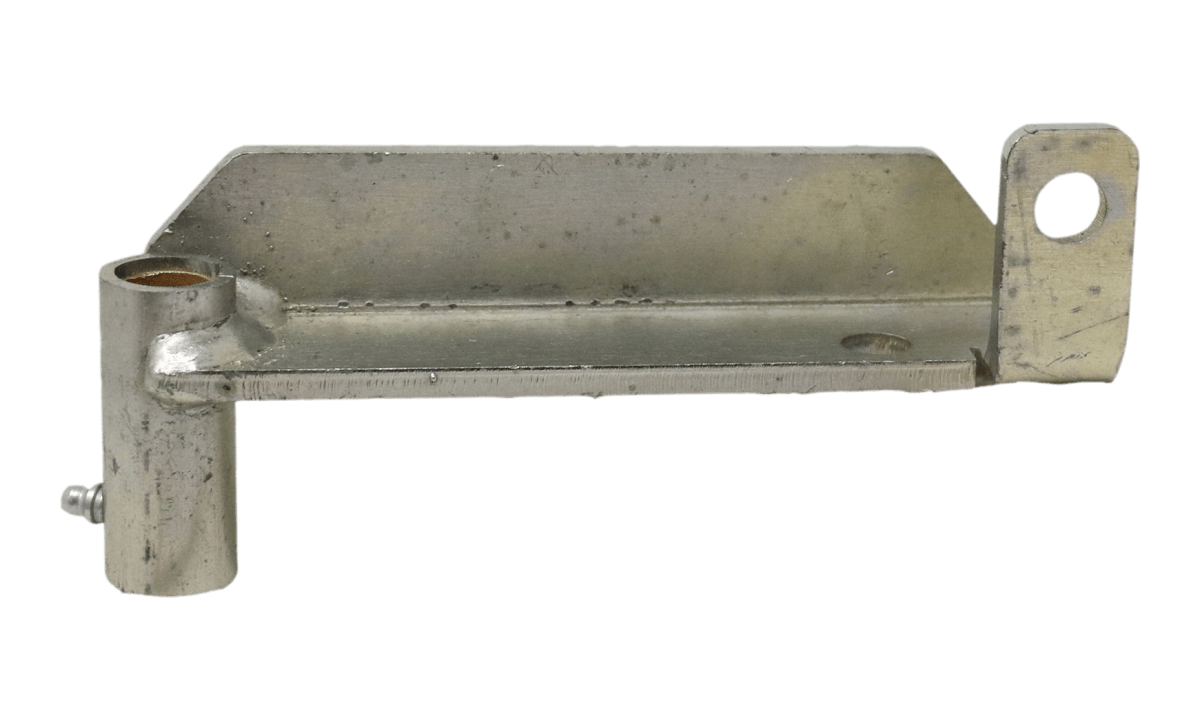

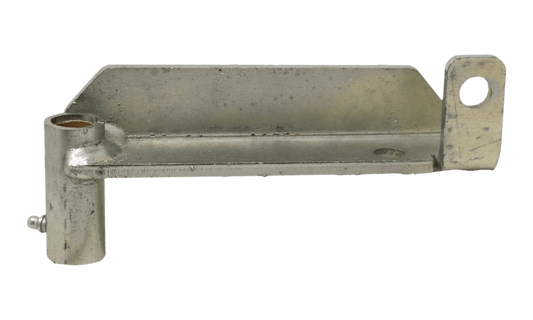

5#039-5950-00
Pump Idler Bracket 60 Diesel
Qty Used: 1Regular price $30.51 USDRegular priceUnit price per
-
624#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
714#018-7016-00
1/2-13 X 3 GR 5 Hex Bolts Zinc
Qty Used: 1Regular price $1.49 USDRegular priceUnit price per
-
8#025-7036-00
1/2 Set Collar w/set collar
Qty Used: 1Regular price $4.18 USDRegular priceUnit price per
-

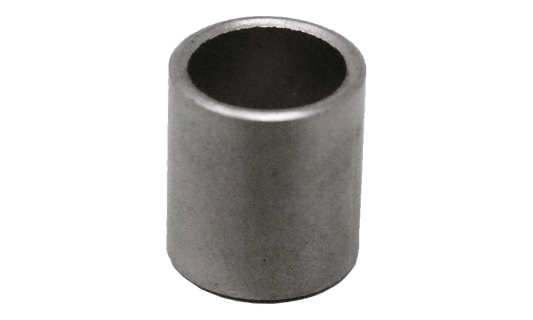

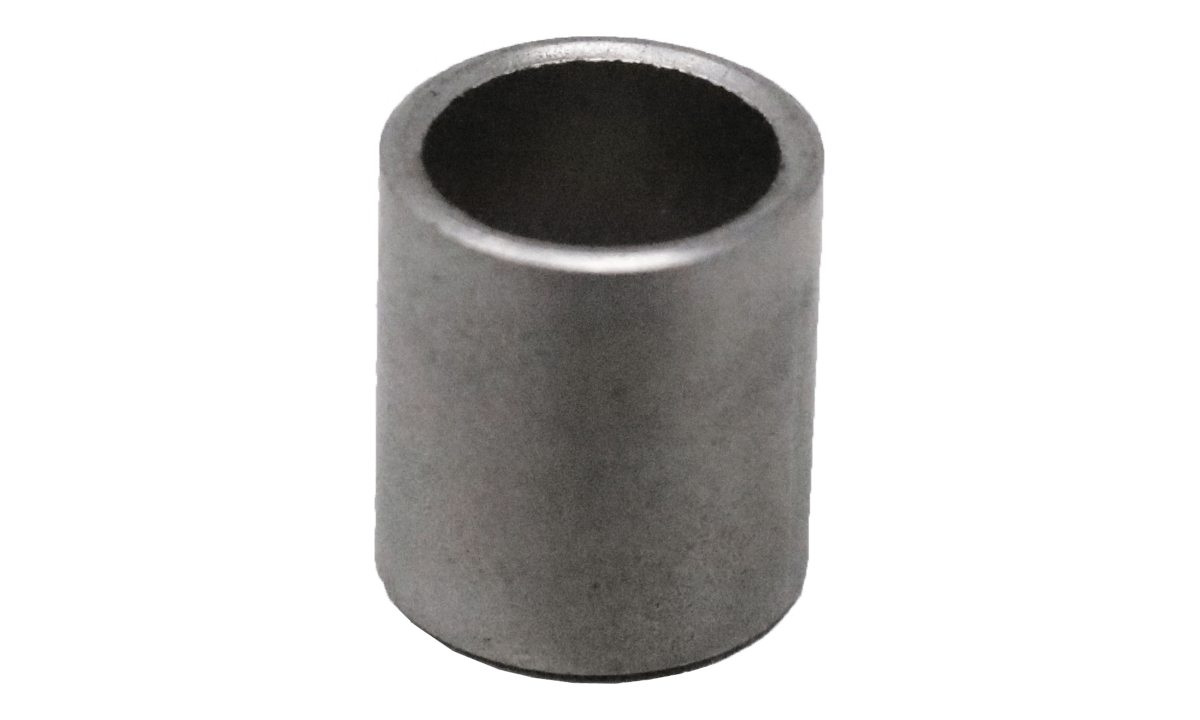

9#025-0009-00
Reducer for the 033-4050-00
Qty Used: 1Regular price $4.99 USDRegular priceUnit price per
-
10#025-7020-00
5/8 Set Collar W/One Set Screw
Qty Used: 1Regular price $3.97 USDRegular priceUnit price per
-
11#033-5011-00
Cast Pump Pulley - 17mm Assembly
Qty Used: 2Regular price $33.16 USDRegular priceUnit price per
-
12#070-5040-00
Renegade Clutch
Qty Used: 1Regular price $359.99 USDRegular priceUnit price per
-
13#032-4000-00
Rubber for Rear Diesel Motor
Qty Used: 1Regular price $71.52 USDRegular priceUnit price per
-
15#032-4051-00
Snubbing Washer-032-4050-00
Qty Used: 1Regular price $15.91 USDRegular priceUnit price per
-
16#019-5007-00
1/2 Lockwasher Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
17#013-7018-00
1/2-13 Hex Nuts Zinc
Qty Used: 3Regular price $0.79 USDRegular priceUnit price per
-
18#013-5301-00
5/8-11 Nylon Insert Jam Locknu
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
19#019-8053-00
7/16 Lock washer zinc
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-

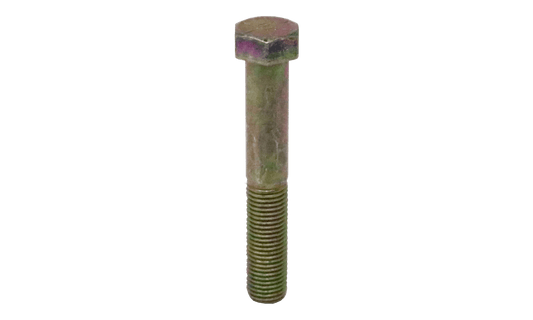

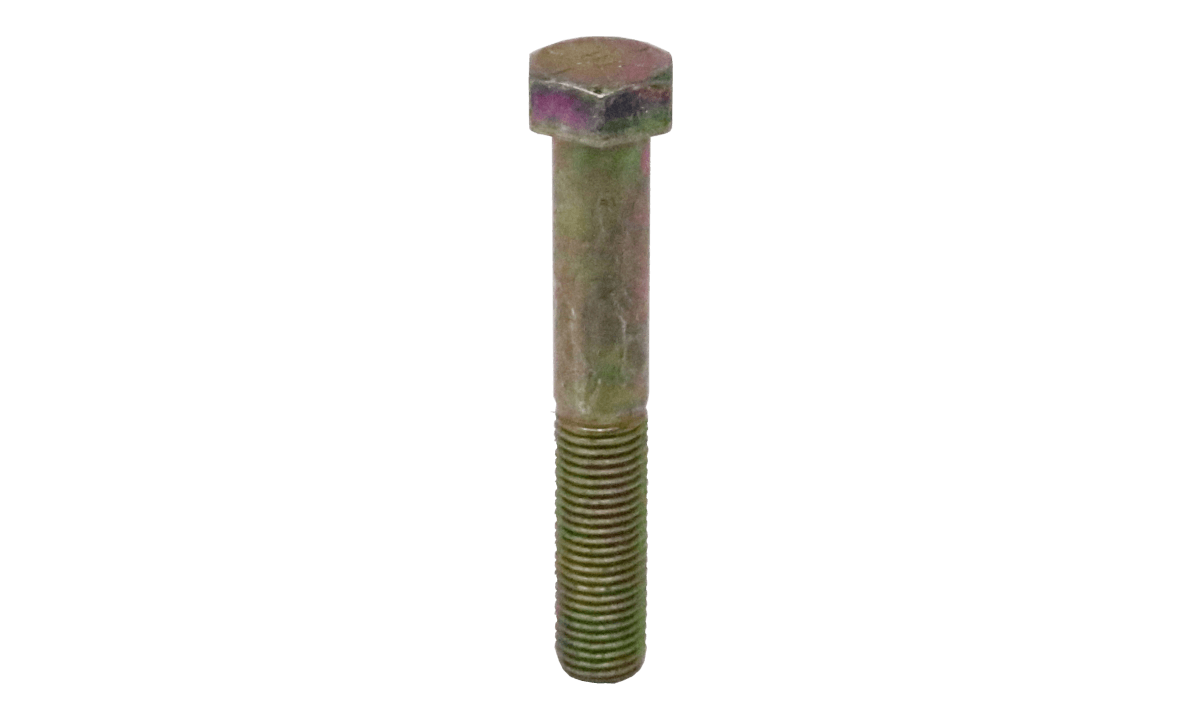

20#018-5401-00
7/16 x 3 Fine Thread Bolt
Qty Used: 1Regular price $1.99 USDRegular priceUnit price per
-
21#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 3Regular price $0.79 USDRegular priceUnit price per
-
22#034-2009-00
2009 Deck/Pump Idler Spring
Qty Used: 1Regular price $16.99 USDRegular priceUnit price per
-
23#018-1050-00
1/2 x 2 Carriage Bolt
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
25#018-2004-00
All Thread-Pump Idler Tensioner
Qty Used: 1Regular price $12.09 USDRegular priceUnit price per
-

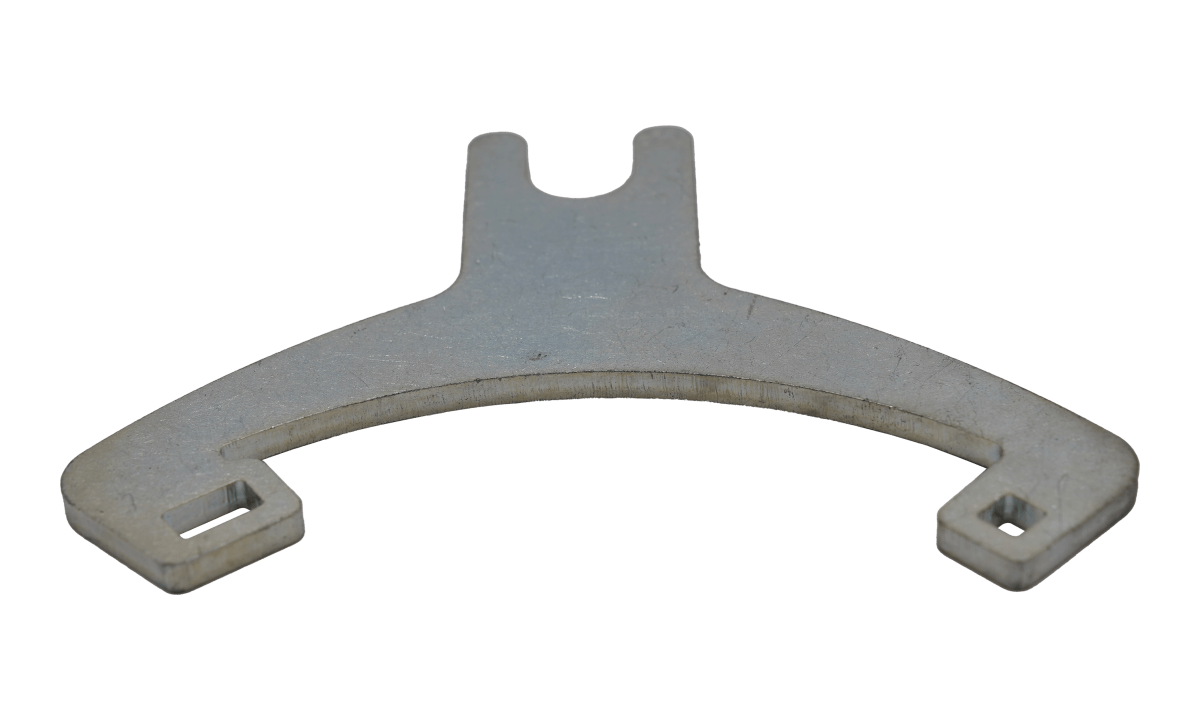

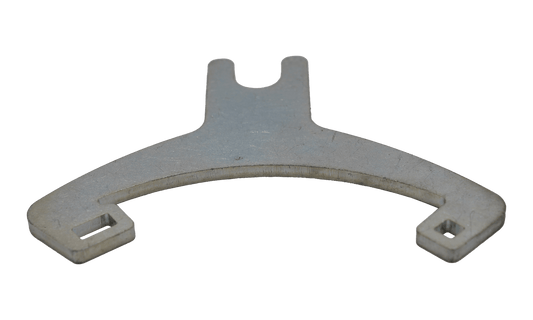

26#057-5910-10
Diesel PTO Engager Holder--Plated
Qty Used: 1Regular price $21.22 USDRegular priceUnit price per
-
27#013-5201-00
3/8-16 Hex Flange Nuts Zinc w/
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
28#051-8076-00
3/8 Fuel Line-Priced per Foot
Qty Used: 1Regular price $4.37 USDRegular priceUnit price per
-
-
30#013-8073-00
1/4-20 Nylon Insert Locknut Zi
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-

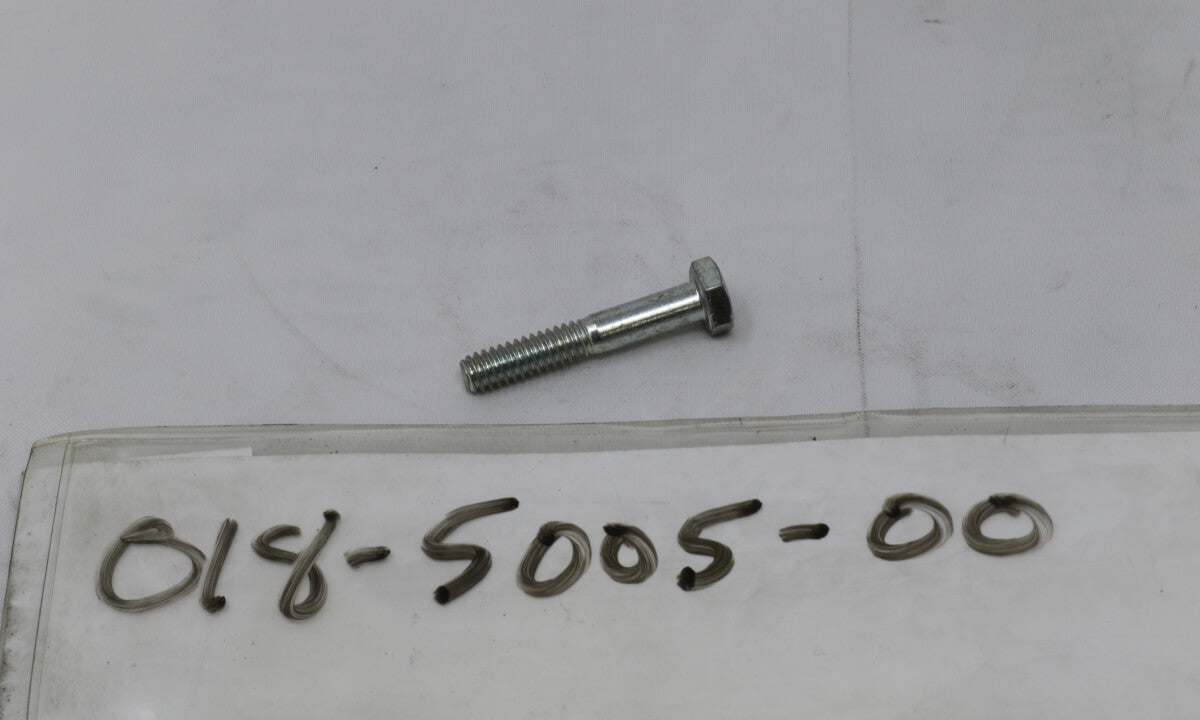

31#018-5005-00
1/4-20 X 1-1/2 GR 5 Hex Bolt
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
3246#013-6014-00
3/8-16 Hex Nuts Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
3347#019-5037-00
3/8 Lockwasher Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
34#018-6012-00
3/8 x 1 1/2 Bolt
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
3548#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-

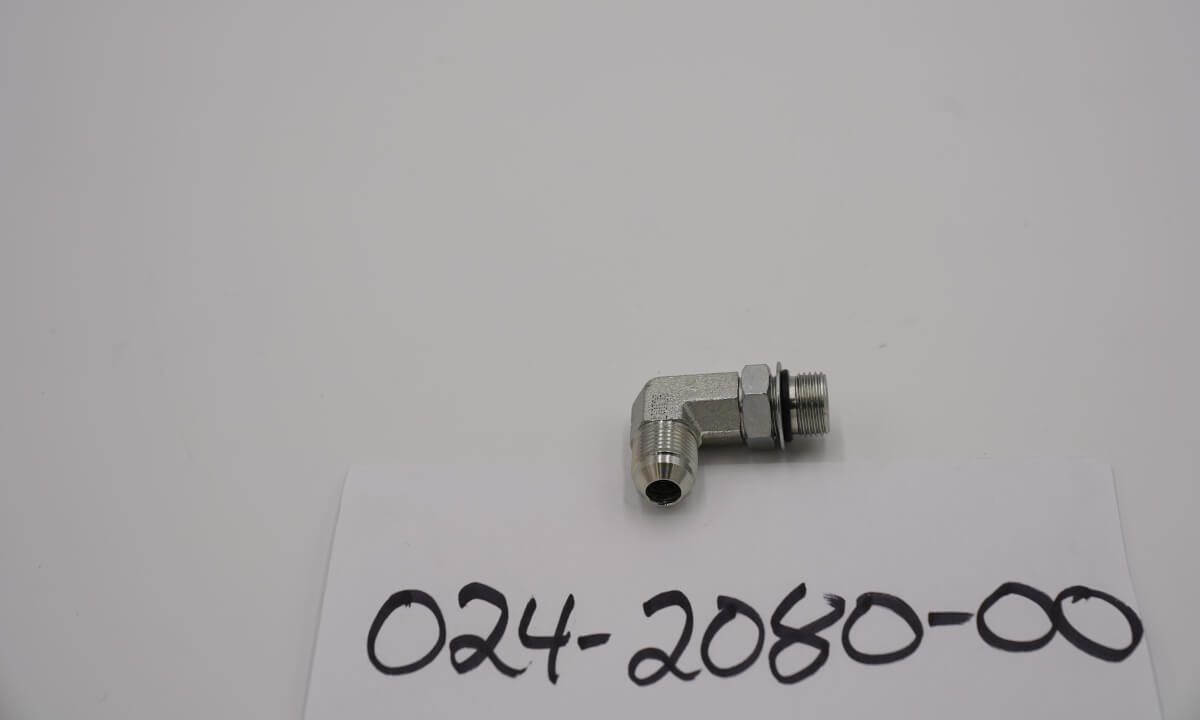

36#024-2080-00
90 Degree Adaptor - 6801-L-8-8
Qty Used: 4Regular price $8.79 USDRegular priceUnit price per
-

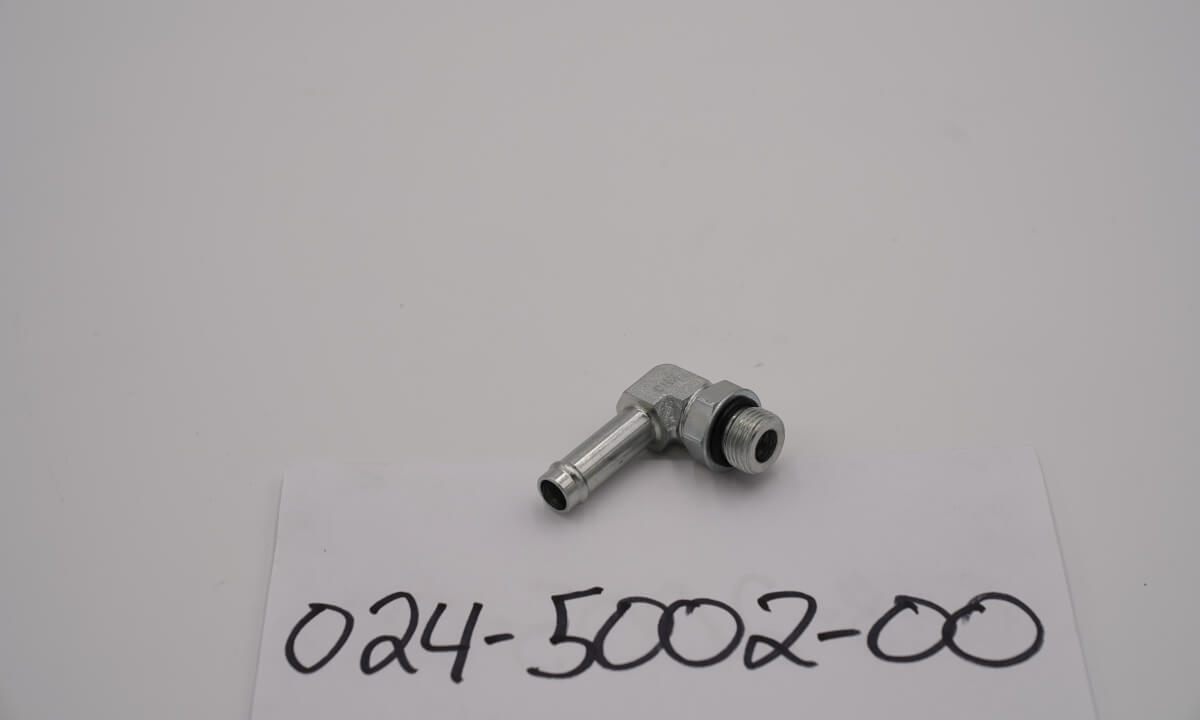

37#024-5002-00
90 Degree Fitting, 1/2 x 3/4,
Qty Used: 2Regular price $16.48 USDRegular priceUnit price per
-

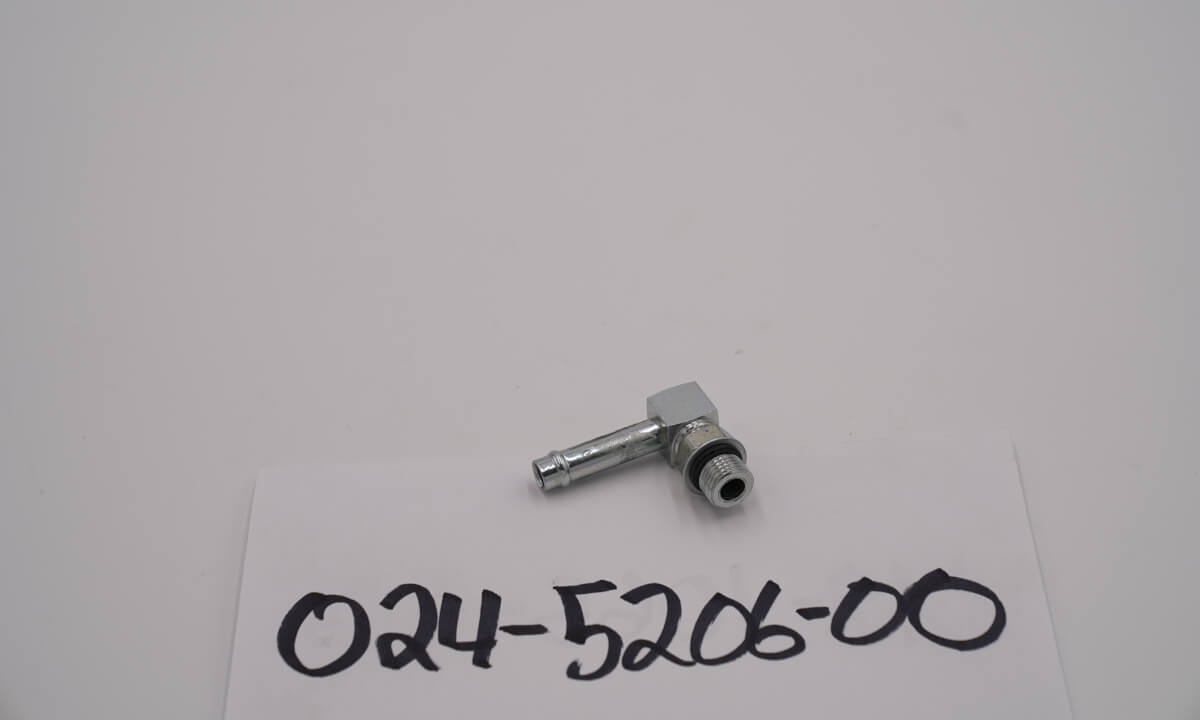

38#024-5206-00
90 Degree Fitting, 3/8 x 9/16,
Qty Used: 2Regular price $11.61 USDRegular priceUnit price per
-

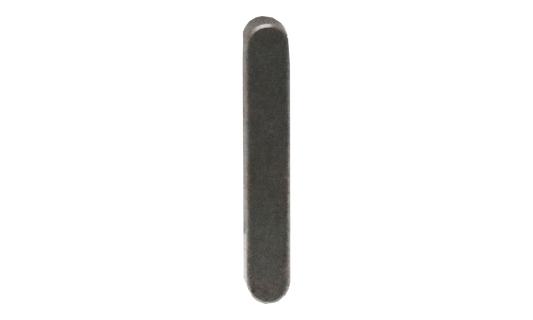

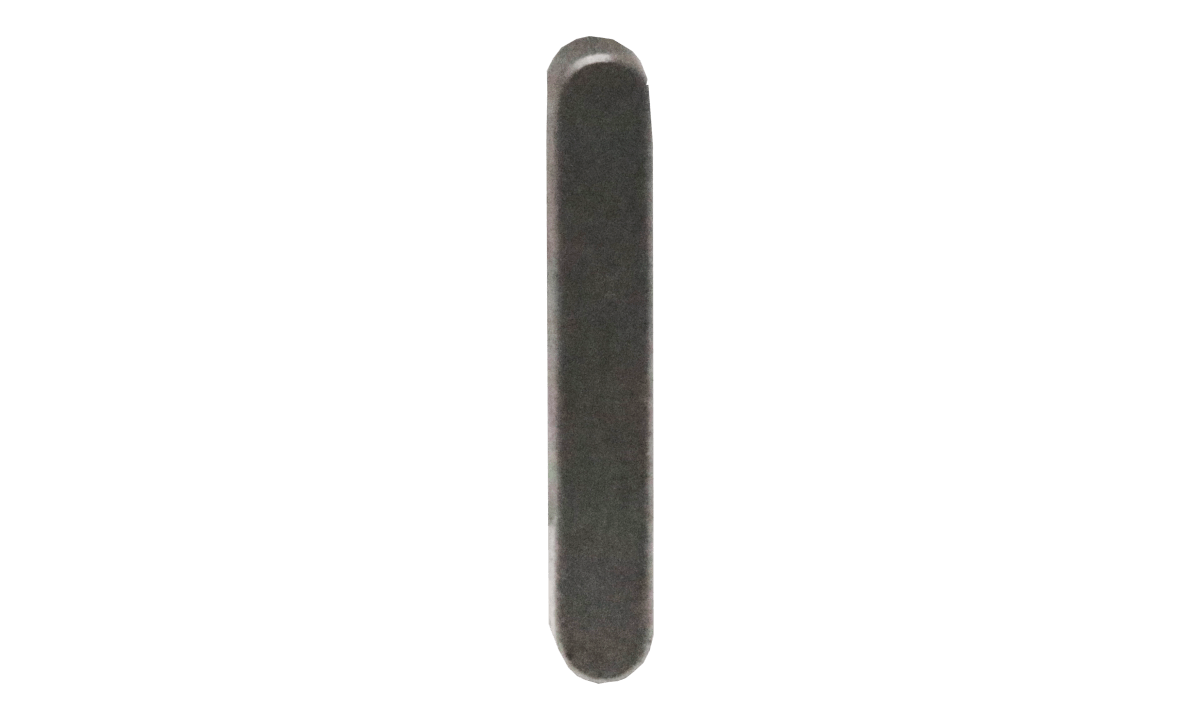

39#042-5012-00
OBSOLETE USE 042-5013-00
Qty Used: 2Regular price $2.92 USDRegular priceUnit price per
-
40#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
41#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
42#018-7055-00
3/8-16 x 5 Hex Bolt - Grade 5
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
43#018-5311-00
5/8-11 X 4 GR 8 Hex Bolts Zinc
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-

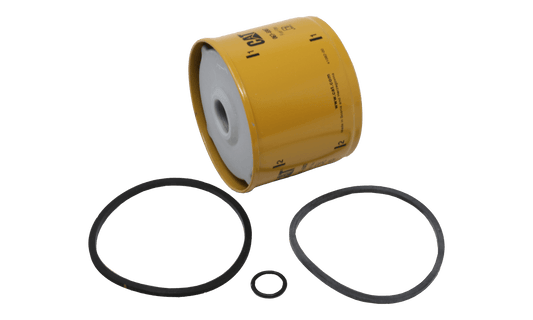

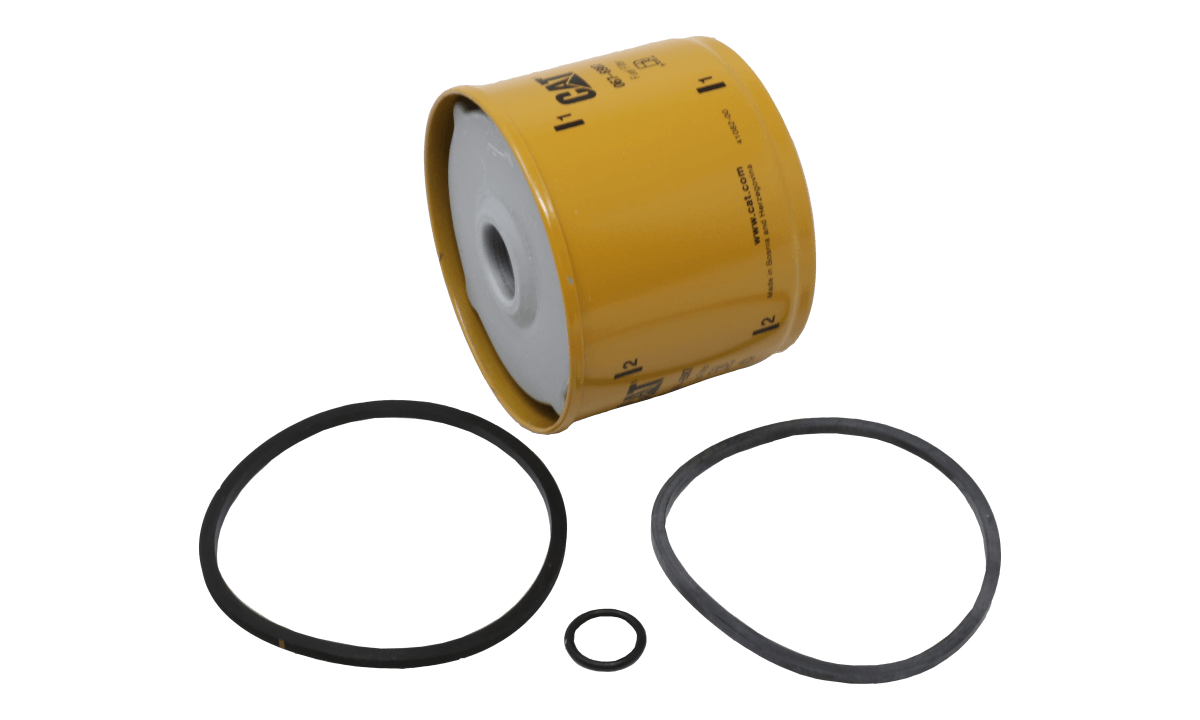

44#063-2011-00
CAT FUEL FILTER BIG
Qty Used: 1Regular price $27.99 USDRegular priceUnit price per
-
45#018-5040-00
3/8-16 X 1-1/4 GR 5 Hex Bolt
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-

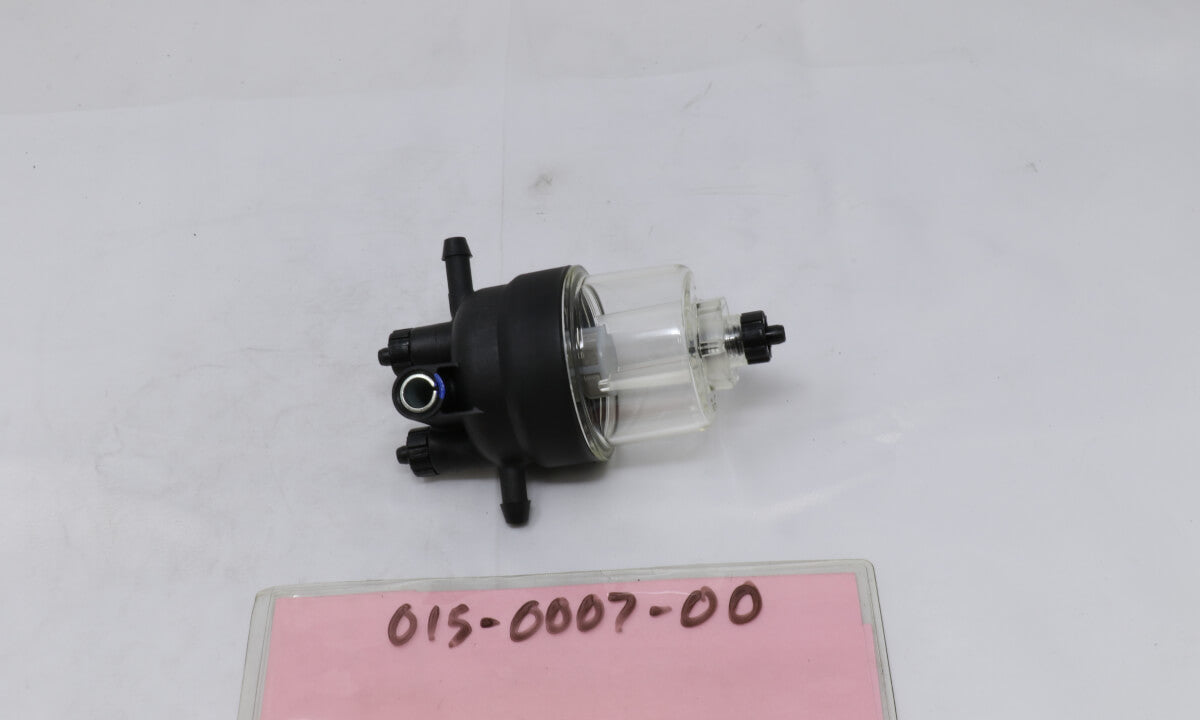

49#015-0007-00
Caterpillar Fuel Bowl Kit
Qty Used: 1Regular price $147.41 USDRegular priceUnit price per
-
50#018-5344-00
5/16 x 2 1/2 Bolt
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
51#013-8043-00
5/16-18 Hex Nuts Zinc
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
52#019-8051-00
5/16 Lock washer Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
53#051-8075-00
5/16 Fuel Line Hose
Qty Used: 4Regular price $4.37 USDRegular priceUnit price per
-
54#070-2000-00
Clutch Pigtail
Qty Used: 1Regular price $19.85 USDRegular priceUnit price per
-
55#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 6Regular price $1.49 USDRegular priceUnit price per
