Frame

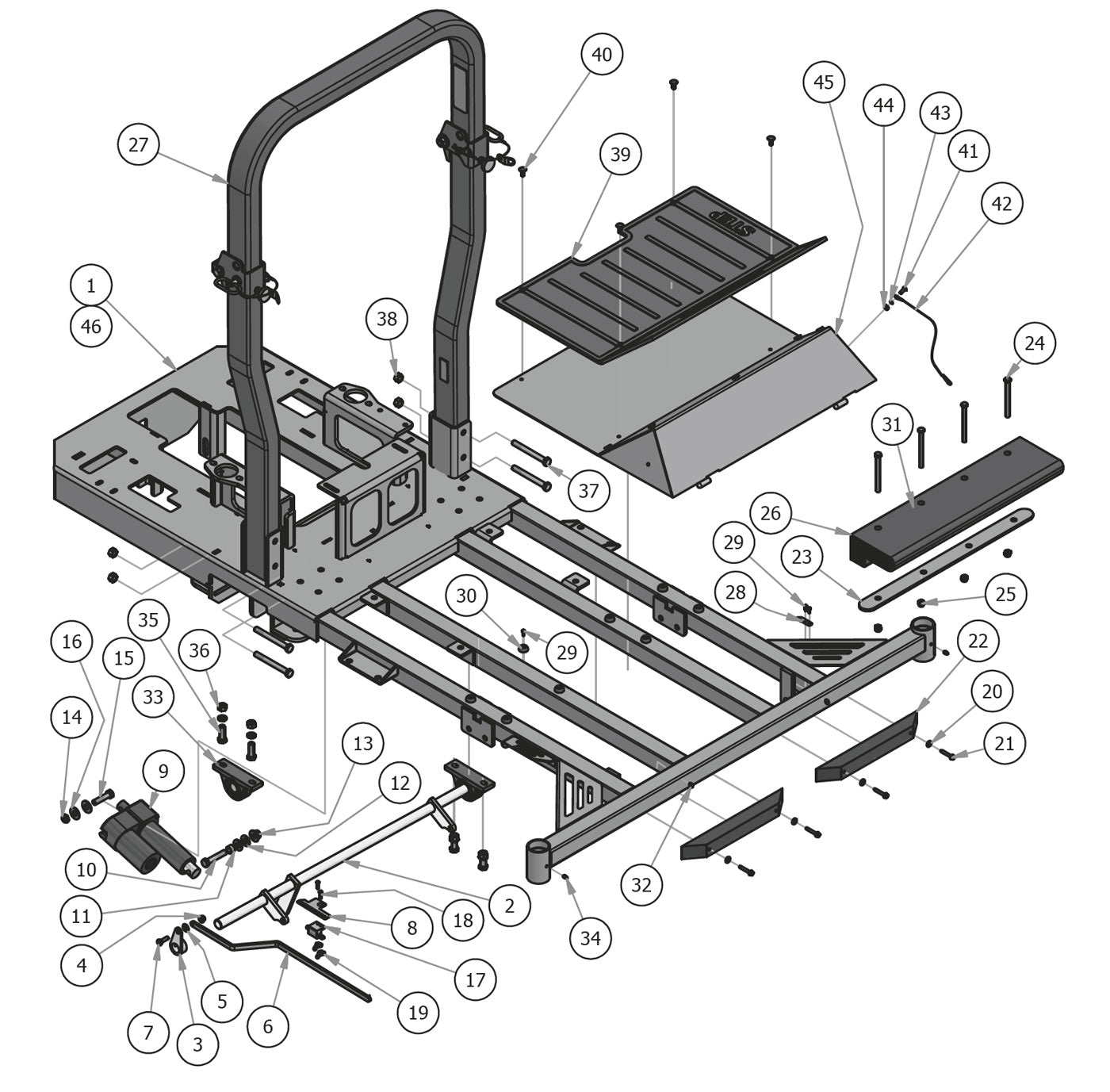

Parts Index
- 1 Diesel 4 cyl 72 inch Frame (Qty 1)
- 2 Actuator Bar (Qty 1)
- 3 Height Indicator Tab and Collar (Qty 1)
- 4 5/16-18 Hex Flange Nuts Zinc w (Qty 1)
- 5 .360 ID Plastic Washer (Qty 1)
- 6 Height Indicator - Lightning (Qty 1)
- 7 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 1)
- 8 Deck Stop Bracket 2008--Plated (Qty 1)
- 9 Actuator for Pup/Lightning/AOS (Qty 1)
- 10 1/2-13 X 2-3/4 GR 5 Bolt Zinc (Qty 1)
- 11 1/2 Set Collar w/set collar (Qty 1)
- 12 .505 ID X 1 OD X .128 THK Washer (Qty 2)
- 13 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 14 1/2-13 Nylon Insert Jam Locknut (Qty 1)
- 15 1/2-13 X 2 GR 5 Hex Bolts Zinc (Qty 1)
- 16 1/2 SAE Flat Washer GR 8 (Qty 2)
- 17 Deck Stop Switch (Qty 1)
- 18 10-24x1/2 Button Head SCS 18-8 (Qty 2)
- 19 10-24 Wing Nut (Qty 2)
- 20 1/4 USS Flat Washer Zinc (Qty 4)
- 21 14 X 1-1/2 HWA A T/S Zinc (Qty 4)
- 22 14 Bumper (Qty 2)
- 23 Diesel Weight Bar Bracket (Qty 1)
- 24 3/8-16 X 4-1/4 GR 5 Hex Bolt (Qty 4)
- 25 3/8-16 Nylon Insert Locknut Zi (Qty 4)
- 26 58 lb Diesel Weight (Qty 1)
- 27 2014 & Up Diesel 2x3 Folding (Qty 1)
- 28 2006-Present Floor Panel Stop (Qty 1)
- 29 10 X 1/2 Pan Phil a T/S Zinc (Qty 10)
- 30 Button Bumper (Qty 8)
- 31 1/4 x 1 Hex Head Tek Screw (Qty 1)
- 32 Brass Washer for Weld-on Hinge (Qty 2)
- 33 1" Pillow Block Bearing (Qty 2)
- 34 1/4 Drive-in Grease Fitting (Qty 2)
- 35 1/2-13 X 1-1/2 GR 5 Hex Bolt (Qty 4)
- 36 1/2-13 Hex Nuts Zinc (Qty 4)
- 37 1/2-13 X 4-1/2 GR 5 Hex Bolts (Qty 4)
- 38 1/2-13 hex 2-WAY REV CNT L/N (GR.B) ZC (Qty 4)
- 39 Floor Mat - AOS Models (Qty 1)
- 40 OBSOLETE USE 040-6080-00 (Qty 9)
- 41 1/4-20 X 5/8 BS C/S 18-8 SS (Qty 1)
- 42 Floorboard Cable (Qty 1)
- 43 1/4 Lockwasher Zinc (Qty 1)
- 44 1/4-20 Hex Nuts Zinc (Qty 1)
- 45 Floor Panel (Standard) Fits Di (Qty 1)
- 46 Diesel 4cyl Frame Suspension (Qty 1)
-
1#070-5550-00
Diesel 4 cyl 72 inch Frame
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
2#028-7920-00
Actuator Bar
Qty Used: 1Regular price $106.14 USDRegular priceUnit price per
-
3#031-7000-00
Height Indicator Tab and Collar
Qty Used: 1Regular price $10.55 USDRegular priceUnit price per
-
4#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
5#019-6042-00
.360 ID Plastic Washer
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-

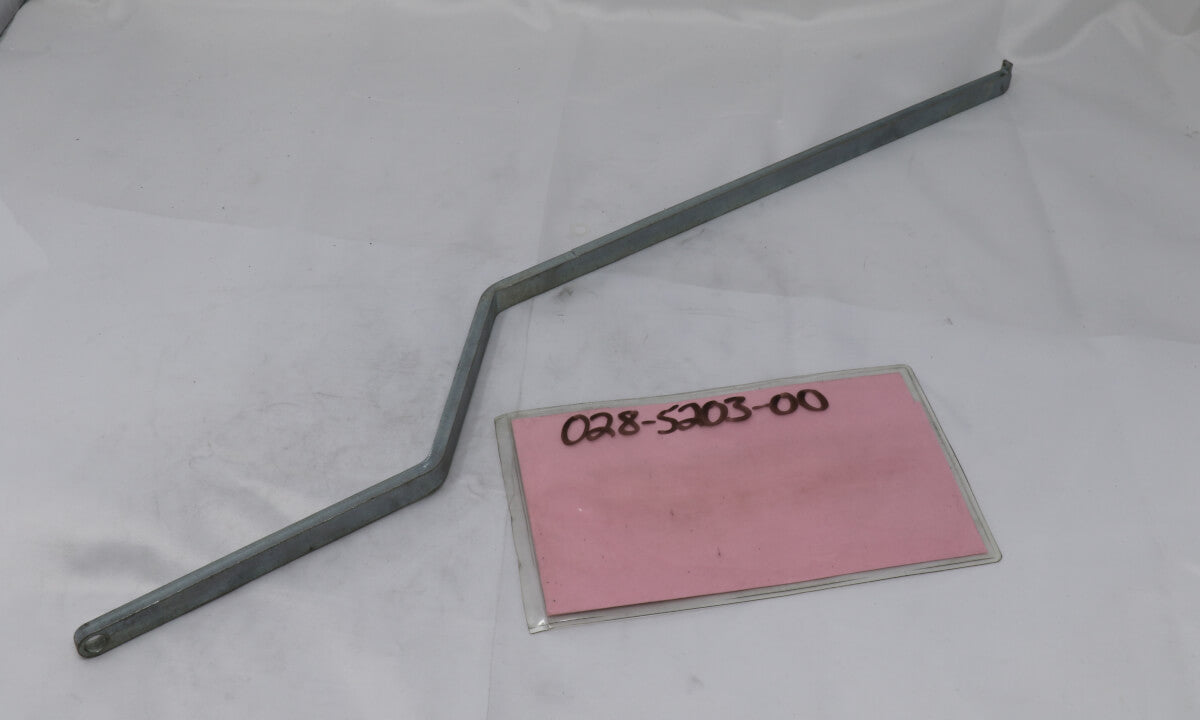

6#028-5203-00
Height Indicator - Lightning
Qty Used: 1Regular price $26.53 USDRegular priceUnit price per
-
7#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-

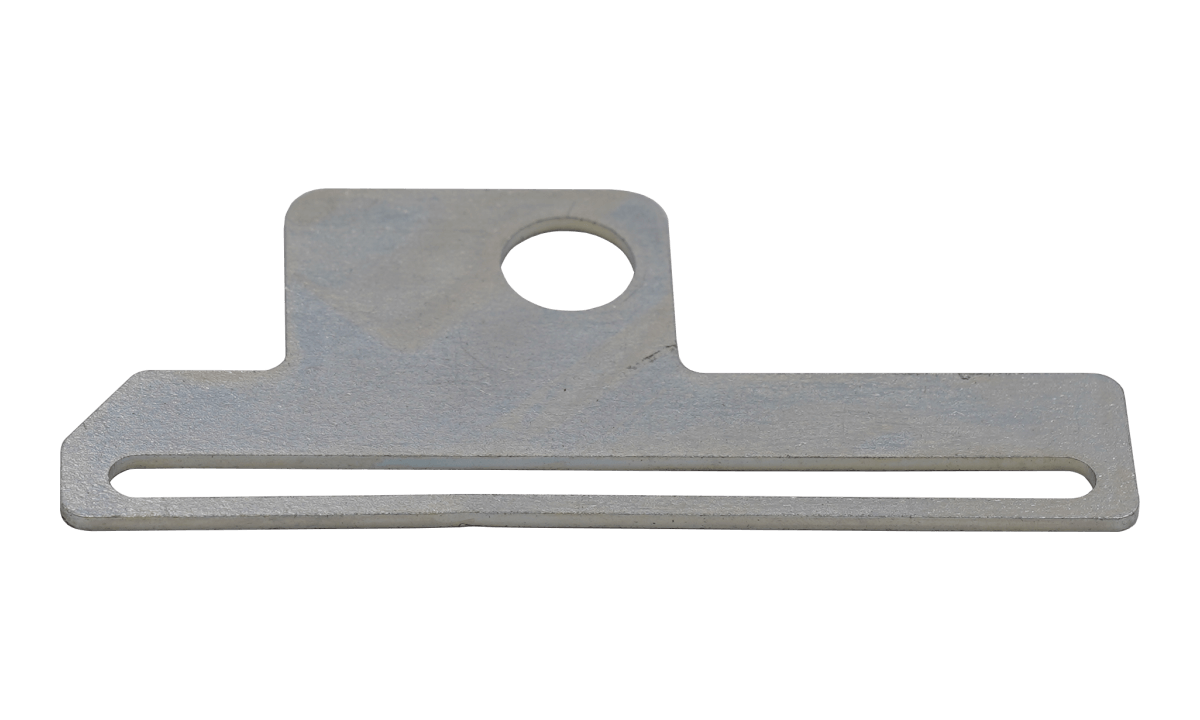

8#039-2008-00
Deck Stop Bracket 2008--Plated
Qty Used: 1Regular price $10.60 USDRegular priceUnit price per
-

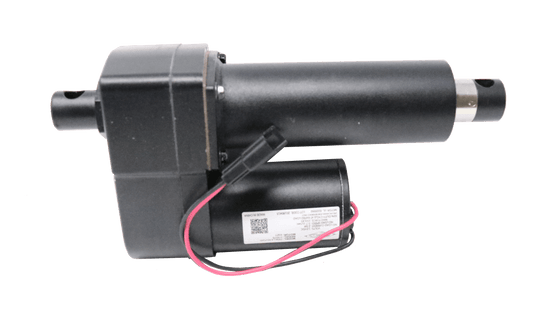

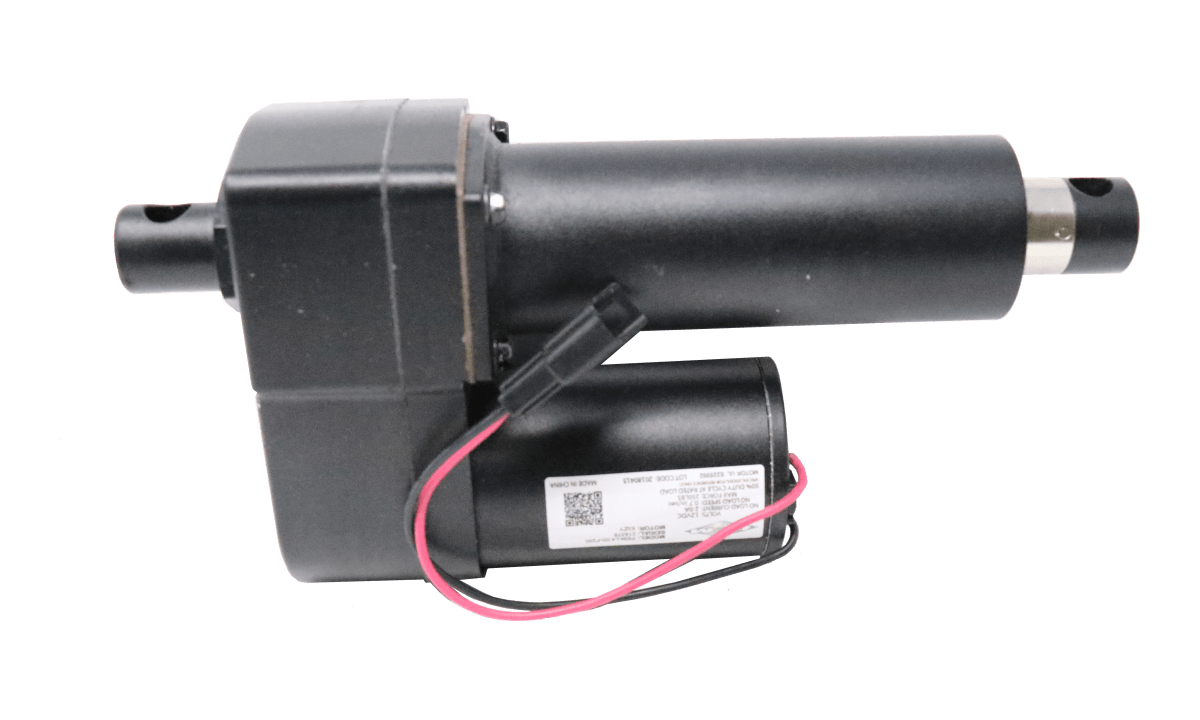

9#035-7033-00
Actuator for Pup/Lightning/AOS
Qty Used: 1Regular price $408.75 USDRegular priceUnit price per
-
10#018-6036-00
1/2-13 X 2-3/4 GR 5 Bolt Zinc
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
11#025-7036-00
1/2 Set Collar w/set collar
Qty Used: 1Regular price $4.18 USDRegular priceUnit price per
-
12#019-8054-00
.505 ID X 1 OD X .128 THK Washer
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
13#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
14#018-4010-00
1/2-13 Nylon Insert Jam Locknut
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-

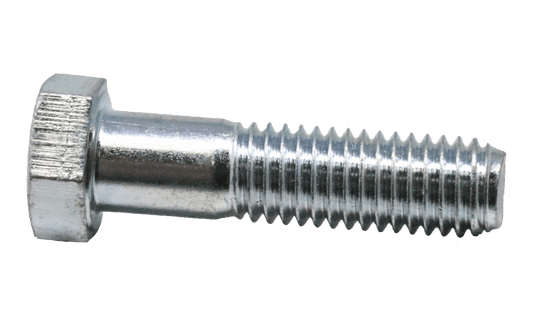

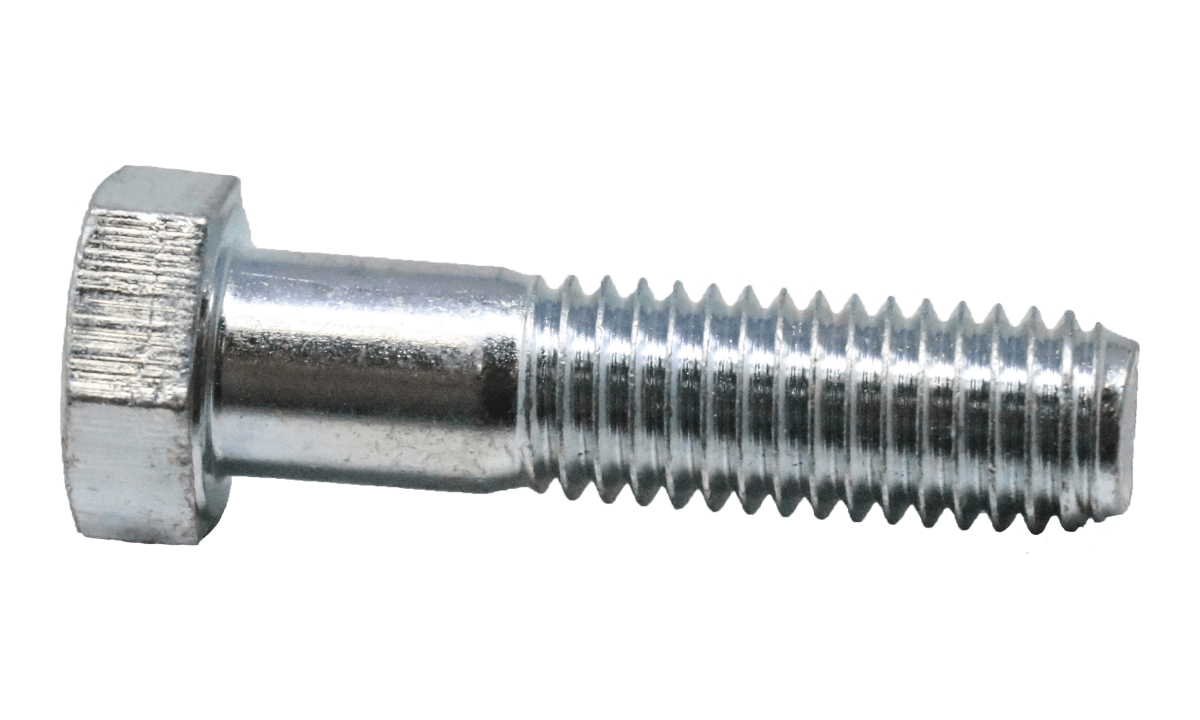

15#018-5049-00
1/2-13 X 2 GR 5 Hex Bolts Zinc
Qty Used: 1Regular price $1.19 USDRegular priceUnit price per
-
16#019-5702-00
1/2 SAE Flat Washer GR 8
Qty Used: 2Regular price $0.75 USDRegular priceUnit price per
-
17#077-5300-00
Deck Stop Switch
Qty Used: 1Regular price $8.99 USDRegular priceUnit price per
-
18#018-8056-00
10-24x1/2 Button Head SCS 18-8
Qty Used: 2Regular price $0.50 USDRegular priceUnit price per
-

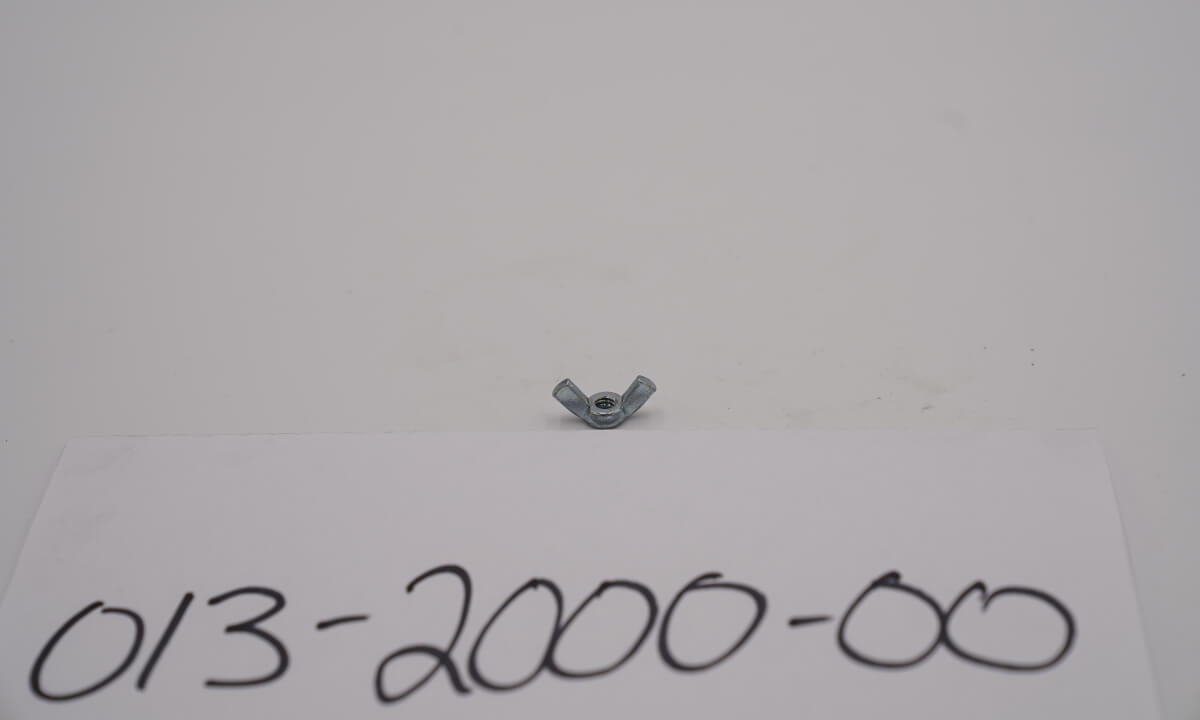

19#013-2000-00
10-24 Wing Nut
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
20#019-7040-00
1/4 USS Flat Washer Zinc
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-

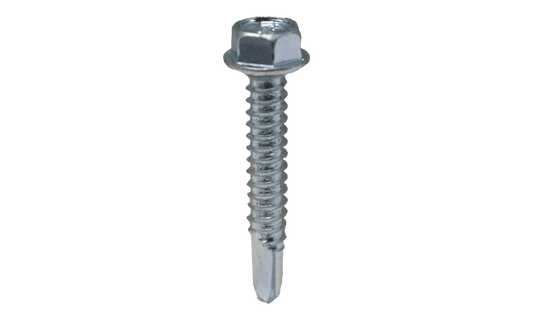

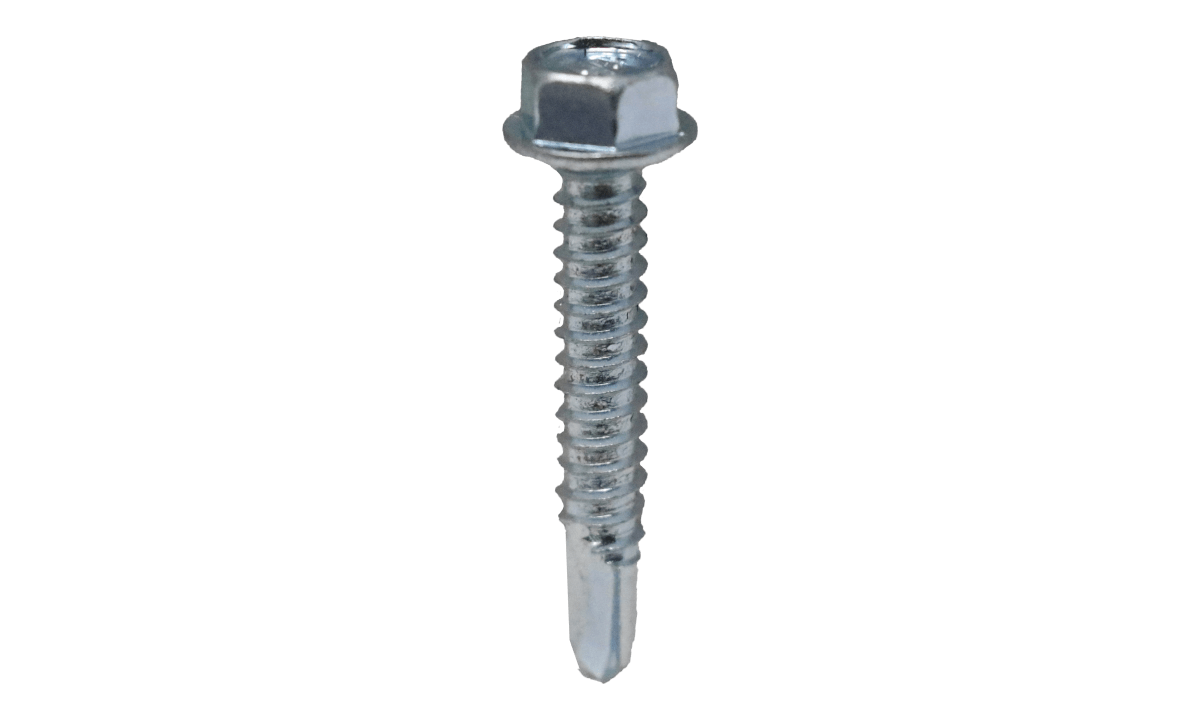

21#030-7039-00
14 X 1-1/2 HWA A T/S Zinc
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
-

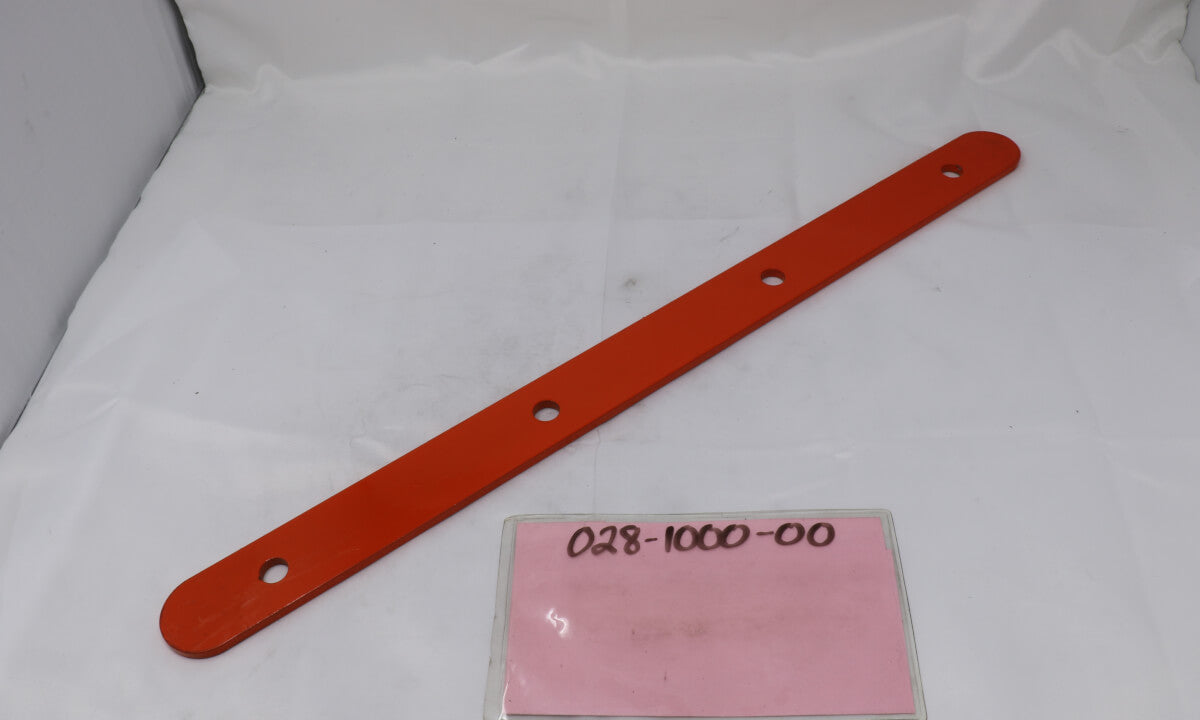

23#028-1000-00
Diesel Weight Bar Bracket
Qty Used: 1Regular price $13.99 USDRegular priceUnit price per
-

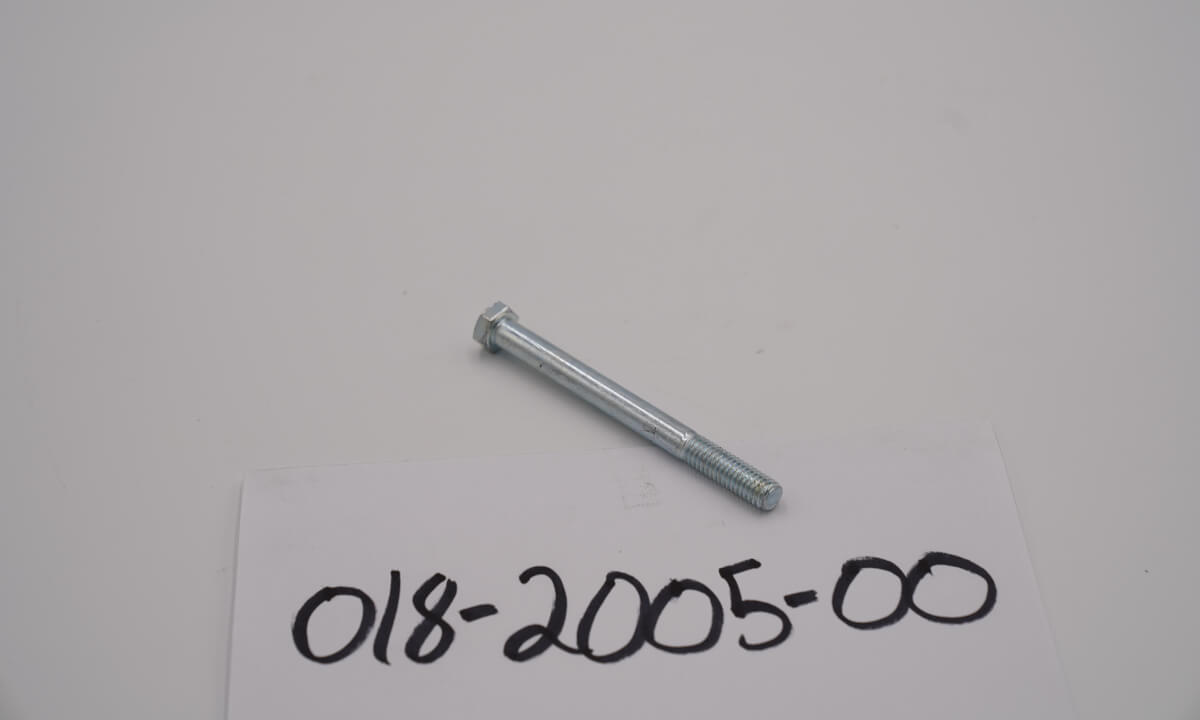

24#018-2005-00
3/8-16 X 4-1/4 GR 5 Hex Bolt
Qty Used: 4Regular price $2.59 USDRegular priceUnit price per
-
25#013-5041-00
3/8-16 Nylon Insert Locknut Zi
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
26#088-2000-00
58 lb Diesel Weight
Qty Used: 1Regular price $199.99 USDRegular priceUnit price per
-
27#089-0003-00
2014 & Up Diesel 2x3 Folding
Qty Used: 1Regular price $349.00 USDRegular priceUnit price per
-

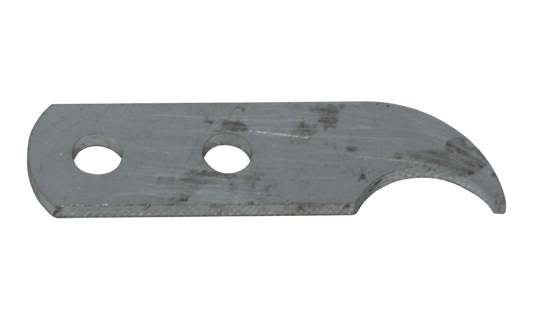

28#058-2000-00
2006-Present Floor Panel Stop
Qty Used: 1Regular price $6.67 USDRegular priceUnit price per
-
29#030-3050-00
10 X 1/2 Pan Phil a T/S Zinc
Qty Used: 10Regular price $0.79 USDRegular priceUnit price per
-
30#029-4010-00
Button Bumper
Qty Used: 8Regular price $1.31 USDRegular priceUnit price per
-
31#030-7040-00
1/4 x 1 Hex Head Tek Screw
Qty Used: 1Regular price $1.00 USDRegular priceUnit price per
-
32#019-2050-00
Brass Washer for Weld-on Hinge
Qty Used: 2Regular price $1.99 USDRegular priceUnit price per
-
33#017-7008-00
1" Pillow Block Bearing
Qty Used: 2Regular price $19.90 USDRegular priceUnit price per
-
34#024-6034-00
1/4 Drive-in Grease Fitting
Qty Used: 2Regular price $0.66 USDRegular priceUnit price per
-
35#018-5006-00
1/2-13 X 1-1/2 GR 5 Hex Bolt
Qty Used: 4Regular price $0.89 USDRegular priceUnit price per
-
36#013-7018-00
1/2-13 Hex Nuts Zinc
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
37#018-7050-00
1/2-13 X 4-1/2 GR 5 Hex Bolts
Qty Used: 4Regular price $2.39 USDRegular priceUnit price per
-
38#013-0005-00
1/2-13 hex 2-WAY REV CNT L/N (GR.B) ZC
Qty Used: 4Regular price $2.69 USDRegular priceUnit price per
-

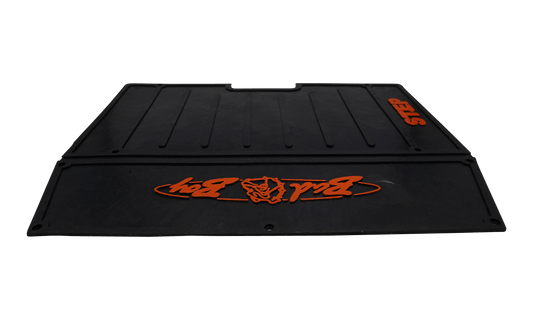

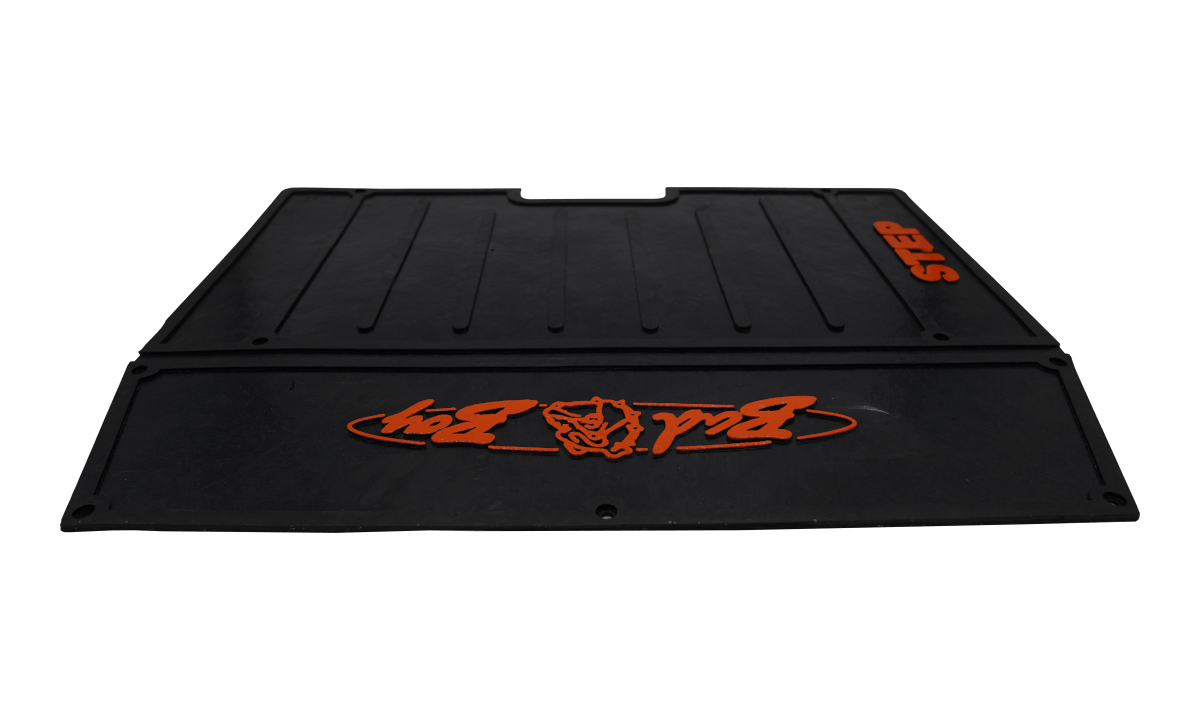

39#081-2007-00
Floor Mat - AOS Models
Qty Used: 1Regular price $62.39 USDRegular priceUnit price per
-
40#040-6090-00
OBSOLETE USE 040-6080-00
Qty Used: 9Regular price $1.99 USDRegular priceUnit price per
-

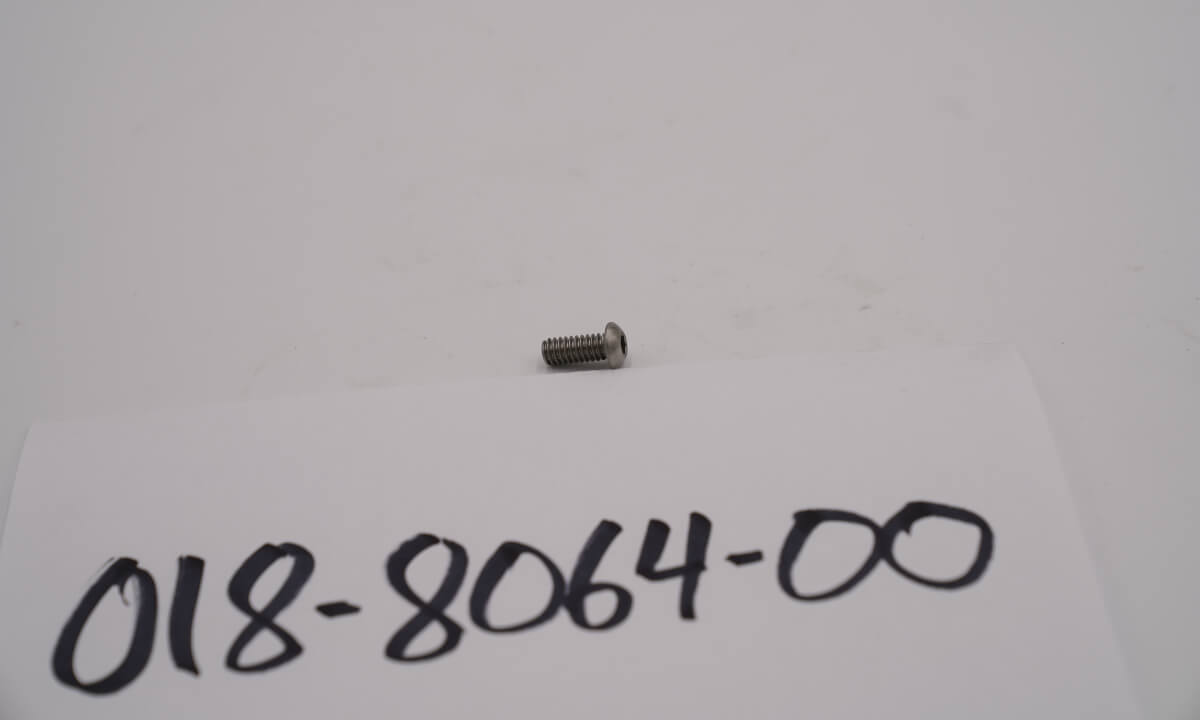

41#018-8064-00
1/4-20 X 5/8 BS C/S 18-8 SS
Qty Used: 1Regular price $0.50 USDRegular priceUnit price per
-

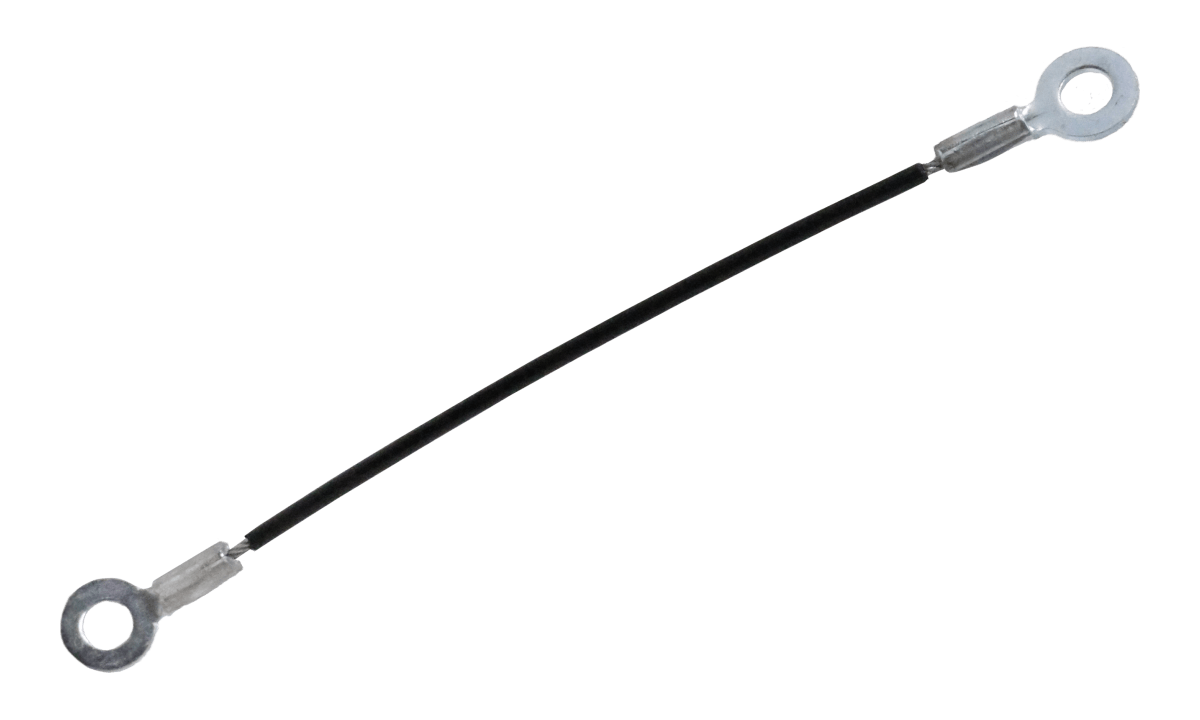

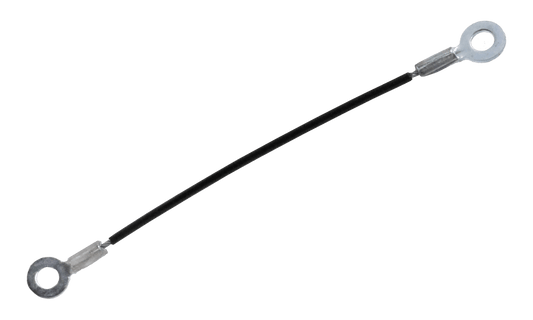

42#064-2006-00
Floorboard Cable
Qty Used: 1Regular price $14.53 USDRegular priceUnit price per
-
43#019-4008-00
1/4 Lockwasher Zinc
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-

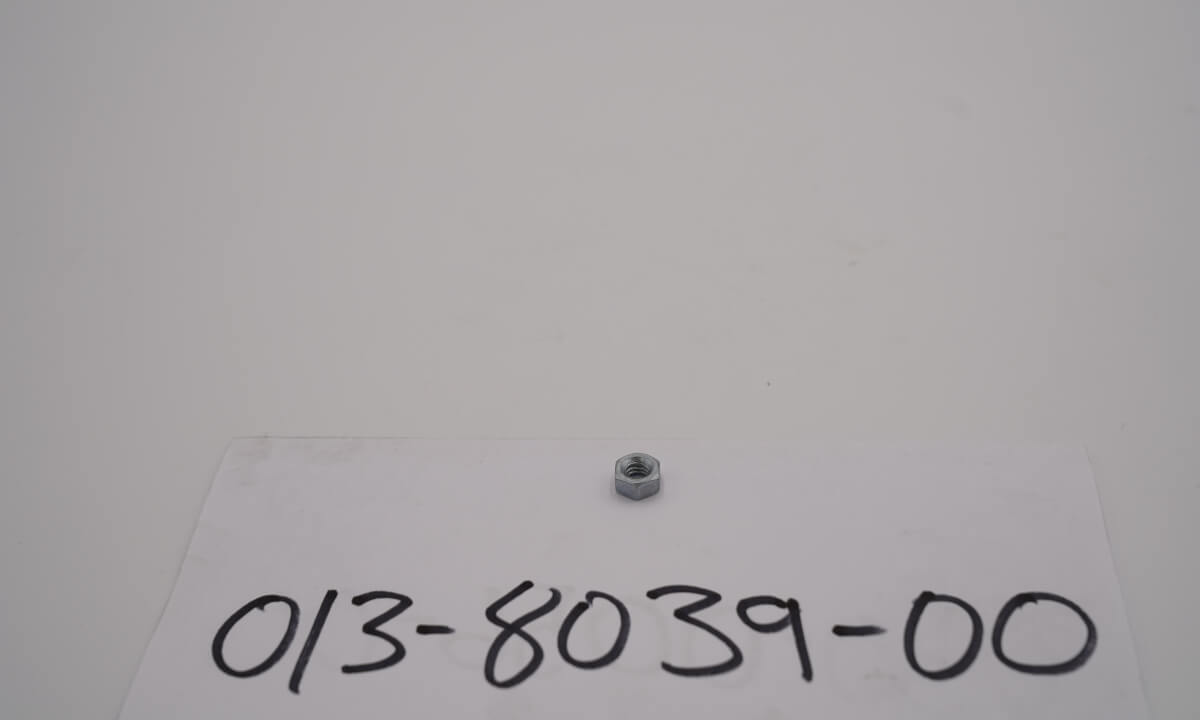

44#013-8039-00
1/4-20 Hex Nuts Zinc
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
45#079-6000-00
Floor Panel (Standard) Fits Di
Qty Used: 1Regular price $145.95 USDRegular priceUnit price per
-
46#070-5520-00
Diesel 4cyl Frame Suspension
Qty Used: 1Regular price $1,699.99 USDRegular priceUnit price per
