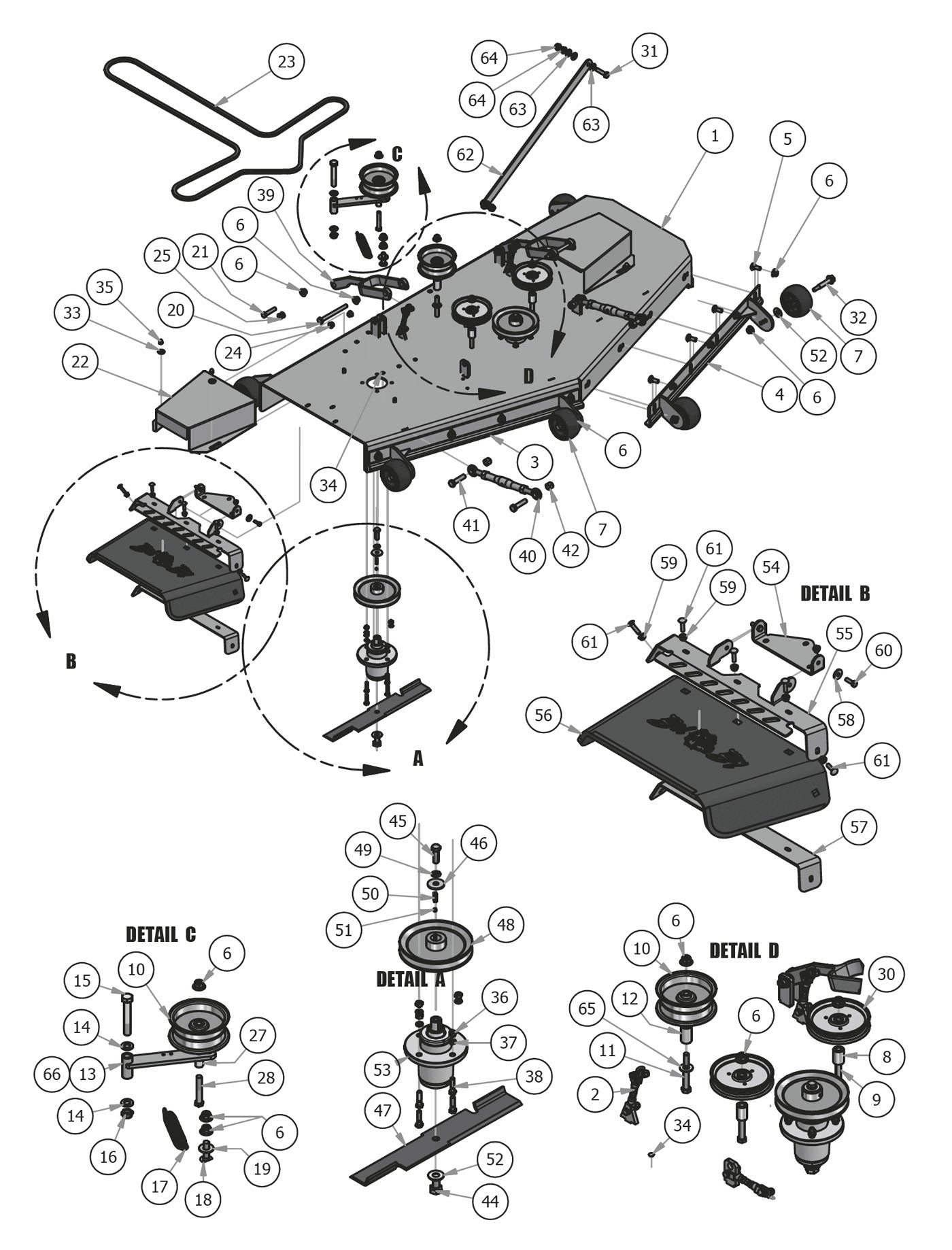

72" Deck
Parts Index
- 1 72" Deck - Shell Only (Qty 1)
- 2 Chain (5-Link) (Qty 2)
- 3 72" Deck Adustable Front (Qty 1)
- 4 72" Deck Adjustable Front (Qty 1)
- 5 1/2 x 1 1/4 Carriage Bolt (Qty 8)
- 6 1/2-13 Nylon Insert Flange Nut (Qty 24)
- 7 Deck Wheel (Qty 6)
- 8 .502 ID X 1.000 0D X 1.500 (Qty 2)
- 9 1/2 x 3 1/2 Flange Bolt - Gr 8 (Qty 2)
- 10 Double Bearing Flat Idler (Qty 2)
- 11 1/2-13 X 4 GR 8 Hex Bolt Yellow (Qty 1)
- 12 .502 ID X 1.00 OD X 1.750 (Qty 1)
- 13 Idler Bracket (Qty 1)
- 14 .630 ID X 1.122 OD X .142 THK (Qty 2)
- 15 5/8-11 X 4 GR 8 Hex Bolts Zinc (Qty 1)
- 16 5/8-11 Nylon Insert Jam Locknu (Qty 1)
- 17 2015 Deck Idler Spring (Qty 1)
- 18 1/2 x 2 Carriage Bolt (Qty 1)
- 19 .517 Square Hole Round Washer (Qty 1)
- 20 1/2-13x5 1/2 Hex Bolt Grade 5 (Qty 2)
- 21 1/2-13 x 2 1/2 Hex Bolt Gr 5 (Qty 2)
- 22 72 Spindle Cover (Qty 2)
- 23 B252.50 fits 2007 72 Diesel (Qty 1)
- 24 Flange Bushing-Deck Arms (Qty 4)
- 25 Flange for Lower Deck Arm (Qty 4)
- 26 OBSOLETE USE 037-4000-00 (Qty 6)
- 27 Spacer 3/4ODx1/2IDx0.75 (Qty 1)
- 28 1/2-13 X 3 GR 5 Hex Bolts Zinc (Qty 1)
- 29 Roller Support Tab Adjustable (Qty 2)
- 30 5 3/4 Idler Pulley-Capitol (Qty 2)
- 31 1/2-13 x 2 Grade 8 Hex Bolt (Qty 2)
- 32 Deck Wheel Bolt (Qty 6)
- 33 .360 ID Black Plastic Washer (Qty 4)
- 34 Black, Round Stick-On Rubber (Qty 12)
- 35 Acorn Nut-Pulley Cover (Qty 4)
- 36 3/8-16 Hex Nuts Zinc (Qty 12)
- 37 3/8 Lockwasher Zinc (Qty 12)
- 38 3/8 x 1 1/2 Bolt (Qty 12)
- 39 2015 Deck Hanger-Black (Qty 2)
- 40 Toplink/Turnbuckle-Deck Adjust (Qty 2)
- 41 5/8-11 X 2-1/2 GR 5 Hex Bolts (Qty 4)
- 42 5/8-11 Nylon Insert Locknut Zi (Qty 4)
- 43 Turnbuckle Bracket (deck) (Qty 2)
- 44 5/8-18 X 1-1/2 GR 8 Hex Bolts (Qty 3)
- 45 1/2-20 X 1-1/2 GR 5 Bolts Zinc (Qty 3)
- 46 1/2 Belleville Washer #K2000-G (Qty 3)
- 47 72" High Lift Blade (Qty 3)
- 48 7" Spindle Deck Pulley (Qty 3)
- 49 1/2 Lockwasher Zinc (Qty 3)
- 50 1/4 x 1 Square Key (Qty 3)
- 51 5/16-24 x 1/4 Set Screw (Qty 3)
- 52 5/8 Flat Washer (Qty 9)
- 53 Commercial Cast Iron Spindle (Qty 3)
- 54 Discharge Chute Hanger-Deck (Qty 1)
- 55 60 Discharge Chute Upper (Qty 1)
- 56 Discharge Chute (Rubber Component) (Qty 1)
- 57 60 Discharge Lower Bracket (Qty 1)
- 58 .360 ID Plastic Washer (Qty 2)
- 59 5/16-18 Nylon Flange Nut (Qty 7)
- 60 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 2)
- 61 5/16-18 X 1-1/4 Carriage Bolt (Qty 5)
- 62 Panhard Linkage Bar (Qty 1)
- 63 .505 ID X 1 OD X .128 THK Washer (Qty 6)
- 64 1/2-13 Hex Fange Nuts Zinc w/ (Qty 4)
- 65 1/2 SAE Flat Washer GR 8 (Qty 1)
- 66 Deck Idler Assy-35 Diesel/Stand on (Qty 1)
-
1#060-7201-00
72" Deck - Shell Only
Qty Used: 1Regular price $1,194.22 USDRegular priceUnit price per
-
2#047-5000-00
Chain (5-Link)
Qty Used: 2Regular price $26.53 USDRegular priceUnit price per
-
3#060-7211-00
72" Deck Adustable Front
Qty Used: 1Regular price $66.28 USDRegular priceUnit price per
-
4#060-7210-00
72" Deck Adjustable Front
Qty Used: 1Regular price $66.28 USDRegular priceUnit price per
-
5#018-3003-00
1/2 x 1 1/4 Carriage Bolt
Qty Used: 8Regular price $0.89 USDRegular priceUnit price per
-
6#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 24Regular price $1.39 USDRegular priceUnit price per
-
7#022-1000-00
Deck Wheel
Qty Used: 6Regular price $15.99 USDRegular priceUnit price per
-
8#025-5338-00
.502 ID X 1.000 0D X 1.500
Qty Used: 2Regular price $3.29 USDRegular priceUnit price per
-
9#018-2018-00
1/2 x 3 1/2 Flange Bolt - Gr 8
Qty Used: 2Regular price $3.29 USDRegular priceUnit price per
-
10#033-5000-00
Double Bearing Flat Idler
Qty Used: 2Regular price $53.06 USDRegular priceUnit price per
-
11#018-5019-00
1/2-13 X 4 GR 8 Hex Bolt Yellow
Qty Used: 1Regular price $3.99 USDRegular priceUnit price per
-
12#025-5339-00
.502 ID X 1.00 OD X 1.750
Qty Used: 1Regular price $4.87 USDRegular priceUnit price per
-
13#039-6945-00
Idler Bracket
Qty Used: 1Regular price $37.88 USDRegular priceUnit price per
-
14#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
15#018-5311-00
5/8-11 X 4 GR 8 Hex Bolts Zinc
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-
16#013-5301-00
5/8-11 Nylon Insert Jam Locknu
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
17#034-2020-00
2015 Deck Idler Spring
Qty Used: 1Regular price $15.99 USDRegular priceUnit price per
-
18#018-1050-00
1/2 x 2 Carriage Bolt
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
19#019-0007-00
.517 Square Hole Round Washer
Qty Used: 1Regular price $1.09 USDRegular priceUnit price per
-
20#018-1090-00
1/2-13x5 1/2 Hex Bolt Grade 5
Qty Used: 2Regular price $2.99 USDRegular priceUnit price per
-
21#018-0015-00
1/2-13 x 2 1/2 Hex Bolt Gr 5
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
22#014-7204-00
72 Spindle Cover
Qty Used: 2Regular price $39.79 USDRegular priceUnit price per
-
23#041-2525-00
B252.50 fits 2007 72 Diesel
Qty Used: 1Regular price $131.30 USDRegular priceUnit price per
-
24#032-5056-00
Flange Bushing-Deck Arms
Qty Used: 4Regular price $5.29 USDRegular priceUnit price per
-
25#032-5057-00
Flange for Lower Deck Arm
Qty Used: 4Regular price $5.29 USDRegular priceUnit price per
-
26#037-4000-50
OBSOLETE USE 037-4000-00
Qty Used: 6Regular price $291.91 USDRegular priceUnit price per
-
27#025-5203-00
Spacer 3/4ODx1/2IDx0.75
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
28#018-7016-00
1/2-13 X 3 GR 5 Hex Bolts Zinc
Qty Used: 1Regular price $1.49 USDRegular priceUnit price per
-
29#201-0004-00
Roller Support Tab Adjustable
Qty Used: 2Regular price $7.99 USDRegular priceUnit price per
-
30#033-7201-25
5 3/4 Idler Pulley-Capitol
Qty Used: 2Regular price $33.16 USDRegular priceUnit price per
-
31#018-0022-00
1/2-13 x 2 Grade 8 Hex Bolt
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
32#018-0010-00
Deck Wheel Bolt - 2011 Outlaw
Qty Used: 6Regular price $5.89 USDRegular priceUnit price per
-
33#019-6050-00
.360 ID Black Plastic Washer
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
34#058-6000-00
Black, Round Stick-On Rubber
Qty Used: 12Regular price $0.66 USDRegular priceUnit price per
-
35#013-0004-00
Acorn Nut-Pulley Cover
Qty Used: 4Regular price $2.99 USDRegular priceUnit price per
-
36#013-6014-00
3/8-16 Hex Nuts Zinc
Qty Used: 12Regular price $0.00 USDRegular priceUnit price per
-
37#019-5037-00
3/8 Lockwasher Zinc
Qty Used: 12Regular price $0.00 USDRegular priceUnit price per
-
38#018-6012-00
3/8 x 1 1/2 Bolt
Qty Used: 12Regular price $0.79 USDRegular priceUnit price per
-
39#031-6020-00
2015 Deck Hanger-Black
Qty Used: 2Regular price $132.68 USDRegular priceUnit price per
-
40#048-6056-00
Toplink/Turnbuckle-Deck Adjust
Qty Used: 2Regular price $49.99 USDRegular priceUnit price per
-
41#018-6059-00
5/8-11 X 2-1/2 GR 5 Hex Bolts
Qty Used: 4Regular price $2.29 USDRegular priceUnit price per
-
42#013-7021-00
5/8-11 Nylon Insert Locknut Zi
Qty Used: 4Regular price $1.19 USDRegular priceUnit price per
-
43#039-0012-00
Turnbuckle Bracket (deck)
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
44#018-6020-00
5/8-18 X 1-1/2 GR 8 Hex Bolts
Qty Used: 3Regular price $2.49 USDRegular priceUnit price per
-
45#018-6019-00
1/2-20 X 1-1/2 GR 5 Bolts Zinc
Qty Used: 3Regular price $1.19 USDRegular priceUnit price per
-
46#019-6020-00
1/2 Belleville Washer #K2000-G
Qty Used: 3Regular price $4.69 USDRegular priceUnit price per
-
47#038-7230-00
72" High Lift Fusion Blade
Qty Used: 3Regular price $22.49 USDRegular priceUnit price per
-
48#033-7203-00
7" Spindle Deck Pulley
Qty Used: 3Regular price $33.16 USDRegular priceUnit price per
-
49#019-5007-00
1/2 Lockwasher Zinc
Qty Used: 3Regular price $0.00 USDRegular priceUnit price per
-
50#042-6030-00
1/4 x 1 Square Key
Qty Used: 3Regular price $4.37 USDRegular priceUnit price per
-
51#030-0050-00
5/16-24 x 1/4 Set Screw
Qty Used: 3Regular price $1.59 USDRegular priceUnit price per
-
52#019-5038-00
5/8 Flat Washer
Qty Used: 9Regular price $1.49 USDRegular priceUnit price per
-
53#037-4000-00
Commercial Cast Iron Spindle
Qty Used: 3Regular price $291.91 USDRegular priceUnit price per
-
54#206-6017-00
Discharge Chute Hanger-Deck
Qty Used: 1Regular price $36.48 USDRegular priceUnit price per
-
55#039-4864-00
60 Discharge Chute Upper
Qty Used: 1Regular price $39.74 USDRegular priceUnit price per
-
56#210-6005-00
Discharge Chute (Rubber Component)
Qty Used: 1Regular price $55.99 USDRegular priceUnit price per
-
57#039-4863-00
60 Discharge Lower Bracket
Qty Used: 1Regular price $30.51 USDRegular priceUnit price per
-
58#019-6042-00
.360 ID Plastic Washer
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
59#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 7Regular price $0.79 USDRegular priceUnit price per
-
60#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
61#018-4703-00
5/16-18 X 1-1/4 Carriage Bolt
Qty Used: 5Regular price $0.69 USDRegular priceUnit price per
-
62#028-6060-00
Panhard Linkage Bar
Qty Used: 1Regular price $11.93 USDRegular priceUnit price per
-
63#019-8054-00
.505 ID X 1 OD X .128 THK Washer
Qty Used: 6Regular price $0.69 USDRegular priceUnit price per
-
64#013-5300-00
1/2-13 Hex Fange Nuts Zinc w/
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
65#019-5702-00
1/2 SAE Flat Washer GR 8
Qty Used: 1Regular price $0.75 USDRegular priceUnit price per
-
66#039-6945-05
Deck Idler Assy-35 Diesel/Stand on
Qty Used: 1Regular price $39.99 USDRegular priceUnit price per
