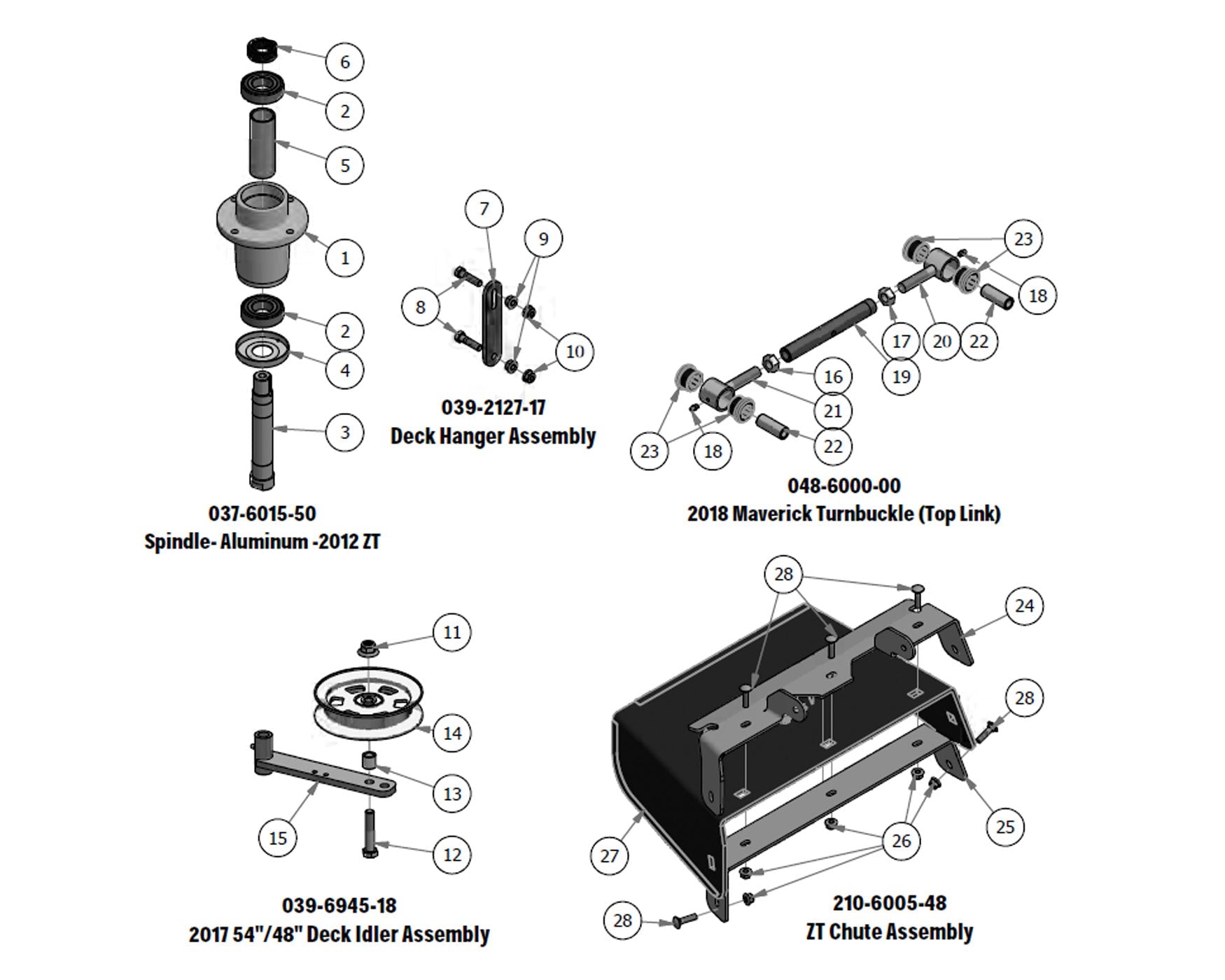

Spindle, Deck Idler, Deck Hanger, Turnbuckle, Chute Assembly
Parts Index
- 1 Aluminum Spindle Housing-2010 (Qty 1)
- 2 OBSOLETE USE 037-6029-00 (Qty 2)
- 3 Short Spindle Shaft for Locking Collar- No Grooved (Qty 1)
- 4 Dust Cover for 037-8000-00 - (Qty 1)
- 5 Tube Spacer for Spindle Shaft (Qty 1)
- 6 Collar Spacer - Top of Spindle (Qty 1)
- 7 MZ/ZT Deck Hanger Assembly (Qty 1)
- 8 3/8 x 1 1/2 Bolt (Qty 2)
- 9 3/8-16 Hex Flange Nuts Zinc w/ (Qty 2)
- 10 3/8 Nylock Flange Nut (Qty 2)
- 11 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 12 1/2-13 X 2-3/4 GR 5 Bolt Zinc (Qty 1)
- 13 Spacer 3/4ODx1/2IDx0.75 (Qty 1)
- 14 2017 5" Split Idler Pulley-Tensioner Only (Qty 1)
- 15 Idler Bracket (Qty 1)
- 16 Nut, 5/8-18 RH (Qty 1)
- 17 Nut, 5/8-18 LH (Qty 1)
- 18 1/4-28 Threaded Grease Fitting (Qty 2)
- 19 2018 Maverick Toplink Body (Qty 1)
- 20 2018 Maverick Topllink Bushing Retainer-Left Hand (Qty 1)
- 21 2018 Maverick Topllink Bushing Retainer-Right Hand (Qty 1)
- 22 2018 Maverick Topllink Bushing Sleeve (Qty 2)
- 23 2018 Maverick Topllink Bushing (Qty 4)
- 24 48/52 Discharge Top Bracket (Qty 1)
- 25 48/52 Discharge Lower Bracket (Qty 1)
- 26 5/16-18 Nylon Flange Nut (Qty 5)
- 27 Discharge Chute (Rubber Component) (Qty 1)
- 28 5/16-18 X 1-1/4 Carriage Bolt (Qty 5)
-
1#037-6017-50
Aluminum Spindle Housing-2010
Qty Used: 1Regular price $119.36 USDRegular priceUnit price per
-
2#037-6023-00
OBSOLETE USE 037-6029-00
Qty Used: 2Regular price $39.79 USDRegular priceUnit price per
-
3#037-6026-00
Short Spindle Shaft w/Locking Collar- No Grooved
Qty Used: 1Regular price $78.29 USDRegular priceUnit price per
-
4#037-8002-00
Dust Cover for 037-8000-00
Qty Used: 1Regular price $10.99 USDRegular priceUnit price per
-
5#037-8050-00
Tube Spacer for Spindle Shaft
Qty Used: 1Regular price $7.90 USDRegular priceUnit price per
-
6#037-9050-00
Collar Spacer - Top of Spindle
Qty Used: 1Regular price $6.62 USDRegular priceUnit price per
-
7#039-2127-17
MZ/ZT Deck Hanger Assembly
Qty Used: 1Regular price $14.58 USDRegular priceUnit price per
-
8#018-6012-00
3/8 x 1 1/2 Bolt
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
9#013-5201-00
3/8-16 Hex Flange Nuts Zinc w/
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
10#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
11#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
12#018-6036-00
1/2-13 X 2-3/4 GR 5 Bolt Zinc
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
13#025-5203-00
Spacer 3/4ODx1/2IDx0.75
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
14#033-8050-00
2017 5" Split Idler Pulley-Tensioner Only
Qty Used: 1Regular price $33.16 USDRegular priceUnit price per
-
15#039-6945-00
Idler Bracket
Qty Used: 1Regular price $37.88 USDRegular priceUnit price per
-
16#013-0019-00
Nut, 5/8-18 RH
Qty Used: 1Regular price $3.99 USDRegular priceUnit price per
-
17#013-0020-00
Nut, 5/8-18 LH
Qty Used: 1Regular price $3.99 USDRegular priceUnit price per
-
18#024-0001-00
1/4-28 Threaded Grease Fitting
Qty Used: 2Regular price $0.50 USDRegular priceUnit price per
-
19#048-6001-00
2018 Maverick Toplink Body
Qty Used: 1Regular price $26.47 USDRegular priceUnit price per
-
20#048-6002-00
2018 Maverick Topllink Bushing Retainer-Left Hand
Qty Used: 1Regular price $26.47 USDRegular priceUnit price per
-
21#048-6003-00
2018 Maverick Topllink Bushing Retainer-Right Hand
Qty Used: 1Regular price $26.47 USDRegular priceUnit price per
-
22#048-6004-00
2018 Maverick Topllink Bushing Sleeve
Qty Used: 2Regular price $10.55 USDRegular priceUnit price per
-
23#048-6005-00
2018 Maverick Topllink Bushing
Qty Used: 4Regular price $29.99 USDRegular priceUnit price per
-
24#039-4870-00
48/52 Discharge Top Bracket
Qty Used: 1Regular price $39.74 USDRegular priceUnit price per
-
25#039-4871-00
48/52 Discharge Lower Bracket
Qty Used: 1Regular price $30.51 USDRegular priceUnit price per
-
26#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 5Regular price $0.79 USDRegular priceUnit price per
-
27#210-6005-00
Discharge Chute (Rubber Component)
Qty Used: 1Regular price $55.99 USDRegular priceUnit price per
-
28#018-4703-00
5/16-18 X 1-1/4 Carriage Bolt
Qty Used: 5Regular price $0.69 USDRegular priceUnit price per
