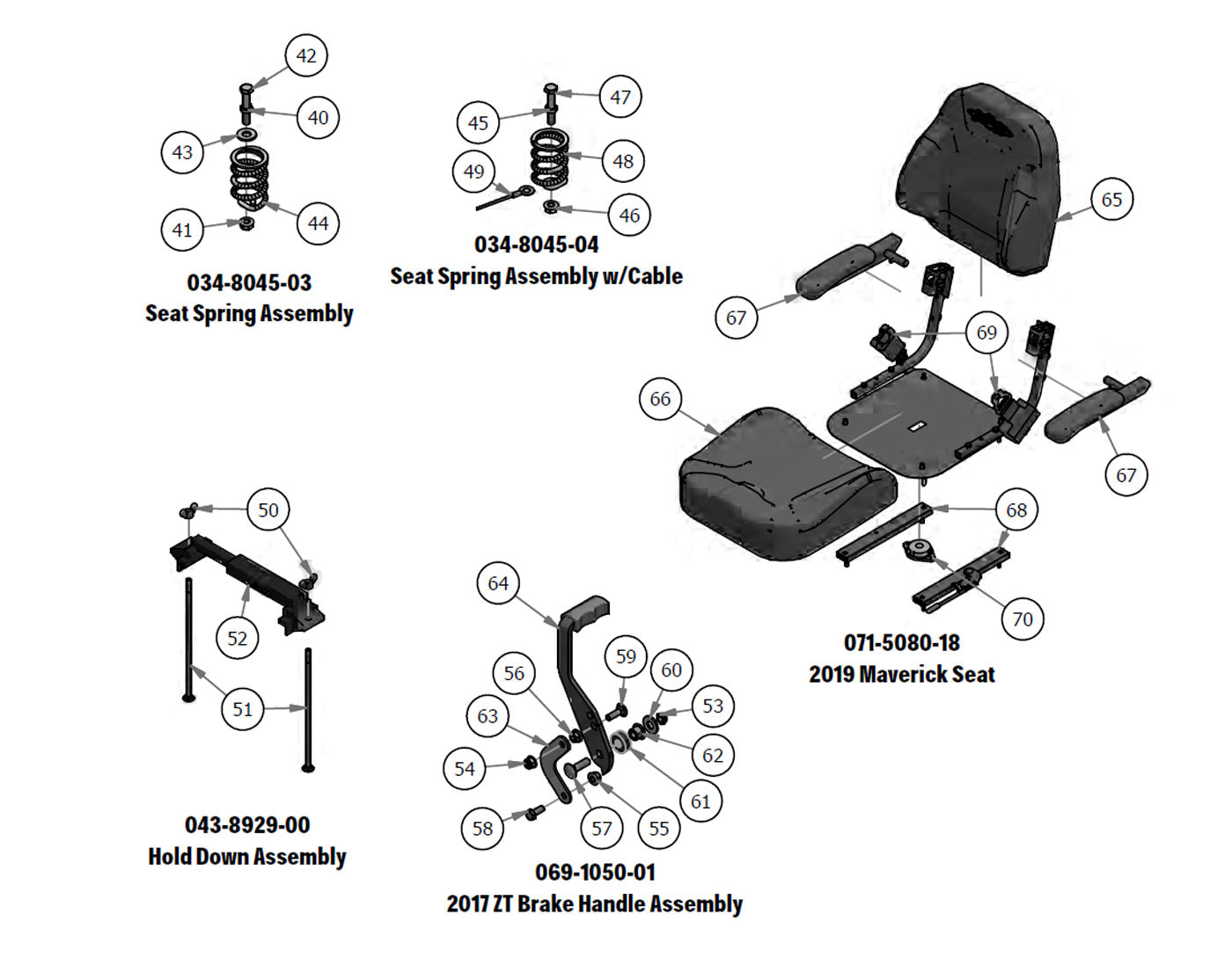

Seat Spring, Hold Down, Brake Handle
Parts Index
- 40 3/8-16 Half Jam Nut (Qty 1)
- 41 3/8-16 Hex Flange Nuts Zinc w/ (Qty 1)
- 42 3/8-16 X 2 GR 5 Hex Bolts Zinc (Qty 1)
- 43 3/8 USS Flat Washer Zinc (Qty 1)
- 44 Seat Spring (Qty 1)
- 45 3/8-16 Half Jam Nut (Qty 1)
- 46 3/8-16 Hex Flange Nuts Zinc w/ (Qty 1)
- 47 3/8-16 X 2 GR 5 Hex Bolts Zinc (Qty 1)
- 48 Seat Spring (Qty 1)
- 49 Seat Cable (Qty 1)
- 50 1/4-20 Wing Nuts Zinc (Qty 2)
- 51 1/4-20 X 8 Carriage Bolts Zinc (Qty 2)
- 52 Battery Hold Down (Plastic) (Qty 1)
- 53 3/8-16 Centerlock Half Nut (Qty 1)
- 54 5/16-18 Nylon Insert Cap Locknut Zinc (Black Cap) (Qty 1)
- 55 5/16-18 Nylon Flange Nut (Qty 1)
- 56 5/16-18 Hex Flange Nuts Zinc w (Qty 1)
- 57 3/8-16 X 1-1/4 Carriage Bolt (Qty 1)
- 58 5/16-18 X 3/4 GR 5 Hex Bolts Z (Qty 1)
- 59 5/16-18 X 1 Carriage Bolt Zinc (Qty 1)
- 60 3/8 USS Flat Washer Zinc (Qty 1)
- 61 Brake Lever Spacer (Qty 1)
- 62 Bronze Bushing SF-1220-8 (Qty 1)
- 63 Brake Cable Adapter Bracket (Qty 1)
- 64 Brake Handle (Qty 1)
- 65 2017 Maverick Back Cover 071-5080-17 (Qty 1)
- 66 2017 Maverick Seat Cover 071-5080-17 (Qty 1)
- 67 2017 ZT/Maverick/2020 ZTElite/Avenger Arm Rest Kit (Qty 1)
- 68 Seat Rails for Outlaw Seat/2020 ZT Elite/ZTAvenger (Qty 1)
- 69 Seat Belt for 071-5080-17 (Qty 1)
- 70 OBSOLETE USE 071-8061-00 (Qty 1)
-
4045#013-0017-00
3/8-16 Half Jam Nut
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
4146#013-5201-00
3/8-16 Hex Flange Nuts Zinc w/
Qty Used: 1Regular price $1.49 USDRegular priceUnit price per
-
4247#018-3000-00
3/8-16 X 2 GR 5 Hex Bolts Zinc
Qty Used: 1Regular price $0.89 USDRegular priceUnit price per
-
4360#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
4448#034-8045-00
Seat Spring
Qty Used: 1Regular price $19.15 USDRegular priceUnit price per
-
49#064-8081-00
Seat Cable
Qty Used: 1Regular price $14.58 USDRegular priceUnit price per
-
50#013-8051-00
1/4-20 Wing Nuts Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
51#018-8050-00
1/4-20 X 8 Carriage Bolts Zinc
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
52#043-8929-00
Battery Hold Down (Plastic)
Qty Used: 1Regular price $16.35 USDRegular priceUnit price per
-
53#013-0012-00
3/8-16 Centerlock Half Nut
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
54#013-8042-00
5/16-18 Nylon Insert Cap Locknut Zinc (Black Cap)
Qty Used: 1Regular price $0.89 USDRegular priceUnit price per
-
55#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
56#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
57#018-5043-00
3/8-16 X 1-1/4 Carriage Bolt
Qty Used: 1Regular price $0.99 USDRegular priceUnit price per
-
58#018-8063-00
5/16-18 X 3/4 GR 5 Hex Bolts Z
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
59#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
61#025-0001-00
Brake Lever Spacer
Qty Used: 1Regular price $7.28 USDRegular priceUnit price per
-
62#032-5053-00
Bronze Bushing SF-1220-8
Qty Used: 1Regular price $2.91 USDRegular priceUnit price per
-
63#039-0150-00
Brake Cable Adapter Bracket
Qty Used: 1Regular price $17.50 USDRegular priceUnit price per
-
64#069-1050-00
Brake Handle
Qty Used: 1Regular price $17.24 USDRegular priceUnit price per
-
65#071-2052-00
2017 Maverick Back Cover 071-5080-17
Qty Used: 1Regular price $132.68 USDRegular priceUnit price per
-
66#071-2053-00
2017 Maverick Seat Cover 071-5080-17
Qty Used: 1Regular price $149.99 USDRegular priceUnit price per
-
67#071-2054-00
2017 ZT/Maverick/2020 ZTElite/Avenger Arm Rest Kit
Qty Used: 1Regular price $139.99 USDRegular priceUnit price per
-
68#071-5015-00
Seat Rails for Outlaw Seat/2020 ZT Elite/ZTAvenger
Qty Used: 1Regular price $87.56 USDRegular priceUnit price per
-
69#071-5083-00
Seat Belt for 071-5080-17
Qty Used: 1Regular price $106.14 USDRegular priceUnit price per
-
70#071-2045-00
OBSOLETE USE 071-8061-00
Qty Used: 1Regular price $17.89 USDRegular priceUnit price per
