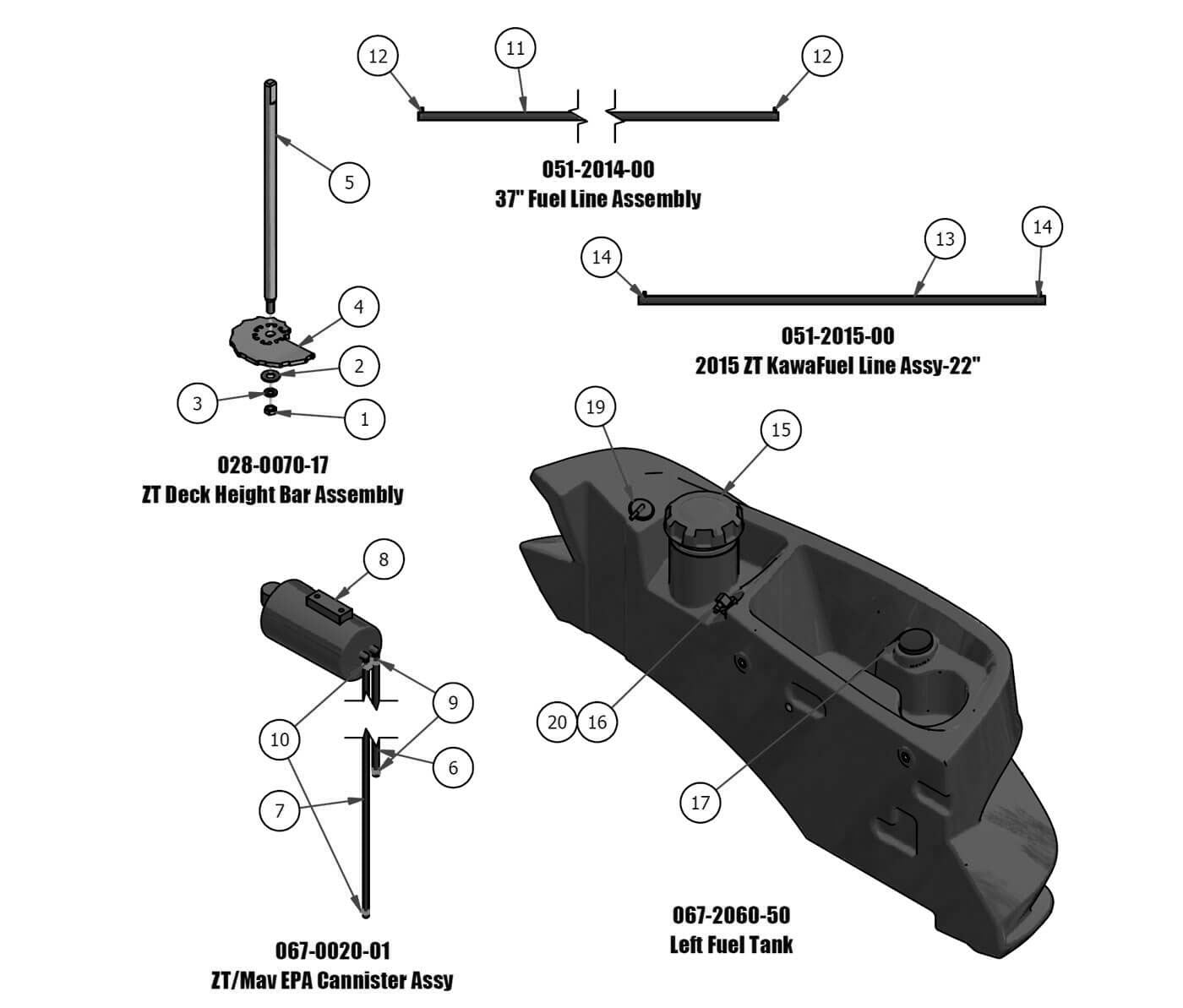

Fuel Tank, Deck Height Bar, Fuel line, Cannister Assembly
Parts Index
- 1 3/8-24 Hex Nut Zinc (Qty 1)
- 2 3/8 USS Flat Washer Zinc (Qty 1)
- 3 3/8 Lockwasher Zinc (Qty 1)
- 4 Deck Height Cam Plate (Qty 1)
- 5 2017 Deck Height Dial Rod ZT (Qty 1)
- 6 1/4 Vinyl 46" EPA Line (Qty 1)
- 7 3/16 Vinyl 55" EPA Line (Qty 1)
- 8 Carbon Canister ZT,CZT,Outlaw (Qty 1)
- 9 MZ Tank Hose Clamp 1/4 Vinyl (Qty 2)
- 10 3/16" Vinyl Hose Clamp (Qty 2)
- 11 33" 1/4 Fuel Line No Clamp (Qty 1)
- 12 1/4 Fuel Line Clamp (Qty 2)
- 13 1/4 Fuel Line Hose PRICED/FOOT (Qty 1)
- 14 1/4 Fuel Line Clamp (Qty 2)
- 15 3.5" Tethered Fuel Cap (Qty 1)
- 16 Fuel Line Pickup Tube for ZT (Qty 1)
- 17 Fuel Gauge w/ Grommet (Qty 1)
- 18 Fuel Shut Off Valve - Metal (Qty 1)
- 19 Rollover Valve and Grommet New (Qty 1)
- 20 Grommet for ZT Elite Fuel Line (Qty 1)
-
1#013-6051-00
3/8-24 Hex Nut Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
2#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
3#019-5037-00
3/8 Lockwasher Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
4#026-1100-00
Deck Height Cam Plate
Qty Used: 1Regular price $14.53 USDRegular priceUnit price per
-
5#028-0014-00
2017 Deck Height Dial Rod ZT
Qty Used: 1Regular price $29.13 USDRegular priceUnit price per
-
6#051-2020-01
1/4 Vinyl 46" EPA Line
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
7#051-2025-02
3/16 Vinyl 55" EPA Line
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
8#067-0020-00
Carbon Canister ZT,CZT,Outlaw
Qty Used: 1Regular price $58.32 USDRegular priceUnit price per
-
9#072-8070-00
MZ Tank Hose Clamp 1/4 Vinyl
Qty Used: 2Regular price $1.45 USDRegular priceUnit price per
-
10#072-8073-00
3/16\" Vinyl Hose Clamp
Qty Used: 2Regular price $2.91 USDRegular priceUnit price per
-
11#051-2014-01
33" 1/4 Fuel Line No Clamp
Qty Used: 1Regular price $17.99 USDRegular priceUnit price per
-
1214#072-8069-00
1/4 Fuel Line Clamp
Qty Used: 2Regular price $0.88 USDRegular priceUnit price per
-
13#051-8067-00
1/4 Fuel Line Hose PRICED/FOOT
Qty Used: 1Regular price $5.83 USDRegular priceUnit price per
-
15#066-8083-00
3.5" Tethered Fuel Cap
Qty Used: 1Regular price $19.84 USDRegular priceUnit price per
-
16#067-0011-00
Fuel Line Pickup Tube for ZT
Qty Used: 1Regular price $21.88 USDRegular priceUnit price per
-
17#067-4090-00
Fuel Gauge w/ Grommet
Qty Used: 1Regular price $42.99 USDRegular priceUnit price per
-
18#067-6050-00
Fuel Shut Off Valve - Metal
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
19#067-6070-00
Rollover Valve and Grommet New
Qty Used: 1Regular price $22.99 USDRegular priceUnit price per
-
20#067-6080-00
Grommet for ZT Elite Fuel Line
Qty Used: 1Regular price $7.28 USDRegular priceUnit price per
