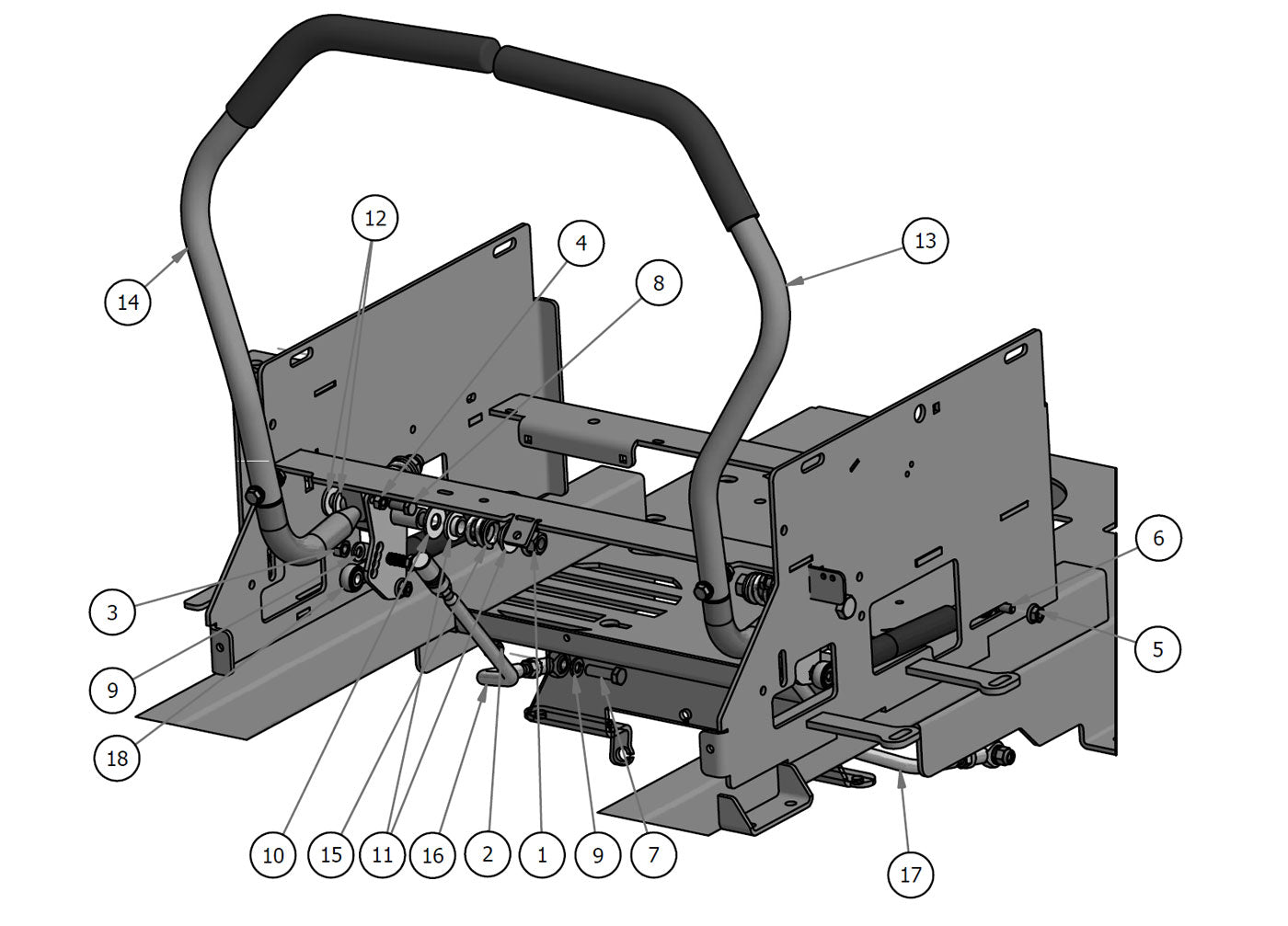

Steering Arms Assembly
Parts Index
- 1 1/2-13 Mechanical Lock Nut Grade F (Qty 2)
- 2 3/8-16 Nylon Insert Locknut Zi (Qty 2)
- 3 3/8-24 Hex Nut Zinc (Qty 2)
- 4 5/16-18 Hex Nuts Zinc (Qty 2)
- 5 5/16-18 Hex Flange Nuts Zinc w (Qty 2)
- 6 10mm Damper Ball Stud- (Qty 2)
- 7 3/8-16 X 1-1/4 GR 5 Hex Bolt (Qty 2)
- 8 5/16-18 X 3/4 GR 5 Hex Bolts Z (Qty 2)
- 9 3/8 Lockwasher Zinc (Qty 4)
- 10 1/2 SAE Flat Washer GR 8 (Qty 2)
- 11 .515 ID Plastic Shoulder Washer (Qty 4)
- 12 .505 ID X 1 OD X .128 THK Washer (Qty 4)
- 13 2017 ZT LH Arm Assembly (Qty 1)
- 14 2017 ZT RH Arm Assembly (Qty 1)
- 15 Drive Lever Housing Spring (Qty 2)
- 16 Push Rod RH (Assembly) (Qty 1)
- 17 Push Rod LH (Assembly) (Qty 1)
- 18 Arm Dampener (Qty 2)
-
1#013-0010-00
1/2-13 Mechanical Lock Nut Grade F
Qty Used: 2Regular price $1.00 USDRegular priceUnit price per
-
2#013-5041-00
3/8-16 Nylon Insert Locknut Zi
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
3#013-6051-00
3/8-24 Hex Nut Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
4#013-8043-00
5/16-18 Hex Nuts Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
5#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
6#018-2050-00
10mm Damper Ball Stud-
Qty Used: 2Regular price $1.99 USDRegular priceUnit price per
-
7#018-5040-00
3/8-16 X 1-1/4 GR 5 Hex Bolt
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
8#018-8063-00
5/16-18 X 3/4 GR 5 Hex Bolts Z
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
9#019-5037-00
3/8 Lockwasher Zinc
Qty Used: 4Regular price $0.00 USDRegular priceUnit price per
-
10#019-5702-00
1/2 SAE Flat Washer GR 8
Qty Used: 2Regular price $0.75 USDRegular priceUnit price per
-
11#019-8027-00
.515 ID Plastic Shoulder Washer
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
12#019-8054-00
.505 ID X 1 OD X .128 THK Washer
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
13#031-0017-01
2017 ZT LH Arm Assembly
Qty Used: 1Regular price $145.99 USDRegular priceUnit price per
-
14#031-0018-01
2017 ZT RH Arm Assembly
Qty Used: 1Regular price $145.99 USDRegular priceUnit price per
-
15#034-8025-00
Drive Lever Housing Spring
Qty Used: 2Regular price $3.70 USDRegular priceUnit price per
-
16#035-5450-00
Push Rod RH (Assembly)
Qty Used: 1Regular price $31.73 USDRegular priceUnit price per
-
17#035-5451-00
Push Rod LH (Assembly)
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
