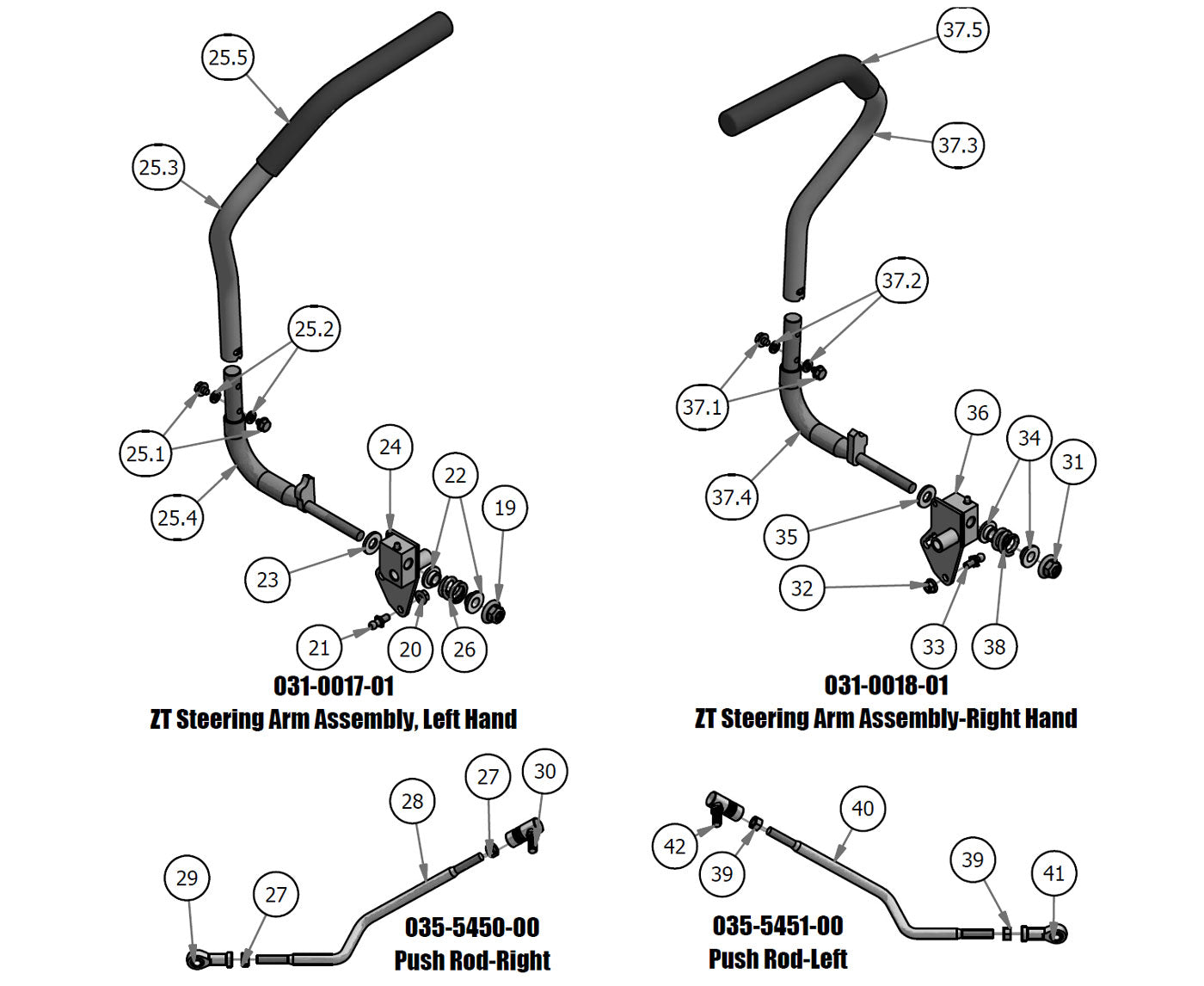

Steering Arm Subassemblies, Push Rods
Parts Index
- 19 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 20 5/16-18 Hex Flange Nuts Zinc w (Qty 1)
- 21 10mm Damper Ball Stud- (Qty 1)
- 22 .515 ID Plastic Shoulder Washer (Qty 2)
- 23 .505 ID X 1 OD X .128 THK Washer (Qty 1)
- 24 Drive Lever Housing LH (Qty 1)
- 25 Orange ZT Steering Arm Left- (Qty 1)
- 25.1 5/16-18 x 1/2 HWH Bolt-Steering Arm (Qty 2)
- 25.2 5/16 Lock washer Zinc (Qty 2)
- 25.3 Steering Arm Left - 5" Tubing (Qty 1)
- 25.4 Steering Arm Elbow- Left (Qty 1)
- 25.5 Rubber Steering Arm (Qty 1)
- 26 Drive Lever Housing Spring (Qty 1)
- 27 3/8-24 Hex Nut Zinc (Qty 2)
- 28 Push Rod RH (Assembly) (Qty 1)
- 29 Spherical Rod End (Qty 1)
- 30 Quick Release Ball Joint (Qty 1)
- 31 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 32 5/16-18 Hex Flange Nuts Zinc w (Qty 1)
- 33 10mm Damper Ball Stud- (Qty 1)
- 34 .515 ID Plastic Shoulder Washer (Qty 2)
- 35 .505 ID X 1 OD X .128 THK Washer (Qty 1)
- 36 Drive Lever Housing RH (Qty 1)
- 37 OBSOLETE USE 031-8851-70 (Qty 1)
- 37.1 5/16-18 x 1/2 HWH Bolt-Steering Arm (Qty 2)
- 37.2 5/16 Lock washer Zinc (Qty 2)
- 37.3 Steering Arm Right - 5" Tubing (Qty 1)
- 37.4 Steering Arm Elbow - Right (Qty 1)
- 37.5 Rubber Steering Arm (Qty 1)
- 38 Drive Lever Housing Spring (Qty 1)
- 39 3/8-24 Hex Nut Zinc (Qty 2)
- 40 Push Rod LH (Assembly) (Qty 1)
- 41 Spherical Rod End (Qty 1)
- 42 Quick Release Ball Joint (Qty 1)
-
1931#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
2032#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
2133#018-2050-00
10mm Damper Ball Stud-
Qty Used: 1Regular price $1.99 USDRegular priceUnit price per
-
2234#019-8027-00
.515 ID Plastic Shoulder Washer
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
2335#019-8054-00
.505 ID X 1 OD X .128 THK Washer
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
24#031-0017-98
Drive Lever Housing LH
Qty Used: 1Regular price $29.19 USDRegular priceUnit price per
-
25#031-8850-70
Black ZT Steering Arm Left-
Qty Used: 1Regular price $87.51 USDRegular priceUnit price per
-
25.137.1#018-2020-00
5/16-18 x 1/2 HWH Bolt-Steering Arm
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
25.237.2#019-8051-00
5/16 Lock washer Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
25.3#031-8850-02
Steering Arm Left - 5" Tubing
Qty Used: 1Regular price $79.55 USDRegular priceUnit price per
-
25.4#031-9020-70
Steering Arm Elbow- Left
Qty Used: 1Regular price $79.60 USDRegular priceUnit price per
-
25.537.5#069-4007-00
Rubber Steering Arm
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
2638#034-8025-00
Drive Lever Housing Spring
Qty Used: 1Regular price $3.70 USDRegular priceUnit price per
-
2739#013-6051-00
3/8-24 Hex Nut Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
28#035-5450-00
Push Rod RH (Assembly)
Qty Used: 1Regular price $31.73 USDRegular priceUnit price per
-
2941#048-3000-00
Spherical Rod End-Outlaw Only
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
3042#099-2009-00
Quick Release Ball Joint
Qty Used: 1Regular price $8.99 USDRegular priceUnit price per
-
36#031-0018-98
Drive Lever Housing RH
Qty Used: 1Regular price $21.89 USDRegular priceUnit price per
-
37#031-8851-00
OBSOLETE USE 031-8851-70
Qty Used: 1Regular price $65.95 USDRegular priceUnit price per
-
37.3#031-8851-02
Steering Arm Right - 5" Tubing
Qty Used: 1Regular price $79.55 USDRegular priceUnit price per
-
37.4#031-9025-70
Steering Arm Elbow - Right
Qty Used: 1Regular price $79.60 USDRegular priceUnit price per
-
40#035-5451-00
Push Rod LH (Assembly)
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
