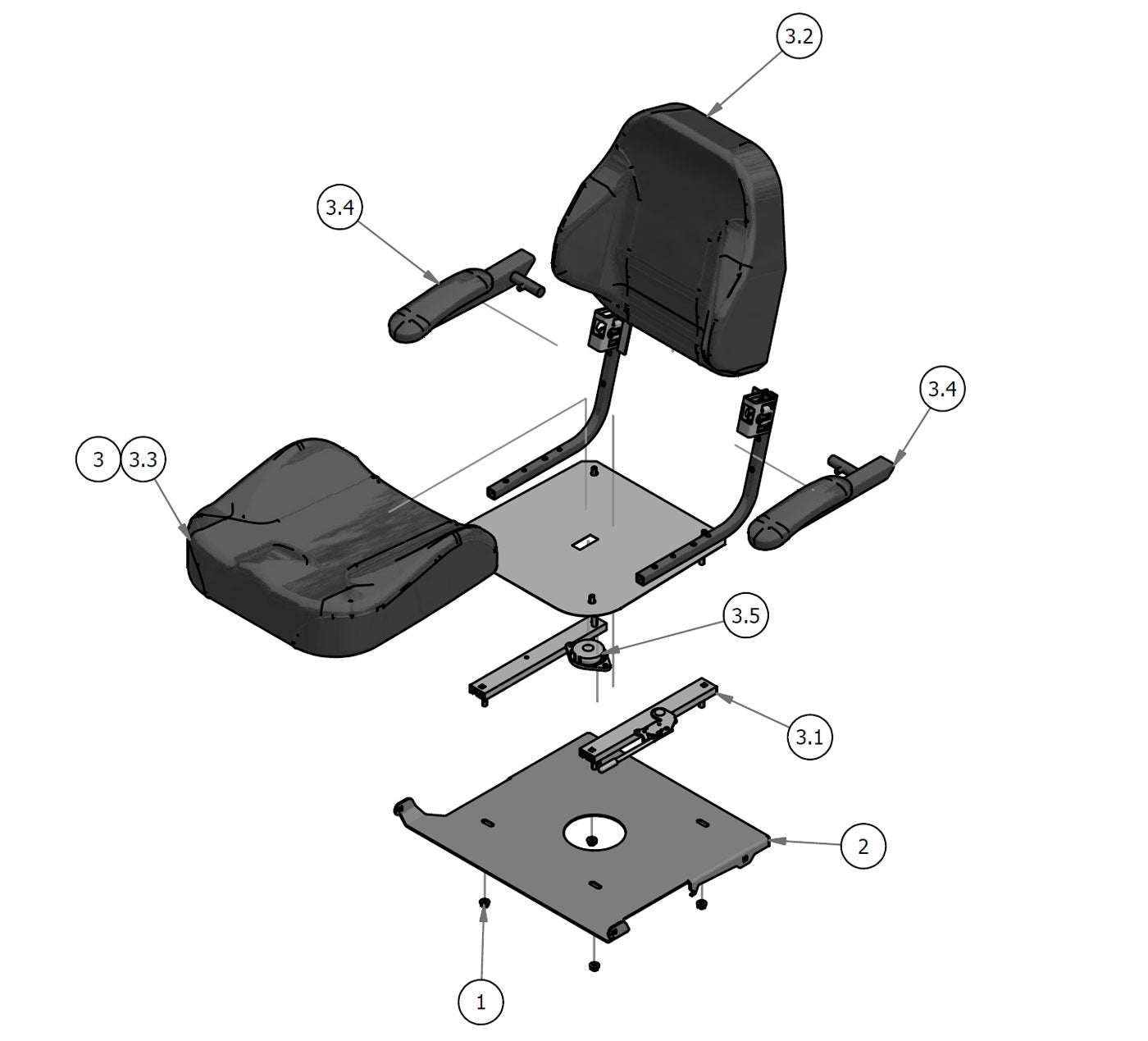

Seat Assembly
Parts Index
- 1 5/16-18 Nylon Flange Nut (Qty 4)
- 2 Seat Plate 2016--Orange (Qty 1)
- 3 2019 ZT Seat (Qty 1)
- 3.1 Backrest Cushion OLD 071-2010 (Qty 1)
- 3.2 Back Cover for 071-2040-18 (Qty 1)
- 3.3 Seat Cover for 071-2040-18 (Qty 1)
- 3.4 2017 ZT/Maverick/2020 ZTElite/Avenger Arm Rest Kit (Qty 2)
- 3.5 OBSOLETE USE 071-8061-00 (Qty 1)
-
1#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
2#026-1016-00
Seat Plate 2016--Orange
Qty Used: 1Regular price $102.11 USDRegular priceUnit price per
-
3#071-2040-18
2019 ZT Seat
Qty Used: 1Regular price $529.99 USDRegular priceUnit price per
-
3.1#071-2015-00
Backrest Cushion OLD 071-2010
Qty Used: 1Regular price $79.95 USDRegular priceUnit price per
-
3.2#071-2041-00
Back Cover for 071-2040-18
Qty Used: 1Regular price $123.39 USDRegular priceUnit price per
-
3.3#071-2042-00
Seat Cover for 071-2040-18
Qty Used: 1Regular price $123.39 USDRegular priceUnit price per
-
3.4#071-2054-00
2017 ZT/Maverick/2020 ZTElite/Avenger Arm Rest Kit
Qty Used: 2Regular price $139.99 USDRegular priceUnit price per
-
3.5#071-2045-00
OBSOLETE USE 071-8061-00
Qty Used: 1Regular price $17.89 USDRegular priceUnit price per
