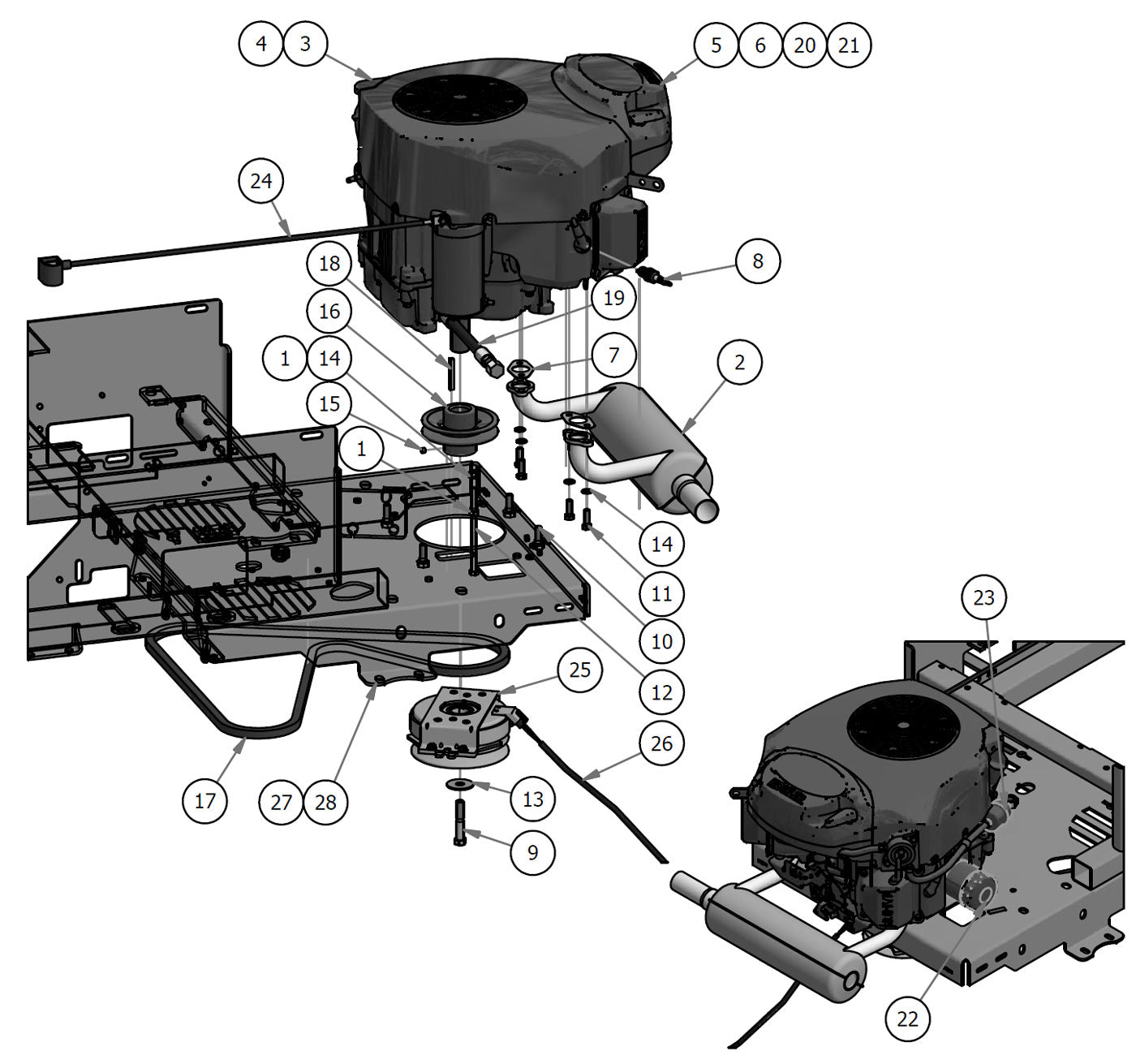

Kohler KT740 & KT745
Parts Index
- 1 5/16-18 Hex Nuts Zinc (Qty 2)
- 2 2017 Kohler Exhaust MZ, AVEN, ZT, MAV, HD (Qty 1)
- 3 25hp Kohler-48" 2014 ZT (Qty 1)
- 4 26hp Kohler-2018 ZT-KT745-3088 (Qty 1)
- 5 Air Pre-Cleaner for 015-2026-00 (Qty 1)
- 6 Air Filter Element for 015-2026-00 (Qty 1)
- 7 Exhaust Gaskets for 27,30 hp (Qty 2)
- 8 Spark Plug-Kohler/Briggs (Qty 2)
- 9 7/16-20 x 1 1/2 Fine Thread Bolt Gr8 (Qty 1)
- 10 3/8 x 1 1/8 Engine Mounting Bolt (Qty 4)
- 11 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 4)
- 12 5/16-18 X 5-1/2 GR 5 Hex Bolt (Qty 1)
- 13 1/2 Belleville Washer #K2000-G (Qty 1)
- 14 5/16 Lock washer Zinc (Qty 5)
- 15 5/16-24 x 1/4 Set Screw (Qty 1)
- 16 4 3/4 Motor Pulley (Qty 1)
- 17 Pump Belt for ZT, MZ, Avenger (Qty 1)
- 18 1/4 X 2 Square Key Stock (Qty 1)
- 19 Kohler Oil Drain Hose (Qty 1)
- 20 25/26 HP Koh Precleaner ZT/MZ (Qty 1)
- 21 25/26 HP Koh Air Filter ZT/MZ (Qty 1)
- 22 25 HP Kohler Oil Filter ZT/MZ (Qty 1)
- 23 Universal Inline Fuel Filter (Qty 1)
- 24 24 inch Black Cable - MZ/ZT (Qty 1)
- 25 Clutch For 1-1/8" Shaft (Qty 1)
- 26 Clutch Pigtail (Qty 1)
- 27 2017 MZ/ZT 54"-60" Frame (Qty 1)
- 28 2017 MZ/ZT 42"-48" Frame (Qty 1)
-
1#013-8043-00
5/16-18 Hex Nuts Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
2#015-0051-00
2017 Kohler Exhaust MZ/ZT/Mav/Compact Outlaw
Qty Used: 1Regular price $217.48 USDRegular priceUnit price per
-
3#015-2020-00
25hp Kohler-48" 2014 ZT
Qty Used: 1Regular price $1,999.00 USDRegular priceUnit price per
-
4#015-2026-00
26hp Kohler-2018 ZT-KT745-3088
Qty Used: 1Regular price $2,399.00 USDRegular priceUnit price per
-
5#015-2026-02
Air Pre-Cleaner for 015-2026-00
Qty Used: 1Regular price $10.20 USDRegular priceUnit price per
-
6#015-2026-03
Air Filter Element for 015-2026-00
Qty Used: 1Regular price $34.99 USDRegular priceUnit price per
-
7#015-2751-00
Exhaust Gaskets for 27,30 hp
Qty Used: 2Regular price $5.96 USDRegular priceUnit price per
-
8#015-8000-00
Spark Plug-Kohler/Briggs
Qty Used: 2Regular price $9.99 USDRegular priceUnit price per
-
9#018-5450-00
7/16-20 x 1 1/2 Fine Thread Bolt Gr8
Qty Used: 1Regular price $1.99 USDRegular priceUnit price per
-
10#018-1075-00
3/8 x 1 1/8 Engine Mounting Bolt
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-
11#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 4Regular price $0.00 USDRegular priceUnit price per
-
12#018-5350-00
5/16-18 X 5-1/2 GR 5 Hex Bolt
Qty Used: 1Regular price $1.79 USDRegular priceUnit price per
-
13#019-6020-00
1/2 Belleville Washer #K2000-G
Qty Used: 1Regular price $4.69 USDRegular priceUnit price per
-
14#019-8051-00
5/16 Lock washer Zinc
Qty Used: 5Regular price $0.79 USDRegular priceUnit price per
-
15#030-0050-00
5/16-24 x 1/4 Set Screw
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
16#033-5035-00
4 3/4 Motor Pulley
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
17#041-6400-00
Pump Belt for ZT, MZ, Avenger
Qty Used: 1Regular price $54.99 USDRegular priceUnit price per
-
18#042-5020-00
1/4 X 2 Square Key Stock
Qty Used: 1Regular price $2.92 USDRegular priceUnit price per
-
19#051-5401-00
Kohler Oil Drain Hose
Qty Used: 1Regular price $29.13 USDRegular priceUnit price per
-
20#063-5002-00
25/26 HP Koh Precleaner ZT/MZ
Qty Used: 1Regular price $7.95 USDRegular priceUnit price per
-
21#063-5003-00
25/26 HP Koh Air Filter ZT/MZ
Qty Used: 1Regular price $24.99 USDRegular priceUnit price per
-
22#063-5004-00
25 HP Kohler Oil Filter ZT/MZ
Qty Used: 1Regular price $21.99 USDRegular priceUnit price per
-
23#063-6000-00
Universal Inline Fuel Filter
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
24#064-0030-00
24 inch Black Cable - MZ/ZT
Qty Used: 1Regular price $17.50 USDRegular priceUnit price per
-
-
26#070-2000-00
Clutch Pigtail
Qty Used: 1Regular price $19.85 USDRegular priceUnit price per
-
27#070-5420-00
2017 MZ/ZT 54"-60" Frame
Qty Used: 1Regular price $799.99 USDRegular priceUnit price per
-
28#070-5810-00
2017 MZ/ZT 42"-48" Frame
Qty Used: 1Regular price $799.99 USDRegular priceUnit price per
