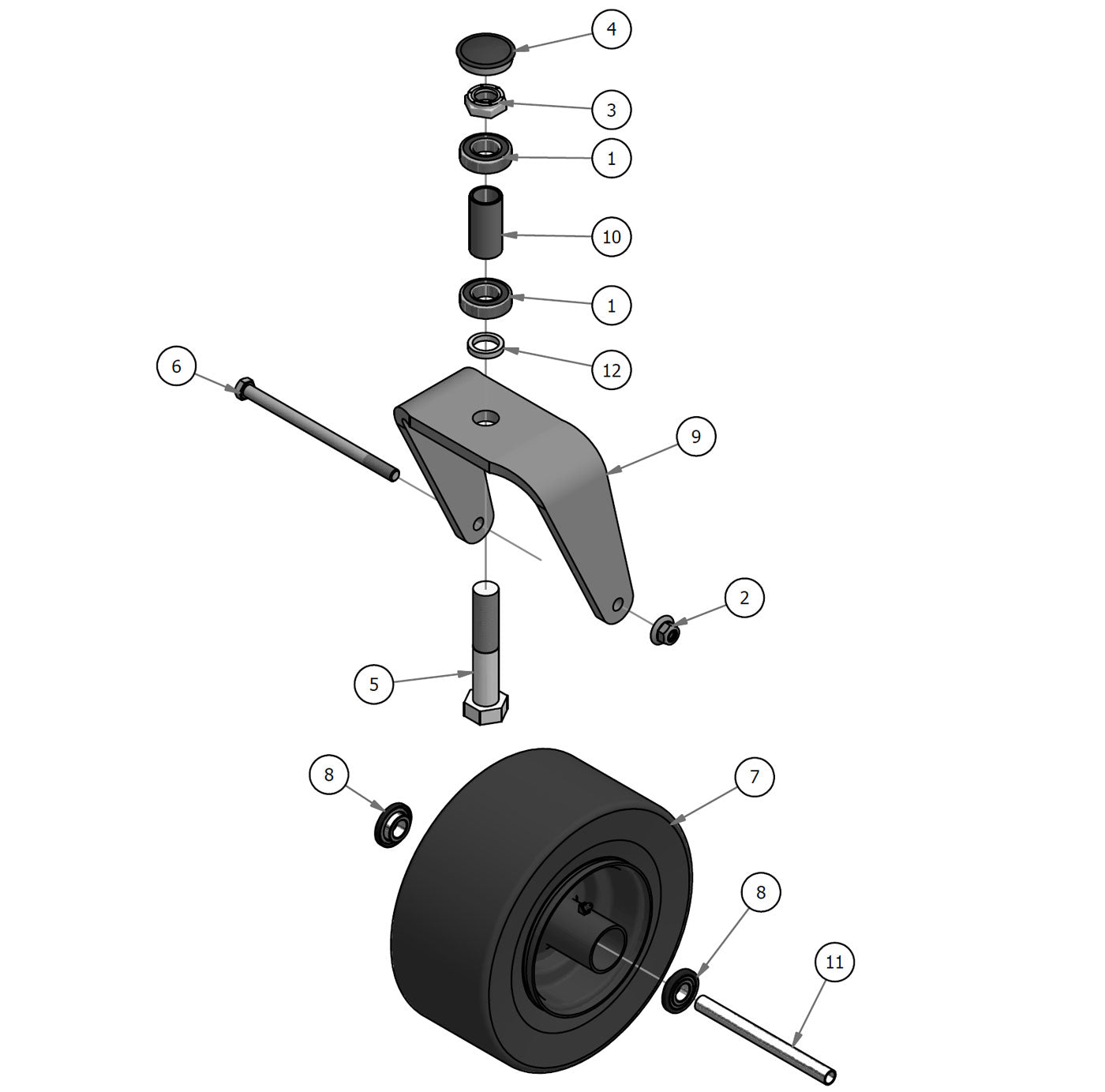

Front Fork Assembly
Parts Index
- 1 Caster Bearing (Qty 2)
- 2 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 3 1" Nylock Nut 1/2 Nut - Fine (Qty 1)
- 4 Bearing Retainer Cap (Qty 1)
- 5 1-14 X 5 BOLT GR 8 ZC YELLOW (Qty 1)
- 6 1/2-13x8 1/2 Gr5 Hex Bolt (Qty 1)
- 7 13x6.50-6 Caster Front (Qty 1)
- 8 Ball Bearing w/clip; 99502H-NR; 5/8" Bore (Qty 2)
- 9 ZT, AVENG Front fork (Qty 1)
- 10 MZ/ZT/Mav/ R Series Front Bearing Spacer (Qty 1)
- 11 Front Wheel Spanner-All Models (Qty 1)
- 12 Spacer ( Front Fork and Suspension ) (Qty 1)
-
1#010-1050-00
Caster Bearing
Qty Used: 2Regular price $17.19 USDRegular priceUnit price per
-
2#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
3#013-9004-00
1" Nylock Nut 1/2 Nut - Fine
Qty Used: 1Regular price $3.29 USDRegular priceUnit price per
-
4#014-2025-00
Bearing Retainer Cap
Qty Used: 1Regular price $2.49 USDRegular priceUnit price per
-
5#018-0005-00
1-14 X 5 BOLT GR 8 ZC YELLOW
Qty Used: 1Regular price $5.89 USDRegular priceUnit price per
-
6#018-0040-00
1/2-13x8 1/2 Gr5 Hex Bolt
Qty Used: 1Regular price $14.59 USDRegular priceUnit price per
-
7#022-2017-00
13x6.50-6 Caster Front
Qty Used: 1Regular price $87.99 USDRegular priceUnit price per
-
8#022-7009-00
Ball Bearing w/clip; 99502H-NR; 5/8" Bore
Qty Used: 2Regular price $12.49 USDRegular priceUnit price per
-
9#023-0003-00
ZT, AVENG Front fork
Qty Used: 1Regular price $36.49 USDRegular priceUnit price per
-
10#025-0003-00
MZ/ZT/Mav/ R Series Front Bearing Spacer
Qty Used: 1Regular price $13.12 USDRegular priceUnit price per
-
11#025-5202-00
Front Wheel Spanner-All Models
Qty Used: 1Regular price $9.49 USDRegular priceUnit price per
-
12#058-1000-00
Spacer ( Front Fork and Suspension )
Qty Used: 1Regular price $5.83 USDRegular priceUnit price per
