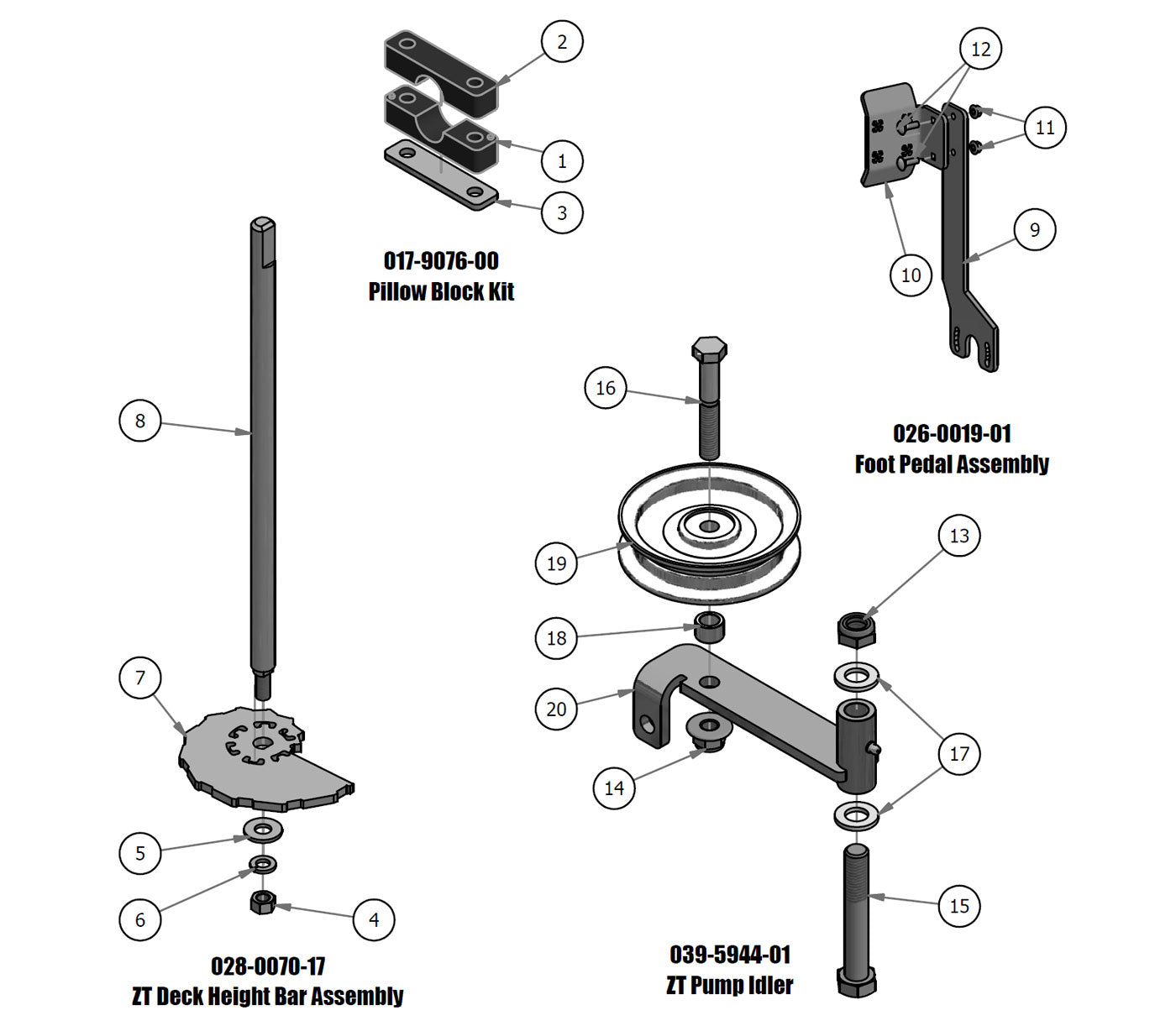

Deck Height Bar, Pillow Block, Pump Idler, Foot Pedal
Parts Index
- 1 2017 Magnum Pillow Block-Male (Qty 1)
- 2 2017 Magnum Pillow Block-Female (Qty 1)
- 3 2017 Magnum Pillow Block-Metal Plate (Qty 1)
- 4 3/8-24 Hex Nut Zinc (Qty 1)
- 5 3/8 USS Flat Washer Zinc (Qty 1)
- 6 3/8 Lockwasher Zinc (Qty 1)
- 7 Deck Height Cam Plate (Qty 1)
- 8 2017 Deck Height Dial Rod ZT (Qty 1)
- 9 2017 MZ/ZT Deck Pedal Lever--Orange (Qty 1)
- 10 Foot Pedal--Orange (Qty 1)
- 11 5/16-18 Nylon Flange Nut (Qty 2)
- 12 5/16-18 X 1 Carriage Bolt Zinc (Qty 2)
- 13 5/8-11 Nylon Insert Jam Locknu (Qty 1)
- 14 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 15 5/8-11 X 4 GR 8 Hex Bolts Zinc (Qty 1)
- 16 1/2-13 X 2-3/4 GR 5 Bolt Zinc (Qty 1)
- 17 .630 ID X 1.122 OD X .142 THK (Qty 2)
- 18 1/2 Set Collar w/set collar (Qty 1)
- 19 4 3/4 Idler Pulley - ABFI-76 (Qty 1)
- 20 Idler Bracket (Qty 1)
-
1#017-9077-00
2017 Magnum Pillow Block-Male
Qty Used: 1Regular price $19.89 USDRegular priceUnit price per
-
2#017-9078-00
2017 Magnum Pillow Block-Female
Qty Used: 1Regular price $19.89 USDRegular priceUnit price per
-
3#017-9079-00
2017 Magnum Pillow Block-Metal Plate
Qty Used: 1Regular price $19.89 USDRegular priceUnit price per
-
4#013-6051-00
3/8-24 Hex Nut Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
5#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
6#019-5037-00
3/8 Lockwasher Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
7#026-1100-00
Deck Height Cam Plate
Qty Used: 1Regular price $14.53 USDRegular priceUnit price per
-
8#028-0014-00
2017 Deck Height Dial Rod ZT
Qty Used: 1Regular price $29.13 USDRegular priceUnit price per
-
9#031-0500-00
2017 MZ/ZT Deck Pedal Lever--Orange
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
10#026-0019-00
Foot Pedal--Orange
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
11#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
12#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
13#013-5301-00
5/8-11 Nylon Insert Jam Locknu
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
14#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
15#018-5311-00
5/8-11 X 4 GR 8 Hex Bolts Zinc
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-
16#018-6036-00
1/2-13 X 2-3/4 GR 5 Bolt Zinc
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
17#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
18#025-7036-00
1/2 Set Collar w/set collar
Qty Used: 1Regular price $4.18 USDRegular priceUnit price per
-
19#033-6001-00
4 3/4 Idler Pulley - ABFI-76
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
20#039-5944-00
Idler Bracket
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
