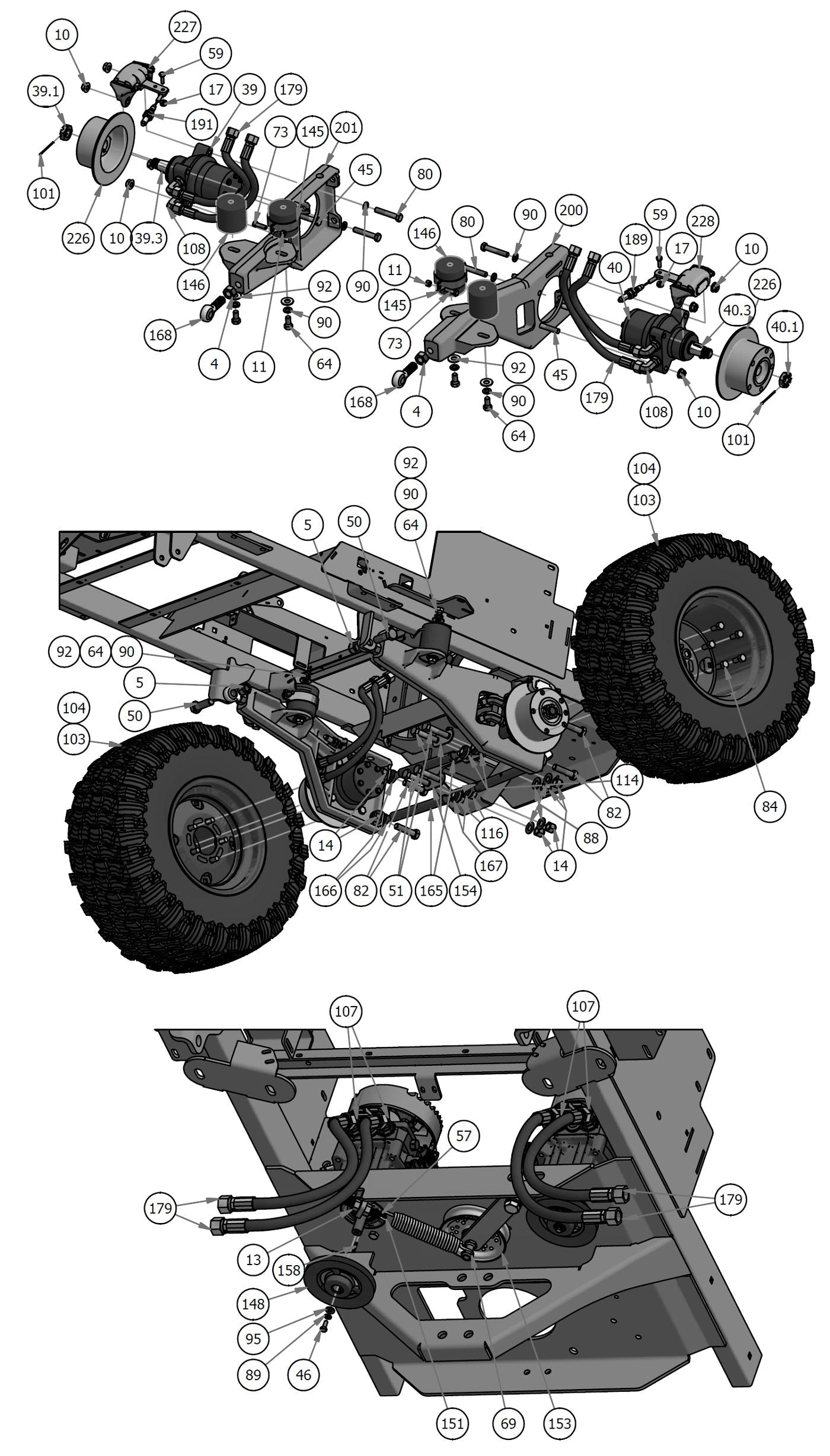

Rear Suspension
Parts Index
- 4 3/4"-16 Fine Full Nut (Qty 2)
- 5 3/4" Course Thread Nylon Lock Nut (Qty 2)
- 10 1/2-13 Hex Fange Nuts Zinc w/ (Qty 8)
- 11 3/8-16 Hex Nuts Zinc (Qty 6)
- 13 1/2-13 Hex Nuts Zinc (Qty 2)
- 14 5/8-11 Nylon Insert Locknut Zi (Qty 8)
- 17 5/16-18 Nylon Flange Nut (Qty 2)
- 39 18ci Parker Wheel Motor-Right (Qty 1)
- 39.1 OBSOLETE USE 013-7055-00 (Qty 1)
- 39.3 Woodruff Key-Wheel Motor (Qty 1)
- 40 18ci Parker Wheel Motor - Left (Qty 1)
- 40.1 OBSOLETE USE 013-7055-00 (Qty 1)
- 40.3 Woodruff Key-Wheel Motor (Qty 1)
- 45 1/2-13 x 2 1/2 Hex Bolt Gr 5 (Qty 4)
- 46 M6-1.0 X 16MM HEX BOLT CL 8 (Qty 2)
- 50 3/4 x 2 1/2 Course Thread Bolt (Qty 2)
- 51 5/8-11 x 2 3/4 Hex Head Bolt GR 5 (Qty 4)
- 57 All Thread (Qty 1)
- 59 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 2)
- 64 1/2 x 1 Bolt (Qty 8)
- 69 1/2-13 Nylon Insert Jam Locknut (Qty 1)
- 73 3/8-16 X 1-1/4 GR 5 Hex Bolt (Qty 2)
- 79 3/8 x 1 1/2 Bolt (Qty 4)
- 80 1/2-13 X 2-3/4 GR 5 Bolt Zinc (Qty 4)
- 82 5/8-11 X 2-1/2 GR 5 Hex Bolts (Qty 4)
- 84 1/2-20 Wheel Bolt -3/4" 60 Degree Seat 1" Threads (Qty 10)
- 88 5/8" Flat Washer SAE Spec Grade 8 (Qty 4)
- 89 1/4 Lockwasher Zinc (Qty 2)
- 90 1/2 Lockwasher Zinc (Qty 12)
- 91 3/8 Lockwasher Zinc (Qty 4)
- 92 1/2 SAE Flat Washer GR 8 (Qty 8)
- 95 1/4 USS Flat Washer Zinc (Qty 2)
- 97 5/16 USS Flat Washer Zinc (Qty 4)
- 101 1/8 X 1 1/2 Cotter Pins Zinc (Qty 2)
- 103 2019 Assy-26x12-12 Reaper Turf 2019-10.5" Rim (Qty 2)
- 104 2019 54" Tire Assy-26x12-12 Reaper Turf-8.5" Rim (Qty 2)
- 106 ZT Fitting, 3/8 x 3/8 45 Degree (Qty 2)
- 107 2019 Outlaw 45 Degree Pump Fitting (Qty 4)
- 108 2019 Rogue/Renegade Wheel Motor 90* Fitting (Qty 4)
- 109 90 Degree Fitting, 1/2 x 3/4, (Qty 2)
- 114 Spacer 1.125 OD x .625 ID x .250 Length (Qty 2)
- 116 5/8 Set Collar W/One Set Screw (Qty 2)
- 145 Isolator Band (Qty 2)
- 146 Isolator (Green Dot) (Qty 4)
- 148 Cast Pump Pulley - 17mm Assembly (Qty 2)
- 151 2015 Deck Idler Spring (Qty 1)
- 153 2019 Rogue Pump Idler Assembly (Qty 1)
- 154 2019 Suspension Gusset--Plated (Qty 2)
- 158 OBSOLETE USE 042-5013-00 (Qty 2)
- 165 2019 Suspension Link Body-RH and LH Threads (Qty 4)
- 166 Heim 5/8" RH (Qty 4)
- 167 Heim 5/8" LH (Qty 4)
- 168 Heim 3/4" RH (Qty 2)
- 169 2019 Rogue/Renegade Left Pump 16cc (Qty 1)
- 170 2019 Rogue Right Pump 16cc (Qty 1)
- 179 2019 Rogue Hydro-Hose 20"-10 (Qty 4)
- 189 2019 Short Brake Cable-Suspension Models (Qty 1)
- 191 2019 Long Brake Cable-Renegade, Rogue (Qty 1)
- 200 2019 Left Trailing Arm (Qty 1)
- 201 2019 Right Trailing Arm (Qty 1)
- 204 OBSOLETE USE 070-5375-00 (Qty 1)
- 226 Brake Disc (96-37486) (Qty 2)
- 227 Brake Caliper with Bracket RH (Qty 1)
- 228 Brake Caliper with Bracket LH (Qty 1)
-
168#048-7001-00
Heim 3/4" RH
Qty Used: 2Regular price $26.53 USDRegular priceUnit price per
-
169#050-3001-00
2019 Rogue/Renegade Left Pump 16cc
Qty Used: 1Regular price $499.99 USDRegular priceUnit price per
-
170#050-3002-00
2019 Rogue Right Pump 16cc
Qty Used: 1Regular price $499.99 USDRegular priceUnit price per
-

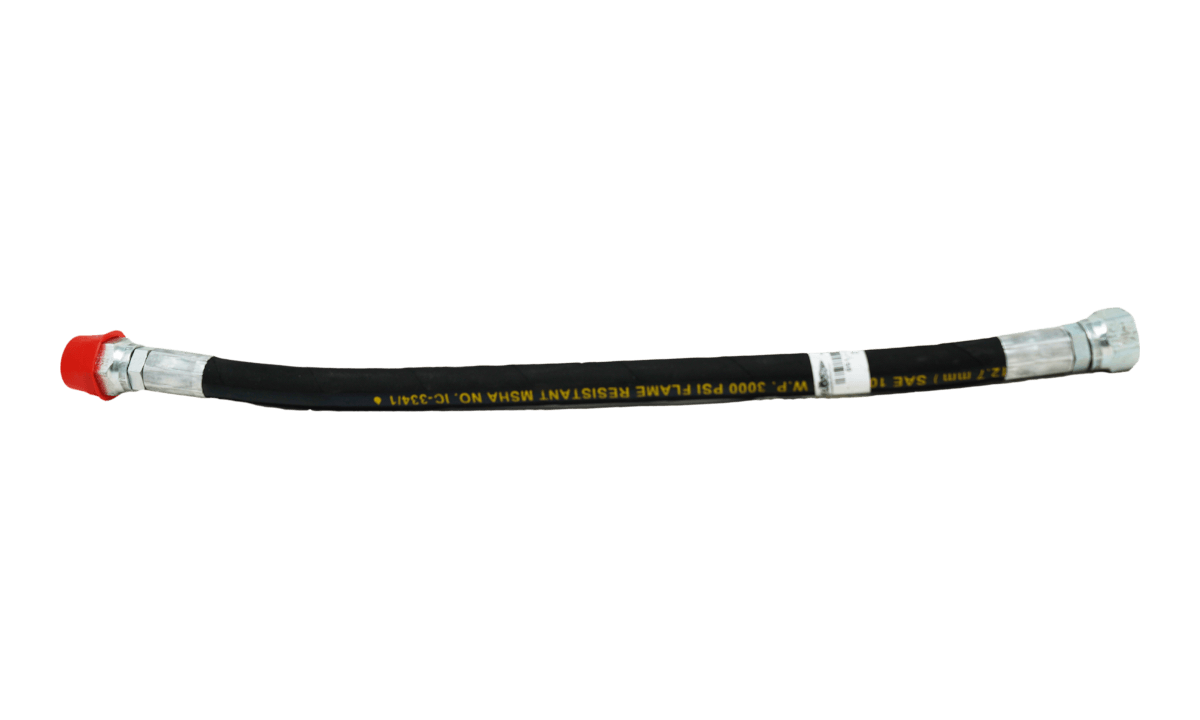

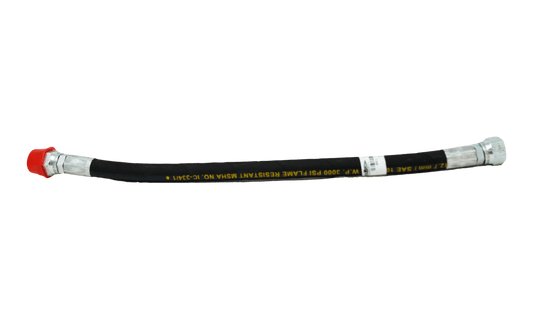

179#051-6006-00
2019 Rogue Hydro-Hose 20"-10
Qty Used: 4Regular price $43.78 USDRegular priceUnit price per
-
189#064-8054-00
2019 Short Brake Cable-Suspension Models
Qty Used: 1Regular price $48.10 USDRegular priceUnit price per
-
191#064-9002-00
2019 Long Brake Cable-Renegade, Rogue
Qty Used: 1Regular price $48.10 USDRegular priceUnit price per
-
200#070-0001-00
2019 Left Trailing Arm
Qty Used: 1Regular price $291.91 USDRegular priceUnit price per
-
201#070-0002-00
2019 Right Trailing Arm
Qty Used: 1Regular price $219.99 USDRegular priceUnit price per
-
204#070-5372-19
OBSOLETE USE 070-5375-00
Qty Used: 1Regular price $1,061.53 USDRegular priceUnit price per
-
226#092-5201-00
Brake Disc (96-37486)
Qty Used: 2Regular price $119.36 USDRegular priceUnit price per
-
227#092-7000-00
Brake Caliper RH
Qty Used: 1Regular price $92.82 USDRegular priceUnit price per
-
228#092-7001-00
Brake Caliper with Bracket LH
Qty Used: 1Regular price $92.82 USDRegular priceUnit price per
-
4#013-0022-00
3/4"-16 Fine Full Nut
Qty Used: 2Regular price $6.69 USDRegular priceUnit price per
-
5#013-0023-00
3/4" Course Thread Nylon Lock Nut
Qty Used: 2Regular price $6.69 USDRegular priceUnit price per
-
10#013-5300-00
1/2-13 Hex Fange Nuts Zinc w/
Qty Used: 8Regular price $0.79 USDRegular priceUnit price per
-
11#013-6014-00
3/8-16 Hex Nuts Zinc
Qty Used: 6Regular price $0.00 USDRegular priceUnit price per
-
13#013-7018-00
1/2-13 Hex Nuts Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
14#013-7021-00
5/8-11 Nylon Insert Locknut Zi
Qty Used: 8Regular price $1.19 USDRegular priceUnit price per
-
17#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
39#015-4600-00
18ci Parker Wheel Motor-Right
Qty Used: 1Regular price $599.00 USDRegular priceUnit price per
-
39.140.1#013-7050-00
OBSOLETE USE 013-7055-00
Qty Used: 1Regular price $10.95 USDRegular priceUnit price per
-
39.340.3#042-7041-00
Woodruff Key-Wheel Motor
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
40#015-4601-00
18ci Parker Wheel Motor - Left
Qty Used: 1Regular price $599.00 USDRegular priceUnit price per
-
45#018-0015-00
1/2-13 x 2 1/2 Hex Bolt Gr 5
Qty Used: 4Regular price $2.69 USDRegular priceUnit price per
-
46#018-0024-00
M6-1.0 X 16MM HEX BOLT CL 8
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
50#018-0045-00
3/4 x 2 1/2 Course Thread Bolt
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
51#018-0049-00
5/8-11 x 2 3/4 Hex Head Bolt GR 5
Qty Used: 4Regular price $3.99 USDRegular priceUnit price per
-
57#018-2004-50
All Thread
Qty Used: 1Regular price $12.09 USDRegular priceUnit price per
-
59#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
64#018-2030-00
1/2 x 1 Bolt
Qty Used: 8Regular price $2.69 USDRegular priceUnit price per
-
69#018-4010-00
1/2-13 Nylon Insert Jam Locknut
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
73#018-5040-00
3/8-16 X 1-1/4 GR 5 Hex Bolt
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
79#018-6012-00
3/8 x 1 1/2 Bolt
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
80#018-6036-00
1/2-13 X 2-3/4 GR 5 Bolt Zinc
Qty Used: 4Regular price $1.59 USDRegular priceUnit price per
-
82#018-6059-00
5/8-11 X 2-1/2 GR 5 Hex Bolts
Qty Used: 4Regular price $2.29 USDRegular priceUnit price per
-
84#018-7033-00
1/2-20 Wheel Bolt -3/4" 60 Degree Seat 1" Threads
Qty Used: 10Regular price $1.99 USDRegular priceUnit price per
-
88#019-0009-00
5/8" Flat Washer SAE Spec Grade 8
Qty Used: 4Regular price $2.69 USDRegular priceUnit price per
-
89#019-4008-00
1/4 Lockwasher Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
90#019-5007-00
1/2 Lockwasher Zinc
Qty Used: 12Regular price $0.00 USDRegular priceUnit price per
-
91#019-5037-00
3/8 Lockwasher Zinc
Qty Used: 4Regular price $0.00 USDRegular priceUnit price per
-
92#019-5702-00
1/2 SAE Flat Washer GR 8
Qty Used: 8Regular price $0.75 USDRegular priceUnit price per
-
95#019-7040-00
1/4 USS Flat Washer Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
97#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
101#020-7022-00
1/8 X 1 1/2 Cotter Pins Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
103#022-4090-00
2019 Assy-26x12-12 Reaper Turf 2019-10.5" Rim
Qty Used: 2Regular price $209.99 USDRegular priceUnit price per
-
104#022-4091-00
2019 54" Tire Assy-26x12-12 Reaper Turf-8.5" Rim
Qty Used: 2Regular price $349.99 USDRegular priceUnit price per
-
106#024-1200-00
ZT Fitting, 3/8 x 3/8 45 Degree
Qty Used: 2Regular price $18.63 USDRegular priceUnit price per
-

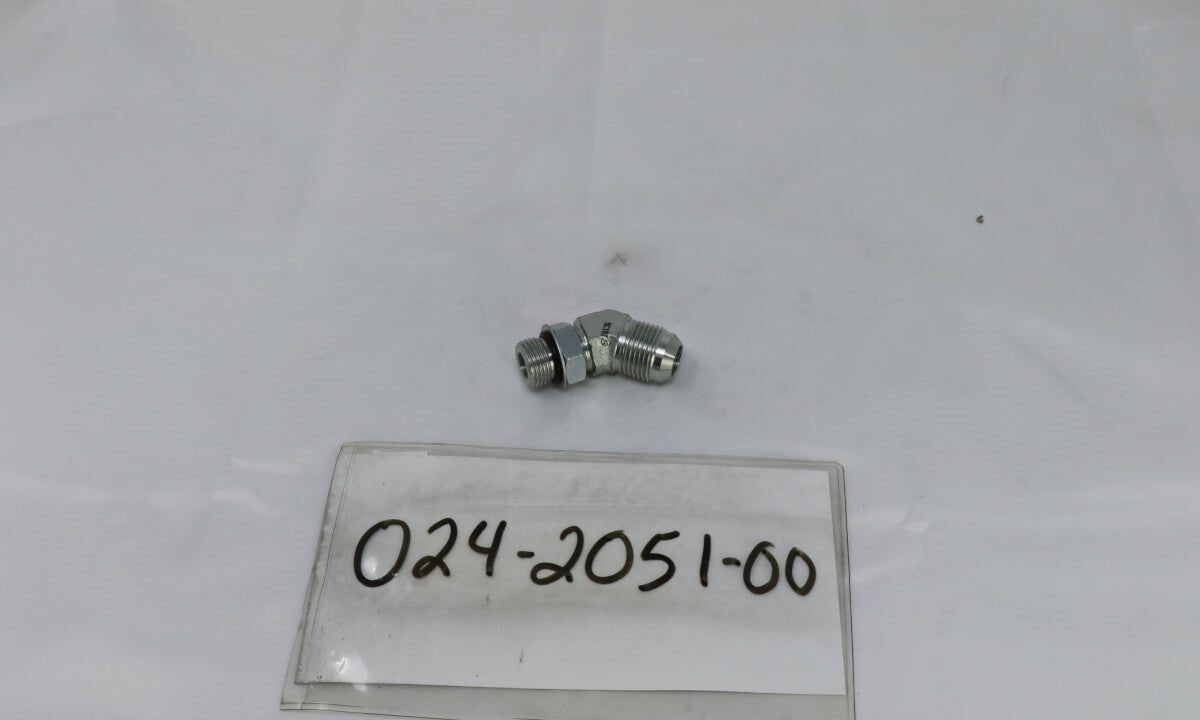

107#024-2051-00
2019 Outlaw 45 Degree Pump Fitting
Qty Used: 4Regular price $13.12 USDRegular priceUnit price per
-
108#024-2065-00
2019 Rogue/Renegade Wheel Motor 90* Fitting
Qty Used: 4Regular price $17.45 USDRegular priceUnit price per
-
109#024-5002-00
90 Degree Fitting, 1/2 x 3/4,
Qty Used: 2Regular price $16.48 USDRegular priceUnit price per
-
114#025-0071-00
Spacer 1.125 OD x .625 ID x .250 Length
Qty Used: 2Regular price $13.26 USDRegular priceUnit price per
-
116#025-7020-00
5/8 Set Collar W/One Set Screw
Qty Used: 2Regular price $3.97 USDRegular priceUnit price per
-
145#032-7000-00
Isolator Band
Qty Used: 2Regular price $72.91 USDRegular priceUnit price per
-
146#032-9000-00
Isolator (Green Dot)
Qty Used: 4Regular price $66.33 USDRegular priceUnit price per
-
148#033-5011-00
Cast Pump Pulley - 17mm Assembly
Qty Used: 2Regular price $33.16 USDRegular priceUnit price per
-
151#034-2020-00
2015 Deck Idler Spring
Qty Used: 1Regular price $15.99 USDRegular priceUnit price per
-

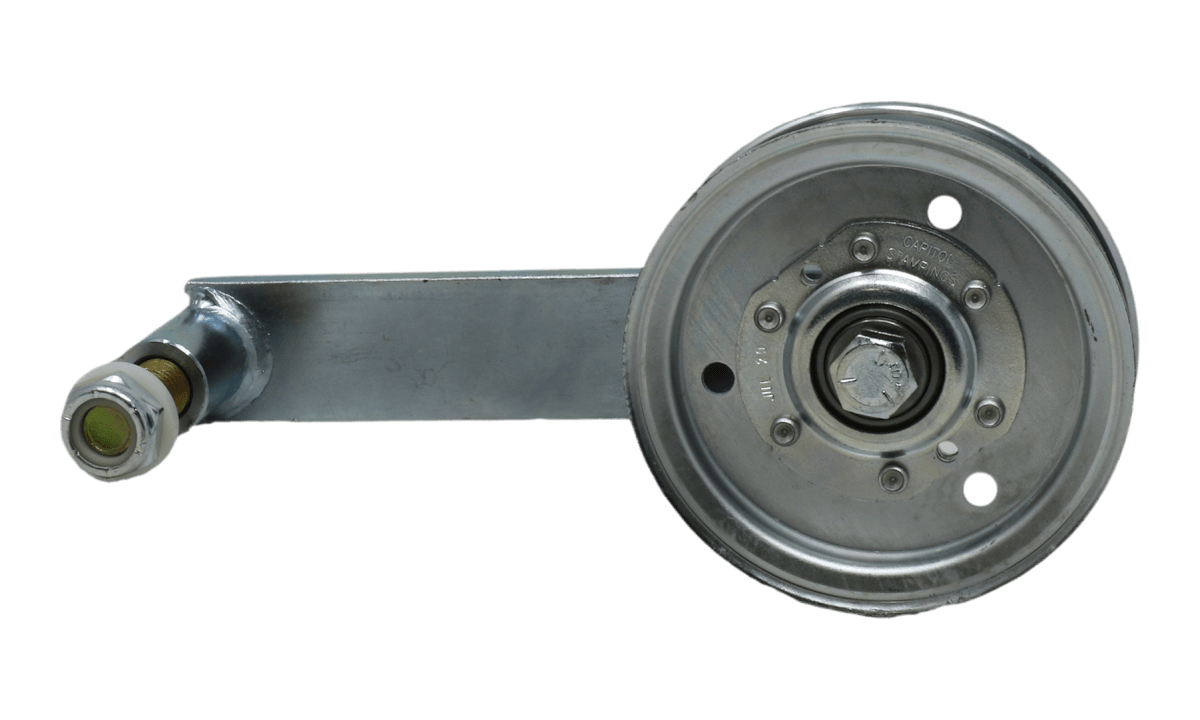

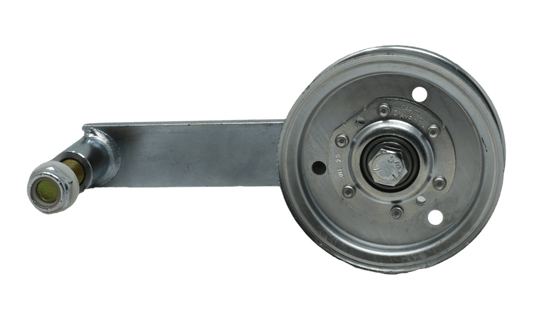

153#039-0031-19
2019 Rogue Pump Idler Assembly
Qty Used: 1Regular price $66.33 USDRegular priceUnit price per
-
154#039-2145-00
2019 Suspension Gusset--Plated
Qty Used: 2Regular price $13.26 USDRegular priceUnit price per
-
158#042-5012-00
OBSOLETE USE 042-5013-00
Qty Used: 2Regular price $2.92 USDRegular priceUnit price per
-
165#048-0001-00
2019 Suspension Link Body-RH and LH Threads
Qty Used: 4Regular price $26.47 USDRegular priceUnit price per
-
166#048-6062-00
Heim 5/8" RH
Qty Used: 4Regular price $19.89 USDRegular priceUnit price per
-
167#048-6063-00
Heim 5/8" LH
Qty Used: 4Regular price $19.89 USDRegular priceUnit price per
