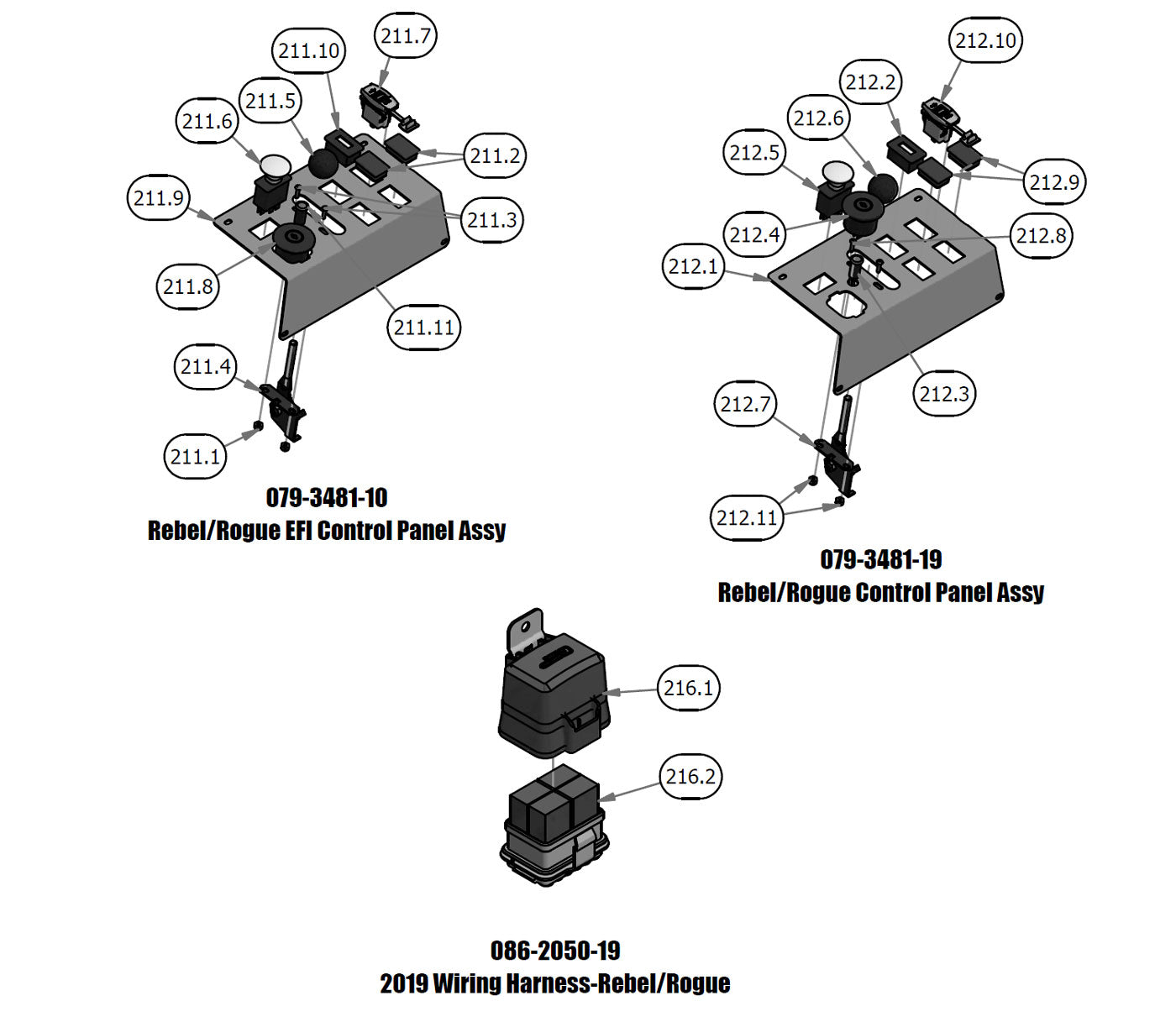

EFI Control Panel, Wiring Harness
Parts Index
- 211.1 10-24 Nylon Insert Locknut Zin (Qty 2)
- 211.2 Light Plug (Qty 2)
- 211.3 10-24 X 5/8 BS C/S 18-8 SS (Qty 2)
- 211.4 Universal Throttle Head - 2012 (Qty 1)
- 211.5 Throttle / Brake Head Ball (Qty 1)
- 211.6 PTO Engager-Switch for Blades (Qty 1)
- 211.7 USB Port (Qty 1)
- 211.8 Ignition Switch (Qty 1)
- 211.9 Control Panel--Orange (Qty 1)
- 211.10 Tachometer-Kohler/Yamaha EFI (Qty 1)
- 211.11 Oil Light (Qty 1)
- 212.1 Control Panel--Orange (Qty 1)
- 212.2 Tachometer-N310-0100-1018 (Qty 1)
- 212.3 Oil Light (Qty 1)
- 212.4 Ignition Switch (Qty 1)
- 212.5 PTO Engager-Switch for Blades (Qty 1)
- 212.6 Throttle / Brake Head Ball (Qty 1)
- 212.7 Universal Throttle Head - 2012 (Qty 1)
- 212.8 10-24 X 5/8 BS C/S 18-8 SS (Qty 2)
- 212.9 Light Plug (Qty 2)
- 212.10 USB Port (Qty 1)
- 212.11 10-24 Nylon Insert Locknut Zin (Qty 2)
- 216.1 2019 Relay Cap Kit (Qty 1)
- 216.2 2019 Relay Terminal (Qty 4)
-
211.1212.11#013-5019-00
10-24 Nylon Insert Locknut Zin
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
211.2212.9#018-1040-00
Light Plug
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
211.3212.8#018-5200-00
10-24 X 5/8 BS C/S 18-8 SS
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
211.4212.7#055-2012-00
Universal Throttle Head - 2012
Qty Used: 1Regular price $23.87 USDRegular priceUnit price per
-
211.5212.6#055-2013-00
Throttle Head Ball
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
211.6212.5#056-8058-00
PTO Engager-Switch for Blades
Qty Used: 1Regular price $32.05 USDRegular priceUnit price per
-
-
211.8212.4#077-8076-00
Ignition Switch
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
211.9212.1#079-3481-00
Control Panel--Orange
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
211.10#083-4050-00
Tachometer-Kohler/Yamaha EFI
Qty Used: 1Regular price $74.99 USDRegular priceUnit price per
-
-
212.2#083-4013-00
Tachometer-N310-0100-1018
Qty Used: 1Regular price $69.99 USDRegular priceUnit price per
-
216.1#086-1202-01
2019 Relay Cap Kit
Qty Used: 1Regular price $17.24 USDRegular priceUnit price per
-
216.2#086-1202-19
2019 Relay Terminal
Qty Used: 4Regular price $23.34 USDRegular priceUnit price per
