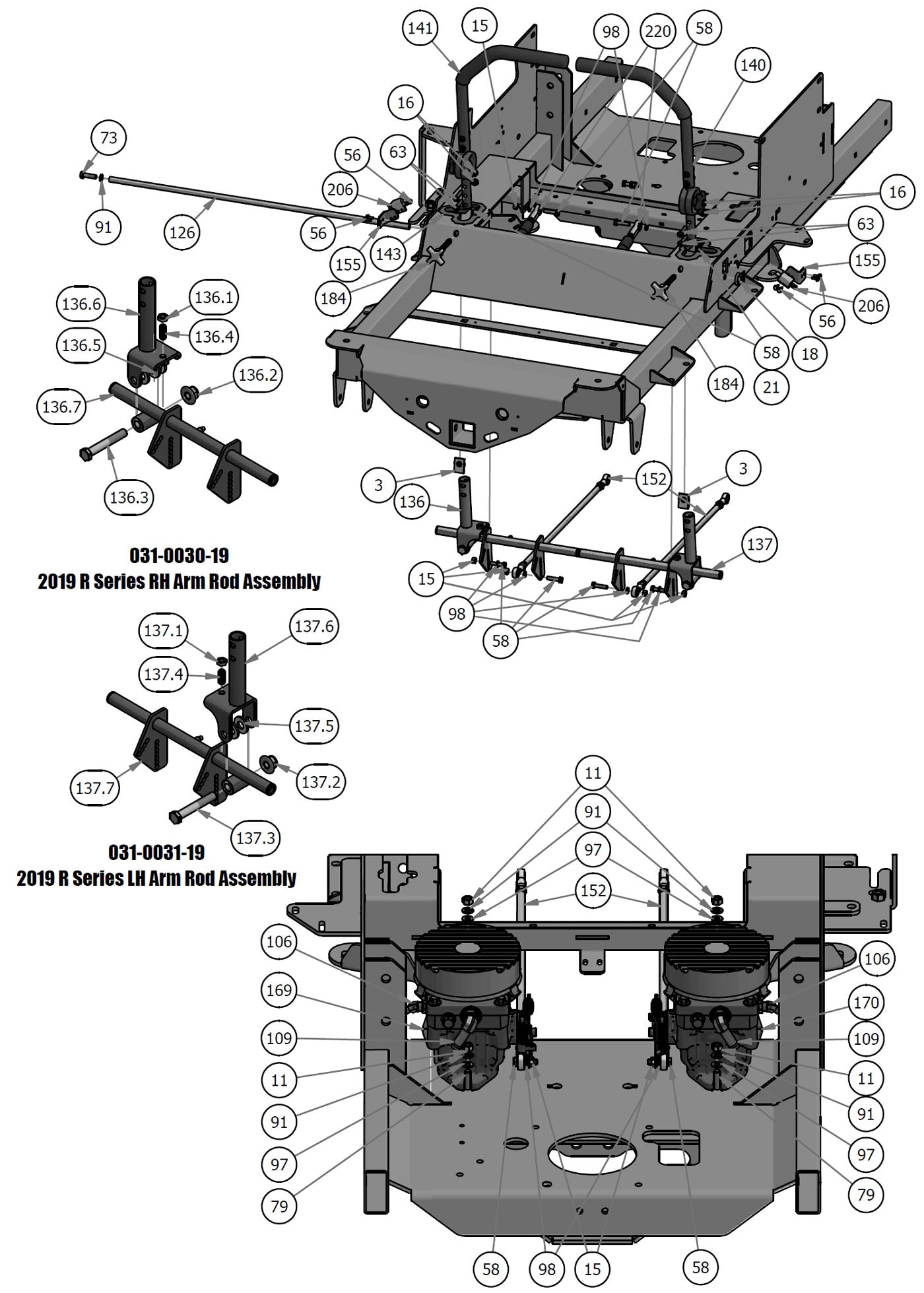

Drive Arms
Parts Index
- 3 Extruded Nut 3/8"-16 3/4" Hole Center With Patch (Qty 2)
- 11 3/8-16 Hex Nuts Zinc (Qty 4)
- 15 5/16-18 Hex Nuts Zinc (Qty 8)
- 16 5/16-18 Nylon Insert Locknut Z (Qty 4)
- 18 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 21 5/16-18 Hex Flange Nuts Zinc w (Qty 2)
- 56 12-24 x 1/2 HWH Bolt (Qty 8)
- 58 12-24 x 1/2 HWH Bolt (Qty 10)
- 63 5/16-18 x 1 3/8" Button Head Torx Drive Bolt (Qty 4)
- 73 3/8-16 X 1-1/4 GR 5 Hex Bolt (Qty 1)
- 79 3/8 x 1 1/2 Bolt (Qty 4)
- 91 3/8 Lockwasher Zinc (Qty 5)
- 97 5/16 USS Flat Washer Zinc (Qty 4)
- 98 5/16 Lock washer Zinc (Qty 8)
- 106 ZT Fitting, 3/8 x 3/8 45 Degree (Qty 2)
- 109 90 Degree Fitting, 1/2 x 3/4, (Qty 2)
- 126 2019 Steering Actuator Rod (Qty 1)
- 136 Drive Arm Actuator RH (Qty 1)
- 136.1 3/8-16 Half Jam Nut (Qty 1)
- 136.2 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 136.3 1/2-13 X 3.25 Hex Bolt-Grade 5 (Qty 1)
- 136.4 3/8-16 X 1 SOCKET SET SCREW CUP POINT (Qty 1)
- 136.5 .505 ID X 1 OD X .128 THK Washer (Qty 2)
- 136.6 Drive Arm Pivot (Qty 1)
- 136.7 Drive Arm Actuator RH (Qty 1)
- 137 2019 R Series LH Arm Rod Assembly (Qty 1)
- 137.1 3/8-16 Half Jam Nut (Qty 1)
- 137.2 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 137.3 1/2-13 X 3.25 Hex Bolt-Grade 5 (Qty 1)
- 137.4 3/8-16 X 1 SOCKET SET SCREW CUP POINT (Qty 1)
- 137.5 .505 ID X 1 OD X .128 THK Washer (Qty 2)
- 137.6 Drive Arm Pivot (Qty 1)
- 137.7 Drive Arm Actuator LH (Qty 1)
- 140 Black Steering Arm Kit LH (Qty 1)
- 141 Black Steering Arm Kit RH (Qty 1)
- 143 Drive Arm Bushing (Qty 2)
- 152 2019 Rogue Push Rod Assembly (Qty 2)
- 155 2019 Arm Switch Bracket--Plated (Qty 2)
- 169 2019 Rogue/Renegade Left Pump 16cc (Qty 1)
- 170 2019 Rogue Right Pump 16cc (Qty 1)
- 184 Star Knob 3/8- 16 x3" (Qty 2)
- 204 OBSOLETE USE 070-5375-00 (Qty 1)
- 206 Safety Switch (Qty 2)
- 220 Damper (Heim Ends) (Qty 2)
-
3#013-0021-00
Extruded Nut 3/8"-16 3/4" Hole Center With Patch
Qty Used: 2Regular price $2.99 USDRegular priceUnit price per
-
11#013-6014-00
3/8-16 Hex Nuts Zinc
Qty Used: 4Regular price $0.00 USDRegular priceUnit price per
-
15#013-8043-00
5/16-18 Hex Nuts Zinc
Qty Used: 8Regular price $0.69 USDRegular priceUnit price per
-
16#013-8047-00
5/16-18 Nylon Insert Locknut Z
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
18136.2137.2#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
21#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
5658#018-1080-00
12-24 x 1/2 HWH Bolt
Qty Used: 10Regular price $1.99 USDRegular priceUnit price per
-
63#018-2020-18
5/16-18 x 1 3/8\" Button Head Torx Drive Bolt
Qty Used: 4Regular price $1.49 USDRegular priceUnit price per
-
73#018-5040-00
3/8-16 X 1-1/4 GR 5 Hex Bolt
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
79#018-6012-00
3/8 x 1 1/2 Bolt
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
91#019-5037-00
3/8 Lockwasher Zinc
Qty Used: 5Regular price $0.00 USDRegular priceUnit price per
-
97#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
98#019-8051-00
5/16 Lock washer Zinc
Qty Used: 8Regular price $0.79 USDRegular priceUnit price per
-
106#024-1200-00
ZT Fitting, 3/8 x 3/8 45 Degree
Qty Used: 2Regular price $18.63 USDRegular priceUnit price per
-
109#024-5002-00
90 Degree Fitting, 1/2 x 3/4,
Qty Used: 2Regular price $16.48 USDRegular priceUnit price per
-
126#028-0051-00
2019 Steering Actuator Rod
Qty Used: 1Regular price $21.88 USDRegular priceUnit price per
-
136136.7#031-0030-00
Drive Arm Actuator RH
Qty Used: 1Regular price $43.72 USDRegular priceUnit price per
-
136.1137.1#013-0017-00
3/8-16 Half Jam Nut
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
136.3137.3#018-0050-00
1/2-13 X 3.25 Hex Bolt-Grade 5
Qty Used: 1Regular price $1.19 USDRegular priceUnit price per
-
136.4137.4#018-0063-00
3/8-16 X 1 SOCKET SET SCREW CUP POINT
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
136.5137.5#019-8054-00
.505 ID X 1 OD X .128 THK Washer
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
136.6137.6#031-0014-00
Drive Arm Pivot
Qty Used: 1Regular price $23.29 USDRegular priceUnit price per
-
137#031-0031-19
2019 R Series LH Arm Rod Assembly
Qty Used: 1Regular price $79.60 USDRegular priceUnit price per
-
137.7#031-0031-00
Drive Arm Actuator LH
Qty Used: 1Regular price $43.72 USDRegular priceUnit price per
-
140#031-9005-70
Black Steering Arm Kit LH
Qty Used: 1Regular price $132.68 USDRegular priceUnit price per
-
141#031-9055-70
Black Steering Arm Kit RH
Qty Used: 1Regular price $115.31 USDRegular priceUnit price per
-
143#032-0002-00
Drive Arm Bushing
Qty Used: 2Regular price $14.53 USDRegular priceUnit price per
-
152#035-0004-00
2019 Rogue Push Rod Assembly
Qty Used: 2Regular price $39.79 USDRegular priceUnit price per
-
155#039-2160-00
2019 Arm Switch Bracket--Plated
Qty Used: 2Regular price $12.99 USDRegular priceUnit price per
-
169#050-3001-00
2019 Rogue/Renegade Left Pump 16cc
Qty Used: 1Regular price $499.99 USDRegular priceUnit price per
-
170#050-3002-00
2019 Rogue Right Pump 16cc
Qty Used: 1Regular price $499.99 USDRegular priceUnit price per
-
184#057-5800-00
Star Knob 3/8- 16 x3"
Qty Used: 2Regular price $5.83 USDRegular priceUnit price per
-
204#070-5372-19
OBSOLETE USE 070-5375-00
Qty Used: 1Regular price $1,061.53 USDRegular priceUnit price per
-
206#077-8073-00
Safety Switch
Qty Used: 2Regular price $9.99 USDRegular priceUnit price per
-
220#087-0002-00
Damper (Heim Ends)
Qty Used: 2Regular price $58.37 USDRegular priceUnit price per
