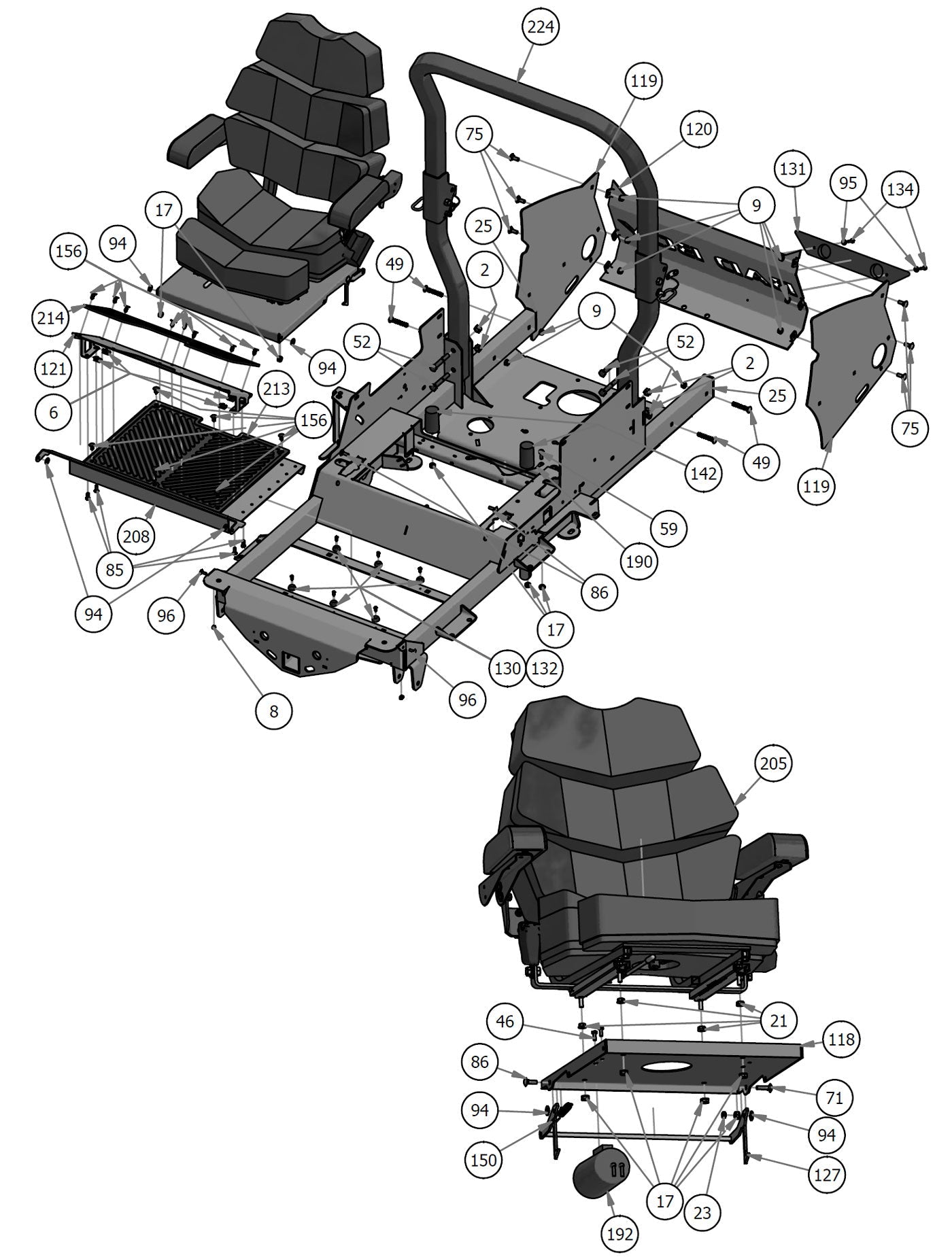

Covers & Seat
Parts Index
- 2 1/2-13 hex 2-WAY REV CNT L/N (GR.B) ZC (Qty 4)
- 6 1/4-20 Cage Nut (Qty 4)
- 8 1/4-20 Nylon Insert Flange Nut (Qty 2)
- 9 3/8 Nylock Flange Nut (Qty 10)
- 17 5/16-18 Nylon Flange Nut (Qty 11)
- 21 5/16-18 Hex Flange Nuts Zinc w (Qty 4)
- 23 5/16-18 Nylock Jam Nut (Qty 1)
- 25 1 1/2x 3 Frame Plug (Qty 2)
- 46 M6-1.0 X 16MM HEX BOLT CL 8 (Qty 2)
- 49 3/8 x 2 1/2 Carriage Bolt (Qty 4)
- 52 1/2-13 X 3.25 Hex Bolt-Grade 5 (Qty 4)
- 53 5/16-18 x 1/2 Hex Bolt-Grade 5 (Qty 1)
- 59 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 1)
- 62 1/4-20 X 1/2 BS C/S 18-8 SS (Qty 1)
- 71 5/16-18 X 1-1/4 Carriage Bolt (Qty 1)
- 75 3/8 x 1 Carriage Bolt (Qty 6)
- 85 1/4-20 X 3/4 GR 5 Hex Bolts (Qty 4)
- 86 5/16-18 X 1 Carriage Bolt Zinc (Qty 3)
- 94 .360 ID Plastic Washer (Qty 6)
- 95 1/4 USS Flat Washer Zinc (Qty 3)
- 96 1/4 x 3/4 Carriage Bolt (Qty 2)
- 118 Seat Plate--Orange (Qty 1)
- 119 2019 Vertical Suspension Rear Cover Side--Orange (Qty 2)
- 120 2019 Vertical Rear Cover Tailgate-Orange (Qty 1)
- 121 Adjustable Foot Plate--Orange (Qty 1)
- 127 Seat Latch Rod (Qty 1)
- 130 Button Bumper (Qty 6)
- 131 Bumper (Qty 1)
- 132 10 X 1/2 Pan Phil a T/S Zinc (Qty 6)
- 134 1/4 x 1 Hex Head Tek Screw (Qty 2)
- 142 Bumper (Seat) (Qty 2)
- 150 Brake Spring (Qty 1)
- 156 Ratchet Fastener - Floorboard (Qty 14)
- 190 Seat Cable (Qty 1)
- 192 2019 R-Series EPA Cannister Assembly (Qty 1)
- 204 OBSOLETE USE 070-5375-00 (Qty 1)
- 205 2019 Rogue Seat (Qty 1)
- 208 2019 Outlaw Floorboard--Orange (Qty 1)
- 213 Mat (Floor) (Qty 1)
- 214 Mat (Foot Plate) (Qty 1)
- 224 2019 2x2 R SERIES Folding Rops (Qty 1)
-
2#013-0005-00
1/2-13 hex 2-WAY REV CNT L/N (GR.B) ZC
Qty Used: 4Regular price $2.69 USDRegular priceUnit price per
-
6#013-0054-00
1/4-20 Cage Nut
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
8#013-2050-00
1/4-20 Nylon Insert Flange Nut
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
9#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 10Regular price $1.49 USDRegular priceUnit price per
-
17#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 11Regular price $0.79 USDRegular priceUnit price per
-
21#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
23#013-9005-00
5/16-18 Nylock Jam Nut
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
25#014-9003-00
1 1/2x 3 Frame Plug
Qty Used: 2Regular price $2.91 USDRegular priceUnit price per
-
46#018-0024-00
M6-1.0 X 16MM HEX BOLT CL 8
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
49#018-0044-00
3/8 x 2 1/2 Carriage Bolt
Qty Used: 4Regular price $2.69 USDRegular priceUnit price per
-
52#018-0050-00
1/2-13 X 3.25 Hex Bolt-Grade 5
Qty Used: 4Regular price $1.19 USDRegular priceUnit price per
-
53#018-0057-00
5/16-18 x 1/2 Hex Bolt-Grade 5
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
59#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
62#018-2012-00
1/4-20 X 1/2 BS C/S 18-8 SS
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
71#018-4703-00
5/16-18 X 1-1/4 Carriage Bolt
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
75#018-5044-00
3/8 x 1 Carriage Bolt
Qty Used: 6Regular price $0.69 USDRegular priceUnit price per
-
85#018-8052-00
1/4-20 X 3/4 GR 5 Hex Bolts
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
86#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 3Regular price $0.79 USDRegular priceUnit price per
-
94#019-6042-00
.360 ID Plastic Washer
Qty Used: 6Regular price $0.00 USDRegular priceUnit price per
-
95#019-7040-00
1/4 USS Flat Washer Zinc
Qty Used: 3Regular price $0.69 USDRegular priceUnit price per
-
96#019-8040-00
1/4 x 3/4 Carriage Bolt
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
118#026-2019-00
Seat Plate--Orange
Qty Used: 1Regular price $92.82 USDRegular priceUnit price per
-
119#026-2209-00
2019 Vertical Suspension Rear Cover Side--Orange
Qty Used: 2Regular price $225.56 USDRegular priceUnit price per
-
120#026-2221-00
2019 Vertical Rear Cover Tailgate-Orange
Qty Used: 1Regular price $225.56 USDRegular priceUnit price per
-
121#026-2230-00
Adjustable Foot Plate--Orange
Qty Used: 1Regular price $66.33 USDRegular priceUnit price per
-
127#028-0090-00
Seat Latch Rod
Qty Used: 1Regular price $36.42 USDRegular priceUnit price per
-
130#029-4010-00
Button Bumper
Qty Used: 6Regular price $1.31 USDRegular priceUnit price per
-
-
132#030-3050-00
10 X 1/2 Pan Phil a T/S Zinc
Qty Used: 6Regular price $0.79 USDRegular priceUnit price per
-
134#030-7040-00
1/4 x 1 Hex Head Tek Screw
Qty Used: 2Regular price $1.00 USDRegular priceUnit price per
-
142#032-0001-00
Bumper (Seat)
Qty Used: 2Regular price $21.88 USDRegular priceUnit price per
-
150#034-1025-00
Compact Outlaw Brake Spring
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
156#040-6080-00
Ratchet Fastener - Floorboard
Qty Used: 14Regular price $2.91 USDRegular priceUnit price per
-
190#064-8081-00
Seat Cable
Qty Used: 1Regular price $14.58 USDRegular priceUnit price per
-
192#067-0020-19
2019 Outlaw EPA Cannister Assembly
Qty Used: 1Regular price $39.95 USDRegular priceUnit price per
-
204#070-5372-19
OBSOLETE USE 070-5375-00
Qty Used: 1Regular price $1,061.53 USDRegular priceUnit price per
-
205#071-5066-00
2019 Rogue Seat
Qty Used: 1Regular price $729.99 USDRegular priceUnit price per
-
208#079-3155-00
2019 Outlaw Floorboard--Orange
Qty Used: 1Regular price $109.99 USDRegular priceUnit price per
-
213#081-0050-00
Mat (Floor)
Qty Used: 1Regular price $72.99 USDRegular priceUnit price per
-
214#081-0051-00
Mat (Foot Plate)
Qty Used: 1Regular price $72.99 USDRegular priceUnit price per
-
224#089-0006-00
2019 2x2 R SERIES Outlaw Folding Rops
Qty Used: 1Regular price $436.43 USDRegular priceUnit price per
