993cc Vanguard EFI 37hp

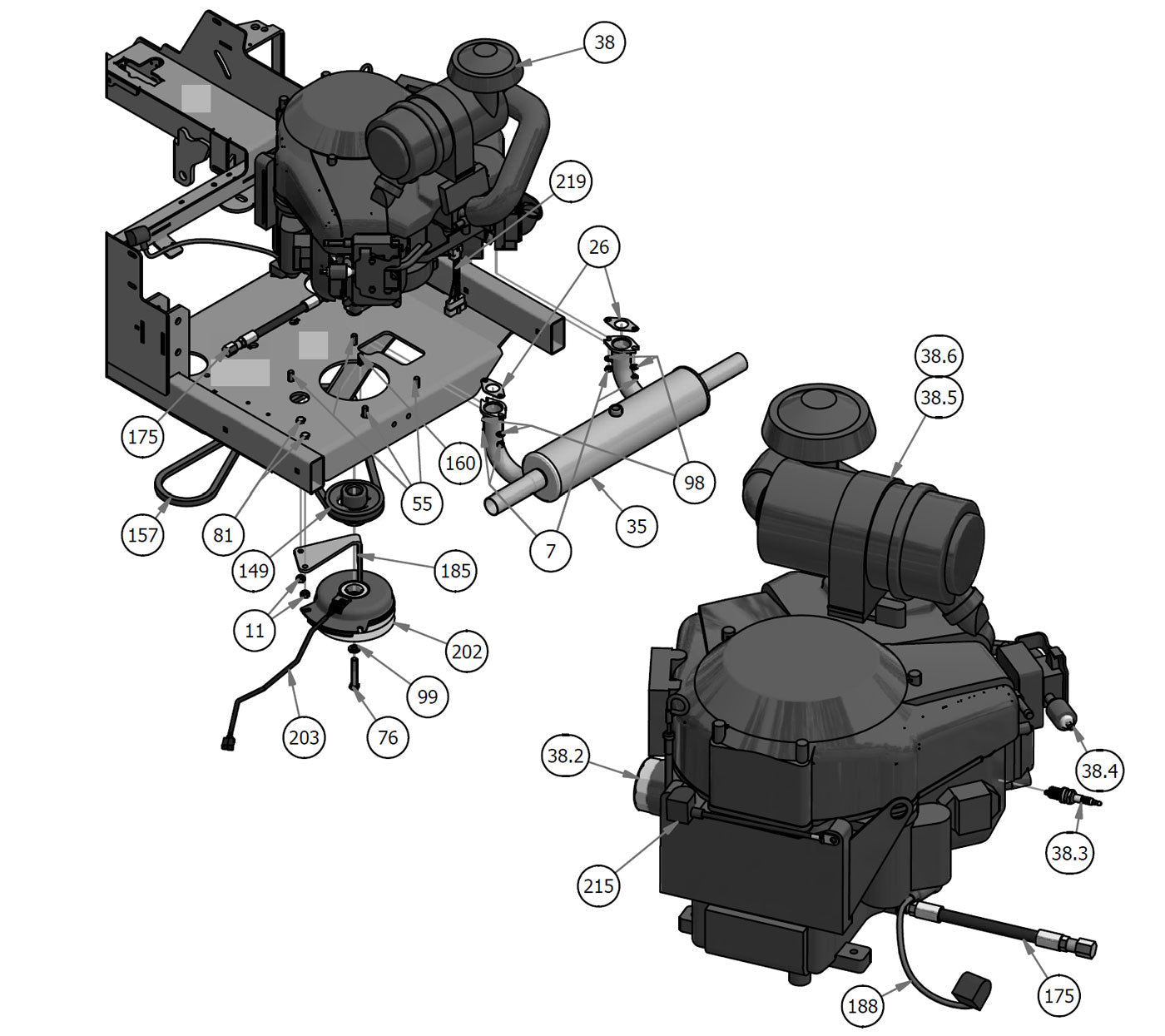

Parts Index
- 7 M8 - 1.25 Stainless Steel Nut (Qty 4)
- 11 3/8-16 Hex Nuts Zinc (Qty 2)
- 26 Exhaust Gasket for 23 (Qty 2)
- 35 2019 Rebel/Rogue Vanguard 993 Exhaust& 999cc EFI (Qty 1)
- 38 2019 Vanguard EFI 37HP 993cc Vertical Shaft (Qty 1)
- 38.3 Spark Plug-Kohler/Briggs (Qty 2)
- 38.4 Universal Inline Fuel Filter (Qty 1)
- 38.2 Briggs Oil Filter (Qty 1)
- 38.6 Canister Air Fil Outer2010&Old (Qty 1)
- 38.5 Canister Air Filter - Inner (Qty 1)
- 55 3/8 x 1 1/8 Engine Mounting Bolt (Qty 4)
- 76 7/16-20 X 2-1/2 GR 5 Hex Bolt (Qty 1)
- 81 3/8-16 X 1 GR 5 Hex Bolts Zinc (Qty 2)
- 98 5/16 Lock washer Zinc (Qty 4)
- 99 7/16 Lock washer zinc (Qty 1)
- 149 4 3/4 Motor Pulley (Qty 1)
- 157 2019 & up Rogue Pump Belt 68" (Qty 1)
- 160 1/4 x 1 Square Key (Qty 1)
- 175 14mm Drain Hose-36hp Vanguard (Qty 1)
- 185 PTO Engager Holder-Clutch--Plated (Qty 1)
- 188 24 Red Battery Cable (Qty 1)
- 202 Revolt, Rogue, Rebel, HD Clutch (Qty 1)
- 203 Clutch Pigtail (Qty 1)
- 204 OBSOLETE USE 070-5375-00 (Qty 1)
- 215 Rebel, Rogue Ground Wire (Qty 1)
- 219 2019 Harness Adaptor- Vanguard 37 EFI Vert/Horiz (Qty 1)
-
7#013-0075-00
M8 - 1.25 Stainless Steel Nut
Qty Used: 4Regular price $2.99 USDRegular priceUnit price per
-
11#013-6014-00
3/8-16 Hex Nuts Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
26#015-0025-00
Exhaust Gasket for 23
Qty Used: 2Regular price $8.74 USDRegular priceUnit price per
-
35#015-1014-00
2019 Rebel/Rogue Vanguard 993 Exhaust& 999cc EFI
Qty Used: 1Regular price $199.00 USDRegular priceUnit price per
-
38#015-3001-00
2019 Vanguard EFI 37HP 993cc Vertical Shaft
Qty Used: 1Regular price $2,999.99 USDRegular priceUnit price per
-
38.3#015-8000-00
Spark Plug-Kohler/Briggs
Qty Used: 2Regular price $9.99 USDRegular priceUnit price per
-
38.4#063-6000-00
Universal Inline Fuel Filter
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
38.2#063-8018-00
Briggs Oil Filter
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
38.6#063-8019-00
Canister Air Fil Outer2010&Old
Qty Used: 1Regular price $33.50 USDRegular priceUnit price per
-
38.5#063-8020-00
Canister Air Filter - Inner
Qty Used: 1Regular price $30.51 USDRegular priceUnit price per
-
55#018-1075-00
3/8 x 1 1/8 Engine Mounting Bolt
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-
76#018-5300-00
7/16-20 X 2-1/2 GR 5 Hex Bolt
Qty Used: 1Regular price $1.19 USDRegular priceUnit price per
-
81#018-6049-00
3/8-16 X 1 GR 5 Hex Bolts Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
98#019-8051-00
5/16 Lock washer Zinc
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
99#019-8053-00
7/16 Lock washer zinc
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
149#033-5035-00
4 3/4 Motor Pulley
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
157#041-8051-00
2019 & up Rogue Pump Belt 68"
Qty Used: 1Regular price $74.99 USDRegular priceUnit price per
-
160#042-6030-00
1/4 x 1 Square Key
Qty Used: 1Regular price $4.37 USDRegular priceUnit price per
-
175#051-5402-00
14mm Drain Hose-36hp Vanguard
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
185#057-5906-00
PTO Engager Holder-Clutch--Plated
Qty Used: 1Regular price $19.32 USDRegular priceUnit price per
-
188#064-5300-00
24 Red Battery Cable
Qty Used: 1Regular price $20.42 USDRegular priceUnit price per
-
-
203#070-2000-00
Clutch Pigtail
Qty Used: 1Regular price $19.85 USDRegular priceUnit price per
-
204#070-5372-19
OBSOLETE USE 070-5375-00
Qty Used: 1Regular price $1,061.53 USDRegular priceUnit price per
-
215#086-0005-00
Starter Cable
Qty Used: 1Regular price $9.28 USDRegular priceUnit price per
-
219#086-9013-00
2019 Harness Adaptor- Vanguard 37 EFI Vert/Horiz
Qty Used: 1Regular price $26.53 USDRegular priceUnit price per
