824cc Kohler EFI 33hp

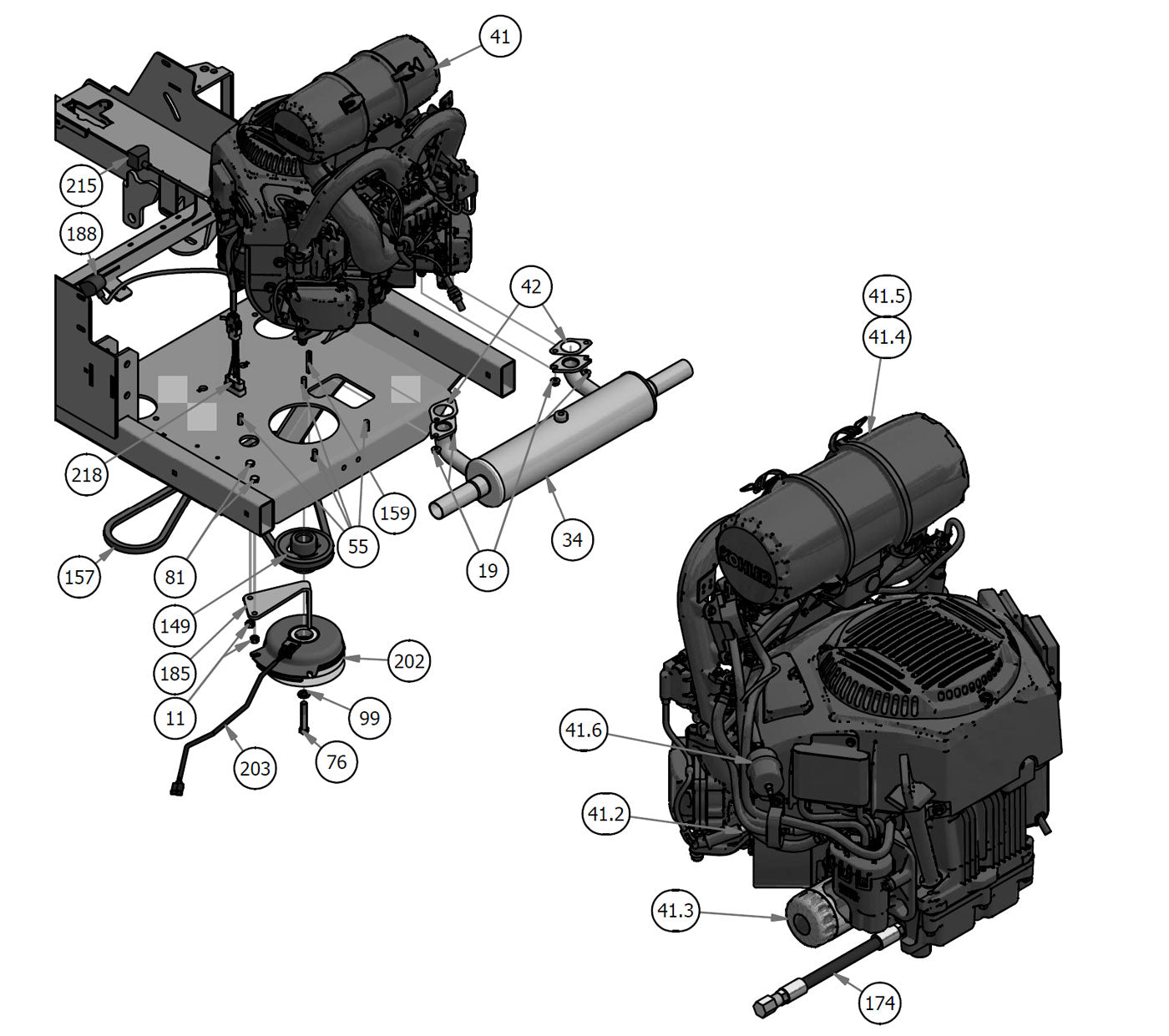

Parts Index
- 11 3/8-16 Hex Nuts Zinc (Qty 2)
- 19 M8 Nut fits the 015-9990-00/015-9991-00 (Qty 4)
- 34 2019 Rogue Kohler 824 EFI Muffler (Qty 1)
- 41 2019 Kohler 33HP EFI 824cc ECV 880 (Qty 1)
- 41.2 Spark Plug-Kohler/Briggs (Qty 2)
- 41.6 25/26 HP Koh Fuel Filter ZT/MZ (Qty 1)
- 41.3 Oil Filter - 27 & 30 Kohler (Qty 1)
- 41.5 Canister Air Fil Outer2010&Old (Qty 1)
- 41.4 Canister Air Filter - Inner (Qty 1)
- 42 Exhaust Gasket for 824 EFI (Qty 2)
- 55 3/8 x 1 1/8 Engine Mounting Bolt (Qty 4)
- 76 7/16-20 X 2-1/2 GR 5 Hex Bolt (Qty 1)
- 81 3/8-16 X 1 GR 5 Hex Bolts Zinc (Qty 2)
- 99 7/16 Lock washer zinc (Qty 1)
- 149 4 3/4 Motor Pulley (Qty 1)
- 157 2019 & up Rogue Pump Belt 68" (Qty 1)
- 159 1/4 X 2 Square Key Stock (Qty 1)
- 174 Kohler Oil Drain Hose (Qty 1)
- 185 PTO Engager Holder-Clutch--Plated (Qty 1)
- 188 24 Red Battery Cable (Qty 1)
- 202 Revolt, Rogue, Rebel, HD Clutch (Qty 1)
- 203 Clutch Pigtail (Qty 1)
- 215 Rebel, Rogue Ground Wire (Qty 1)
- 218 OBSOLETE use 086-9006-21 (Qty 1)
-
11#013-6014-00
3/8-16 Hex Nuts Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
19#013-8240-00
M8 Nut fits the 015-9990-00/015-9991-00
Qty Used: 4Regular price $6.69 USDRegular priceUnit price per
-
34#015-1012-00
2019 Rogue Kohler 824 EFI Muffler
Qty Used: 1Regular price $199.00 USDRegular priceUnit price per
-
41#015-8240-00
2019 Kohler 33HP EFI 824cc ECV 880
Qty Used: 1Regular price $2,499.99 USDRegular priceUnit price per
-
41.2#015-8000-00
Spark Plug-Kohler/Briggs
Qty Used: 2Regular price $9.99 USDRegular priceUnit price per
-
41.6#063-5001-00
25/26 HP Koh Fuel Filter ZT/MZ
Qty Used: 1Regular price $17.99 USDRegular priceUnit price per
-
41.3#063-5400-00
Oil Filter - 27 & 30 Kohler
Qty Used: 1Regular price $18.99 USDRegular priceUnit price per
-
41.5#063-8019-00
Canister Air Fil Outer2010&Old
Qty Used: 1Regular price $33.50 USDRegular priceUnit price per
-
41.4#063-8020-00
Canister Air Filter - Inner
Qty Used: 1Regular price $30.51 USDRegular priceUnit price per
-
42#015-9500-00
Exhaust Gasket for 824 EFI
Qty Used: 2Regular price $9.99 USDRegular priceUnit price per
-
55#018-1075-00
3/8 x 1 1/8 Engine Mounting Bolt
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-
76#018-5300-00
7/16-20 X 2-1/2 GR 5 Hex Bolt
Qty Used: 1Regular price $1.19 USDRegular priceUnit price per
-
81#018-6049-00
3/8-16 X 1 GR 5 Hex Bolts Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
99#019-8053-00
7/16 Lock washer zinc
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
149#033-5035-00
4 3/4 Motor Pulley
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
157#041-8051-00
2019 & up Rogue Pump Belt 68"
Qty Used: 1Regular price $74.99 USDRegular priceUnit price per
-
159#042-5020-00
1/4 X 2 Square Key Stock
Qty Used: 1Regular price $2.92 USDRegular priceUnit price per
-
174#051-5401-00
Kohler Oil Drain Hose
Qty Used: 1Regular price $29.13 USDRegular priceUnit price per
-
185#057-5906-00
PTO Engager Holder-Clutch--Plated
Qty Used: 1Regular price $19.32 USDRegular priceUnit price per
-
188#064-5300-00
24 Red Battery Cable
Qty Used: 1Regular price $20.42 USDRegular priceUnit price per
-
-
203#070-2000-00
Clutch Pigtail
Qty Used: 1Regular price $19.85 USDRegular priceUnit price per
-
215#086-0005-00
Starter Cable
Qty Used: 1Regular price $9.28 USDRegular priceUnit price per
-
218#086-9006-19
OBSOLETE use 086-9006-21
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
