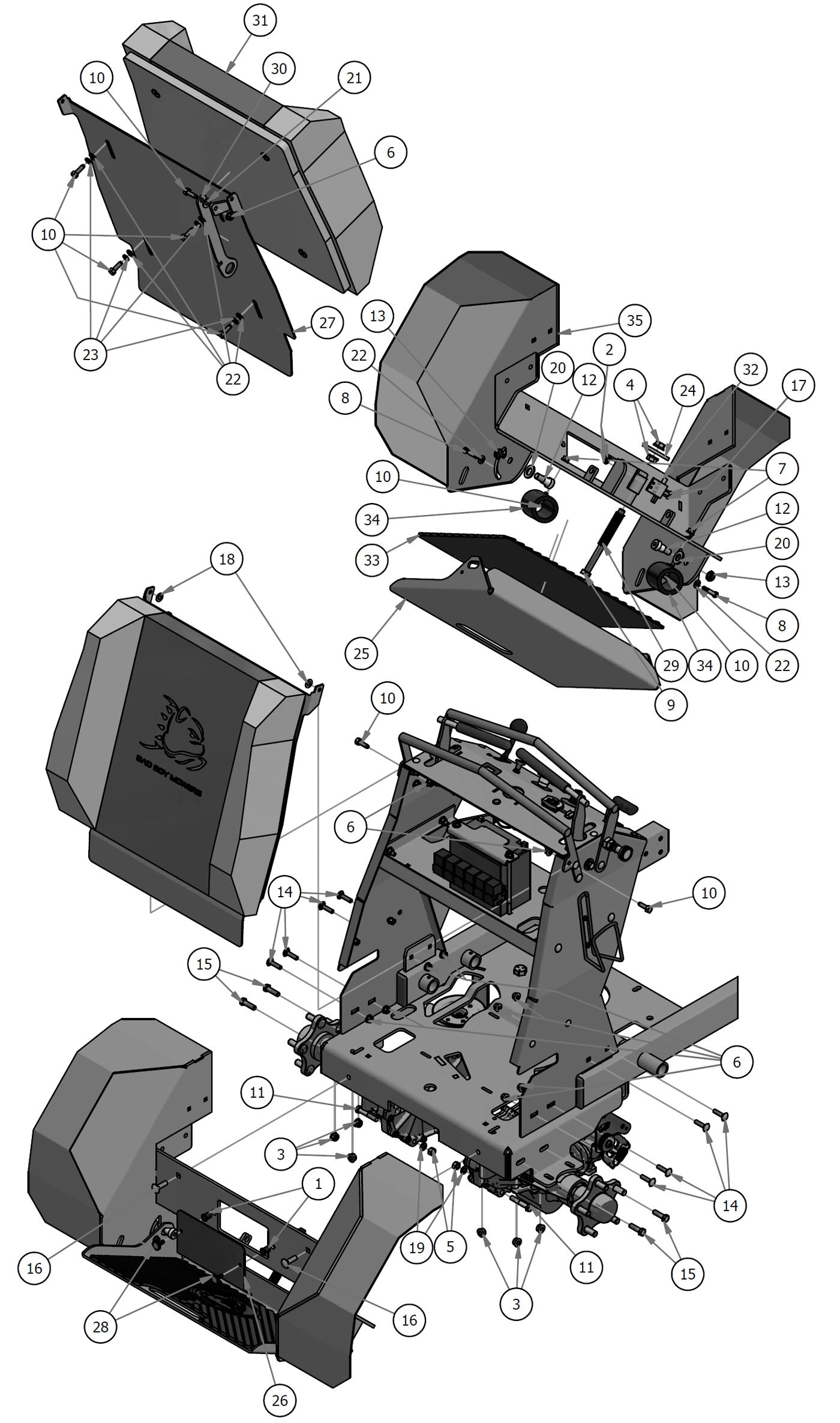

Rear Assembly
Parts Index
- 1 Wellnut 1/4-20 x 5/8 (Qty 2)
- 2 10-24 Nylon Insert Locknut Zin (Qty 2)
- 3 3/8 Nylock Flange Nut (Qty 6)
- 4 1/2-13 Hex Fange Nuts Zinc w/ (Qty 2)
- 5 3/8-16 Hex Nuts Zinc (Qty 2)
- 6 5/16-18 Nylon Flange Nut (Qty 10)
- 7 5/16-18 Hex Flange Nuts Zinc w (Qty 2)
- 8 Steel Shoulder Screw 1/4"-20 x 7/8" Diameter 5/16" (Qty 2)
- 9 1/2-13 X 6 HEX CAP SCREW GR 5 ZC/ROHS 2 INCH MINIM (Qty 1)
- 10 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 7)
- 11 3/8-16 X 2 GR 5 Hex Bolts Zinc (Qty 2)
- 12 5/8 x 5/8 Shoulder Bolt (Qty 2)
- 13 1/2-13 Nylon Insert Jam Locknut (Qty 2)
- 14 5/16-18 X 1-1/4 Carriage Bolt (Qty 8)
- 15 3/8-16 X 1-1/4 GR 5 Hex Bolt (Qty 4)
- 16 3/8-16 X 1-1/4 Carriage Bolt (Qty 2)
- 17 10-24 X 5/8 BS C/S 18-8 SS (Qty 2)
- 18 .390x.750x.062 Nylon Washer (Qty 2)
- 19 3/8 Lockwasher Zinc (Qty 2)
- 20 .630 ID X 1.122 OD X .142 THK (Qty 2)
- 21 .360 ID Plastic Washer (Qty 1)
- 22 5/16 USS Flat Washer Zinc (Qty 6)
- 23 5/16 Lock washer Zinc (Qty 4)
- 24 ZT/CZT Deck Round Spacer Idler--Plated (Qty 1)
- 25 2019 Stand On Platform Plate--Orange (Qty 1)
- 26 2019 Stand On Access Panel Plate--Black (Qty 1)
- 27 Pad Plate Weldment (Qty 1)
- 28 1/4-20 x 3/4 Knurled Thumb Screw (Qty 2)
- 29 3-1/8" x 0.75 OD x 0.568 ID Compression Spring (Qty 1)
- 30 Operator Pad Kickstand--Orange (Qty 1)
- 31 2019 Stand-On Revolt Platform Pad (Qty 1)
- 32 2017? Walk Behind-Safety Switch (Qty 1)
- 33 2019 Stand On Mat (Qty 1)
- 34 2019 Revolt Platform Dampener (Qty 2)
- 35 2019 48"-54" Stand On Platform Support (Qty 1)
-
1#013-0057-00
Wellnut 1/4-20 x 5/8
Qty Used: 2Regular price $3.99 USDRegular priceUnit price per
-
2#013-5019-00
10-24 Nylon Insert Locknut Zin
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
3#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 6Regular price $1.49 USDRegular priceUnit price per
-
4#013-5300-00
1/2-13 Hex Fange Nuts Zinc w/
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
5#013-6014-00
3/8-16 Hex Nuts Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
6#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 10Regular price $0.79 USDRegular priceUnit price per
-
7#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
8#018-0059-00
Steel Shoulder Screw 1/4"-20 x 7/8" Diameter 5/16"
Qty Used: 2Regular price $3.99 USDRegular priceUnit price per
-
9#018-0062-00
1/2-13 X 6" Hex Head Bolt Gr5
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
10#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 7Regular price $0.00 USDRegular priceUnit price per
-
11#018-3000-00
3/8-16 X 2 GR 5 Hex Bolts Zinc
Qty Used: 2Regular price $0.89 USDRegular priceUnit price per
-
12#018-3001-00
5/8 x 5/8 Shoulder Bolt
Qty Used: 2Regular price $14.59 USDRegular priceUnit price per
-
13#018-4010-00
1/2-13 Nylon Insert Jam Locknut
Qty Used: 2Regular price $1.59 USDRegular priceUnit price per
-
14#018-4703-00
5/16-18 X 1-1/4 Carriage Bolt
Qty Used: 8Regular price $0.69 USDRegular priceUnit price per
-
15#018-5040-00
3/8-16 X 1-1/4 GR 5 Hex Bolt
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
16#018-5043-00
3/8-16 X 1-1/4 Carriage Bolt
Qty Used: 2Regular price $0.99 USDRegular priceUnit price per
-
17#018-5200-00
10-24 X 5/8 BS C/S 18-8 SS
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
18#019-2003-00
.390x.750x.062 Nylon Washer
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
19#019-5037-00
3/8 Lockwasher Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
20#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
21#019-6042-00
.360 ID Plastic Washer
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
22#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 6Regular price $0.79 USDRegular priceUnit price per
-
23#019-8051-00
5/16 Lock washer Zinc
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
24#025-0025-00
ZT/CZT Deck Round Spacer Idler--Plated
Qty Used: 1Regular price $6.62 USDRegular priceUnit price per
-
25#026-0062-00
2019 Stand On Platform Plate--Orange
Qty Used: 1Regular price $33.16 USDRegular priceUnit price per
-
26#026-0063-00
2019 Stand On Access Panel Plate--Black
Qty Used: 1Regular price $33.16 USDRegular priceUnit price per
-
27#026-0096-00
Pad Plate Weldment
Qty Used: 1Regular price $92.82 USDRegular priceUnit price per
-
28#030-0015-00
1/4-20 x 3/4 Knurled Thumb Screw
Qty Used: 2Regular price $14.99 USDRegular priceUnit price per
-
29#034-1001-00
3-1/8" x 0.75 OD x 0.568 ID Compression Spring
Qty Used: 1Regular price $11.99 USDRegular priceUnit price per
-
30#039-0082-00
Operator Pad Kickstand--Orange
Qty Used: 1Regular price $26.53 USDRegular priceUnit price per
-
31#071-6004-00
2019 Stand-On Revolt Platform Pad
Qty Used: 1Regular price $189.99 USDRegular priceUnit price per
-
32#077-0002-00
2017? Walk Behind-Safety Switch
Qty Used: 1Regular price $21.88 USDRegular priceUnit price per
-
33#081-3001-00
2019 Stand On Mat
Qty Used: 1Regular price $53.09 USDRegular priceUnit price per
-
34#087-0003-00
2019 Revolt Platform Dampener
Qty Used: 2Regular price $79.60 USDRegular priceUnit price per
-
35#201-1120-19
2019 48"-54" Stand On Platform Support
Qty Used: 1Regular price $169.99 USDRegular priceUnit price per
