Front End

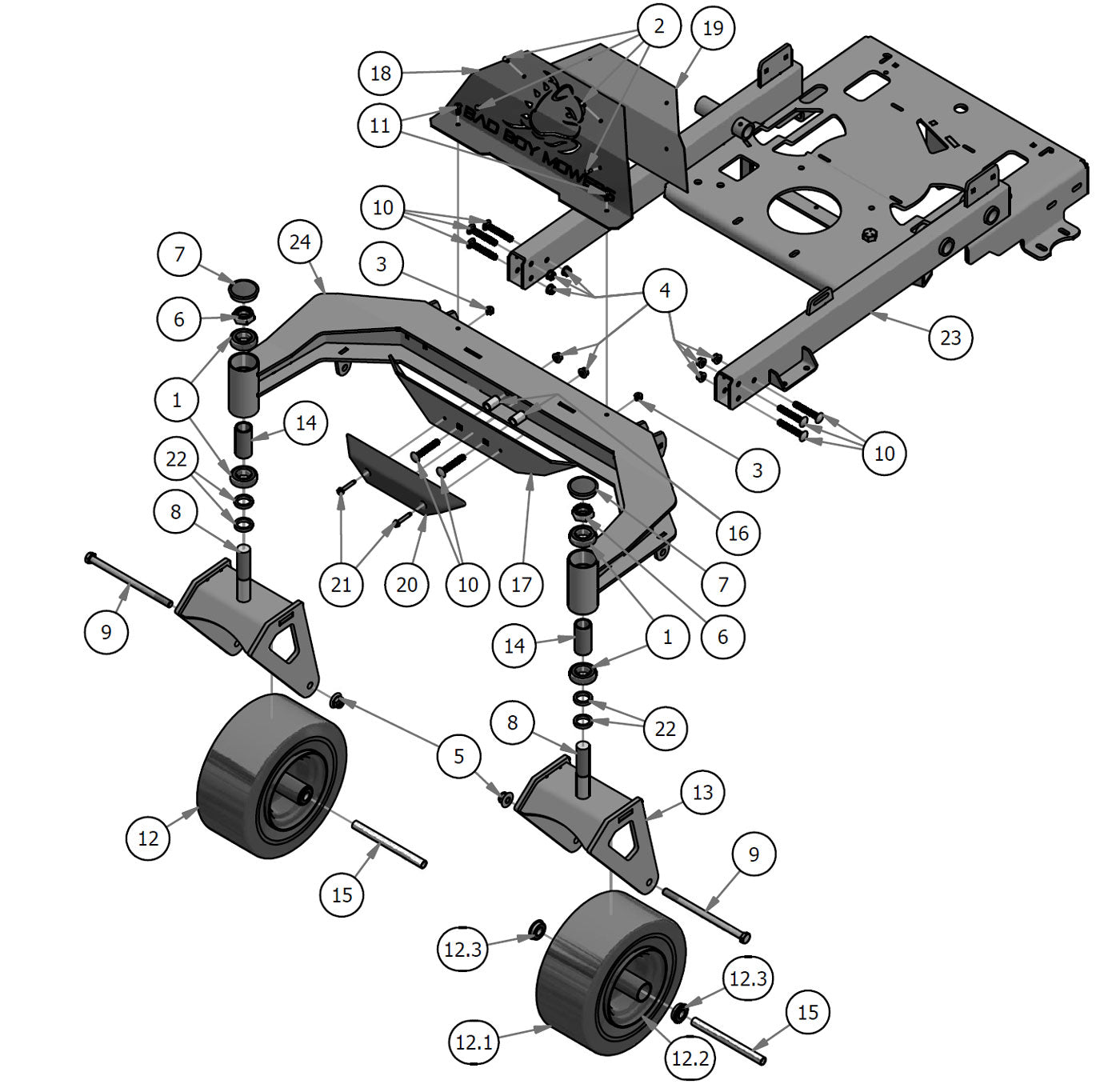

Parts Index
- 1 Caster Bearing (Qty 4)
- 2 3/16" Diameter, for 0.1260"-0.25" Material Thick (Qty 4)
- 3 1/4-20 Nylon Insert Flange Nut (Qty 2)
- 4 3/8 Nylock Flange Nut (Qty 8)
- 5 1/2-13 Nylon Insert Flange Nut (Qty 2)
- 6 1" Nylock Nut 1/2 Nut - Fine (Qty 2)
- 7 Bearing Retainer Cap (Qty 2)
- 8 1-14 X 5 BOLT GR 8 ZC YELLOW (Qty 2)
- 9 1/2-13x8 1/2 Gr5 Hex Bolt (Qty 2)
- 10 3/8 x 2 1/2 Carriage Bolt (Qty 8)
- 11 1/4"-20 x 3/4 Black Oxide 18-8 Stainless Pan Head (Qty 2)
- 12 13x6.50-6 Caster Front (Qty 2)
- 12.1 13 x 6.50 - 6 Tire (Qty 1)
- 12.2 6 x 4.5 Black Wheel - Small Bore (Qty 1)
- 12.3 Ball Bearing w/clip; 99502H-NR; 5/8" Bore (Qty 1)
- 13 REV/MAV front fork (Qty 2)
- 14 MZ/ZT/Mav/ R Series Front Bearing Spacer (Qty 2)
- 15 Front Wheel Spanner-All Models (Qty 2)
- 16 .502x.750x1.130 Length Spacer (Qty 2)
- 17 2019 Stand On Front Bumper Plate--Orange (Qty 1)
- 18 Exhaust Shield Plate--Black (Qty 1)
- 19 Exhaust Backer Plate--Orange (Qty 1)
- 20 ZT, Mav, HD, Revolt Front Bumper (Qty 1)
- 21 14 X 1-1/2 HWA A T/S Zinc (Qty 2)
- 22 Spacer ( Front Fork and Suspension ) (Qty 4)
- 23 2019 Stand On Frame--Orange (Qty 1)
-
1#010-1050-00
Caster Bearing
Qty Used: 4Regular price $17.19 USDRegular priceUnit price per
-
2#013-0026-00
3/16" Diameter, for 0.1260"-0.25" Material Thick
Qty Used: 4Regular price $2.99 USDRegular priceUnit price per
-
3#013-2050-00
1/4-20 Nylon Insert Flange Nut
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
4#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 8Regular price $1.49 USDRegular priceUnit price per
-
5#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
6#013-9004-00
1" Nylock Nut 1/2 Nut - Fine
Qty Used: 2Regular price $3.29 USDRegular priceUnit price per
-
7#014-2025-00
Bearing Retainer Cap
Qty Used: 2Regular price $2.49 USDRegular priceUnit price per
-
8#018-0005-00
1-14 X 5 BOLT GR 8 ZC YELLOW
Qty Used: 2Regular price $5.89 USDRegular priceUnit price per
-
9#018-0040-00
1/2-13x8 1/2 Gr5 Hex Bolt
Qty Used: 2Regular price $14.59 USDRegular priceUnit price per
-
10#018-0044-00
3/8 x 2 1/2 Carriage Bolt
Qty Used: 8Regular price $2.69 USDRegular priceUnit price per
-
No sequence found for SKU:
1/4"-20 x 3/4 Black Oxide 18-8 Stainless Pan Head
Regular price $0.00 USDRegular priceUnit price per
-
12#022-2017-00
13x6.50-6 Caster Front
Qty Used: 2Regular price $87.99 USDRegular priceUnit price per
-
12.1#022-5347-00
13 x 6.50 - 6 Tire
Qty Used: 1Regular price $89.99 USDRegular priceUnit price per
-
12.2#022-7007-00
6 x 4.5 Black Wheel - Small Bore
Qty Used: 1Regular price $53.09 USDRegular priceUnit price per
-
12.3#022-7009-00
Ball Bearing w/clip; 99502H-NR; 5/8" Bore
Qty Used: 1Regular price $12.49 USDRegular priceUnit price per
-
13#023-1010-00
REV/MAV front fork
Qty Used: 2Regular price $145.95 USDRegular priceUnit price per
-
14#025-0003-00
MZ/ZT/Mav/ R Series Front Bearing Spacer
Qty Used: 2Regular price $13.12 USDRegular priceUnit price per
-
15#025-5202-00
Front Wheel Spanner-All Models
Qty Used: 2Regular price $9.49 USDRegular priceUnit price per
-
16#025-5337-00
.502x.750x1.130 Length Spacer
Qty Used: 2Regular price $2.91 USDRegular priceUnit price per
-
17#026-0049-00
2019 Stand On Front Bumper Plate--Orange
Qty Used: 1Regular price $24.99 USDRegular priceUnit price per
-
18#026-0084-00
Exhaust Shield Plate--Black
Qty Used: 1Regular price $12.99 USDRegular priceUnit price per
-
19#026-0085-00
Exhaust Backer Plate--Orange
Qty Used: 1Regular price $14.99 USDRegular priceUnit price per
-
-
21#030-7039-00
14 X 1-1/2 HWA A T/S Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
22#058-1000-00
Spacer ( Front Fork and Suspension )
Qty Used: 4Regular price $5.83 USDRegular priceUnit price per
-
23#070-5220-19
2019 Stand On Frame--Orange
Qty Used: 1Regular price $749.99 USDRegular priceUnit price per
