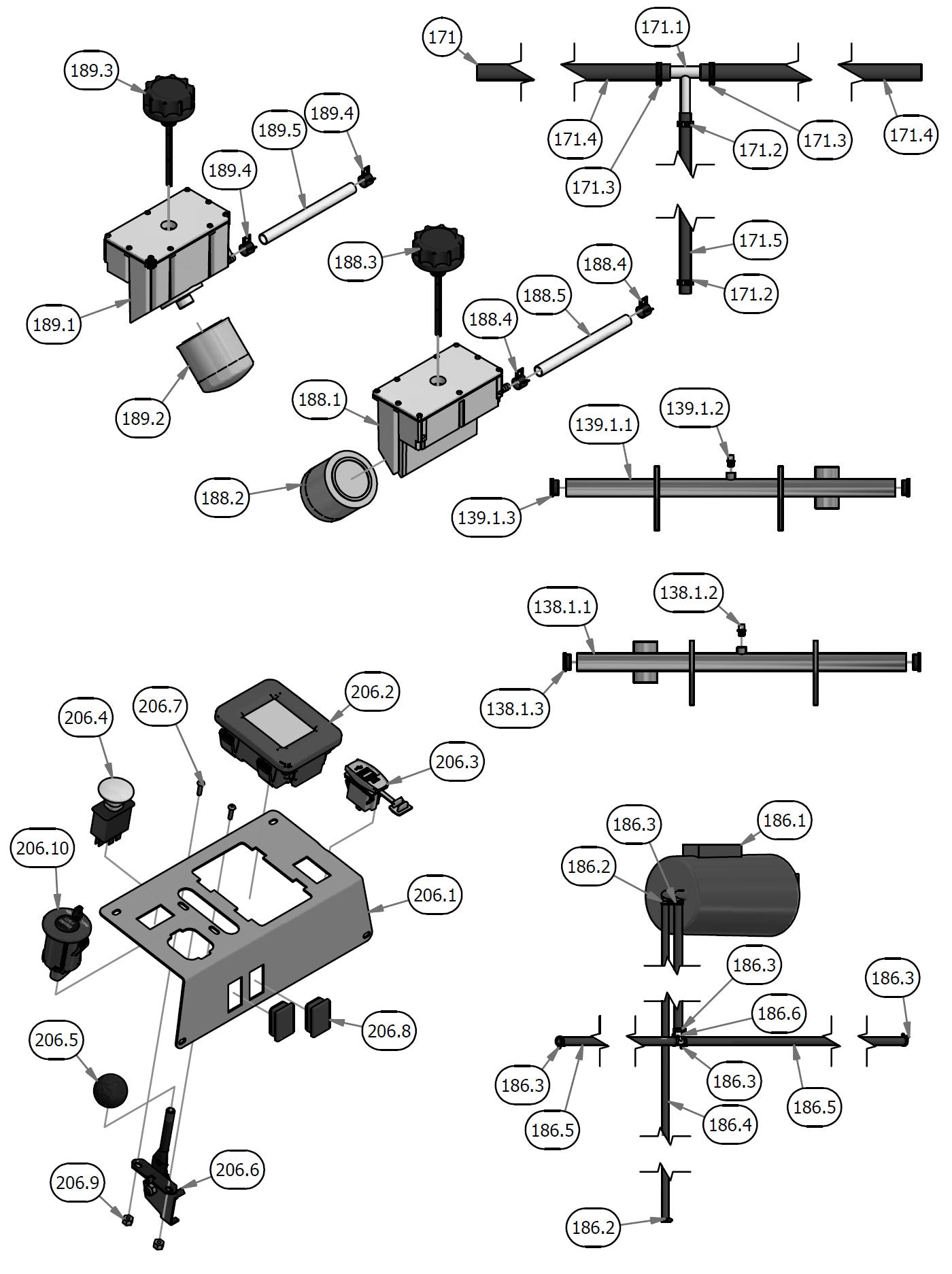

Sub Assemblies
Parts Index
- 138.1.2 1/4 Drive-in Grease Fitting (Qty 1)
- 138.1.3 Drive Arm Actuator Bushing (Qty 2)
- 139.1.2 1/4 Drive-in Grease Fitting (Qty 1)
- 139.1.3 Drive Arm Actuator Bushing (Qty 2)
- 171 2019 R-series Fuel Line for Vangaurd & Yamaha (Qty 1)
- 171.1 5/16 x 5/16 x 1/4 Fuel Line T (Qty 1)
- 171.2 1/4 Fuel Line Clamp (Qty 2)
- 171.3 5/8 Fuel Line Clamp (Qty 2)
- 171.4 26" 5/16 Fuel Line No Clamps (Qty 2)
- 171.5 22" 1/4" Fuel Line No Clamp (Qty 1)
- 186.1 Carbon Canister ZT,CZT,Outlaw (Qty 1)
- 186.2 3/16" Vinyl Hose Clamp (Qty 2)
- 186.3 MZ Tank Hose Clamp 1/4 Vinyl (Qty 6)
- 186.4 66" 3/16 Vinyl EPA Line (Qty 1)
- 186.5 38" 1/4 Vinyl Tubing (Qty 3)
- 186.6 Fuel Line T (Qty 1)
- 188.1 2019 RG/RN Hydro Tank LH (Qty 1)
- 188.2 Hydraulic Filter-All Models (Qty 1)
- 188.3 Hydraulic Tank Cap w/Dipstick (Qty 1)
- 188.4 1/2 Hose Clamp (Qty 2)
- 188.5 21" 1/2 Braided Hose (Qty 1)
- 189.1 2019 RG/RN Hydro Tank RH (Qty 1)
- 189.2 Hydraulic Filter-All Models (Qty 1)
- 189.3 Hydraulic Tank Cap w/Dipstick (Qty 1)
- 189.4 1/2 Hose Clamp (Qty 2)
- 189.5 21" 1/2 Braided Hose (Qty 1)
- 206.1 Digital Control Panel--Orange (Qty 1)
- 206.2 2019 LED Display (Qty 1)
- 206.3 USB Port (Qty 1)
- 206.4 PTO Engager-Switch for Blades (Qty 1)
- 206.5 Throttle / Brake Head Ball (Qty 1)
- 206.6 Universal Throttle Head - 2012 (Qty 1)
- 206.7 10-24 X 5/8 BS C/S 18-8 SS (Qty 2)
- 206.8 Light Plug (Qty 2)
- 206.9 10-24 Nylon Insert Locknut Zin (Qty 2)
- 206.10 2019 Push to Start Switch w/fob (Qty 1)
-
138.1.2139.1.2#024-6034-00
1/4 Drive-in Grease Fitting
Qty Used: 1Regular price $0.66 USDRegular priceUnit price per
-
138.1.3139.1.3#031-0032-00
Drive Arm Actuator Bushing
Qty Used: 2Regular price $6.62 USDRegular priceUnit price per
-
171#051-2019-22
2019 R-series Fuel Line for Vangaurd & Yamaha
Qty Used: 1Regular price $39.99 USDRegular priceUnit price per
-
171.1#073-8069-00
5/16 x 5/16 x 1/4 Fuel Line T
Qty Used: 1Regular price $8.88 USDRegular priceUnit price per
-
171.2#072-8069-00
1/4 Fuel Line Clamp
Qty Used: 2Regular price $0.88 USDRegular priceUnit price per
-
171.3#072-8068-00
5/8 Fuel Line Clamp
Qty Used: 2Regular price $3.29 USDRegular priceUnit price per
-
171.4#051-8075-26
26" 5/16 Fuel Line No Clamps
Qty Used: 2Regular price $17.50 USDRegular priceUnit price per
-
171.5#051-8067-22
22" 1/4" Fuel Line No Clamp
Qty Used: 1Regular price $10.99 USDRegular priceUnit price per
-
186.1#067-0020-00
Carbon Canister ZT,CZT,Outlaw
Qty Used: 1Regular price $58.32 USDRegular priceUnit price per
-
186.2#072-8073-00
3/16\" Vinyl Hose Clamp
Qty Used: 2Regular price $2.91 USDRegular priceUnit price per
-
186.3#072-8070-00
MZ Tank Hose Clamp 1/4 Vinyl
Qty Used: 6Regular price $1.45 USDRegular priceUnit price per
-
186.4#051-2025-66
66" 3/16 Vinyl EPA Line
Qty Used: 1Regular price $12.39 USDRegular priceUnit price per
-
186.5#051-8072-38
38" 1/4 Vinyl Tubing
Qty Used: 3Regular price $26.53 USDRegular priceUnit price per
-
186.6#073-8068-00
Fuel Line T
Qty Used: 1Regular price $8.82 USDRegular priceUnit price per
-
188.1#067-8053-00
2019 RG/RN Hydro Tank LH
Qty Used: 1Regular price $149.99 USDRegular priceUnit price per
-
188.2189.2#063-8014-00
Hydraulic Filter-All Models
Qty Used: 1Regular price $29.13 USDRegular priceUnit price per
-
188.3189.3#066-8050-00
Hydraulic Tank Cap w/Dipstick
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
188.4189.4#072-8066-00
1/2 Hose Clamp
Qty Used: 2Regular price $0.88 USDRegular priceUnit price per
-
188.5189.5#051-8064-21
21" 1/2 Braided Hose
Qty Used: 1Regular price $10.60 USDRegular priceUnit price per
-
189.1#067-8054-00
2019 RG/RN Hydro Tank RH
Qty Used: 1Regular price $149.99 USDRegular priceUnit price per
-
206.1#079-3482-00
Digital Control Panel--Orange
Qty Used: 1Regular price $51.75 USDRegular priceUnit price per
-
206.2#086-0013-00
2019 LED Display
Qty Used: 1Regular price $239.99 USDRegular priceUnit price per
-
-
206.4#056-8058-00
PTO Engager-Switch for Blades
Qty Used: 1Regular price $32.05 USDRegular priceUnit price per
-
206.5#055-2013-00
Throttle Head Ball
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
206.6#055-2012-00
Universal Throttle Head - 2012
Qty Used: 1Regular price $23.87 USDRegular priceUnit price per
-
206.7#018-5200-00
10-24 X 5/8 BS C/S 18-8 SS
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
206.8#018-1040-00
Light Plug
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
206.9#013-5019-00
10-24 Nylon Insert Locknut Zin
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
206.10#077-0004-00
2019 Push to Start Switch w/fob
Qty Used: 1Regular price $58.32 USDRegular priceUnit price per
