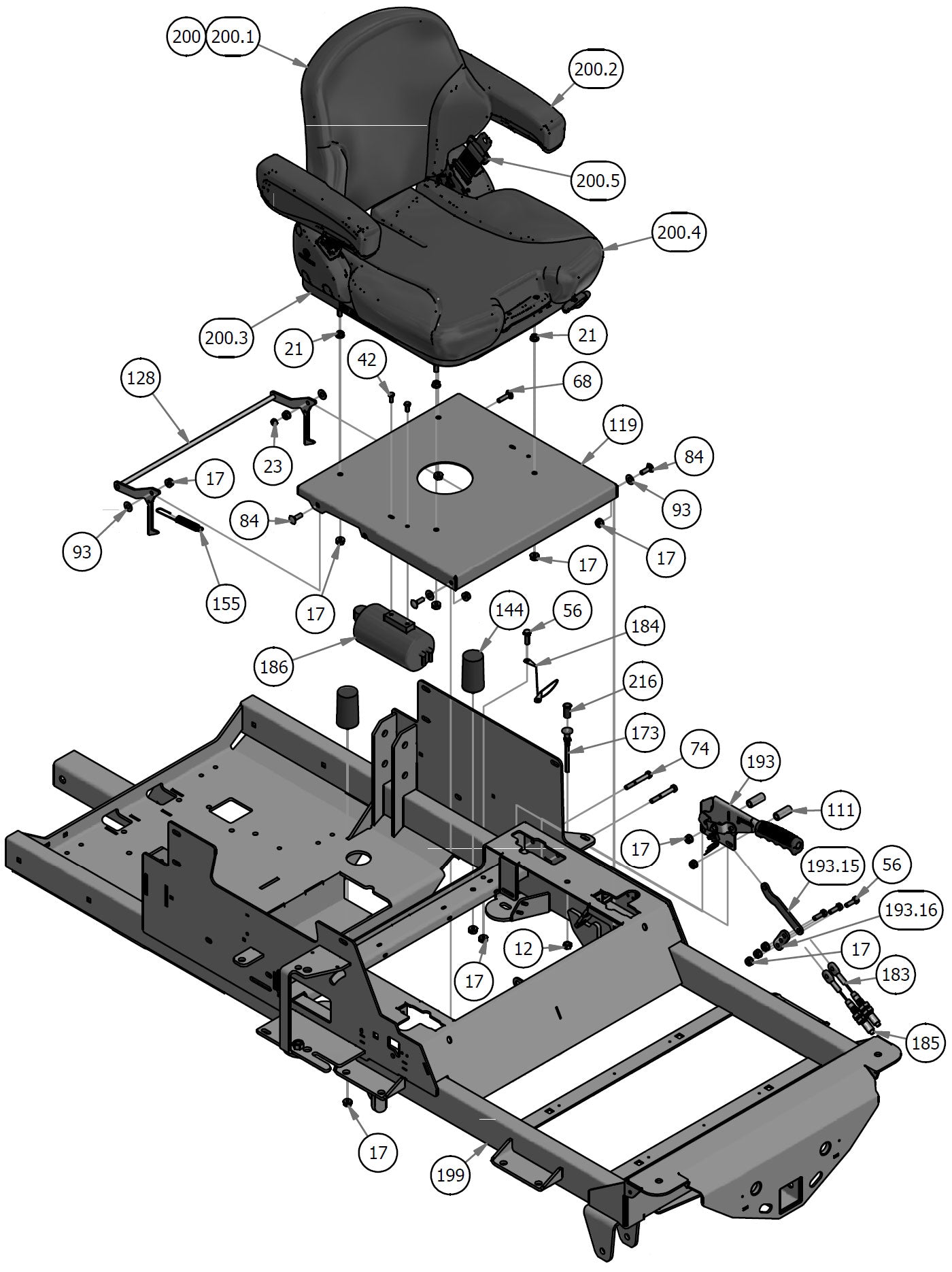

Seat & Brake
Parts Index
- 12 3/8-24 Hex Nut Zinc (Qty 1)
- 17 5/16-18 Nylon Flange Nut (Qty 16)
- 21 5/16-18 Hex Flange Nuts Zinc w (Qty 4)
- 23 5/16-18 Nylock Jam Nut (Qty 1)
- 42 M6-1.0 X 16MM HEX BOLT CL 8 (Qty 2)
- 56 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 4)
- 68 5/16-18 X 1-1/4 Carriage Bolt (Qty 1)
- 74 5/16 x 2 1/2 Bolt (Qty 2)
- 84 5/16-18 X 1 Carriage Bolt Zinc (Qty 3)
- 93 .360 ID Plastic Washer (Qty 4)
- 111 2019 Brake Handle Spacer .625 x 1.5 (Qty 2)
- 119 Seat Plate--Orange (Qty 1)
- 128 Seat Latch Rod (Qty 1)
- 144 Bumper (Seat) (Qty 2)
- 155 Brake Spring (Qty 1)
- 173 2019 36HP Vanguard FX1000 Rebel Choke Cable (Qty 1)
- 183 2019 Short Brake Cable-Suspension Models (Qty 1)
- 184 Seat Cable (Qty 1)
- 185 2019 Long Brake Cable-Renegade, Rogue (Qty 1)
- 186 2019 R-Series EPA Cannister Assembly (Qty 1)
- 186.1 Carbon Canister ZT,CZT,Outlaw (Qty 1)
- 186.2 3/16" Vinyl Hose Clamp (Qty 2)
- 186.3 MZ Tank Hose Clamp 1/4 Vinyl (Qty 6)
- 186.4 66" 3/16 Vinyl EPA Line (Qty 1)
- 186.5 38" 1/4 Vinyl Tubing (Qty 3)
- 186.6 Fuel Line T (Qty 1)
- 193 2019 Rebel, Rogue, Renegade Brake Handle Assy (Qty 1)
- 193.15 2019 Brake Load Balancer Tab-Upper (Qty 1)
- 193.16 2019 Brake Load Balancer Tab-Lower (Qty 1)
- 199 2019 Horizontal Gas Frame--Orange (Qty 1)
- 200 2019 Renegade Gas/Diesel Seat with Seatbelt (Qty 1)
- 200.1 Backrest Cushion for 2019 Renegade Gas/Diesel Seat (Qty 1)
- 200.2 Arm rest Kit for 2019 Renegade Gas/Diesel Seat (Qty 1)
- 200.3 Slave & Adjuster for 2019 Renegade Gas/Diesel Seat (Qty 1)
- 200.4 Seat Cushion for 2019 Renegade Gas/Diesel Seat (Qty 1)
- 200.5 Seatbelt for 2019 Renegade Gas/Diesel Seat (Qty 1)
- 200.6 Seat Switch for 2019 Renegade Gas/Diesel Seat/ (Qty 1)
- 216 MIL Light (Qty 1)
-
12#013-6051-00
3/8-24 Hex Nut Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
17#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 16Regular price $0.79 USDRegular priceUnit price per
-
21#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
23#013-9005-00
5/16-18 Nylock Jam Nut
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
42#018-0024-00
M6-1.0 X 16MM HEX BOLT CL 8
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
56#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 4Regular price $0.00 USDRegular priceUnit price per
-
68#018-4703-00
5/16-18 X 1-1/4 Carriage Bolt
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
74#018-5344-00
5/16 x 2 1/2 Bolt
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
84#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 3Regular price $0.79 USDRegular priceUnit price per
-
93#019-6042-00
.360 ID Plastic Washer
Qty Used: 4Regular price $0.00 USDRegular priceUnit price per
-
111#025-0027-00
2019 Brake Handle Spacer .625 x 1.5
Qty Used: 2Regular price $6.59 USDRegular priceUnit price per
-
119#026-2019-00
Seat Plate--Orange
Qty Used: 1Regular price $92.82 USDRegular priceUnit price per
-
128#028-0090-00
Seat Latch Rod
Qty Used: 1Regular price $36.42 USDRegular priceUnit price per
-
144#032-0001-00
Bumper (Seat)
Qty Used: 2Regular price $21.88 USDRegular priceUnit price per
-
155#034-1025-00
Compact Outlaw Brake Spring
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
173#054-8019-00
2019 36HP Vanguard FX1000 Rebel Choke Cable
Qty Used: 1Regular price $24.80 USDRegular priceUnit price per
-
183#064-8054-00
2019 Short Brake Cable-Suspension Models
Qty Used: 1Regular price $48.10 USDRegular priceUnit price per
-
184#064-8081-00
Seat Cable
Qty Used: 1Regular price $14.58 USDRegular priceUnit price per
-
185#064-9002-00
2019 Long Brake Cable-Renegade, Rogue
Qty Used: 1Regular price $48.10 USDRegular priceUnit price per
-
186#067-0020-19
2019 Outlaw EPA Cannister Assembly
Qty Used: 1Regular price $39.95 USDRegular priceUnit price per
-
186.1#067-0020-00
Carbon Canister ZT,CZT,Outlaw
Qty Used: 1Regular price $58.32 USDRegular priceUnit price per
-
186.2#072-8073-00
3/16\" Vinyl Hose Clamp
Qty Used: 2Regular price $2.91 USDRegular priceUnit price per
-
186.3#072-8070-00
MZ Tank Hose Clamp 1/4 Vinyl
Qty Used: 6Regular price $1.45 USDRegular priceUnit price per
-
186.4#051-2025-66
66" 3/16 Vinyl EPA Line
Qty Used: 1Regular price $12.39 USDRegular priceUnit price per
-
186.5#051-8072-38
38" 1/4 Vinyl Tubing
Qty Used: 3Regular price $26.53 USDRegular priceUnit price per
-
186.6#073-8068-00
Fuel Line T
Qty Used: 1Regular price $8.82 USDRegular priceUnit price per
-
193#069-0001-00
2019 Rebel, Rogue, Renegade Brake Handle Assy
Qty Used: 1Regular price $132.68 USDRegular priceUnit price per
-
193.15#039-2136-00
2019 Brake Load Balancer Tab-Upper
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
193.16#039-2138-00
2019 Brake Load Balancer Tab-Lower
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
199#070-5373-19
2019 Horizontal Gas Frame--Orange
Qty Used: 1Regular price $1,061.53 USDRegular priceUnit price per
-
200#071-5065-00
2019 Renegade Gas/Diesel Seat with Seatbelt
Qty Used: 1Regular price $899.99 USDRegular priceUnit price per
-
200.1#071-5065-03
Backrest Cushion for 2019 Renegade Gas/Diesel Seat
Qty Used: 1Regular price $169.99 USDRegular priceUnit price per
-
200.2#071-5065-06
Arm rest Kit for 2019 Renegade Gas/Diesel Seat
Qty Used: 1Regular price $132.68 USDRegular priceUnit price per
-
200.3#071-5065-05
Slave & Adjuster for 2019 Renegade Gas/Diesel Seat
Qty Used: 1Regular price $79.60 USDRegular priceUnit price per
-
200.4#071-5065-04
Seat Cushion for 2019 Renegade Gas/Diesel Seat
Qty Used: 1Regular price $179.99 USDRegular priceUnit price per
-
200.5#071-5065-02
Seatbelt for 2019 Renegade Gas/Diesel Seat
Qty Used: 1Regular price $132.68 USDRegular priceUnit price per
-
200.6#071-5065-07
Seat Switch for 2019 Renegade Gas/Diesel Seat
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
216#089-2000-00
Code Indicator Light-Yamaha
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
