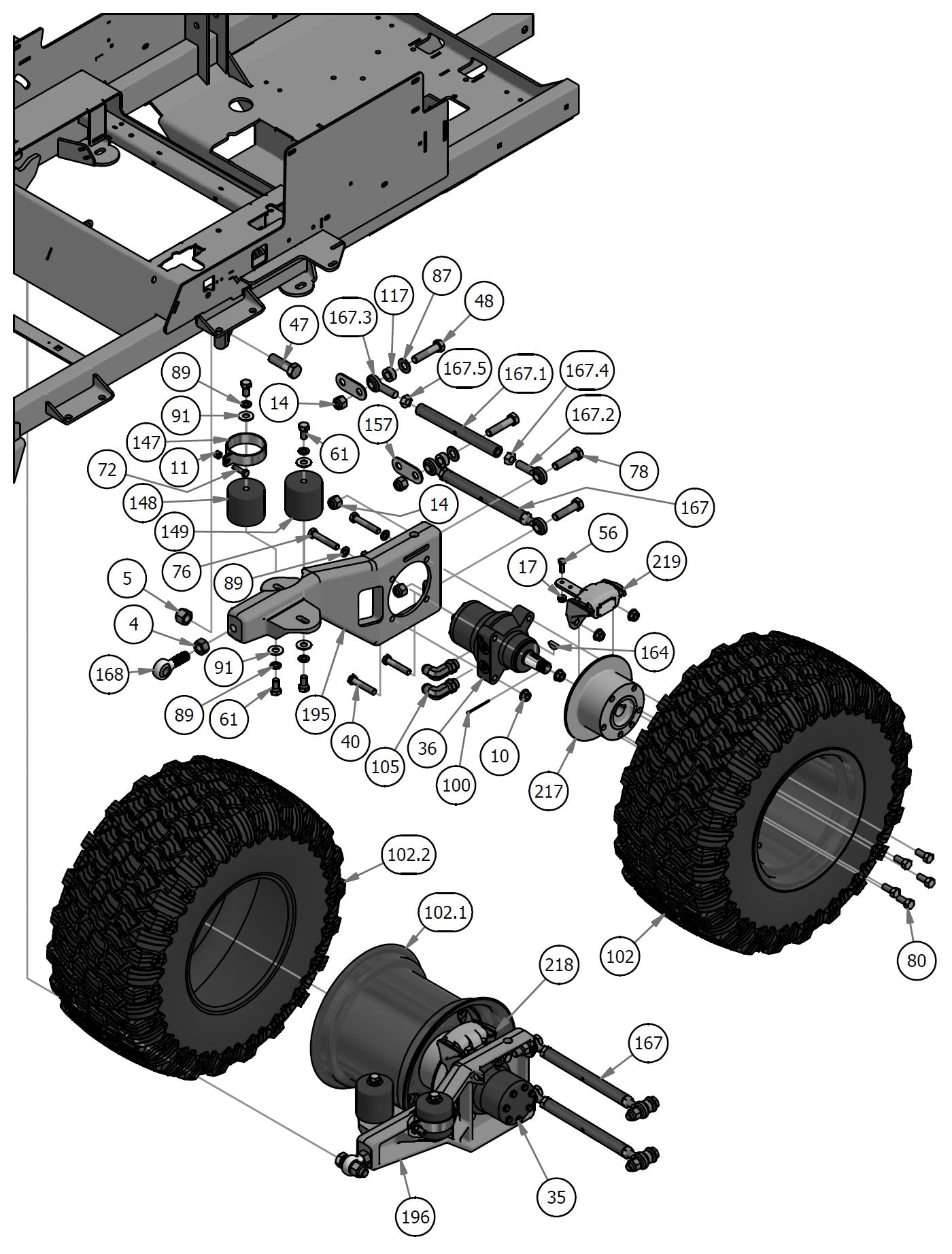

Rear Swing Arms
Parts Index
- 4 3/4"-16 Fine Full Nut (Qty 2)
- 5 3/4" Course Thread Nylon Lock Nut (Qty 2)
- 10 1/2-13 Hex Fange Nuts Zinc w/ (Qty 8)
- 11 3/8-16 Hex Nuts Zinc (Qty 2)
- 14 5/8-11 Nylon Insert Locknut Zi (Qty 8)
- 17 5/16-18 Nylon Flange Nut (Qty 2)
- 35 18ci Parker Wheel Motor-Right (Qty 1)
- 36 18ci Parker Wheel Motor - Left (Qty 1)
- 40 1/2-13 x 2 1/2 Hex Bolt Gr 5 (Qty 4)
- 47 3/4 x 2 1/2 Course Thread Bolt (Qty 2)
- 48 5/8-11 x 2 3/4 Hex Head Bolt GR 5 (Qty 4)
- 56 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 2)
- 61 1/2 x 1 Bolt (Qty 8)
- 72 3/8-16 X 1-1/4 GR 5 Hex Bolt (Qty 2)
- 76 1/2-13 X 2-3/4 GR 5 Bolt Zinc (Qty 4)
- 78 5/8-11 X 2-1/2 GR 5 Hex Bolts (Qty 4)
- 80 1/2-20 Wheel Bolt -3/4" 60 Degree Seat 1" Threads (Qty 10)
- 87 5/8" Flat Washer SAE Spec Grade 8 (Qty 4)
- 89 1/2 Lockwasher Zinc (Qty 12)
- 91 1/2 SAE Flat Washer GR 8 (Qty 8)
- 100 1/8 X 1 1/2 Cotter Pins Zinc (Qty 2)
- 102 2019 Assy-26x12-12 Reaper Turf 2019-10.5" Rim (Qty 2)
- 102.1 2019 10.5" Wheel Fits 022-4090-00 (Qty 2)
- 102.2 2019 26x12-12 Reaper Turf Tire (Qty 2)
- 105 2019 Rogue/Renegade Wheel Motor 90* Fitting (Qty 4)
- 117 5/8 Set Collar W/One Set Screw (Qty 4)
- 147 Isolator Band (Qty 2)
- 148 Isolator (Blue Dot) (Qty 2)
- 149 Isolator (Green Dot) (Qty 2)
- 157 2019 Suspension Gusset--Plated (Qty 2)
- 164 Woodruff Key-Wheel Motor (Qty 2)
- 167 OBSOLETE USE 048-6061-00 (Qty 4)
- 167.1 2019 Suspension Link Body-RH and LH Threads (Qty 4)
- 167.2 Heim 5/8" RH (Qty 4)
- 167.3 Heim 5/8" LH (Qty 4)
- 167.4 Nut, 5/8-18 RH (Qty 4)
- 167.5 Nut, 5/8-18 LH (Qty 4)
- 168 Heim 3/4" RH (Qty 2)
- 195 2019 Left Trailing Arm (Qty 1)
- 196 2019 Right Trailing Arm (Qty 1)
- 199 2019 Horizontal Gas Frame--Orange (Qty 1)
- 217 Brake Disc (96-37486) (Qty 2)
- 218 Brake Caliper with Bracket RH (Qty 1)
- 219 Brake Caliper with Bracket LH (Qty 1)
-
4#013-0022-00
3/4"-16 Fine Full Nut
Qty Used: 2Regular price $6.69 USDRegular priceUnit price per
-
5#013-0023-00
3/4" Course Thread Nylon Lock Nut
Qty Used: 2Regular price $6.69 USDRegular priceUnit price per
-
10#013-5300-00
1/2-13 Hex Fange Nuts Zinc w/
Qty Used: 8Regular price $0.79 USDRegular priceUnit price per
-
11#013-6014-00
3/8-16 Hex Nuts Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
14#013-7021-00
5/8-11 Nylon Insert Locknut Zi
Qty Used: 8Regular price $1.19 USDRegular priceUnit price per
-
17#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
35#015-4600-00
18ci Parker Wheel Motor-Right
Qty Used: 1Regular price $599.00 USDRegular priceUnit price per
-
36#015-4601-00
18ci Parker Wheel Motor - Left
Qty Used: 1Regular price $599.00 USDRegular priceUnit price per
-
40#018-0015-00
1/2-13 x 2 1/2 Hex Bolt Gr 5
Qty Used: 4Regular price $2.69 USDRegular priceUnit price per
-
47#018-0045-00
3/4 x 2 1/2 Course Thread Bolt
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
48#018-0049-00
5/8-11 x 2 3/4 Hex Head Bolt GR 5
Qty Used: 4Regular price $3.99 USDRegular priceUnit price per
-
56#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
61#018-2030-00
1/2 x 1 Bolt
Qty Used: 8Regular price $2.69 USDRegular priceUnit price per
-
72#018-5040-00
3/8-16 X 1-1/4 GR 5 Hex Bolt
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
76#018-6036-00
1/2-13 X 2-3/4 GR 5 Bolt Zinc
Qty Used: 4Regular price $1.59 USDRegular priceUnit price per
-
78#018-6059-00
5/8-11 X 2-1/2 GR 5 Hex Bolts
Qty Used: 4Regular price $2.29 USDRegular priceUnit price per
-
80#018-7033-00
1/2-20 Wheel Bolt -3/4" 60 Degree Seat 1" Threads
Qty Used: 10Regular price $1.99 USDRegular priceUnit price per
-
87#019-0009-00
5/8" Flat Washer SAE Spec Grade 8
Qty Used: 4Regular price $2.69 USDRegular priceUnit price per
-
89#019-5007-00
1/2 Lockwasher Zinc
Qty Used: 12Regular price $0.00 USDRegular priceUnit price per
-
91#019-5702-00
1/2 SAE Flat Washer GR 8
Qty Used: 8Regular price $0.75 USDRegular priceUnit price per
-
100#020-7022-00
1/8 X 1 1/2 Cotter Pins Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
102#022-4090-00
2019 Assy-26x12-12 Reaper Turf 2019-10.5" Rim
Qty Used: 2Regular price $209.99 USDRegular priceUnit price per
-
102.1#022-4086-00
2019 10.5" Wheel Fits 022-4090-00
Qty Used: 2Regular price $131.99 USDRegular priceUnit price per
-
102.2#022-4085-00
2019 26x12-12 Reaper Turf Tire
Qty Used: 2Regular price $209.99 USDRegular priceUnit price per
-
105#024-2065-00
2019 Rogue/Renegade Wheel Motor 90* Fitting
Qty Used: 4Regular price $17.45 USDRegular priceUnit price per
-
117#025-7020-00
5/8 Set Collar W/One Set Screw
Qty Used: 4Regular price $3.97 USDRegular priceUnit price per
-
147#032-7000-00
Isolator Band
Qty Used: 2Regular price $72.91 USDRegular priceUnit price per
-
148#032-8999-00
Isolator (Blue Dot)
Qty Used: 2Regular price $60.02 USDRegular priceUnit price per
-
149#032-9000-00
Isolator (Green Dot)
Qty Used: 2Regular price $66.33 USDRegular priceUnit price per
-
157#039-2145-00
2019 Suspension Gusset--Plated
Qty Used: 2Regular price $13.26 USDRegular priceUnit price per
-
164#042-7041-00
Woodruff Key-Wheel Motor
Qty Used: 2Regular price $13.26 USDRegular priceUnit price per
-
167#048-0001-98
OBSOLETE USE 048-6061-00
Qty Used: 4Regular price $0.00 USDRegular priceUnit price per
-
167.1#048-0001-00
2019 Suspension Link Body-RH and LH Threads
Qty Used: 4Regular price $26.47 USDRegular priceUnit price per
-
167.2#048-6062-00
Heim 5/8" RH
Qty Used: 4Regular price $19.89 USDRegular priceUnit price per
-
167.3#048-6063-00
Heim 5/8" LH
Qty Used: 4Regular price $19.89 USDRegular priceUnit price per
-
167.4#013-0019-00
Nut, 5/8-18 RH
Qty Used: 4Regular price $3.99 USDRegular priceUnit price per
-
167.5#013-0020-00
Nut, 5/8-18 LH
Qty Used: 4Regular price $3.99 USDRegular priceUnit price per
-
168#048-7001-00
Heim 3/4" RH
Qty Used: 2Regular price $26.53 USDRegular priceUnit price per
-
195#070-0001-00
2019 Left Trailing Arm
Qty Used: 1Regular price $291.91 USDRegular priceUnit price per
-
196#070-0002-00
2019 Right Trailing Arm
Qty Used: 1Regular price $219.99 USDRegular priceUnit price per
-
199#070-5373-19
2019 Horizontal Gas Frame--Orange
Qty Used: 1Regular price $1,061.53 USDRegular priceUnit price per
-
217#092-5201-00
Brake Disc (96-37486)
Qty Used: 2Regular price $119.36 USDRegular priceUnit price per
-
218#092-7000-00
Brake Caliper RH
Qty Used: 1Regular price $92.82 USDRegular priceUnit price per
-
219#092-7001-00
Brake Caliper with Bracket LH
Qty Used: 1Regular price $92.82 USDRegular priceUnit price per
