Rear Cover & Hydraulic Coolers

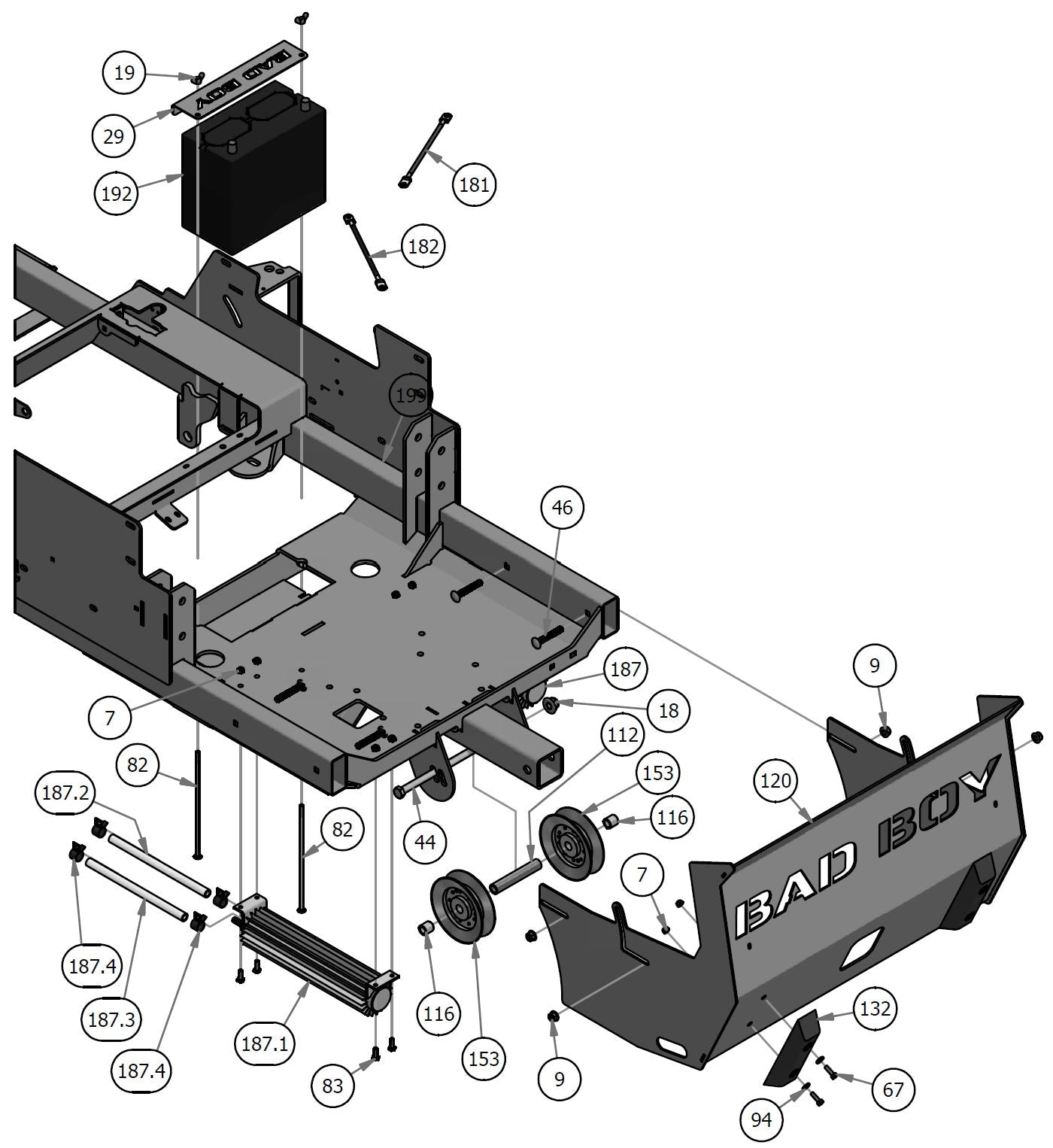

Parts Index
- 7 1/4-20 Nylon Insert Flange Nut (Qty 12)
- 9 3/8 Nylock Flange Nut (Qty 4)
- 18 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 19 1/4-20 Wing Nuts Zinc (Qty 2)
- 29 Battery Hold Down Cover--Orange (Qty 1)
- 44 1/2-13x8 1/2 Gr5 Hex Bolt (Qty 1)
- 46 1/2-13x8 1/2 Gr5 Hex Bolt (Qty 4)
- 67 3/8 x 2 1/2 Carriage Bolt (Qty 4)
- 82 1/4-20 X 9 Carriage Bolts Zinc (Qty 2)
- 83 1/4-20 X 3/4 GR 5 Hex Bolts (Qty 8)
- 94 1/4 USS Flat Washer Zinc (Qty 4)
- 112 2019 Pulley Spacer .75 x 4.375 x .5 ID (Qty 1)
- 116 Spacer 3/4ODx1/2IDx0.75 (Qty 2)
- 120 2019 Horizontal Suspension Rear Cover--Orange (Qty 1)
- 132 8 Bumper (Qty 2)
- 153 2019 Outlaw Horizontal Rear V Pulley (Qty 2)
- 181 Red Battery Cable - Diesel (Qty 1)
- 182 Black Battery Cable - Diesel (Qty 1)
- 187 Renegade Oil Cooler-Assy (Qty 2)
- 187.1 Oil Cooler( with fittings ) (Qty 2)
- 187.2 14" 3/8 Clear Hose No Clamp (Qty 2)
- 187.3 24" 3/8 Clear Hose No Clamps (Qty 2)
- 187.4 3/8 Hose Clamp - CTB-16-STFS (Qty 8)
- 192 Battery - Renegade (Qty 1)
- 199 2019 Horizontal Gas Frame--Orange (Qty 1)
-
7#013-2050-00
1/4-20 Nylon Insert Flange Nut
Qty Used: 12Regular price $1.39 USDRegular priceUnit price per
-
9#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 4Regular price $1.49 USDRegular priceUnit price per
-
18#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
19#013-8051-00
1/4-20 Wing Nuts Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
29#014-5063-00
Battery Hold Down Cover--Orange
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
4446#018-0040-00
1/2-13x8 1/2 Gr5 Hex Bolt
Qty Used: 4Regular price $14.59 USDRegular priceUnit price per
-
67#018-0044-00
3/8 x 2 1/2 Carriage Bolt
Qty Used: 4Regular price $2.69 USDRegular priceUnit price per
-
82#018-8051-00
1/4-20 X 9 Carriage Bolts Zinc
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
83#018-8052-00
1/4-20 X 3/4 GR 5 Hex Bolts
Qty Used: 8Regular price $0.69 USDRegular priceUnit price per
-
94#019-7040-00
1/4 USS Flat Washer Zinc
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
112#025-0028-00
2019 Pulley Spacer .75 x 4.375 x .5 ID
Qty Used: 1Regular price $8.74 USDRegular priceUnit price per
-
116#025-5203-00
Spacer 3/4ODx1/2IDx0.75
Qty Used: 2Regular price $2.99 USDRegular priceUnit price per
-
120#026-2224-00
2019 Horizontal Suspension Rear Cover--Orange
Qty Used: 1Regular price $169.99 USDRegular priceUnit price per
-
-
153#033-7027-00
2019 Outlaw Horizontal Rear V Pulley
Qty Used: 2Regular price $43.78 USDRegular priceUnit price per
-
181#064-4000-00
Red Battery Cable - Diesel
Qty Used: 1Regular price $20.85 USDRegular priceUnit price per
-
182#064-4001-00
Black Battery Cable - Diesel
Qty Used: 1Regular price $20.85 USDRegular priceUnit price per
-
187#067-8052-19
Renegade Oil Cooler-Assy
Qty Used: 2Regular price $66.33 USDRegular priceUnit price per
-
187.1#067-8052-00
Oil Cooler( with fittings )
Qty Used: 2Regular price $58.37 USDRegular priceUnit price per
-
187.2#051-8063-14
14" 3/8 Clear Hose No Clamp
Qty Used: 2Regular price $5.49 USDRegular priceUnit price per
-
187.3#051-8063-24
24" 3/8 Clear Hose No Clamps
Qty Used: 2Regular price $11.66 USDRegular priceUnit price per
-
187.4#072-8065-00
3/8 Hose Clamp - CTB-16-STFS
Qty Used: 8Regular price $0.88 USDRegular priceUnit price per
-
192#068-8050-00
Battery - Diesel/Renegade Models M -51
Qty Used: 1Regular price $134.99 USDRegular priceUnit price per
-
199#070-5373-19
2019 Horizontal Gas Frame--Orange
Qty Used: 1Regular price $1,061.53 USDRegular priceUnit price per
