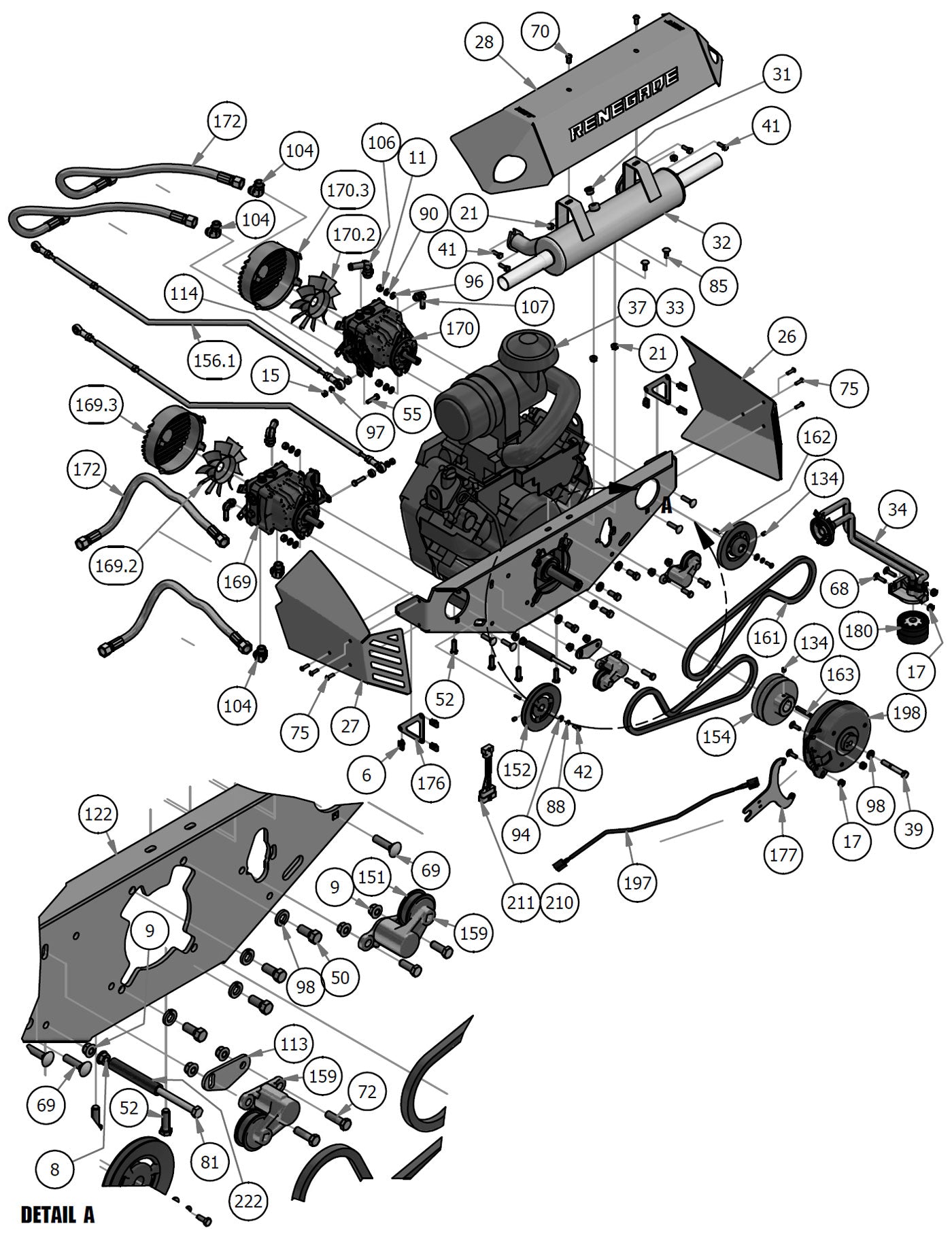

Engine Bay
Parts Index
- 6 1/4-20 Cage Nut (Qty 6)
- 8 3/8-16 Hex Flange Nuts Zinc w/ (Qty 1)
- 9 3/8 Nylock Flange Nut (Qty 5)
- 11 3/8-16 Hex Nuts Zinc (Qty 4)
- 15 5/16-18 Hex Nuts Zinc (Qty 2)
- 17 5/16-18 Nylon Flange Nut (Qty 4)
- 21 5/16-18 Hex Flange Nuts Zinc w (Qty 4)
- 26 Pump Cover--RH-Orange (Qty 1)
- 27 Pump Cover--LH-Orange (Qty 1)
- 28 Muffler Cover--Orange (Qty 1)
- 31 O2 Bung Plug 12mm x 1.25 CS (Qty 1)
- 32 2019 Renegade Vanguard 999cc EFI Exhaust (Qty 1)
- 33 2019 Vanguard EFI 37HP 993cc Horizontal Shaft (Qty 1)
- 34 Remote Oil Filter Kit For 015-3002-00 Engine (Qty 1)
- 37 2018 & Down 35hp Vanguard Engine (Qty 1)
- 39 7/16-20 x 3 Hex C/S GR 8 Yellow (Qty 1)
- 41 Torx Bolt-Exhaust-23hp Vanguard (Qty 4)
- 42 M6-1.0 X 16MM HEX BOLT CL 8 (Qty 2)
- 50 7/16-14 x 1 Hex Bolt GR 5 Zinc (Qty 4)
- 52 3/8-16 x 2 Hex/ Trilobe Horizontal Engine Bolt (Qty 4)
- 55 5/16-18 X 1-1/4 GR 5 Hex Bolt (Qty 2)
- 68 5/16-18 X 1-1/4 Carriage Bolt (Qty 2)
- 69 3/8 x 1 1/2 Carriage Bolt (Qty 4)
- 70 5/16-18 X 3/4 Bolt (Qty 2)
- 72 3/8-16 X 1-1/4 GR 5 Hex Bolt (Qty 2)
- 75 1/4-20 x 1" BS C/S 18-8 SS (Qty 6)
- 77 3/8-16 X 1 GR 5 Hex Bolts Zinc (Qty 1)
- 81 3/8-16 x 5 1/2 Hex Bolt - Grade 5 (Qty 1)
- 84 5/16-18 X 1 Carriage Bolt Zinc (Qty 2)
- 85 5/16 x 7/8 Carriage Bolt (Qty 2)
- 88 1/4 Lockwasher Zinc (Qty 2)
- 90 3/8 Lockwasher Zinc (Qty 4)
- 94 1/4 USS Flat Washer Zinc (Qty 2)
- 96 5/16 USS Flat Washer Zinc (Qty 4)
- 97 5/16 Lock washer Zinc (Qty 2)
- 98 7/16 Lock washer zinc (Qty 5)
- 104 Renegade Pump Fitting 90 Degree (Qty 4)
- 106 90 Degree Fitting, 1/2 x 3/4, (Qty 1)
- 107 90 Degree Fitting, 3/8 x 9/16, (Qty 2)
- 113 Horizontal Tensioner Spacer--Plated (Qty 1)
- 114 ACS Spacer 3/4x3/8x1/4 (Qty 2)
- 122 Pump Plate--Orange (Qty 1)
- 134 5/16-24 X 3/8 Set Screw (Qty 3)
- 151 2019 Renegade Horizontal Pump Idler Pulley (Qty 2)
- 152 Cast Pump Pulley - 17mm Assembly (Qty 2)
- 154 Renegade Horizontal Double V Pulley (Qty 1)
- 156 2019 Renegade Push Rod Assembly (Qty 2)
- 156.1 2019 Outlaw Gen2 Horizontal Push Rod (Qty 2)
- 156.2 2019 Outlaw Gen2 Horizontal Push Rod Adjuster (Qty 2)
- 156.3 3/8-24 Hex Nut Zinc (Qty 2)
- 156.4 Spherical Rod End - RH Thread - Rogue and Renegade (Qty 2)
- 156.5 Spherical Rod End - LH Thead - Rebel,Rogue,Renegad (Qty 2)
- 156.6 5/16 LH Nut (Qty 1)
- 156.7 5/16 RH Nut (Qty 1)
- 159 2019 Pump Belt Tensioner Dayco#89990 (Qty 2)
- 161 2019 Renegade / 2020 Revolt - Pump Belt (Qty 2)
- 162 OBSOLETE USE 042-5013-00 (Qty 2)
- 163 1/4 X 2 Square Key Stock (Qty 1)
- 169 2019 Rogue/Renegade Left Pump 16cc (Qty 1)
- 169.1 2019 Rogue/Renegade Left Pump 16cc (Qty 1)
- 169.2 Hydro Fan - Light/Pup/Outlaw XP (Qty 1)
- 169.3 Fan Guard 6" - Fits Wheel (Qty 1)
- 170 Renegade Right Pump 16cc (Qty 1)
- 170.1 Renegade Right Pump 16cc (Qty 1)
- 170.2 Hydro Fan - Light/Pup/Outlaw XP (Qty 1)
- 170.3 Fan Guard 6" - Fits Wheel (Qty 1)
- 172 2019 Renegade Hydro Hose (Qty 4)
- 176 Pump Plate Clip Nut Holder--Plated (Qty 2)
- 177 2019 Outlaw Renegade Clutch Bracket--Plated (Qty 1)
- 180 Briggs Oil Filter (Qty 1)
- 197 Clutch Pigtail (Qty 1)
- 198 Renegade Clutch (Qty 1)
- 210 2019 Harness Adaptor-36 Vanguard Carb (Qty 1)
- 211 2019 Harness Adaptor- Vanguard 37 EFI Vert/Horiz (Qty 1)
- 222 3/8 Fuel Line-Priced per Foot (Qty 1)
-
156.4#048-3003-00
Spherical Rod End - RH Thread - Rogue and Renegade
Qty Used: 2Regular price $19.89 USDRegular priceUnit price per
-
156.5#048-3002-00
Spherical Rod End - LH Thead - Rebel,Rogue,Renegad
Qty Used: 2Regular price $29.99 USDRegular priceUnit price per
-
156.6#013-6050-00
5/16 LH Nut
Qty Used: 1Regular price $3.99 USDRegular priceUnit price per
-
156.7#013-6049-00
5/16 RH Nut
Qty Used: 1Regular price $3.99 USDRegular priceUnit price per
-
159#039-5900-00
2019 Pump Belt Tensioner Dayco#89990
Qty Used: 2Regular price $51.07 USDRegular priceUnit price per
-
161#041-8000-00
2019 Renegade / 2020 Revolt - Pump Belt
Qty Used: 2Regular price $74.99 USDRegular priceUnit price per
-
162#042-5012-00
OBSOLETE USE 042-5013-00
Qty Used: 2Regular price $2.92 USDRegular priceUnit price per
-
163#042-5020-00
1/4 X 2 Square Key Stock
Qty Used: 1Regular price $2.92 USDRegular priceUnit price per
-
169169.1#050-3001-00
2019 Rogue/Renegade Left Pump 16cc
Qty Used: 1Regular price $499.99 USDRegular priceUnit price per
-
169.2170.2#015-9999-00
Hydro Fan - Light/Pup/Outlaw XP
Qty Used: 1Regular price $24.99 USDRegular priceUnit price per
-
169.3170.3#014-5600-00
Fan Guard 6" - Fits Wheel
Qty Used: 1Regular price $37.21 USDRegular priceUnit price per
-
170170.1#050-3003-00
2019 Outlaw Renegade Right Pump 16cc
Qty Used: 1Regular price $729.79 USDRegular priceUnit price per
-
172#051-6007-00
2019 Renegade Hydro Hose
Qty Used: 4Regular price $51.07 USDRegular priceUnit price per
-
176#057-5915-00
Pump Plate Clip Nut Holder--Plated
Qty Used: 2Regular price $15.99 USDRegular priceUnit price per
-
177#057-5919-00
2019 Outlaw Renegade Clutch Bracket--Plated
Qty Used: 1Regular price $26.53 USDRegular priceUnit price per
-
180#063-8018-00
Briggs Oil Filter
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
197#070-2000-00
Clutch Pigtail
Qty Used: 1Regular price $19.85 USDRegular priceUnit price per
-
198#070-5040-00
Renegade Clutch
Qty Used: 1Regular price $359.99 USDRegular priceUnit price per
-
210#086-9001-19
2019 Harness Adaptor-36 Vanguard Carb
Qty Used: 1Regular price $49.99 USDRegular priceUnit price per
-
211#086-9013-00
2019 Harness Adaptor- Vanguard 37 EFI Vert/Horiz
Qty Used: 1Regular price $26.53 USDRegular priceUnit price per
-
222#051-8076-00
3/8 Fuel Line-Priced per Foot
Qty Used: 1Regular price $4.37 USDRegular priceUnit price per
-
6#013-0054-00
1/4-20 Cage Nut
Qty Used: 6Regular price $0.69 USDRegular priceUnit price per
-
8#013-5201-00
3/8-16 Hex Flange Nuts Zinc w/
Qty Used: 1Regular price $1.49 USDRegular priceUnit price per
-
9#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 5Regular price $1.49 USDRegular priceUnit price per
-
11#013-6014-00
3/8-16 Hex Nuts Zinc
Qty Used: 4Regular price $0.00 USDRegular priceUnit price per
-
15#013-8043-00
5/16-18 Hex Nuts Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
17#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
21#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
26#014-5060-00
Pump Cover--RH-Orange
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
27#014-5061-00
Pump Cover--LH-Orange
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
28#014-5062-00
Muffler Cover--Orange
Qty Used: 1Regular price $26.53 USDRegular priceUnit price per
-
31#015-0050-01
O2 Bung Plug 12mm x 1.25 CS
Qty Used: 1Regular price $8.99 USDRegular priceUnit price per
-
32#015-1018-00
2019 Renegade Vanguard 999cc EFI Exhaust
Qty Used: 1Regular price $233.53 USDRegular priceUnit price per
-
33#015-3002-00
2019 Vanguard EFI 37HP 993cc Horizontal Shaft
Qty Used: 1Regular price $3,299.00 USDRegular priceUnit price per
-
34#015-3002-01
Remote Oil Filter Kit For 015-3002-00 Engine
Qty Used: 1Regular price $259.99 USDRegular priceUnit price per
-
37#015-5405-00
2018 & Down 35hp Vanguard Engine
Qty Used: 1Regular price $3,495.00 USDRegular priceUnit price per
-
39#018-0007-00
7/16-20 x 3 Hex C/S GR 8 Yellow
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
41#018-0017-00
Torx Bolt-Exhaust-23hp Vanguard
Qty Used: 4Regular price $5.29 USDRegular priceUnit price per
-
42#018-0024-00
M6-1.0 X 16MM HEX BOLT CL 8
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
50#018-0053-00
7/16-14 x 1 Hex Bolt GR 5 Zinc
Qty Used: 4Regular price $1.99 USDRegular priceUnit price per
-
52#018-0061-00
3/8-16 x 2 Hex/ Trilobe Horizontal Engine Bolt
Qty Used: 4Regular price $5.39 USDRegular priceUnit price per
-
55#018-2006-00
5/16-18 X 1-1/4 GR 5 Hex Bolt
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
68#018-4703-00
5/16-18 X 1-1/4 Carriage Bolt
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
69#018-4706-00
3/8 x 1 1/2 Carriage Bolt
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-
70#018-5007-00
5/16-18 X 3/4 Bolt
Qty Used: 2Regular price $0.89 USDRegular priceUnit price per
-
72#018-5040-00
3/8-16 X 1-1/4 GR 5 Hex Bolt
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
75#018-6014-00
1/4-20 x 1" BS C/S 18-8 SS
Qty Used: 6Regular price $5.29 USDRegular priceUnit price per
-
77#018-6049-00
3/8-16 X 1 GR 5 Hex Bolts Zinc
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
81#018-7060-00
3/8-16 x 5 1/2 Hex Bolt - Grade 5
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
84#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
85#018-8066-00
5/16 x 7/8 Carriage Bolt
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
88#019-4008-00
1/4 Lockwasher Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
90#019-5037-00
3/8 Lockwasher Zinc
Qty Used: 4Regular price $0.00 USDRegular priceUnit price per
-
94#019-7040-00
1/4 USS Flat Washer Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
96#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
97#019-8051-00
5/16 Lock washer Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
98#019-8053-00
7/16 Lock washer zinc
Qty Used: 5Regular price $0.69 USDRegular priceUnit price per
-
104#024-2052-00
2019 Outlaw Renegade Pump Fitting 90 Degree
Qty Used: 4Regular price $11.66 USDRegular priceUnit price per
-
106#024-5002-00
90 Degree Fitting, 1/2 x 3/4,
Qty Used: 1Regular price $16.48 USDRegular priceUnit price per
-
107#024-5206-00
90 Degree Fitting, 3/8 x 9/16,
Qty Used: 2Regular price $11.61 USDRegular priceUnit price per
-
113#025-0075-00
Horizontal Tensioner Spacer--Plated
Qty Used: 1Regular price $6.99 USDRegular priceUnit price per
-
114#025-2001-00
ACS Spacer 3/4x3/8x1/4
Qty Used: 2Regular price $14.58 USDRegular priceUnit price per
-
122#026-8010-00
Pump Plate--Orange
Qty Used: 1Regular price $99.99 USDRegular priceUnit price per
-
134#030-0075-00
5/16-24 X 3/8 Set Screw
Qty Used: 3Regular price $1.49 USDRegular priceUnit price per
-
151#033-1875-00
2019 Renegade Horizontal Pump Idler Pulley
Qty Used: 2Regular price $9.99 USDRegular priceUnit price per
-
152#033-5011-00
Cast Pump Pulley - 17mm Assembly
Qty Used: 2Regular price $33.16 USDRegular priceUnit price per
-
154#033-8001-00
2019 Outlaw Renegade Horizontal Double V Pulley
Qty Used: 1Regular price $43.99 USDRegular priceUnit price per
-
156#035-0005-00
2019 Renegade Push Rod Assembly
Qty Used: 2Regular price $43.78 USDRegular priceUnit price per
-
156.1#035-0005-01
2019 Outlaw Gen2 Horizontal Push Rod
Qty Used: 2Regular price $32.99 USDRegular priceUnit price per
-
156.2#035-0006-00
2019 Outlaw Gen2 Horizontal Push Rod Adjuster
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
156.3#013-6051-00
3/8-24 Hex Nut Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
