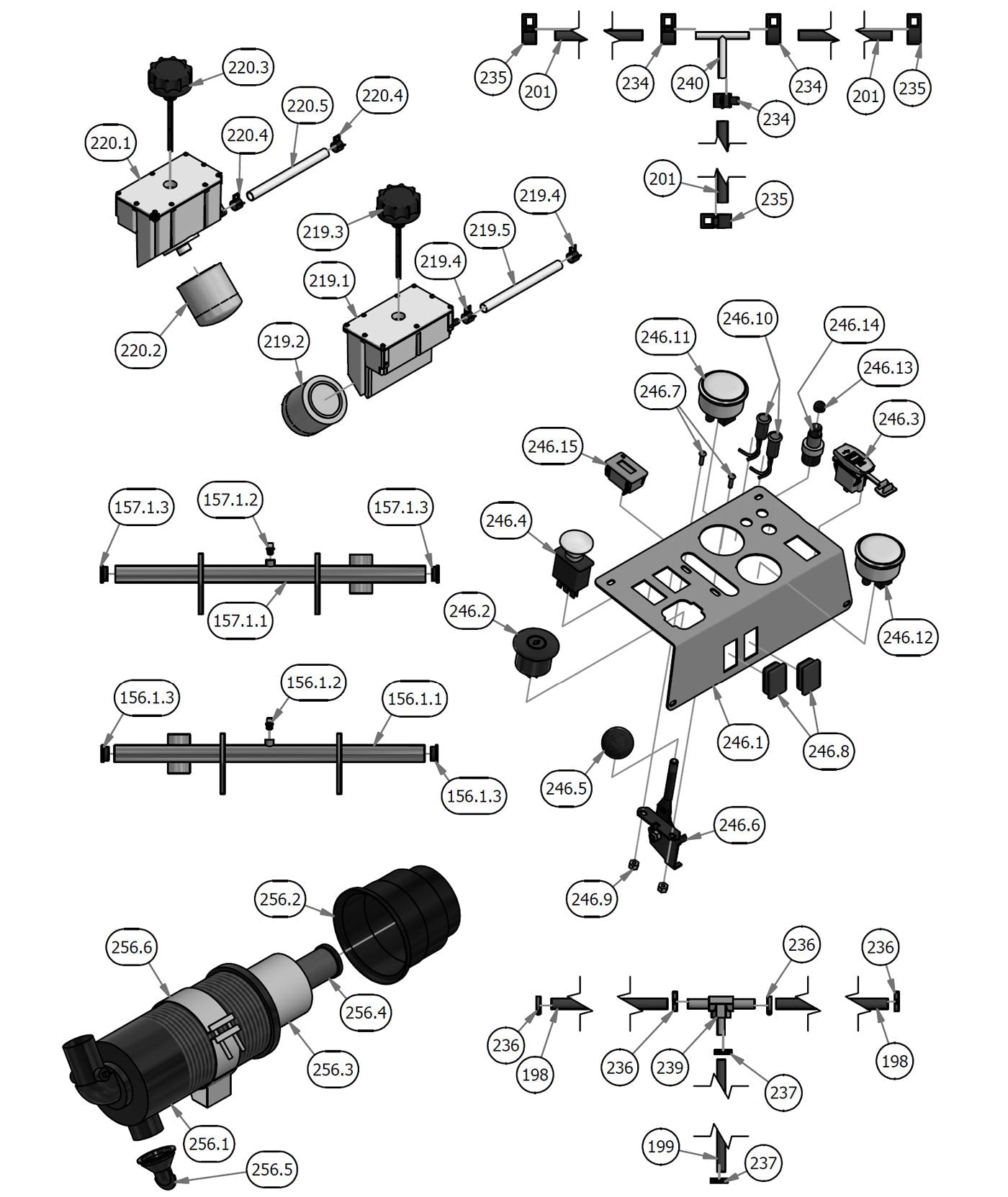

Sub Assemblies
Parts Index
- 156.1 Drive Arm Actuator RH (Qty 1)
- 156.1.1 Drive Arm Actuator RH (Qty 1)
- 156.1.2 1/4 Drive-in Grease Fitting (Qty 1)
- 156.1.3 Drive Arm Actuator Bushing (Qty 2)
- 157.1 Drive Arm Actuator LH (Qty 1)
- 157.1.2 1/4 Drive-in Grease Fitting (Qty 1)
- 157.1.3 Drive Arm Actuator Bushing (Qty 2)
- 198 1/4 Fuel Line Hose PRICED/FOOT (Qty 2)
- 199 3/16 Fuel Line (Qty 1)
- 201 5/16 Fuel Line Hose (Qty 3)
- 234 5/16 Hose Clamp (8.5) (Qty 3)
- 235 5/8 Hose Clamp SS (Qty 3)
- 236 1/4 Fuel Line Clamp (Qty 4)
- 237 MZ Tank Hose Clamp 1/4 Vinyl (Qty 2)
- 239 Brass Fuel Line T - Diesels (Qty 1)
- 240 5/16 x 5/16 x 5/16 Fuel Line T (Qty 1)
- 219 LH Renegade Hydro Tank Assy (Qty 1)
- 219.1 2019 RG/RN Hydro Tank LH (Qty 1)
- 219.2 Hydraulic Filter-All Models (Qty 1)
- 219.3 Hydraulic Tank Cap w/Dipstick (Qty 1)
- 219.4 1/2 Hose Clamp (Qty 2)
- 219.5 21" 1/2 Braided Hose (Qty 1)
- 220 RH Renegade Hydro Tank Assy (Qty 1)
- 220.1 2019 RG/RN Hydro Tank RH (Qty 1)
- 220.2 Hydraulic Filter-All Models (Qty 1)
- 220.3 Hydraulic Tank Cap w/Dipstick (Qty 1)
- 220.4 1/2 Hose Clamp (Qty 2)
- 220.5 21" 1/2 Braided Hose (Qty 1)
- 256 Enginaire Canister VLR-Complet (Qty 1)
- 256.1 Canister forAll Diesel Air (Qty 1)
- 256.2 Enginaire air canister cap (Qty 1)
- 256.3 Diesel Air Filter - Outer (Qty 1)
- 256.4 Diesel Air Filter - Inner (Qty 1)
- 256.5 Debris Plug-Enginaire Filter (Qty 1)
- 256.6 Mounting Bracket for Diesel Ai (Qty 1)
- 246 Renegade Diesel Control Panel Assy (Qty 1)
- 246.1 Control Panel--Orange (Qty 1)
- 246.2 Ignition Switch (Qty 1)
- 246.3 USB Port (Qty 1)
- 246.4 PTO Engager-Switch for Blades (Qty 1)
- 246.5 Throttle / Brake Head Ball (Qty 1)
- 246.6 Universal Throttle Head - 2012 (Qty 2)
- 246.7 10-24 X 5/8 BS C/S 18-8 SS (Qty 2)
- 246.8 Light Plug (Qty 2)
- 246.9 10-24 Nylon Insert Locknut Zin (Qty 2)
- 246.10 Oil Light (Qty 2)
- 246.11 2" Oil Pressure Gauge (Qty 1)
- 246.12 2" Water Temperature Gauge (Qty 1)
- 246.13 Start Switch Boot - Diesel (Qty 1)
- 246.14 Momentary Start Switch (Qty 1)
- 246.15 Tachometer-N310-0100-1018 (Qty 1)
-
156.1156.1.1#031-0030-00
Drive Arm Actuator RH
Qty Used: 1Regular price $43.72 USDRegular priceUnit price per
-
156.1.2157.1.2#024-6034-00
1/4 Drive-in Grease Fitting
Qty Used: 1Regular price $0.66 USDRegular priceUnit price per
-
156.1.3157.1.3#031-0032-00
Drive Arm Actuator Bushing
Qty Used: 2Regular price $6.62 USDRegular priceUnit price per
-
157.1#031-0031-00
Drive Arm Actuator LH
Qty Used: 1Regular price $43.72 USDRegular priceUnit price per
-
198#051-8067-00
1/4 Fuel Line Hose PRICED/FOOT
Qty Used: 2Regular price $5.83 USDRegular priceUnit price per
-
199#051-8068-00
3/16 Fuel Line
Qty Used: 1Regular price $3.26 USDRegular priceUnit price per
-
201#051-8075-00
5/16 Fuel Line Hose
Qty Used: 3Regular price $4.37 USDRegular priceUnit price per
-
234#072-8050-00
5/16 Hose Clamp (8.5)
Qty Used: 3Regular price $0.00 USDRegular priceUnit price per
-

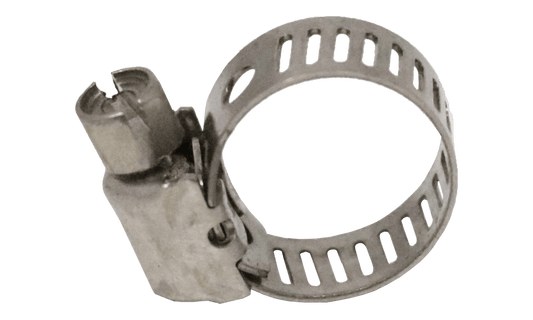

235#072-8067-00
5/8 Hose Clamp SS
Qty Used: 3Regular price $1.79 USDRegular priceUnit price per
-
236#072-8069-00
1/4 Fuel Line Clamp
Qty Used: 4Regular price $0.88 USDRegular priceUnit price per
-
237#072-8070-00
MZ Tank Hose Clamp 1/4 Vinyl
Qty Used: 2Regular price $1.45 USDRegular priceUnit price per
-
239#073-2000-00
Brass Fuel Line T - Diesels
Qty Used: 1Regular price $9.28 USDRegular priceUnit price per
-
240#073-8070-00
5/16 x 5/16 x 5/16 Fuel Line T
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
219#067-8053-18
LH Renegade Hydro Tank Assy
Qty Used: 1Regular price $201.96 USDRegular priceUnit price per
-

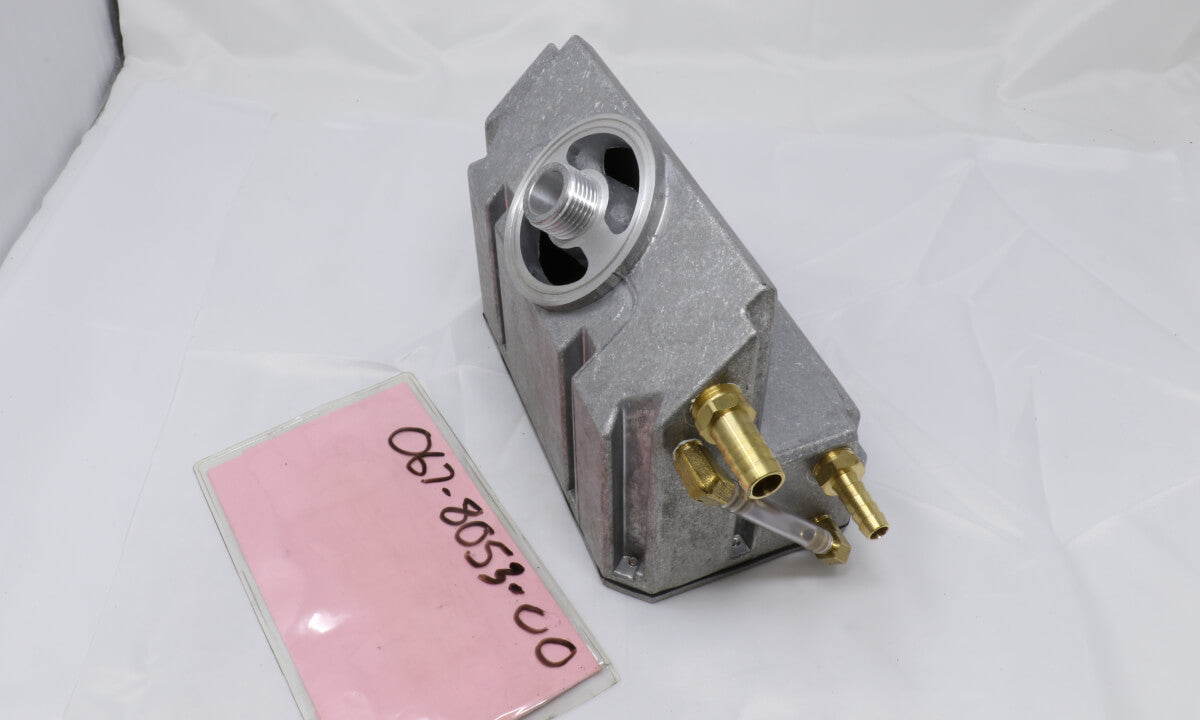

219.1#067-8053-00
2019 RG/RN Hydro Tank LH
Qty Used: 1Regular price $149.99 USDRegular priceUnit price per
-

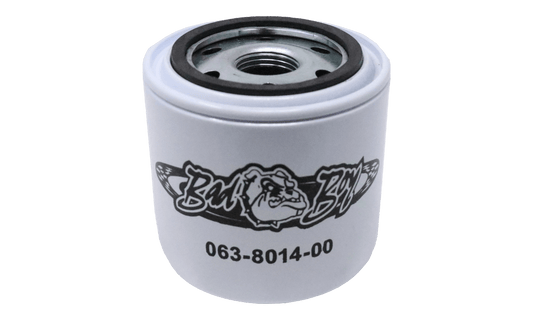

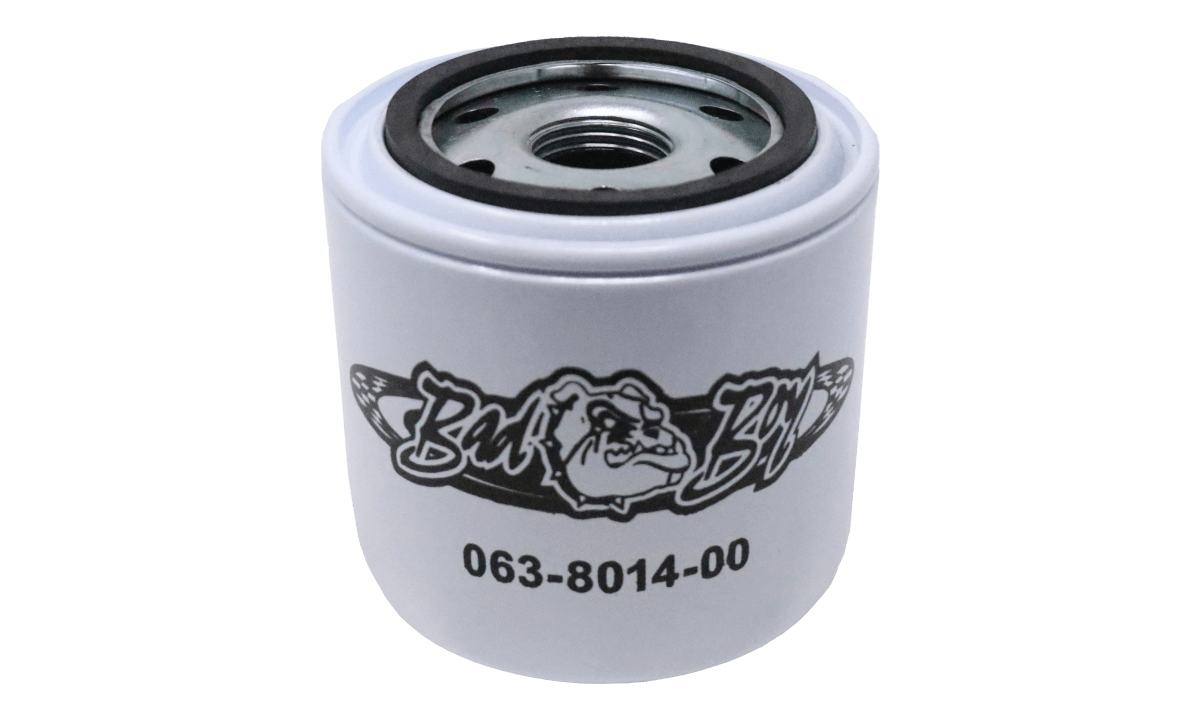

219.2220.2#063-8014-00
Hydraulic Filter-All Models
Qty Used: 1Regular price $29.13 USDRegular priceUnit price per
-

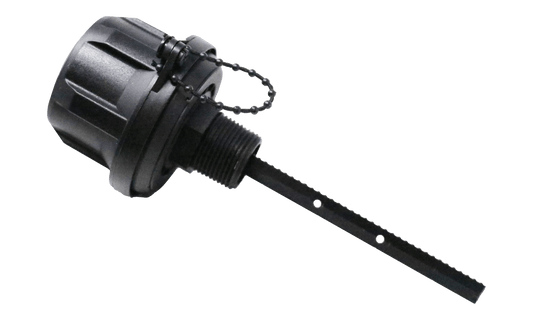

219.3220.3#066-8050-00
Hydraulic Tank Cap w/Dipstick
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
219.4220.4#072-8066-00
1/2 Hose Clamp
Qty Used: 2Regular price $0.88 USDRegular priceUnit price per
-
219.5220.5#051-8064-21
21" 1/2 Braided Hose
Qty Used: 1Regular price $10.60 USDRegular priceUnit price per
-
220#067-8054-18
RH Renegade Hydro Tank Assy
Qty Used: 1Regular price $201.96 USDRegular priceUnit price per
-

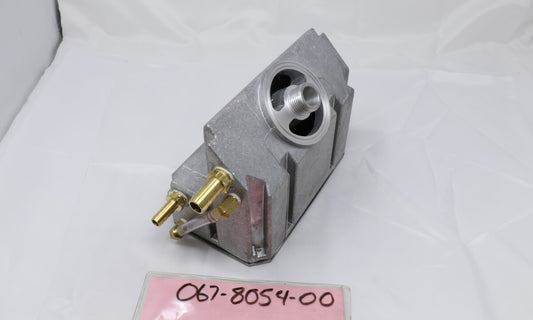

220.1#067-8054-00
2019 RG/RN Hydro Tank RH
Qty Used: 1Regular price $149.99 USDRegular priceUnit price per
-
256#088-1010-50
Enginaire Canister VLR-Complet
Qty Used: 1Regular price $197.71 USDRegular priceUnit price per
-
256.1#088-1018-00
Canister forAll Diesel Air
Qty Used: 1Regular price $79.60 USDRegular priceUnit price per
-
256.2#088-1017-00
Enginaire air canister cap
Qty Used: 1Regular price $59.99 USDRegular priceUnit price per
-
256.3#063-2050-00
Diesel Air Filter - Outer
Qty Used: 1Regular price $43.72 USDRegular priceUnit price per
-
256.4#063-2060-00
Diesel Air Filter - Inner
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
256.5#088-1020-00
Debris Plug-Enginaire Filter
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
256.6#088-1019-00
Mounting Bracket for Diesel Ai
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
246#079-3480-19
Renegade Diesel Control Panel Assy
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
246.1#079-3480-00
Control Panel--Orange
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
246.2#077-8076-00
Ignition Switch
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
-
246.4#056-8058-00
PTO Engager-Switch for Blades
Qty Used: 1Regular price $32.05 USDRegular priceUnit price per
-
246.5#055-2013-00
Throttle Head Ball
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-

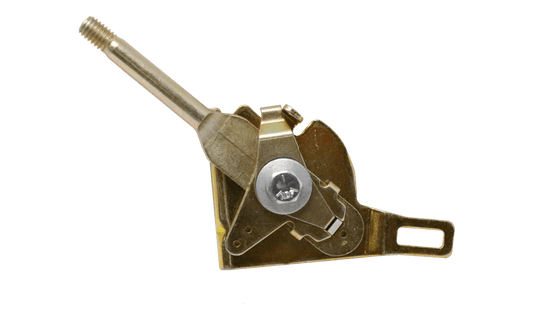

246.6#055-2012-00
Universal Throttle Head - 2012
Qty Used: 2Regular price $23.87 USDRegular priceUnit price per
-
246.7#018-5200-00
10-24 X 5/8 BS C/S 18-8 SS
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
246.8#018-1040-00
Light Plug
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
246.9#013-5019-00
10-24 Nylon Insert Locknut Zin
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
-
246.11#086-7000-00
2" Oil Pressure Gauge
Qty Used: 1Regular price $100.71 USDRegular priceUnit price per
-
246.12#086-7001-00
2" Water Temperature Gauge
Qty Used: 1Regular price $100.71 USDRegular priceUnit price per
-

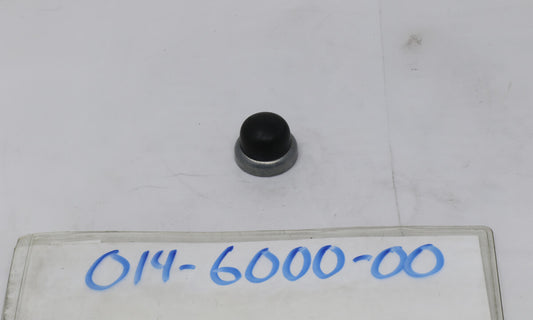

246.13#014-6000-00
Start Switch Boot - Diesel
Qty Used: 1Regular price $4.43 USDRegular priceUnit price per
-

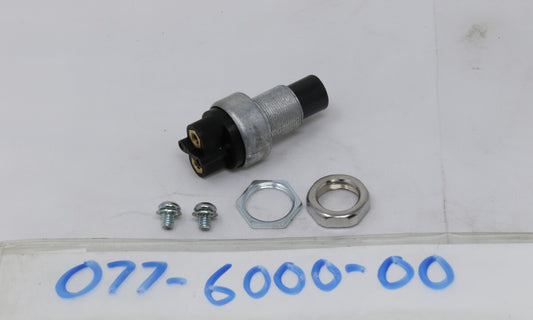

246.14#077-6000-00
Momentary Start Switch
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
246.15#083-4013-00
Tachometer-N310-0100-1018
Qty Used: 1Regular price $69.99 USDRegular priceUnit price per
