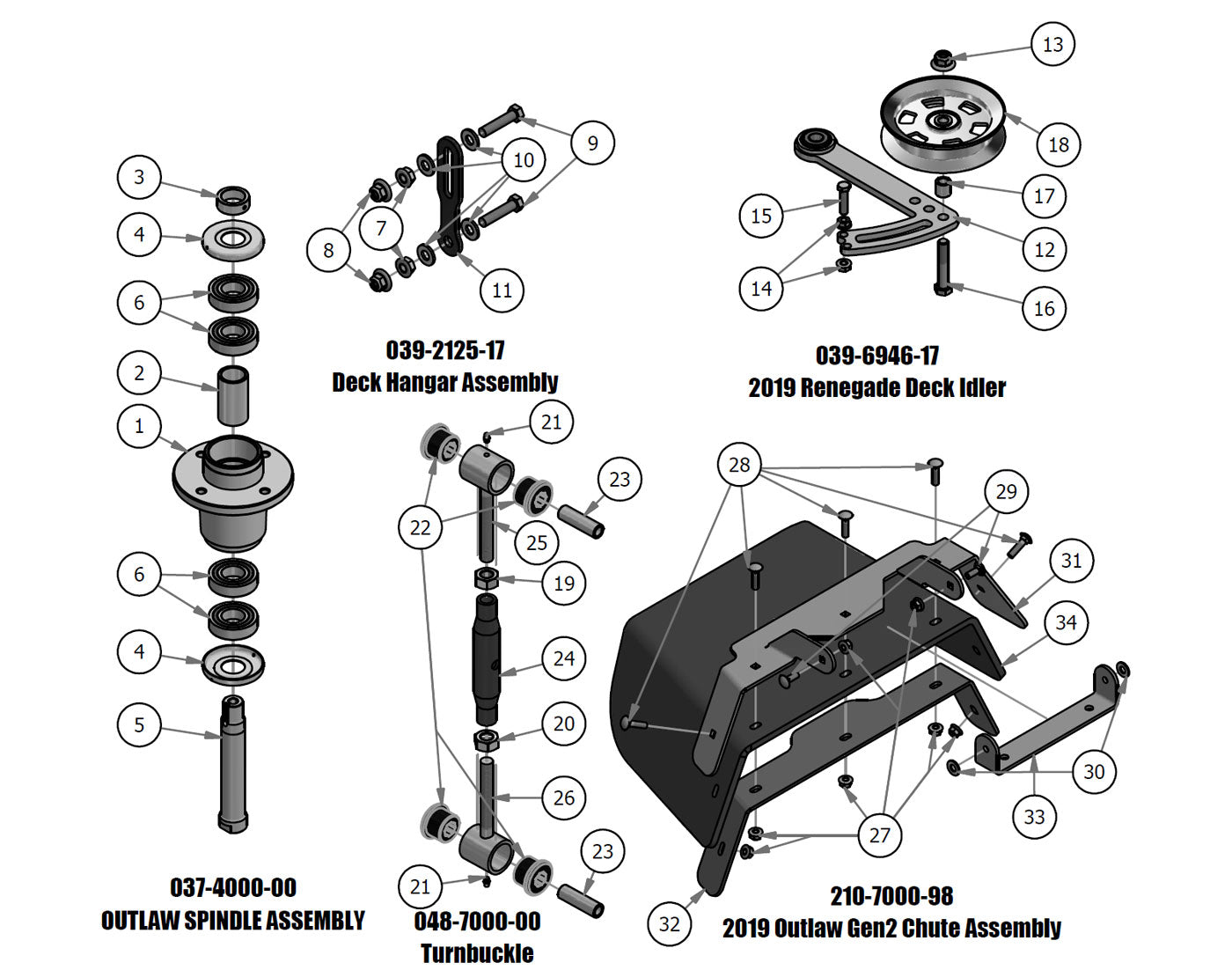

Spindle, Deck Hanger, Turnbuckle, Deck Idler, Chute Assembly
Parts Index
- 1 2017 Outlaw/XP/Diesel Cast Iron Spindle Housing (Qty 1)
- 2 2015 Spindle Spacer (Qty 1)
- 3 Collar Spacer - Top of Spindle (Qty 1)
- 4 Dust Cover for 037-8000-00 - (Qty 2)
- 5 Short Spindle Shaft for Locking Collar- No Grooved (Qty 1)
- 6 OBSOLETE USE 037-6029-00 (Qty 4)
- 7 1/2-13 Hex Fange Nuts Zinc w/ (Qty 2)
- 8 1/2-13 Nylon Insert Flange Nut (Qty 2)
- 9 1/2-13 X 2-1/4 GR 5 Hex Bolts (Qty 2)
- 10 .505 ID X 1 OD X .128 THK Washer (Qty 4)
- 11 OBSOLETE USE 039-2125-17 (Qty 1)
- 12 Idler Bracket--Plated (Qty 1)
- 13 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 14 3/8-16 Hex Flange Nuts Zinc w/ (Qty 2)
- 15 3/8 x 1 1/2 Bolt (Qty 1)
- 16 1/2-13 X 2-3/4 GR 5 Bolt Zinc (Qty 1)
- 17 Spacer 3/4ODx1/2IDx0.75 (Qty 1)
- 18 2017 5" Split Idler Pulley-Tensioner Only (Qty 1)
- 19 11/16-12 Hex Nut-2015 Toplink (Qty 1)
- 20 11/16-12 Lefthand Hex Nut-Topl (Qty 1)
- 21 1/4 Drive-in Grease Fitting (Qty 2)
- 22 Bushing-2015 Outlaw Toplink (Qty 4)
- 23 Sleeve-2015 Outlaw Toplink (Qty 2)
- 24 2015 Outlaw Toplink Body (Qty 1)
- 25 2015 Outlaw Toplink RH End (Qty 1)
- 26 2015 Outlaw Toplink LH End (Qty 1)
- 27 5/16-18 Nylon Flange Nut (Qty 7)
- 28 5/16-18 X 1-1/4 Carriage Bolt (Qty 5)
- 29 5/16 x 7/8 Carriage Bolt (Qty 2)
- 30 .360 ID Plastic Washer (Qty 2)
- 31 Chute Bracket (upper) (Qty 1)
- 32 Chute Bracket (lower) (Qty 1)
- 33 Chute Hanger (Qty 1)
- 34 Discharge Chute (Rubber Component) (Qty 1)
-
1#037-4000-01
2017 Outlaw/XP/Diesel Cast Iron Spindle Housing
Qty Used: 1Regular price $119.36 USDRegular priceUnit price per
-
2#037-4002-00
2015 Spindle Spacer
Qty Used: 1Regular price $6.62 USDRegular priceUnit price per
-
3#037-9050-00
Collar Spacer - Top of Spindle
Qty Used: 1Regular price $6.62 USDRegular priceUnit price per
-
4#037-8002-00
Dust Cover for 037-8000-00
Qty Used: 2Regular price $10.99 USDRegular priceUnit price per
-
5#037-6026-00
Short Spindle Shaft w/Locking Collar- No Grooved
Qty Used: 1Regular price $78.29 USDRegular priceUnit price per
-
6#037-6023-00
OBSOLETE USE 037-6029-00
Qty Used: 4Regular price $39.79 USDRegular priceUnit price per
-
7#013-5300-00
1/2-13 Hex Fange Nuts Zinc w/
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
813#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
9#018-6037-00
1/2-13 X 2-1/4 GR 5 Hex Bolts
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
10#019-8054-00
.505 ID X 1 OD X .128 THK Washer
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
11#039-2125-00
OBSOLETE USE 039-2125-17
Qty Used: 1Regular price $14.58 USDRegular priceUnit price per
-
12#039-6946-00
Idler Bracket--Plated
Qty Used: 1Regular price $33.16 USDRegular priceUnit price per
-
14#013-5201-00
3/8-16 Hex Flange Nuts Zinc w/
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
15#018-6012-00
3/8 x 1 1/2 Bolt
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
16#018-6036-00
1/2-13 X 2-3/4 GR 5 Bolt Zinc
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
17#025-5203-00
Spacer 3/4ODx1/2IDx0.75
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
18#033-8050-00
2017 5" Split Idler Pulley-Tensioner Only
Qty Used: 1Regular price $33.16 USDRegular priceUnit price per
-
19#013-0007-00
11/16-12 Hex Nut-2015 Toplink
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
20#013-0008-00
11/16-12 Lefthand Hex Nut-Topl
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
21#024-6034-00
1/4 Drive-in Grease Fitting
Qty Used: 2Regular price $0.66 USDRegular priceUnit price per
-
22#032-2000-00
Bushing-2015 Outlaw Toplink
Qty Used: 4Regular price $3.97 USDRegular priceUnit price per
-
23#032-2001-00
Sleeve-2015 Outlaw Toplink
Qty Used: 2Regular price $3.97 USDRegular priceUnit price per
-
24#048-7020-00
2015 Outlaw Toplink Body
Qty Used: 1Regular price $26.47 USDRegular priceUnit price per
-
25#048-7021-00
2015 Outlaw Toplink RH End
Qty Used: 1Regular price $29.13 USDRegular priceUnit price per
-
26#048-7022-00
2015 Outlaw Toplink LH End
Qty Used: 1Regular price $29.13 USDRegular priceUnit price per
-
27#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 7Regular price $0.79 USDRegular priceUnit price per
-
28#018-4703-00
5/16-18 X 1-1/4 Carriage Bolt
Qty Used: 5Regular price $0.69 USDRegular priceUnit price per
-
29#018-8066-00
5/16 x 7/8 Carriage Bolt
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
30#019-6042-00
.360 ID Plastic Washer
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-

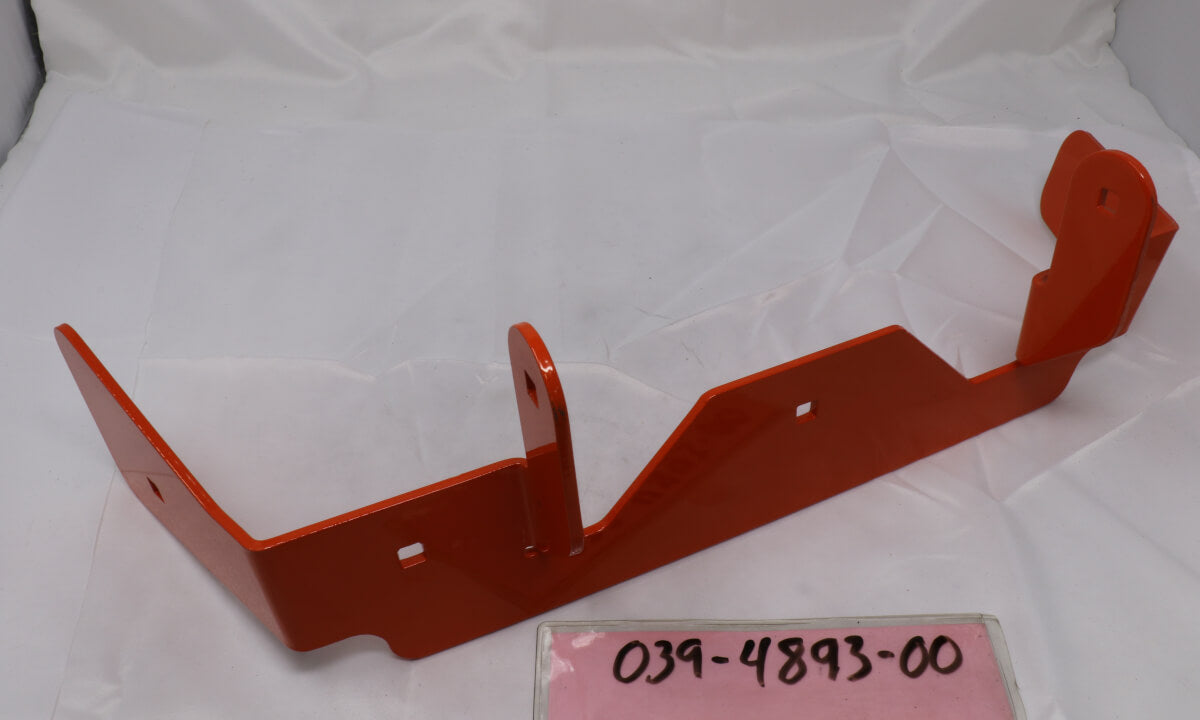

31#039-4893-00
Chute Bracket (upper)
Qty Used: 1Regular price $43.78 USDRegular priceUnit price per
-

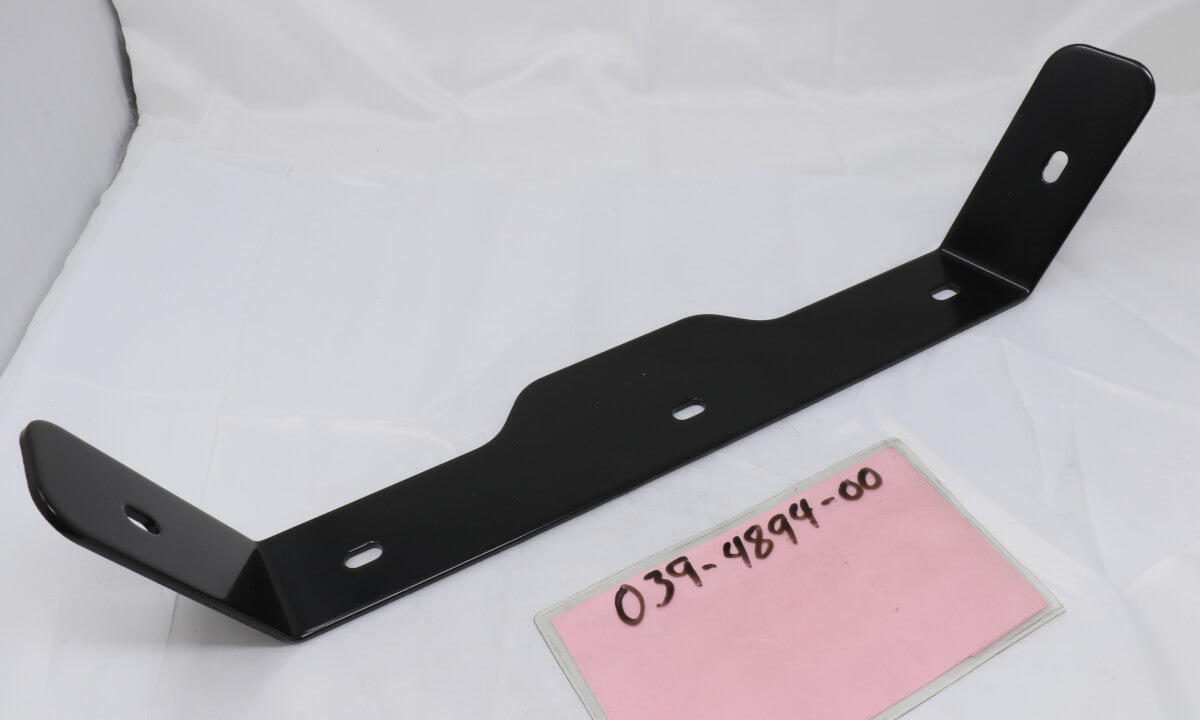

32#039-4894-00
Chute Bracket (lower)
Qty Used: 1Regular price $40.86 USDRegular priceUnit price per
-

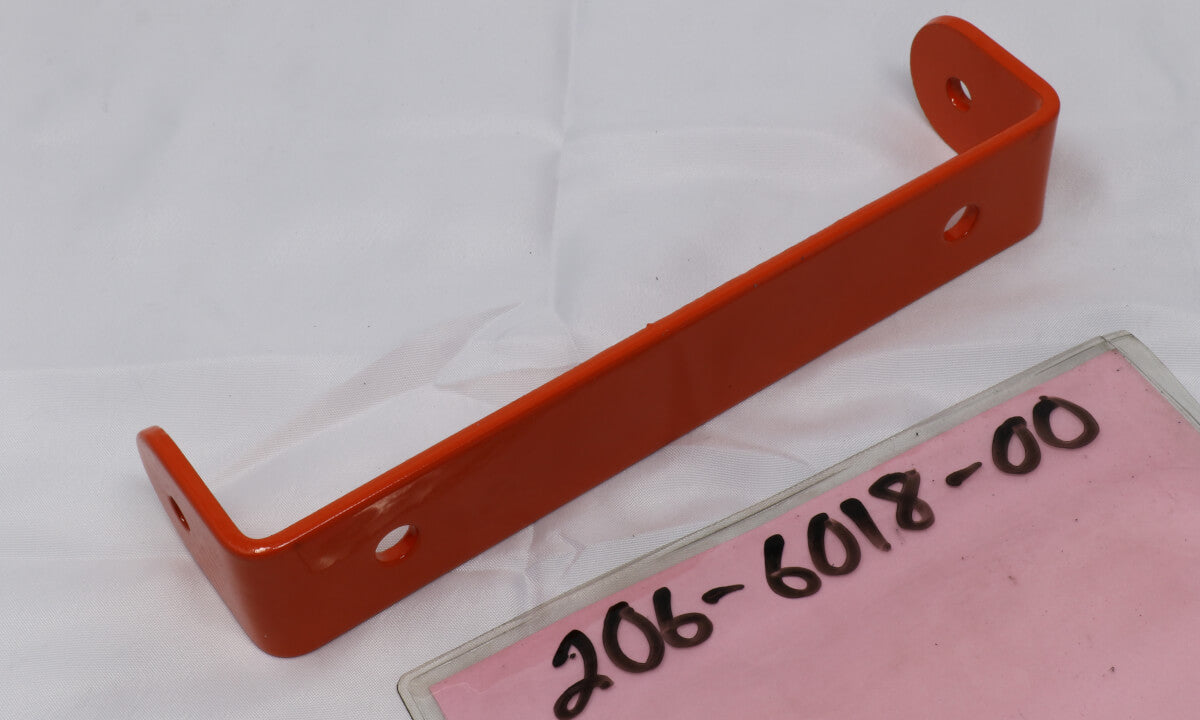

33#206-6018-00
Chute Hanger
Qty Used: 1Regular price $8.79 USDRegular priceUnit price per
-
34#210-6025-00
Discharge Chute (Rubber Component)
Qty Used: 1Regular price $58.32 USDRegular priceUnit price per
