Seat & Brake

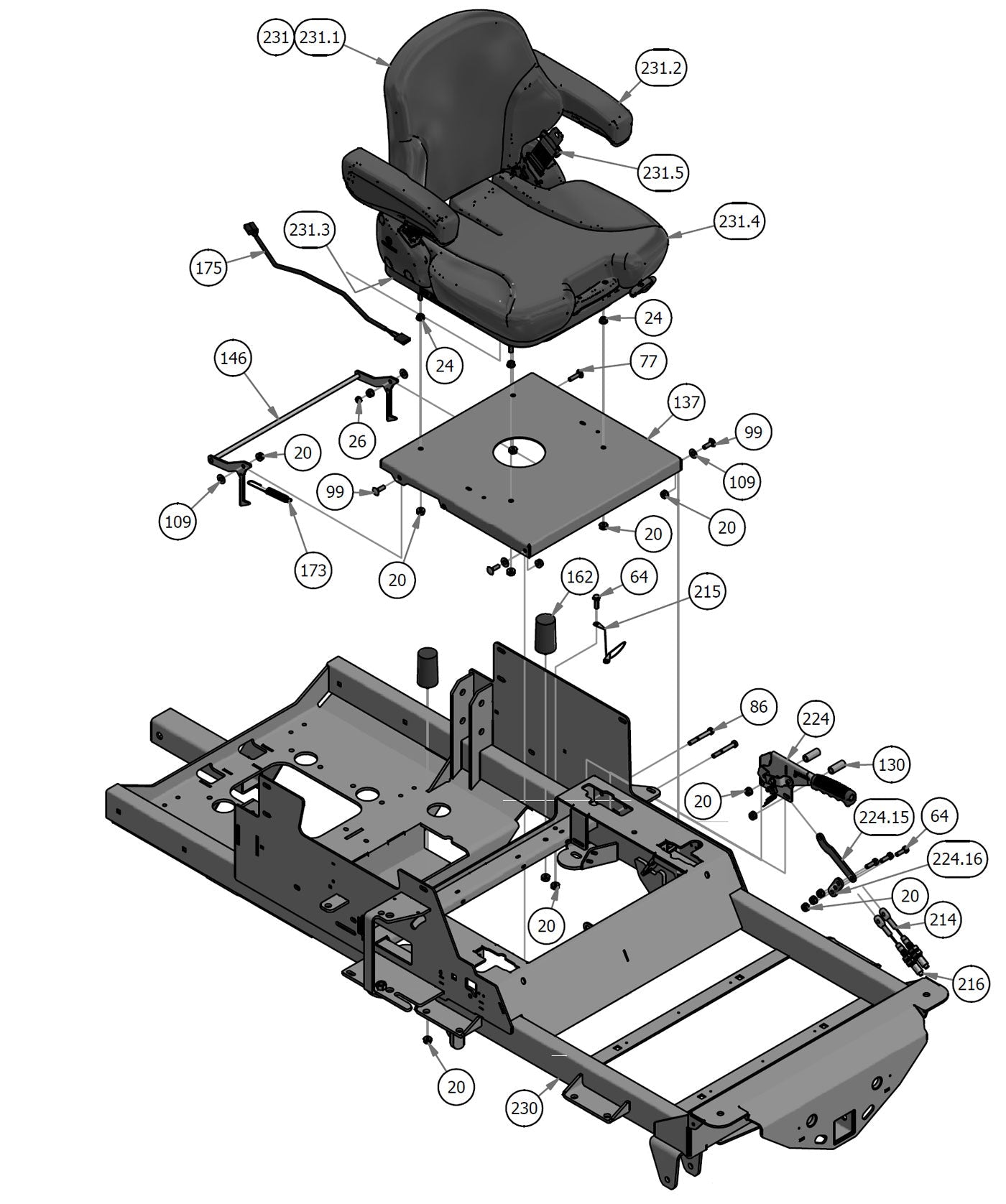

Parts Index
- 20 5/16-18 Nylon Flange Nut (Qty 16)
- 24 5/16-18 Hex Flange Nuts Zinc w (Qty 4)
- 26 5/16-18 Nylock Jam Nut (Qty 1)
- 64 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 4)
- 77 5/16-18 X 1-1/4 Carriage Bolt (Qty 1)
- 86 5/16 x 2 1/2 Bolt (Qty 2)
- 99 5/16-18 X 1 Carriage Bolt Zinc (Qty 3)
- 109 .360 ID Plastic Washer (Qty 4)
- 130 2019 Brake Handle Spacer .625 x 1.5 (Qty 2)
- 137 Seat Plate--Orange (Qty 1)
- 146 Seat Latch Rod (Qty 1)
- 162 Bumper (Seat) (Qty 2)
- 173 Brake Spring (Qty 1)
- 175 Seat Switch Adaptor - Pup (Qty 1)
- 214 2019 Short Brake Cable-Suspension Models (Qty 1)
- 215 Seat Cable (Qty 1)
- 216 2019 Long Brake Cable-Renegade, Rogue (Qty 1)
- 224 2019 Rebel, Rogue, Renegade Brake Handle Assy (Qty 1)
- 224.15 2019 Brake Load Balancer Tab-Upper (Qty 1)
- 224.16 2019 Brake Load Balancer Tab-Lower (Qty 1)
- 230 2019 Horizontal Diesel Frame (Qty 1)
- 231 2019 Renegade Gas/Diesel Seat with Seatbelt (Qty 1)
- 231.1 Backrest Cushion for 2019 Renegade Gas/Diesel Seat (Qty 1)
- 231.2 Arm rest Kit for 2019 Renegade Gas/Diesel Seat (Qty 1)
- 231.3 Slave & Adjuster for 2019 Renegade Gas/Diesel Seat (Qty 1)
- 231.4 Seat Cushion for 2019 Renegade Gas/Diesel Seat (Qty 1)
- 231.5 Seatbelt for 2019 Renegade Gas/Diesel Seat (Qty 1)
- 231.6 Seat Switch for 2019 Renegade Gas/Diesel Seat/ (Qty 1)
-
20#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 16Regular price $0.79 USDRegular priceUnit price per
-
24#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
26#013-9005-00
5/16-18 Nylock Jam Nut
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
64#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 4Regular price $0.00 USDRegular priceUnit price per
-
77#018-4703-00
5/16-18 X 1-1/4 Carriage Bolt
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
86#018-5344-00
5/16 x 2 1/2 Bolt
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
99#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 3Regular price $0.79 USDRegular priceUnit price per
-
109#019-6042-00
.360 ID Plastic Washer
Qty Used: 4Regular price $0.00 USDRegular priceUnit price per
-
130#025-0027-00
2019 Brake Handle Spacer .625 x 1.5
Qty Used: 2Regular price $6.59 USDRegular priceUnit price per
-
137#026-2019-00
Seat Plate--Orange
Qty Used: 1Regular price $92.82 USDRegular priceUnit price per
-
146#028-0090-00
Seat Latch Rod
Qty Used: 1Regular price $36.42 USDRegular priceUnit price per
-
162#032-0001-00
Bumper (Seat)
Qty Used: 2Regular price $21.88 USDRegular priceUnit price per
-
173#034-1025-00
Compact Outlaw Brake Spring
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
175#036-5300-00
Seat Switch Adaptor - Pup
Qty Used: 1Regular price $14.53 USDRegular priceUnit price per
-
214#064-8054-00
2019 Short Brake Cable-Suspension Models
Qty Used: 1Regular price $48.10 USDRegular priceUnit price per
-
215#064-8081-00
Seat Cable
Qty Used: 1Regular price $14.58 USDRegular priceUnit price per
-
216#064-9002-00
2019 Long Brake Cable-Renegade, Rogue
Qty Used: 1Regular price $48.10 USDRegular priceUnit price per
-
224#069-0001-00
2019 Rebel, Rogue, Renegade Brake Handle Assy
Qty Used: 1Regular price $132.68 USDRegular priceUnit price per
-
224.15#039-2136-00
2019 Brake Load Balancer Tab-Upper
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
224.16#039-2138-00
2019 Brake Load Balancer Tab-Lower
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
No sequence found for SKU:
2019 Horizontal Diesel Frame
Regular price $0.00 USDRegular priceUnit price per
-
231#071-5065-00
2019 Renegade Gas/Diesel Seat with Seatbelt
Qty Used: 1Regular price $899.99 USDRegular priceUnit price per
-
231.1#071-5065-03
Backrest Cushion for 2019 Renegade Gas/Diesel Seat
Qty Used: 1Regular price $169.99 USDRegular priceUnit price per
-
231.2#071-5065-06
Arm rest Kit for 2019 Renegade Gas/Diesel Seat
Qty Used: 1Regular price $132.68 USDRegular priceUnit price per
-
231.3#071-5065-05
Slave & Adjuster for 2019 Renegade Gas/Diesel Seat
Qty Used: 1Regular price $79.60 USDRegular priceUnit price per
-
231.4#071-5065-04
Seat Cushion for 2019 Renegade Gas/Diesel Seat
Qty Used: 1Regular price $179.99 USDRegular priceUnit price per
-
231.5#071-5065-02
Seatbelt for 2019 Renegade Gas/Diesel Seat
Qty Used: 1Regular price $132.68 USDRegular priceUnit price per
-
231.6#071-5065-07
Seat Switch for 2019 Renegade Gas/Diesel Seat
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
