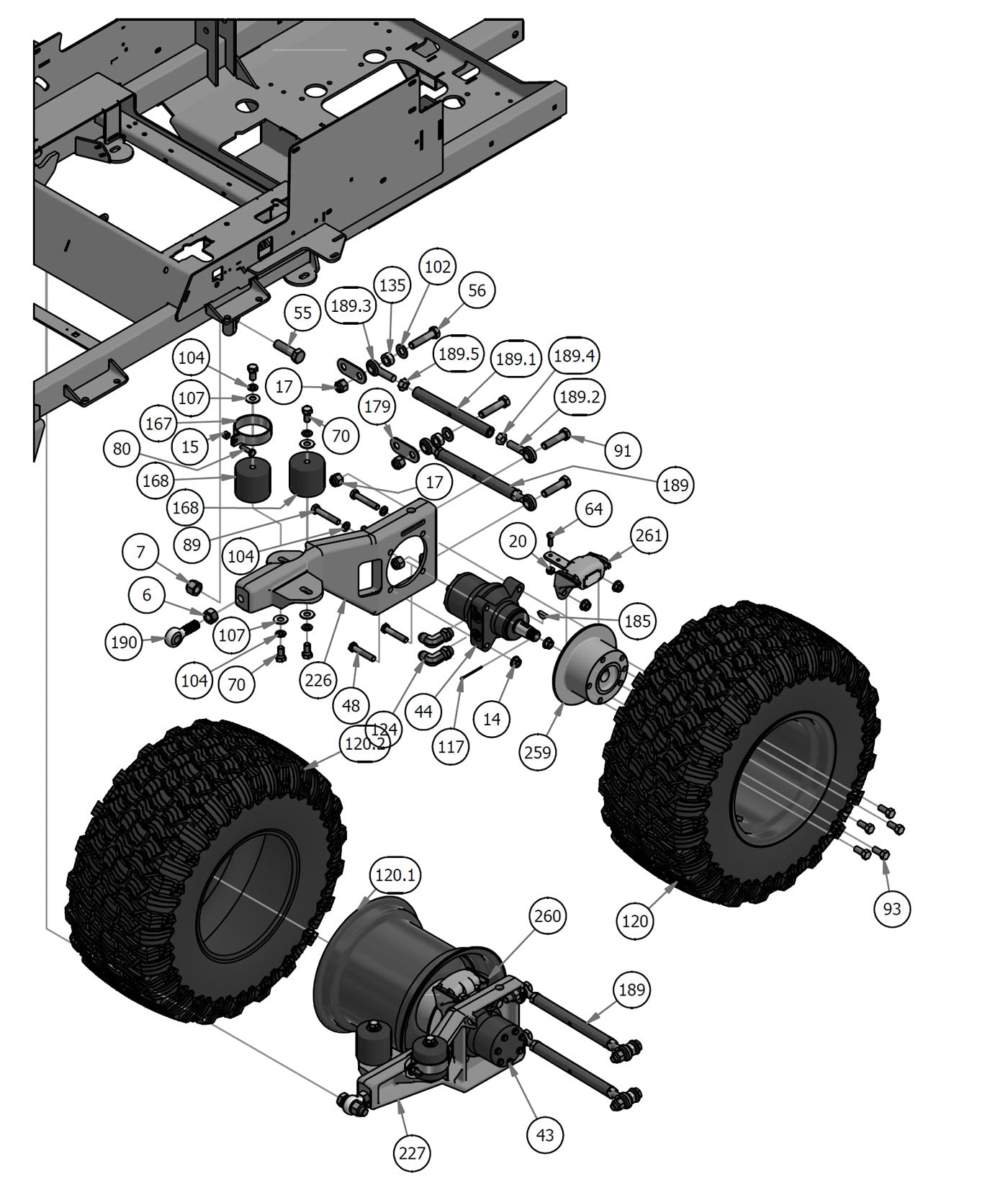

Rear Swing Arms
Parts Index
- 6 3/4"-16 Fine Full Nut (Qty 2)
- 7 3/4" Course Thread Nylon Lock Nut (Qty 2)
- 14 1/2-13 Hex Fange Nuts Zinc w/ (Qty 8)
- 15 3/8-16 Hex Nuts Zinc (Qty 2)
- 17 5/8-11 Nylon Insert Locknut Zi (Qty 8)
- 20 5/16-18 Nylon Flange Nut (Qty 2)
- 43 18ci Parker Wheel Motor-Right (Qty 1)
- 44 18ci Parker Wheel Motor - Left (Qty 1)
- 48 1/2-13 x 2 1/2 Hex Bolt Gr 5 (Qty 4)
- 55 3/4 x 2 1/2 Course Thread Bolt (Qty 2)
- 56 5/8-11 x 2 3/4 Hex Head Bolt GR 5 (Qty 4)
- 64 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 2)
- 70 1/2 x 1 Bolt (Qty 8)
- 80 3/8-16 X 1-1/4 GR 5 Hex Bolt (Qty 2)
- 89 1/2-13 X 2-3/4 GR 5 Bolt Zinc (Qty 4)
- 91 5/8-11 X 2-1/2 GR 5 Hex Bolts (Qty 4)
- 93 1/2-20 Wheel Bolt -3/4" 60 Degree Seat 1" Threads (Qty 10)
- 102 1/2 Lockwasher Zinc (Qty 4)
- 104 1/2 Lockwasher Zinc (Qty 12)
- 107 1/2 SAE Flat Washer GR 8 (Qty 8)
- 117 1/8 X 1 1/2 Cotter Pins Zinc (Qty 2)
- 120 2019 Assy-26x12-12 Reaper Turf 2019-10.5" Rim (Qty 2)
- 120.1 2019 10.5" Wheel Fits 022-4090-00 (Qty 2)
- 120.2 2019 26x12-12 Reaper Turf Tire (Qty 2)
- 124 2019 Rogue/Renegade Wheel Motor 90* Fitting (Qty 4)
- 135 5/8 Set Collar W/One Set Screw (Qty 4)
- 167 Isolator Band (Qty 2)
- 168 Isolator (Blue Dot) (Qty 4)
- 179 2019 Suspension Gusset--Plated (Qty 2)
- 185 Woodruff Key-Wheel Motor (Qty 2)
- 189 OBSOLETE USE 048-6061-00 (Qty 4)
- 189.1 2019 Suspension Link Body-RH and LH Threads (Qty 4)
- 189.2 Heim 5/8" RH (Qty 4)
- 189.3 Heim 5/8" LH (Qty 4)
- 189.4 Nut, 5/8-18 RH (Qty 4)
- 189.5 Nut, 5/8-18 LH (Qty 4)
- 190 Heim 3/4" RH (Qty 2)
- 226 2019 Left Trailing Arm (Qty 1)
- 227 2019 Right Trailing Arm (Qty 1)
- 230 2019 Horizontal Diesel Frame (Qty 1)
- 259 Brake Disc (96-37486) (Qty 2)
- 260 Brake Caliper with Bracket RH (Qty 1)
- 261 Brake Caliper with Bracket LH (Qty 1)
-
6#013-0022-00
3/4"-16 Fine Full Nut
Qty Used: 2Regular price $6.69 USDRegular priceUnit price per
-
7#013-0023-00
3/4" Course Thread Nylon Lock Nut
Qty Used: 2Regular price $6.69 USDRegular priceUnit price per
-
14#013-5300-00
1/2-13 Hex Fange Nuts Zinc w/
Qty Used: 8Regular price $0.79 USDRegular priceUnit price per
-
15#013-6014-00
3/8-16 Hex Nuts Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
17#013-7021-00
5/8-11 Nylon Insert Locknut Zi
Qty Used: 8Regular price $1.19 USDRegular priceUnit price per
-
20#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
43#015-4600-00
18ci Parker Wheel Motor-Right
Qty Used: 1Regular price $599.00 USDRegular priceUnit price per
-
44#015-4601-00
18ci Parker Wheel Motor - Left
Qty Used: 1Regular price $599.00 USDRegular priceUnit price per
-
48#018-0015-00
1/2-13 x 2 1/2 Hex Bolt Gr 5
Qty Used: 4Regular price $2.69 USDRegular priceUnit price per
-
55#018-0045-00
3/4 x 2 1/2 Course Thread Bolt
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
56#018-0049-00
5/8-11 x 2 3/4 Hex Head Bolt GR 5
Qty Used: 4Regular price $3.99 USDRegular priceUnit price per
-
64#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
70#018-2030-00
1/2 x 1 Bolt
Qty Used: 8Regular price $2.69 USDRegular priceUnit price per
-
80#018-5040-00
3/8-16 X 1-1/4 GR 5 Hex Bolt
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
89#018-6036-00
1/2-13 X 2-3/4 GR 5 Bolt Zinc
Qty Used: 4Regular price $1.59 USDRegular priceUnit price per
-
91#018-6059-00
5/8-11 X 2-1/2 GR 5 Hex Bolts
Qty Used: 4Regular price $2.29 USDRegular priceUnit price per
-
93#018-7033-00
1/2-20 Wheel Bolt -3/4" 60 Degree Seat 1" Threads
Qty Used: 10Regular price $1.99 USDRegular priceUnit price per
-
102104#019-5007-00
1/2 Lockwasher Zinc
Qty Used: 12Regular price $0.00 USDRegular priceUnit price per
-
107#019-5702-00
1/2 SAE Flat Washer GR 8
Qty Used: 8Regular price $0.75 USDRegular priceUnit price per
-
117#020-7022-00
1/8 X 1 1/2 Cotter Pins Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
120#022-4090-00
2019 Assy-26x12-12 Reaper Turf 2019-10.5" Rim
Qty Used: 2Regular price $209.99 USDRegular priceUnit price per
-
120.1#022-4086-00
2019 10.5" Wheel Fits 022-4090-00
Qty Used: 2Regular price $131.99 USDRegular priceUnit price per
-
120.2#022-4085-00
2019 26x12-12 Reaper Turf Tire
Qty Used: 2Regular price $209.99 USDRegular priceUnit price per
-
124#024-2065-00
2019 Rogue/Renegade Wheel Motor 90* Fitting
Qty Used: 4Regular price $17.45 USDRegular priceUnit price per
-
135#025-7020-00
5/8 Set Collar W/One Set Screw
Qty Used: 4Regular price $3.97 USDRegular priceUnit price per
-
167#032-7000-00
Isolator Band
Qty Used: 2Regular price $72.91 USDRegular priceUnit price per
-
168#032-8999-00
Isolator (Blue Dot)
Qty Used: 4Regular price $60.02 USDRegular priceUnit price per
-
179#039-2145-00
2019 Suspension Gusset--Plated
Qty Used: 2Regular price $13.26 USDRegular priceUnit price per
-
185#042-7041-00
Woodruff Key-Wheel Motor
Qty Used: 2Regular price $13.26 USDRegular priceUnit price per
-
189#048-0001-98
OBSOLETE USE 048-6061-00
Qty Used: 4Regular price $0.00 USDRegular priceUnit price per
-
189.1#048-0001-00
2019 Suspension Link Body-RH and LH Threads
Qty Used: 4Regular price $26.47 USDRegular priceUnit price per
-
189.2#048-6062-00
Heim 5/8" RH
Qty Used: 4Regular price $19.89 USDRegular priceUnit price per
-
189.3#048-6063-00
Heim 5/8" LH
Qty Used: 4Regular price $19.89 USDRegular priceUnit price per
-
189.4#013-0019-00
Nut, 5/8-18 RH
Qty Used: 4Regular price $3.99 USDRegular priceUnit price per
-
189.5#013-0020-00
Nut, 5/8-18 LH
Qty Used: 4Regular price $3.99 USDRegular priceUnit price per
-
190#048-7001-00
Heim 3/4" RH
Qty Used: 2Regular price $26.53 USDRegular priceUnit price per
-
226#070-0001-00
2019 Left Trailing Arm
Qty Used: 1Regular price $291.91 USDRegular priceUnit price per
-
227#070-0002-00
2019 Right Trailing Arm
Qty Used: 1Regular price $219.99 USDRegular priceUnit price per
-
No sequence found for SKU:
2019 Horizontal Diesel Frame
Regular price $0.00 USDRegular priceUnit price per
-
259#092-5201-00
Brake Disc (96-37486)
Qty Used: 2Regular price $119.36 USDRegular priceUnit price per
-
260#092-7000-00
Brake Caliper RH
Qty Used: 1Regular price $92.82 USDRegular priceUnit price per
-
261#092-7001-00
Brake Caliper with Bracket LH
Qty Used: 1Regular price $92.82 USDRegular priceUnit price per
